- 1. PRODUCTS OVERVIEW SICURIT a dedicated division of www.sicurit.com 2016

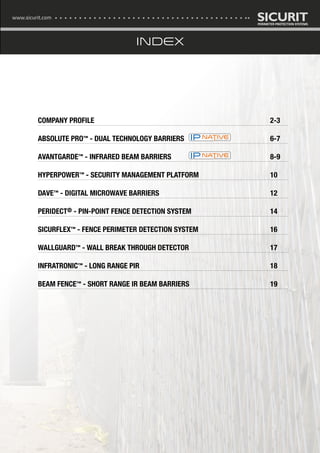

- 3. COMPANY PROFILE 2-3 ABSOLUTE PRO - DUAL TECHNOLOGY BARRIERS 6-7 AVANTGARDE - INFRARED BEAM BARRIERS 8-9 HYPERPOWER - SECURITY MANAGEMENT PLATFORM 10 DAVE - DIGITAL MICROWAVE BARRIERS 12 PERIDECT速 - PIN-POINT FENCE DETECTION SYSTEM 14 SICURFLEX - FENCE PERIMETER DETECTION SYSTEM 16 WALLGUARD - WALL BREAK THROUGH DETECTOR 17 INFRATRONIC - LONG RANGE PIR 18 BEAM FENCE - SHORT RANGE IR BEAM BARRIERS 19 www.sicurit.com INDEX

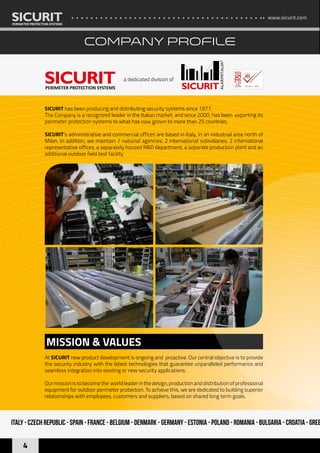

- 4. www.sicurit.com 4 COMPANY PROFILE SICURIT has been producing and distributing security systems since 1971. The Company is a recognized leader in the Italian market, and since 2000, has been exporting its perimeter protection systems to what has now grown to more than 25 countries. SICURITs administrative and commercial offices are based in Italy, in an industrial area north of Milan. In addition, we maintain 7 national agencies, 2 international subsidiaries, 2 international representative offices, a separately housed R&D department, a separate production plant and an additional outdoor field test facility a dedicated division of MISSION & VALUES ISO 9001 : 2008 At SICURIT new product development is ongoing and proactive. Our central objective is to provide the security industry with the latest technologies that guarantee unparalleled performance and seamless integration into existing or new security applications. Our mission is to become the world leader in the design, production and distribution of professional equipment for outdoor perimeter protection. To achieve this, we are dedicated to building superior relationships with employees, customers and suppliers, based on shared long term goals. Italy - Czech Republic - Spain - France - Belgium - Denmark - Germany - Estonia - Poland - Romania - Bulgaria - Croatia - Gree

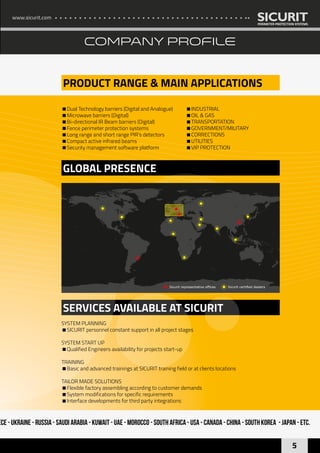

- 5. www.sicurit.com 5 COMPANY PROFILE PRODUCT RANGE & MAIN APPLICATIONS GLOBAL PRESENCE SERVICES AVAILABLE AT SICURIT Dual Technology barriers (Digital and Analogue) Microwave barriers (Digital) Bi-directional IR Beam barriers (Digital) Fence perimeter protection systems Long range and short range PIRs detectors Compact active infrared beams Security management software platform INDUSTRIAL OIL & GAS TRANSPORTATION GOVERNMENT/MILITARY CORRECTIONS UTILITIES VIP PROTECTION SYSTEM PLANNING SICURIT personnel constant support in all project stages SYSTEM START UP Qualified Engineers availability for projects start-up TRAINING Basic and advanced trainings at SICURIT training field or at clients locations TAILOR MADE SOLUTIONS Flexible factory assembling according to customer demands System modifications for specific requirements Interface developments for third party integrations ece - Ukraine - Russia - Saudi Arabia - Kuwait - UAE - Morocco - South Africa - USA - Canada - China - South Korea - Japan - ETC. Sicurit certified dealersSicurit representative offices
- 7. Dual Tech barriers protecting sensitive governmental building

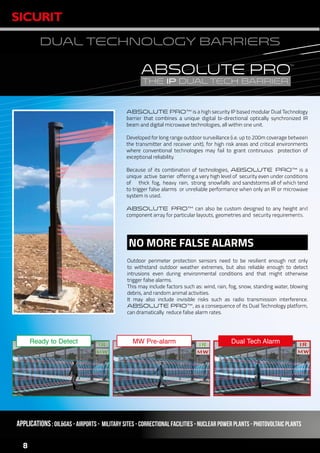

- 8. www.sicurit.com 8 DUAL TECHNOLOGY BARRIERS ABSOLUTE PRO is a high security IP based modular Dual Technology barrier that combines a unique digital bi-directional optically synchronized IR beam and digital microwave technologies, all within one unit. Developed for long range outdoor surveillance (i.e. up to 200m coverage between the transmitter and receiver unit), for high risk areas and critical environments where conventional technologies may fail to grant continuous protection of exceptional reliability. Because of its combination of technologies, ABSOLUTE PRO is a unique active barrier offering a very high level of security even under conditions of thick fog, heavy rain, strong snowfalls and sandstorms all of which tend to trigger false alarms or unreliable performance when only an IR or microwave system is used. ABSOLUTE PRO can also be custom designed to any height and component array for particular layouts, geometries and security requirements. APPLICATIONS: Oil&gas - Airports - Military sites - Correctional facilities - Nuclear POWER plants - PHOTOVOLTAIC PLANTS Outdoor perimeter protection sensors need to be resilient enough not only to withstand outdoor weather extremes, but also reliable enough to detect intrusions even during environmental conditions and that might otherwise trigger false alarms. This may include factors such as: wind, rain, fog, snow, standing water, blowing debris, and random animal activities. It may also include invisible risks such as radio transmission interference. ABSOLUTE PRO, as a consequence of its Dual Technology platform, can dramatically reduce false alarm rates. NO MORE FALSE ALARMS MW Pre-alarm Dual Tech AlarmReady to Detect

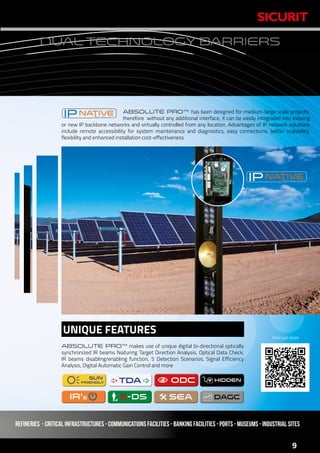

- 9. www.sicurit.com 9 DUAL TECHNOLOGY BARRIERS ABSOLUTE PRO has been designed for medium-large scale projects, therefore without any additional interface, it can be easily integrated into existing or new IP backbone networks and virtually controlled from any location. Advantages of IP network solutions include remote accessibility for system maintenance and diagnostics, easy connections, better scalability, flexibility and enhanced installation cost-effectiveness ABSOLUTE PRO makes use of unique digital bi-directional optically synchronized IR beams featuring Target Direction Analysis, Optical Data Check, IR beams disabling/enabling function, 5 Detection Scenarios, Signal Efficiency Analysis, Digital Automatic Gain Control and more ODC ODCSUN FRiENDLY SUN FRiENDLY 5-ds5-dsIR'SIR'S TDATDA SEASEA UNIQUE FEATURES HIDDENHIDDEN Find out more Refineries - critical infrastructures - Communications facilities - Banking facilities - Ports - Museums - Industrial Sites

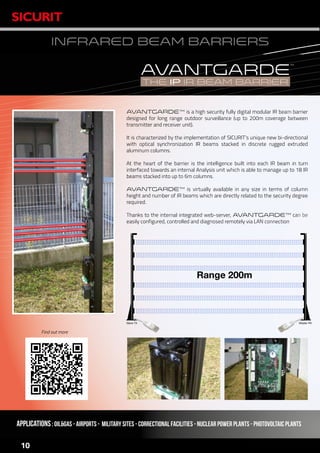

- 10. www.sicurit.com 10 infrared BEAM BARRIERS AVANTGARDE is a high security fully digital modular IR beam barrier designed for long range outdoor surveillance (up to 200m coverage between transmitter and receiver unit). It is characterized by the implementation of SICURITs unique new bi-directional with optical synchronization IR beams stacked in discrete rugged extruded aluminum columns. At the heart of the barrier is the intelligence built into each IR beam in turn interfaced towards an internal Analysis unit which is able to manage up to 18 IR beams stacked into up to 6m columns. AVANTGARDE is virtually available in any size in terms of column height and number of IR beams which are directly related to the security degree required. Thanks to the internal integrated web-server, AVANTGARDE can be easily configured, controlled and diagnosed remotely via LAN connection Find out more Master RX Range 200m Slave TX APPLICATIONS: Oil&gas - Airports - Military sites - Correctional facilities - Nuclear POWER plants - PHOTOVOLTAIC PLANTS

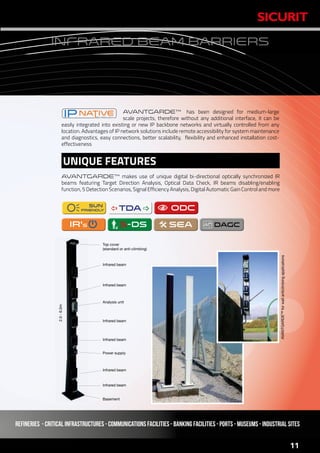

- 11. www.sicurit.com 11 infrared BEAM BARRIERS AVANTGARDE makes use of unique digital bi-directional optically synchronized IR beams featuring Target Direction Analysis, Optical Data Check, IR beams disabling/enabling function, 5 Detection Scenarios, Signal Efficiency Analysis, Digital Automatic Gain Control and more ODC ODCSUN FRiENDLY SUN FRiENDLY 5-ds5-dsIR'SIR'S TDATDA SEASEA UNIQUE FEATURES Infrared beam Top cover (standard or anti-climbing) Infrared beam 2.0-6.0m Analysis unit Infrared beam Infrared beam Power supply Infrared beam Infrared beam Basement AVANTGARDEforwallanticlimbingapplications AVANTGARDE has been designed for medium-large scale projects, therefore without any additional interface, it can be easily integrated into existing or new IP backbone networks and virtually controlled from any location. Advantages of IP network solutions include remote accessibility for system maintenance and diagnostics, easy connections, better scalability, flexibility and enhanced installation cost- effectiveness Refineries - critical infrastructures - Communications facilities - Banking facilities - Ports - Museums - Industrial Sites

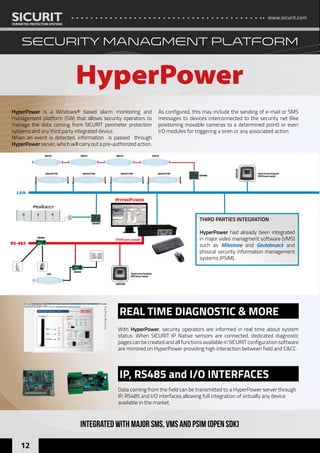

- 12. www.sicurit.com 12 SECURITY MANAGMENT PLATFORM HyperPower is a Windows速 based alarm monitoring and management platform (SW) that allows security operators to manage the data coming from SICURIT perimeter protection systems and any third party integrated device. When an event is detected, information is passed through HyperPower server, which will carry out a pre-authorized action. As configured, this may include the sending of e-mail or SMS messages to devices interconnected to the security net (like positioning movable cameras to a determined point) or even I/O modules for triggering a siren or any associated action. INTEGRATED WITH MAJOR SMS, VMS AND PSIM (OPEN SDK) Data coming from the field can be transmitted to a HyperPower server through IP, RS485 and I/O interfaces allowing full integration of virtually any device available in the market. With HyperPower, security operators are informed in real time about system status. When SICURIT IP Native sensors are connected, dedicated diagnostic pages can be created and all functions available in SICURIT configuration software are mirrored on HyperPower providing high interaction between field and C&CC. REAL TIME DIAGNOSTIC & MORE IP, RS485 and I/O INTERFACES HyperPower HYPERPOWER ABSOLUTE PRO ABSOLUTE PRO ABSOLUTE PRO ABSOLUTE PRO LAN RS-485 DAVE DAVE RSDAVE RSDAVE RSDAVE RS CMH088 CMH088 CMH9000 CMH9000 -Touch ScreenTerminals - RFID Access Control CMHTA500 -Touch ScreenTerminals - RFID Access Control 8 RS485 ports available CMHTA500 THIRD PARTIES INTEGRATION HyperPower had already been integrated in major video managment software (VMS) such as Milestone and Geutebrueck and phisical security information management systems (PSIM).

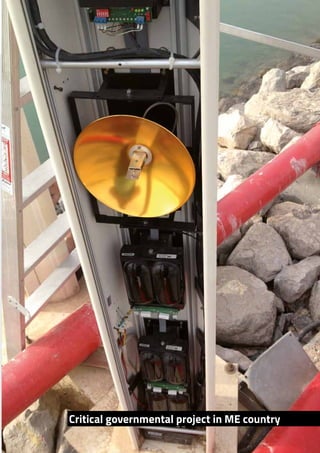

- 13. Critical governmental project in ME country

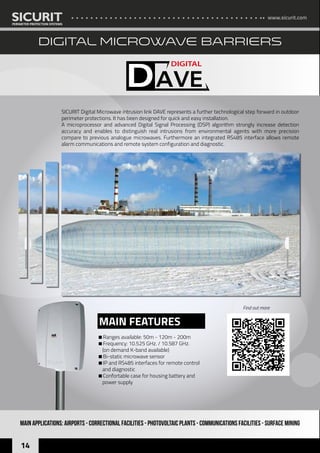

- 14. www.sicurit.com 14 MAIN APPLICATIONS: AIRPORTS - CORRECTIONAL FACILITIES - PHOTOVOLTAIC PLANTS - Communications facilities - SURFACE MINING SICURIT Digital Microwave intrusion link DAVE represents a further technological step forward in outdoor perimeter protections. It has been designed for quick and easy installation. A microprocessor and advanced Digital Signal Processing (DSP) algorithm strongly increase detection accuracy and enables to distinguish real intrusions from environmental agents with more precision compare to previous analogue microwaves. Furthermore an integrated RS485 interface allows remote alarm communications and remote system configuration and diagnostic. Ranges available: 50m - 120m - 200m Frequency: 10.525 GHz. / 10.587 GHz. (on demand K-band available) Bi-static microwave sensor IP and RS485 interfaces for remote control and diagnostic Confortable case for housing battery and power supply MAIN FEATURES DIGITAL MICROWAVE BARRIERS Find out more

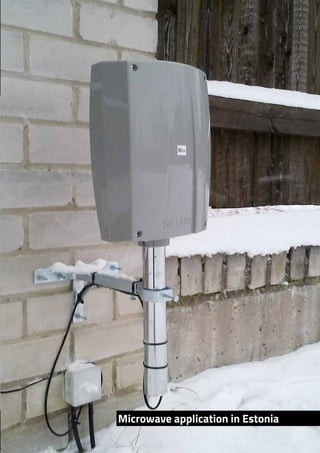

- 15. Microwave application in Estonia

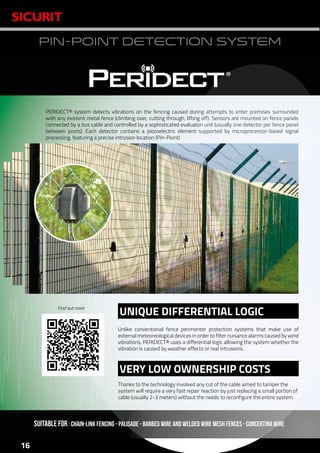

- 16. www.sicurit.com 16 PIN-POINT DETECTION SYSTEM PERIDECT速 system detects vibrations on the fencing caused during attempts to enter premises surrounded with any existent metal fence (climbing over, cutting through, lifting off). Sensors are mounted on fence panels connected by a bus cable and controlled by a sophisticated evaluaton unit (usually one detector per fence panel between posts). Each detector contains a piezoelectric element supported by microprocessor-based signal processing, featuring a precise intrusion location (Pin-Point) SUITABLE FOR: Chain-link fencing - Palisade - Barbed wire and welded wire mesh fences - concertina wire Thanks to the technology involved any cut of the cable aimed to tamper the system will require a very fast repair reaction by just replacing a small portion of cable (usually 2-3 meters) without the needs to reconfigure the entire system. Unlike conventional fence perimenter protection systems that make use of external meteoreological devices in order to filter nuisance alarms caused by wind vibrations, PERIDECT速 uses a differential logic allowing the system whether the vibration is caused by weather effects or real intrusions. UNIQUE DIFFERENTIAL LOGIC VERY LOW OWNERSHIP COSTS Find out more

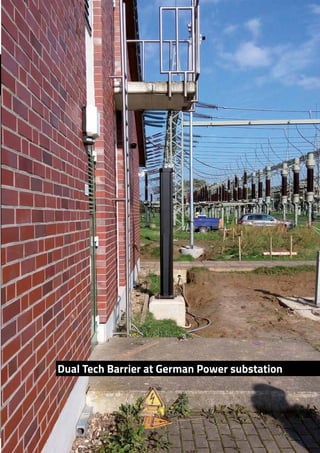

- 17. Dual Tech Barrier at German Power substation

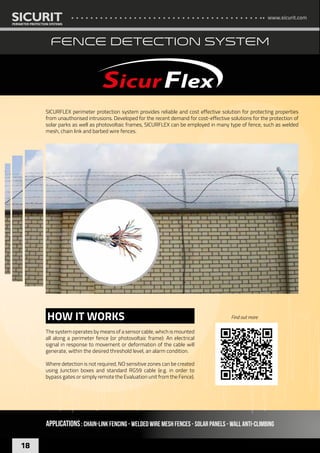

- 18. www.sicurit.com 18 FENCE DETECTION SYSTEM SICURFLEX perimeter protection system provides reliable and cost effective solution for protecting properties from unauthorised intrusions. Developed for the recent demand for cost-effective solutions for the protection of solar parks as well as photovoltaic frames, SICURFLEX can be employed in many type of fence, such as welded mesh, chain link and barbed wire fences. APPLICATIONS: CHAIN-LINK FENCING - welded wire mesh fences - SOLAR PANELS - WALL ANTI-CLIMBING The system operates by means of a sensor cable, which is mounted all along a perimeter fence (or photovoltaic frame): An electrical signal in response to movement or deformation of the cable will generate, within the desired threshold level, an alarm condition. Where detection is not required, NO sensitive zones can be created using Junction boxes and standard RG59 cable (e.g. in order to bypass gates or simply remote the Evaluation unit from the Fence). HOW IT WORKS Find out more

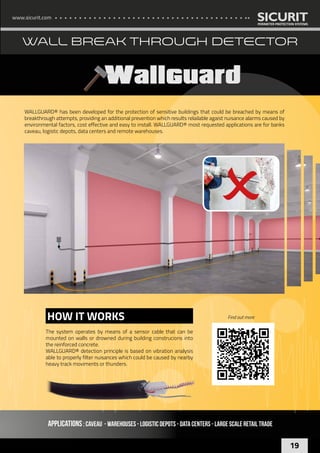

- 19. www.sicurit.com 19 WALL BREAK THROUGH DETECTOR APPLICATIONS: Caveau - Warehouses - Logistic depots - Data centers - LARGE SCALE RETAIL TRADE WALLGUARD速 has been developed for the protection of sensitive buildings that could be breached by means of breakthrough attempts, providing an additional prevention which results relailable agaist nuisance alarms caused by environmental factors, cost effective and easy to install. WALLGUARD速 most requested applications are for banks caveau, logistic depots, data centers and remote warehouses. The system operates by means of a sensor cable that can be mounted on walls or drowned during building construcions into the reinforced concrete. WALLGUARD速 detection principle is based on vibration analysis able to properly filter nuisances which could be caused by nearby heavy track moviments or thunders. HOW IT WORKS Find out more

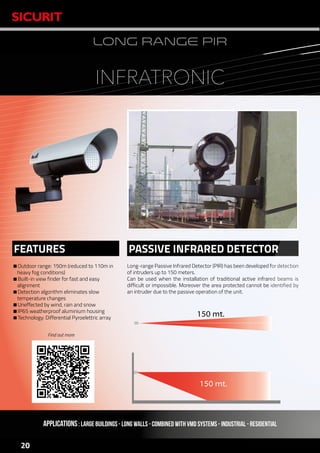

- 20. www.sicurit.com 20 LONG RANGE PIR Outdoor range: 150m (reduced to 110m in heavy fog conditions) Built-in view finder for fast and easy alignment Detection algorithm eliminates slow temperature changes Uneffected by wind, rain and snow IP65 weatherproof aluminium housing Technology: Differential Pyroelettric array Long-range Passive Infrared Detector (PIR) has been developed for detection of intruders up to 150 meters. Can be used when the installation of traditional active infrared beams is difficult or impossible. Moreover the area protected cannot be identified by an intruder due to the passive operation of the unit. PASSIVE INFRARED DETECTORFEATURES APPLICATIONS: LARGE BUILDINGS - LONG WALLS - COMBINED WITH VMD SYSTEMS - INDUSTRIAL - RESIDENTIAL INFRATRONIC 150 mt. 150 mt. 150 mt. Find out more

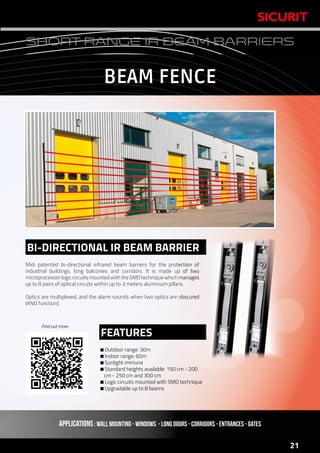

- 21. www.sicurit.com 21 SHORT RANGE IR BEAM BARRIERS Midi patented bi-directional infrared beam barriers for the protection of industrial buildings, long balconies and corridors. It is made up of two microprocessorlogiccircuitsmountedwiththeSMDtechniquewhichmanages up to 8 pairs of optical circuits within up to 3 meters aluminium pillars. Optics are multiplexed, and the alarm sounds when two optics are obscured (AND function). Outdoor range: 30m Indoor range: 60m Sunlight immune Standard heights available: 150 cm - 200 cm - 250 cm and 300 cm Logic circuits mounted with SMD technique Upgradable up to 8 beams BI-DIRECTIONAL IR BEAM BARRIER FEATURES APPLICATIONS: WALL MOUNTING - WINDOWS - LONG DOORS - CORRIDORS - ENTRANCES - GATES BEAM FENCE Find out more

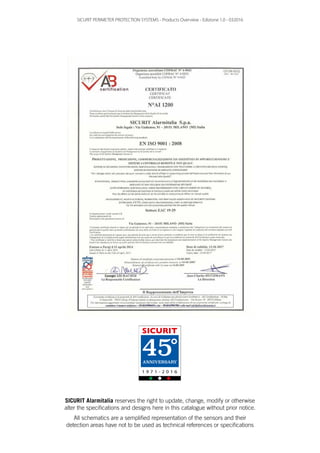

- 23. SICURIT Alarmitalia reserves the right to update, change, modify or otherwise alter the specifications and designs here in this catalogue without prior notice. All schematics are a semplified representation of the sensors and their detection areas have not to be used as technical references or specifications SICURIT PERIMETER PROTECTION SYSTEMS - Products Overview - Edizione 1.0 - 032016 45属 SICURIT
- 24. Catalogo Antincendio SICURIT - Edizione 1.0 - 102010 SICURIT Headquarter SICURIT Alarmitalia Spa Via Gadames, 91 20151 - Milan - Italy Tel.: +39 (0)2 380701 Website: www.sicurit.com E-mail: export@sicurit.it SICURIT authorized dealer
