PrefetchML: a Framework for Prefetching and Caching Models
2 likes687 views
PrefetchML is a framework designed for prefetching and caching models at a high level of abstraction, addressing challenges in existing database prefetchers and caches. It features a domain-specific language (DSL) for defining prefetching and caching rules, alongside a rule execution engine that is independent of database systems. Future enhancements include automatic generation of plans and dynamic rule adjustments based on access patterns.
![07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 10
PrefetchML DSL
import ''http://www.example.com/Java''
plan samplePlan {
use cache LRU[size=100, chunk=10]
rule r1: on starting
fetch Package.allInstances()
rule r2: on access type ClassDeclaration
fetch self.bodyDeclarations.modifier
}
Package
+ name : String
ClassDeclaration
+ name : String
BodyDeclaration
+ name : String
Modifier
+ kind : VisibilityKind
*
1
ownedElements
*
bodyDeclarations
modifier](https://image.slidesharecdn.com/slideprefetch-161011232347/85/PrefetchML-a-Framework-for-Prefetching-and-Caching-Models-10-320.jpg)
![07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 11
PrefetchML DSL
import ''http://www.example.com/Java''
plan samplePlan {
use cache LRU[size=100, chunk=10]
rule r1: on starting
fetch Package.allInstances()
rule r2: on access type ClassDeclaration (self.name = 'MyClass')
fetch self.bodyDeclarations.modifier
}
Package
+ name : String
ClassDeclaration
+ name : String
BodyDeclaration
+ name : String
Modifier
+ kind : VisibilityKind
*
1
ownedElements
*
bodyDeclarations
modifier](https://image.slidesharecdn.com/slideprefetch-161011232347/85/PrefetchML-a-Framework-for-Prefetching-and-Caching-Models-11-320.jpg)
![07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 12
PrefetchML DSL
import ''http://www.example.com/Java''
plan samplePlan {
use cache LRU[size=100, chunk=10]
rule r1: on starting
fetch Package.allInstances()
rule r2: on access type ClassDeclaration (self.name = 'MyClass')
fetch self.bodyDeclarations.modifier
remove type Package
}
Package
+ name : String
ClassDeclaration
+ name : String
BodyDeclaration
+ name : String
Modifier
+ kind : VisibilityKind
*
1
ownedElements
*
bodyDeclarations
modifier](https://image.slidesharecdn.com/slideprefetch-161011232347/85/PrefetchML-a-Framework-for-Prefetching-and-Caching-Models-12-320.jpg)
PrefetchML: a Framework for Prefetching and Caching Models
- 1. PrefetchML: a Framework for Prefetching and Caching Models Jordi Cabot ICREA-UOC jordi.cabot@icrea.cat Gwendal Daniel Inria - Mines Nantes & Lina gwendal.daniel@inria.fr Gerson Suny辿 Inria - Mines Nantes & Lina gerson.sunye@inria.fr

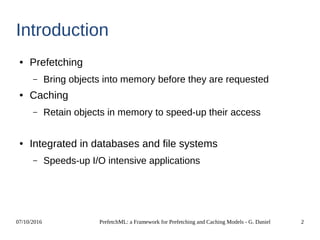

- 2. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 2 Introduction Prefetching Bring objects into memory before they are requested Caching Retain objects in memory to speed-up their access Integrated in databases and file systems Speeds-up I/O intensive applications

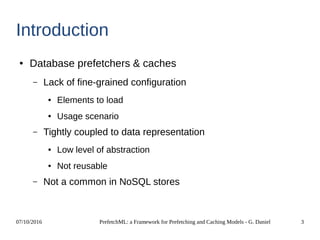

- 3. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 3 Introduction Database prefetchers & caches Lack of fine-grained configuration Elements to load Usage scenario Tightly coupled to data representation Low level of abstraction Not reusable Not a common in NoSQL stores

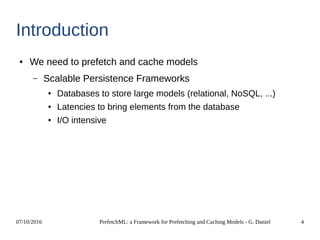

- 4. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 4 Introduction We need to prefetch and cache models Scalable Persistence Frameworks Databases to store large models (relational, NoSQL, ...) Latencies to bring elements from the database I/O intensive

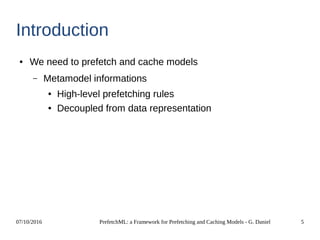

- 5. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 5 Introduction We need to prefetch and cache models Metamodel informations High-level prefetching rules Decoupled from data representation

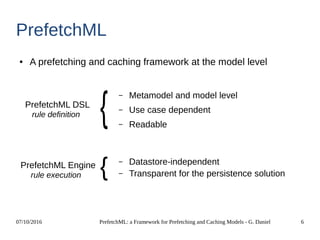

- 6. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 6 PrefetchML A prefetching and caching framework at the model level PrefetchML DSL PrefetchML Engine Metamodel and model level Use case dependent Readable Datastore-independent Transparent for the persistence solution rule definition rule execution

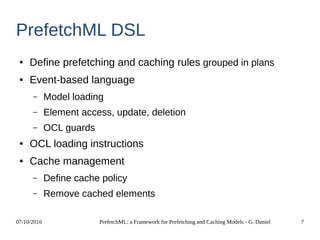

- 7. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 7 PrefetchML DSL Define prefetching and caching rules grouped in plans Event-based language Model loading Element access, update, deletion OCL guards OCL loading instructions Cache management Define cache policy Remove cached elements

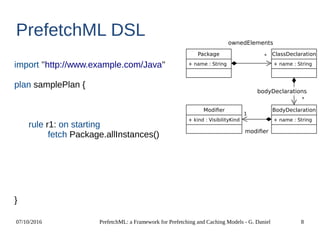

- 8. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 8 PrefetchML DSL import ''http://www.example.com/Java'' plan samplePlan { rule r1: on starting fetch Package.allInstances() } Package + name : String ClassDeclaration + name : String BodyDeclaration + name : String Modifier + kind : VisibilityKind * 1 ownedElements * bodyDeclarations modifier

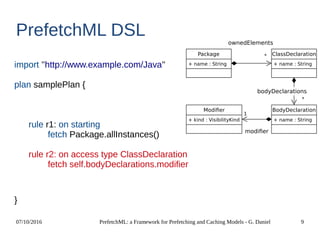

- 9. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 9 PrefetchML DSL import ''http://www.example.com/Java'' plan samplePlan { rule r1: on starting fetch Package.allInstances() rule r2: on access type ClassDeclaration fetch self.bodyDeclarations.modifier } Package + name : String ClassDeclaration + name : String BodyDeclaration + name : String Modifier + kind : VisibilityKind * 1 ownedElements * bodyDeclarations modifier

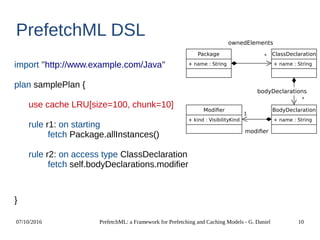

- 10. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 10 PrefetchML DSL import ''http://www.example.com/Java'' plan samplePlan { use cache LRU[size=100, chunk=10] rule r1: on starting fetch Package.allInstances() rule r2: on access type ClassDeclaration fetch self.bodyDeclarations.modifier } Package + name : String ClassDeclaration + name : String BodyDeclaration + name : String Modifier + kind : VisibilityKind * 1 ownedElements * bodyDeclarations modifier

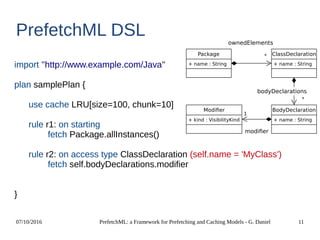

- 11. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 11 PrefetchML DSL import ''http://www.example.com/Java'' plan samplePlan { use cache LRU[size=100, chunk=10] rule r1: on starting fetch Package.allInstances() rule r2: on access type ClassDeclaration (self.name = 'MyClass') fetch self.bodyDeclarations.modifier } Package + name : String ClassDeclaration + name : String BodyDeclaration + name : String Modifier + kind : VisibilityKind * 1 ownedElements * bodyDeclarations modifier

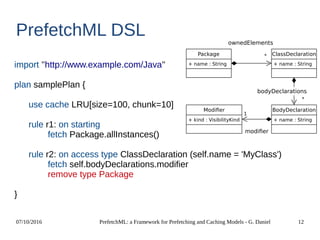

- 12. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 12 PrefetchML DSL import ''http://www.example.com/Java'' plan samplePlan { use cache LRU[size=100, chunk=10] rule r1: on starting fetch Package.allInstances() rule r2: on access type ClassDeclaration (self.name = 'MyClass') fetch self.bodyDeclarations.modifier remove type Package } Package + name : String ClassDeclaration + name : String BodyDeclaration + name : String Modifier + kind : VisibilityKind * 1 ownedElements * bodyDeclarations modifier

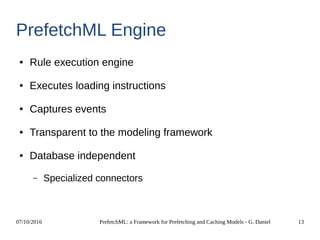

- 13. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 13 PrefetchML Engine Rule execution engine Executes loading instructions Captures events Transparent to the modeling framework Database independent Specialized connectors

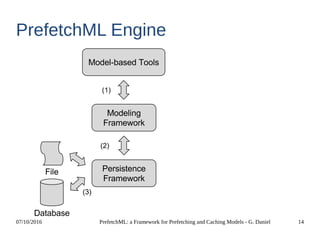

- 14. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 14 PrefetchML Engine

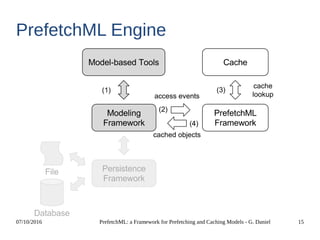

- 15. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 15 PrefetchML Engine

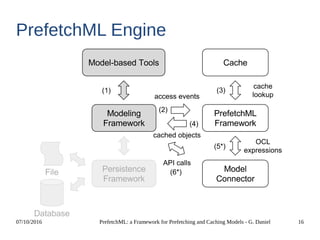

- 16. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 16 PrefetchML Engine

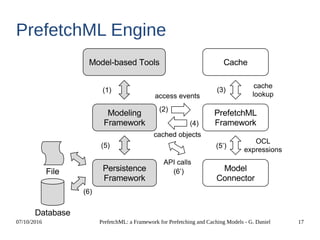

- 17. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 17 PrefetchML Engine

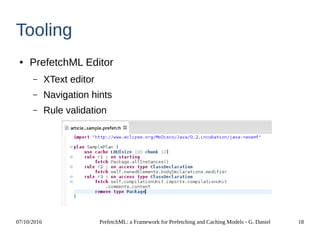

- 18. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 18 Tooling PrefetchML Editor XText editor Navigation hints Rule validation

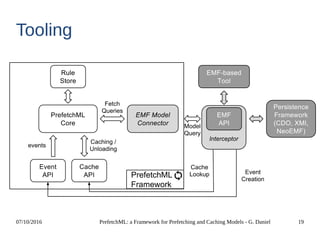

- 19. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 19 Tooling

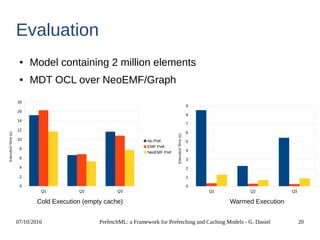

- 20. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 20 Evaluation Q1 Q2 Q3 0 2 4 6 8 10 12 14 16 18 No Pref. EMF Pref. NeoEMF Pref. ExecutionTime(s) Q1 Q2 Q3 0 1 2 3 4 5 6 7 8 9 ExecutionTime(s) Model containing 2 million elements MDT OCL over NeoEMF/Graph Cold Execution (empty cache) Warmed Execution

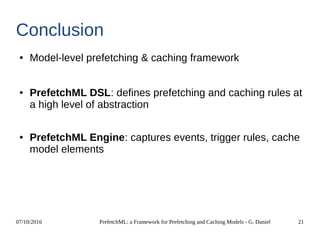

- 21. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 21 Conclusion Model-level prefetching & caching framework PrefetchML DSL: defines prefetching and caching rules at a high level of abstraction PrefetchML Engine: captures events, trigger rules, cache model elements

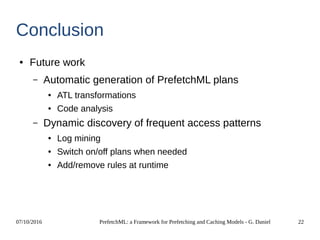

- 22. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 22 Conclusion Future work Automatic generation of PrefetchML plans ATL transformations Code analysis Dynamic discovery of frequent access patterns Log mining Switch on/off plans when needed Add/remove rules at runtime

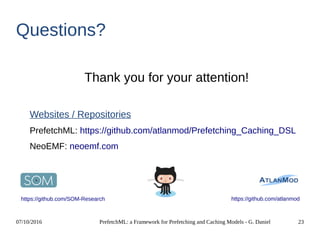

- 23. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 23 Questions? Websites / Repositories PrefetchML: https://github.com/atlanmod/Prefetching_Caching_DSL NeoEMF: neoemf.com https://github.com/atlanmod Thank you for your attention! https://github.com/SOM-Research

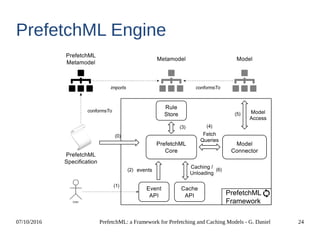

- 24. 07/10/2016 PrefetchML: a Framework for Prefetching and Caching Models - G. Daniel 24 PrefetchML Engine
