ヘテロコア光ファイバを织り込んだスマート衣服による関节动作モニタリング

Jun 27, 2018Download as pptx, pdf

0 likes296 views

Soka University

電子情報通信学会総合大会2018 創価大学　理工学部　情報システム工学科　助教　小山勇也

創価大学理工学部情報システム工学科助教小山勇也
共生創造理工学科西山道子
共生創造理工学科渡辺一弘
ヘテロコア光ファイバを織り込んだ
スマート衣服による関節動作モニタリング
電子情報通信学会総合大会2018
3月21日

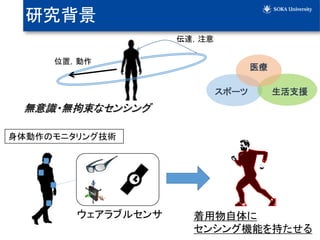

研究背景
無意識?無拘束なセンシング
位置，動作
伝達，注意
医療
スポーツ生活支援
身体動作のモニタリング技術
ウェアラブルセンサ着用物自体に
センシング機能を持たせる

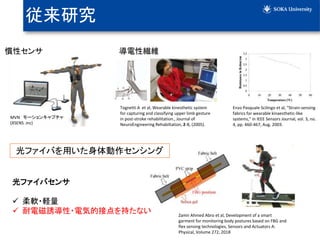

従来研究
MVN モーションキャプチャ
(XSENS .inc)
惯性センサ
Tognetti A et al, Wearable kinesthetic system
for capturing and classifying upper limb gesture
in post-stroke rehabilitation., Journal of
NeuroEngineering Rehabiltation, 2-8, (2005).
導電性繊維
Enzo Pasquale Scilingo et al, "Strain-sensing
fabrics for wearable kinaesthetic-like
systems," in IEEE Sensors Journal, vol. 3, no.
4, pp. 460-467, Aug. 2003.
Zamir Ahmed Abro et al, Development of a smart
garment for monitoring body postures based on FBG and
flex sensing technologies, Sensors and Actuators A:
Physical, Volume 272, 2018
光ファイバを用いた身体動作センシング
光ファイバセンサ
? 柔軟?軽量
? 耐電磁誘導性?電気的接点を持たない

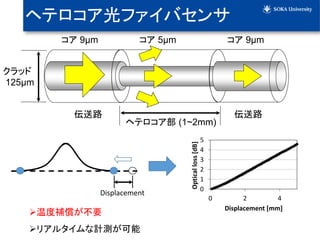

ヘテロコア部 (1~2mm)
クラッド
125μm
コア 9μmコア 5μm
伝送路伝送路
コア 9μm
ヘテロコア光ファイバセンサ
?温度補償が不要
?リアルタイムな計測が可能
0
1
2
3
4
5
0 2 4
Opticalloss[dB]
Displacement [mm]
Displacement

違和感なく衣服の素材そのものにセンサを統合
ヘテロコア光ファイバを応用したスマート織物
?ヘテロコア光ファイバを布と一体化
?スマート織物を衣服に統合
?関節動作検出のデモンストレーション

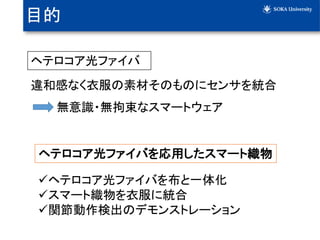

目的
ヘテロコア光ファイバ
無意識?無拘束なスマートウェア

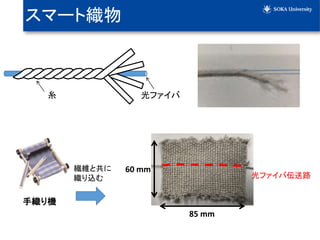

光ファイバ糸
60 mm
85 mm
手織り機
繊維と共に
織り込む光ファイバ伝送路
スマート織物

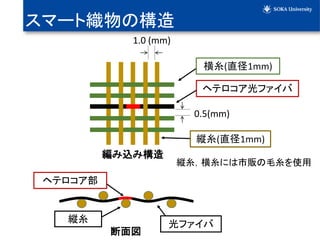

スマート織物の構造
ヘテロコア部
断面図
縦糸
横糸(直径1mm)
ヘテロコア光ファイバ
編み込み構造
1.0 (mm)
縦糸(直径1mm)
0.5(mm)
縦糸，横糸には市販の毛糸を使用
光ファイバ

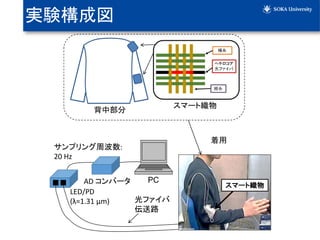

実験構成図
LED/PD
(λ=1.31 μm) 光ファイバ
伝送路
AD コンバータ PC
サンプリング周波数:
20 Hz
スマート織物
スマート織物
背中部分
着用

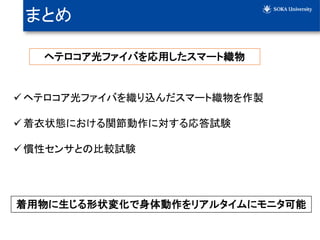

まとめ
ヘテロコア光ファイバを応用したスマート織物
? ヘテロコア光ファイバを織り込んだスマート織物を作製
? 着衣状態における関節動作に対する応答試験

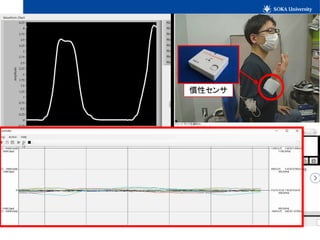

? 惯性センサとの比較試験
着用物に生じる形状変化で身体動作をリアルタイムにモニタ可能

The document discusses a perceptive shoe integrated with hetero-core fiber optics for real-time monitoring of human activities such as walking, running, standing, and sitting. It highlights the shoe's advantages, including its lightweight design and sensitivity to weight changes, enabling feature extraction without the need for intrusive sensors. The study presents results from activity monitoring tests, showcasing the shoe's capability to effectively distinguish between different activities based on weight responses.

Smart Textile with Plain Weave Structure Using Hetero-Core Optical Fiber Sens...Soka University

The document describes the development of a smart textile utilizing a hetero-core optical fiber sensor combined with wool threads, designed to detect bending, stretching, and pressing motions. It highlights the sensor's high sensitivity, low cost, and successful demonstration of hand motion detection in real time. The findings suggest that this smart textile has significant potential applications in smart clothing technologies.

Smart sensing textile with embedded hetero-core optical fiber sensors into th...Soka University

The document discusses the development of smart textiles incorporating embedded hetero-core optical fiber sensors for monitoring human vital signs and body motion. It details the sensor's performance, including its flexibility and real-time measurement capabilities, and outlines experimental setups for testing joint motion and vital sign detection. The conclusion highlights the effectiveness of these smart textiles in providing unobtrusive health monitoring.

2024 Trend Updates: What Really Works In SEO & Content MarketingSearch Engine Journal

The document outlines key SEO and content marketing trends for 2024, emphasizing the impact of AI, the importance of E-E-A-T (Experience, Expertise, Authoritativeness, Trustworthiness), and a shift towards user-centric content strategies. It advises against focusing on outdated trends like voice search and stresses the need for creating value-driven, authoritative content. Additionally, it highlights the need to leverage AI as a supportive tool rather than relying solely on it for content creation.

Storytelling For The Web: Integrate Storytelling in your Design ProcessChiara Aliotta

The document outlines a livestream presentation by Chiara Aliotta on integrating storytelling into web design to enhance user experiences. It covers the storytelling process for designers, emphasizing aspects such as understanding the audience, structuring narratives, and creating emotional connections. The presentation also includes case studies and practical examples to demonstrate effective storytelling in UX/UI design.

Artificial Intelligence, Data and Competition – SCHREPEL – June 2024 OECD dis...OECD Directorate for Financial and Enterprise Affairs

This presentation by Thibault Schrepel, Associate Professor of Law at Vrije Universiteit Amsterdam University, was made during the discussion “Artificial Intelligence, Data and Competition” held at the 143rd meeting of the OECD Competition Committee on 12 June 2024. More papers and presentations on the topic can be found at oe.cd/aicomp. This presentation was uploaded with the author’s consent.

How to Leverage AI to Boost Employee Wellness - Lydia Di Francesco - SocialHR...SocialHRCamp

The document discusses leveraging AI to enhance employee wellness through data analytics, automating tasks, and personalized wellness apps, emphasizing the shared responsibility of employee well-being between leaders and organizations. It outlines best practices for using AI in wellness strategies, including ensuring data privacy and security, understanding employee needs, and promoting inclusivity. Lydia Di Francesco, a wellness specialist, shares insights to optimize workplace wellness strategy using AI-driven data analytics and encourages collaboration and transparency.

2024 State of Marketing Report – by HubspotMarius Sescu

The State of Marketing 2024 report highlights the transformative impact of AI and automation, emphasizing the importance of personalization and engagement to drive growth in a competitive landscape. Marketers are focusing on optimizing budgets, leveraging social media for brand awareness, and utilizing AI tools to enhance efficiency across tasks. Key trends for 2024 include the rise of experiential marketing, content creation that meets user needs, and strengthened connections through personalized customer experiences.

Everything You Need To Know About ChatGPTExpeed Software

ChatGPT is an AI chatbot developed by OpenAI, built on advanced language models to facilitate human-like conversational interactions. Launched in November 2022, it utilizes a transformer architecture to understand and generate text, with applications ranging from content creation to customer service. Despite its capabilities, there are concerns about potential misuse and biases in its responses, which OpenAI aims to mitigate through moderation and user feedback.

Product Design Trends in 2024 | Teenage EngineeringsPixeldarts

How Race, Age and Gender Shape Attitudes Towards Mental HealthThinkNow

The November 2023 mental health report indicates that 70% of respondents rate their mental health as 'good' or 'excellent,' with higher diagnoses reported among African Americans and non-Hispanic whites compared to Hispanics and Asians. Younger generations, particularly Gen Z and millennials, are more likely to experience mental health challenges, seek information online, and report that their mental health impacts their work and relationships. Half of the respondents feel comfortable discussing their mental health with professionals, although Gen Z shows the least comfort in this area.

AI Trends in Creative Operations 2024 by Artwork Flow.pdfmarketingartwork

Creative operations teams expect increased AI use in 2024. Currently, over half of tasks are not AI-enabled, but this is expected to decrease in the coming year. ChatGPT is the most popular AI tool currently. Business leaders are more actively exploring AI benefits than individual contributors. Most respondents do not believe AI will impact workforce size in 2024. However, some inhibitions still exist around AI accuracy and lack of understanding. Creatives primarily want to use AI to save time on mundane tasks and boost productivity.

Skeleton Culture CodeSkeleton Technologies

Organizational culture includes values, norms, systems, symbols, language, assumptions, beliefs, and habits that influence employee behaviors and how people interpret those behaviors. It is important because culture can help or hinder a company's success. Some key aspects of Netflix's culture that help it achieve results include hiring smartly so every position has stars, focusing on attitude over just aptitude, and having a strict policy against peacocks, whiners, and jerks.

PEPSICO Presentation to CAGNY Conference Feb 2024Neil Kimberley

PepsiCo provided a safe harbor statement noting that any forward-looking statements are based on currently available information and are subject to risks and uncertainties. It also provided information on non-GAAP measures and directing readers to its website for disclosure and reconciliation. The document then discussed PepsiCo's business overview, including that it is a global beverage and convenient food company with iconic brands, $91 billion in net revenue in 2023, and nearly $14 billion in core operating profit. It operates through a divisional structure with a focus on local consumers.

Content Methodology: A Best Practices Report (Webinar)contently

This document provides an overview of content methodology best practices. It defines content methodology as establishing objectives, KPIs, and a culture of continuous learning and iteration. An effective methodology focuses on connecting with audiences, creating optimal content, and optimizing processes. It also discusses why a methodology is needed due to the competitive landscape, proliferation of channels, and opportunities for improvement. Components of an effective methodology include defining objectives and KPIs, audience analysis, identifying opportunities, and evaluating resources. The document concludes with recommendations around creating a content plan, testing and optimizing content over 90 days.

How to Prepare For a Successful Job Search for 2024Albert Qian

The document provides guidance on preparing a job search for 2024. It discusses the state of the job market, focusing on growth in AI and healthcare but also continued layoffs. It recommends figuring out what you want to do by researching interests and skills, then conducting informational interviews. The job search should involve building a personal brand on LinkedIn, actively applying to jobs, tailoring resumes and interviews, maintaining job hunting as a habit, and continuing self-improvement. Once hired, the document advises setting new goals and keeping skills and networking active in case of future opportunities.

Social Media Marketing Trends 2024 // The Global Indie InsightsKurio // The Social Media Age(ncy)

The 2024 social media marketing trends report highlights significant shifts influenced by generative AI, including the emergence of personalized content, the rise of virtual influencers, and a stronger focus on user-generated content. Insights were gathered from 33 experts across 23 leading independent agencies, providing a perspective that emphasizes creativity and authenticity in marketing strategies. Key trends also include the blending of B2B and B2C approaches, reflecting changes in consumer behavior and the evolving landscape of social media engagement.

Trends In Paid Search: Navigating The Digital Landscape In 2024Search Engine Journal

The document discusses trends in paid search for 2024, highlighting changes in user behavior, the implications for financial services, and privacy challenges. It emphasizes the importance of adapting search strategies, utilizing AI-driven tools like performance max and smart bidding, and leveraging first-party data for better marketing efficacy. Key takeaways include holistic SEO and SEM approaches, monitoring shifting user intents, and the need for continuous performance evaluation.

5 Public speaking tips from TED - Visualized summarySpeakerHub

The document outlines five public speaking tips from Chris Anderson, TED Talks curator, emphasizing the importance of eye contact, vulnerability, humor, humility, and storytelling. These skills are presented as essential for engaging audiences effectively and are increasingly valuable in today's economy. The article posits that mastering these techniques can enhance speakers' ability to communicate ideas powerfully.

ChatGPT and the Future of Work - Clark Boyd Clark Boyd

The document provides an overview of generative AI, particularly focusing on ChatGPT and its implications for business and the job market. It discusses the rapid growth of generative AI, its applications in marketing, and the skills needed for the AI era while addressing potential job displacement and the need for adaptation. The agenda includes a Q&A session and emphasizes rethinking work in collaboration with AI technology.

Getting into the tech field. what next Tessa Mero

The document provides career advice for getting into the tech field, including: - Doing projects and internships in college to build a portfolio. - Learning about different roles and technologies through industry research. - Contributing to open source projects to build experience and network. - Developing a personal brand through a website and social media presence. - Networking through events, communities, and finding a mentor. - Practicing interviews through mock interviews and whiteboarding coding questions.

Google's Just Not That Into You: Understanding Core Updates & Search IntentLily Ray

1. Core updates from Google periodically change how its algorithms assess and rank websites and pages. This can impact rankings through shifts in user intent, site quality issues being caught up to, world events influencing queries, and overhauls to search like the E-A-T framework. 2. There are many possible user intents beyond just transactional, navigational and informational. Identifying intent shifts is important during core updates. Sites may need to optimize for new intents through different content types and sections. 3. Responding effectively to core updates requires analyzing "before and after" data to understand changes, identifying new intents or page types, and ensuring content matches appropriate intents across video, images, knowledge graphs and more.

How to have difficult conversations Rajiv Jayarajah, MAppComm, ACC

Introduction to Data ScienceChristy Abraham Joy

The document discusses the rise and importance of data science and machine learning, highlighting the growing demand for data scientists and the challenges they face. It explains machine learning concepts such as supervised and unsupervised learning, along with various real-world applications and the necessary steps involved in a machine learning workflow. Additionally, the document emphasizes the iterative process of model improvement and feature engineering used to enhance machine learning outcomes.

Time Management & Productivity - Best PracticesVit Horky

The document outlines best practices for time management and productivity, focusing on effective meeting habits, structured work blocks, and the importance of reflection and goal setting. It emphasizes the need for proper planning, the use of appropriate tools, and prioritizing tasks to enhance both personal and team efficiency. Additionally, personal anecdotes and strategies are shared to encourage a positive mindset and enjoyment in achieving work-related goals.

The six step guide to practical project managementMindGenius

The document outlines a simplified six-step guide to project management designed for individuals lacking formal training. It emphasizes the importance of understanding project objectives, gathering stakeholder requirements, defining project scope, scheduling tasks, monitoring progress, and conducting a retrospective meeting. Additionally, it promotes the use of the MindGenius tool for effective project planning and execution.

Beginners Guide to TikTok for Search - Rachel Pearson - We are Tilt __ Bright...RachelPearson36

ヘテロコア光ファイバを织り込んだスマート衣服による関节动作モニタリング

1. 創価大学理工学部情報システム工学科助教小山勇也共生創造理工学科西山道子共生創造理工学科渡辺一弘ヘテロコア光ファイバを織り込んだスマート衣服による関節動作モニタリング電子情報通信学会総合大会2018 3月21日

2. 研究背景無意識?無拘束なセンシング位置，動作伝達，注意医療スポーツ生活支援身体動作のモニタリング技術ウェアラブルセンサ着用物自体にセンシング機能を持たせる

3. 従来研究 MVN モーションキャプチャ (XSENS .inc) 惯性センサ Tognetti A et al, Wearable kinesthetic system for capturing and classifying upper limb gesture in post-stroke rehabilitation., Journal of NeuroEngineering Rehabiltation, 2-8, (2005). 導電性繊維 Enzo Pasquale Scilingo et al, "Strain-sensing fabrics for wearable kinaesthetic-like systems," in IEEE Sensors Journal, vol. 3, no. 4, pp. 460-467, Aug. 2003. Zamir Ahmed Abro et al, Development of a smart garment for monitoring body postures based on FBG and flex sensing technologies, Sensors and Actuators A: Physical, Volume 272, 2018 光ファイバを用いた身体動作センシング光ファイバセンサ ? 柔軟?軽量 ? 耐電磁誘導性?電気的接点を持たない

4. ヘテロコア部 (1~2mm) クラッド 125μm コア 9μmコア 5μm 伝送路伝送路コア 9μm ヘテロコア光ファイバセンサ ?温度補償が不要 ?リアルタイムな計測が可能 0 1 2 3 4 5 0 2 4 Opticalloss[dB] Displacement [mm] Displacement

5. 違和感なく衣服の素材そのものにセンサを統合ヘテロコア光ファイバを応用したスマート織物 ?ヘテロコア光ファイバを布と一体化 ?スマート織物を衣服に統合 ?関節動作検出のデモンストレーション目的ヘテロコア光ファイバ無意識?無拘束なスマートウェア

6. 光ファイバ糸 60 mm 85 mm 手織り機繊維と共に織り込む光ファイバ伝送路スマート織物

7. スマート織物の構造ヘテロコア部断面図縦糸横糸(直径1mm) ヘテロコア光ファイバ編み込み構造 1.0 (mm) 縦糸(直径1mm) 0.5(mm) 縦糸，横糸には市販の毛糸を使用光ファイバ

8. 実験構成図 LED/PD (λ=1.31 μm) 光ファイバ伝送路 AD コンバータ PC サンプリング周波数: 20 Hz スマート織物スマート織物背中部分着用

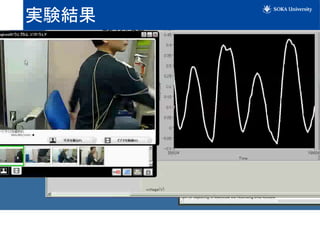

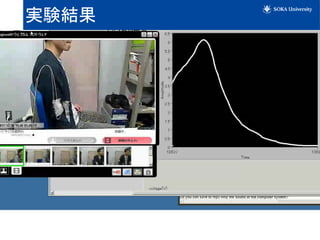

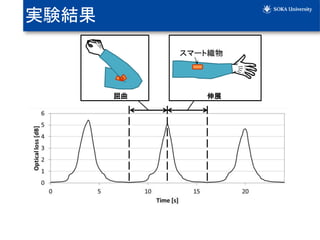

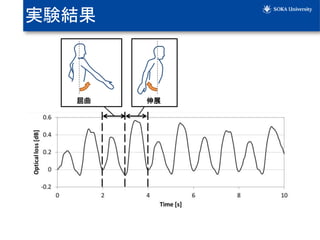

11. 実験结果

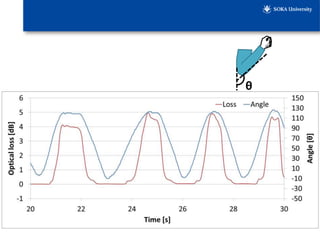

14. θ
