SSL Secure Socket Layer
- 1. 1 Omkar Bhagat Siddhesh Palkar

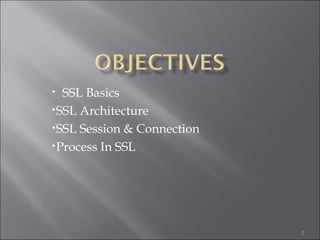

- 2. 2 SSL Basics SSL Architecture SSL Session & Connection Process In SSL

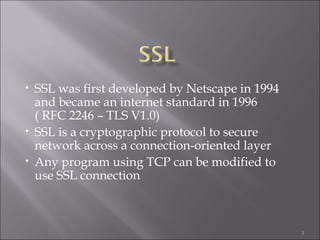

- 3. 3 SSL was first developed by Netscape in 1994 and became an internet standard in 1996 ( RFC 2246 TLS V1.0) SSL is a cryptographic protocol to secure network across a connection-oriented layer Any program using TCP can be modified to use SSL connection
- 4. 4 SSL connection uses a dedicated TCP/IP socket(e.g. port 443 for https) SSL is flexible in choice of which symmetric encryption, message digest, and authentication can be used SSL provides built in data compression

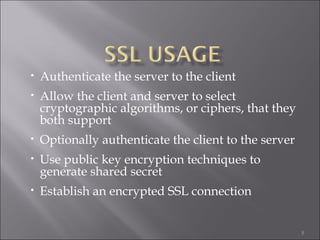

- 5. 5 Authenticate the server to the client Allow the client and server to select cryptographic algorithms, or ciphers, that they both support Optionally authenticate the client to the server Use public key encryption techniques to generate shared secret Establish an encrypted SSL connection

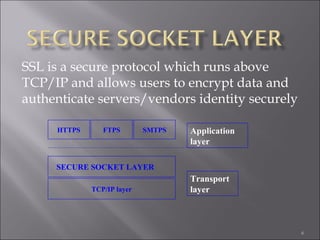

- 6. 6 SSL is a secure protocol which runs above TCP/IP and allows users to encrypt data and authenticate servers/vendors identity securely Application layer Transport layerTCP/IP layer SMTPSFTPSHTTPS SECURE SOCKET LAYER

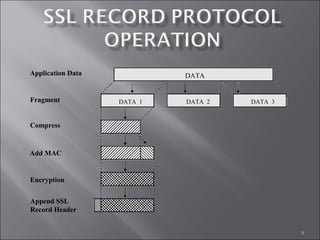

- 8. 8 DATA DATA 1 DATA 2 DATA 3 Application Data Fragment Compress Add MAC Encryption Append SSL Record Header

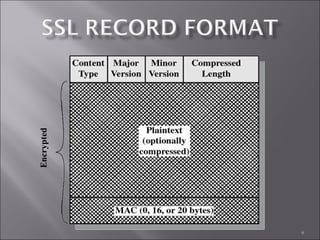

- 9. 9 Encrypted

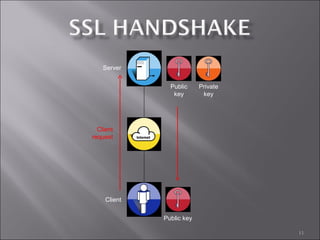

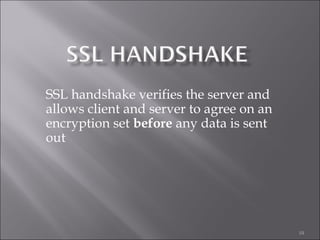

- 10. 10 SSL handshake verifies the server and allows client and server to agree on an encryption set before any data is sent out

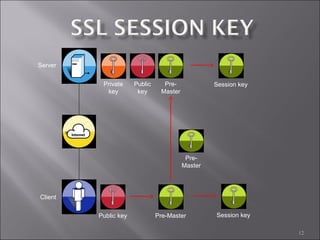

- 12. 12 Server Client Public key Private key Public key Pre-Master Pre- Master Pre- Master Session key Session key
- 13. 13 Server Client Public key Private key Session key Data Session key Data Data Data Session key Data

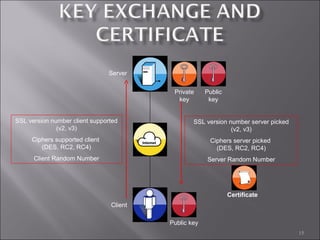

- 15. 15 SSL version number client supported (v2, v3) Ciphers supported client (DES, RC2, RC4) Client Random Number SSL version number server picked (v2, v3) Ciphers server picked (DES, RC2, RC4) Server Random Number Server Client Public key Private key Public key Certificate

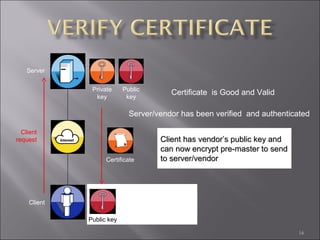

- 16. 16 Checking Server Client Public key Private key Client request Certificate Certificate Valid Public key Certificate is Good and Valid Server/vendor has been verified and authenticated Client has vendors public key andClient has vendors public key and can now encrypt pre-master to sendcan now encrypt pre-master to send to server/vendorto server/vendor
- 17. 17

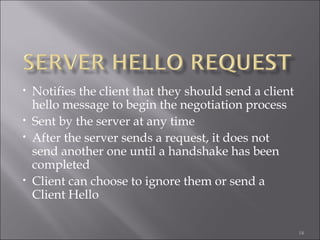

- 18. 18 Notifies the client that they should send a client hello message to begin the negotiation process Sent by the server at any time After the server sends a request, it does not send another one until a handshake has been completed Client can choose to ignore them or send a Client Hello

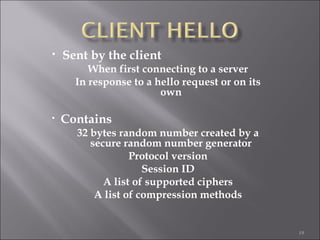

- 19. 19 Sent by the client When first connecting to a server In response to a hello request or on its own Contains 32 bytes random number created by a secure random number generator Protocol version Session ID A list of supported ciphers A list of compression methods

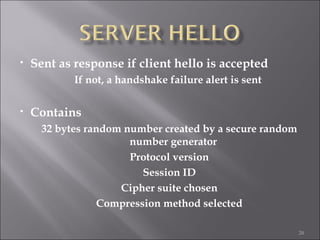

- 20. 20 Sent as response if client hello is accepted If not, a handshake failure alert is sent Contains 32 bytes random number created by a secure random number generator Protocol version Session ID Cipher suite chosen Compression method selected

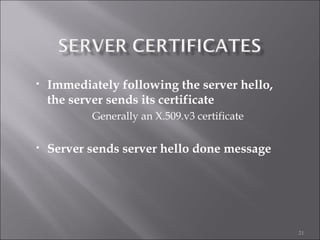

- 21. 21 Immediately following the server hello, the server sends its certificate Generally an X.509.v3 certificate Server sends server hello done message

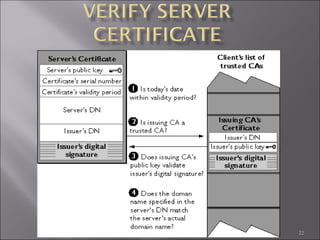

- 22. 22

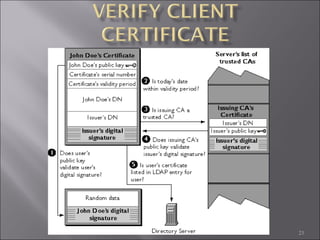

- 23. 23

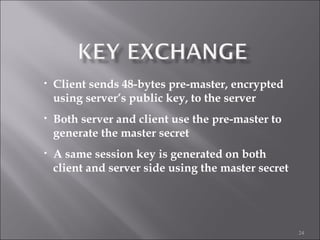

- 24. 24 Client sends 48-bytes pre-master, encrypted using servers public key, to the server Both server and client use the pre-master to generate the master secret A same session key is generated on both client and server side using the master secret

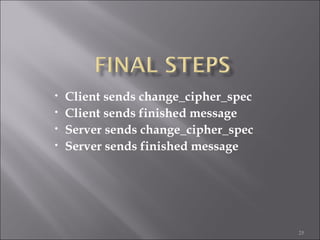

- 25. 25 Client sends change_cipher_spec Client sends finished message Server sends change_cipher_spec Server sends finished message
