Systecon is a manufacturer of modular central plants, pumping systems, indirect evaporative cooling systems, and standard pump packages. Their modular and factory-assembled solutions integrate components like chillers, boilers, pumps and controls to provide customizable and simplified central plant installations for commercial and industrial customers.
Systecon overview2
- 1. is a manufacturer of: Modular Central Plants including: Chiller Plants Hot Water Boiler Plants Steam Boiler Plants Cogeneration Plants CritiChill? Modular Indirect Evaporative Cooling Custom Modular Pumping Systems including VariPrime?

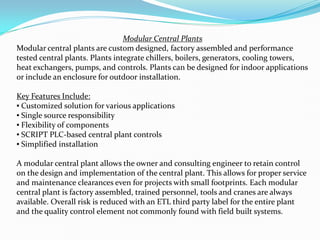

- 2. Modular Central Plants Modular central plants are custom designed, factory assembled and performance tested central plants. Plants integrate chillers, boilers, generators, cooling towers, heat exchangers, pumps, and controls. Plants can be designed for indoor applications or include an enclosure for outdoor installation. Key Features Include: ? Customized solution for various applications ? Single source responsibility ? Flexibility of components ? SCRIPT PLC-based central plant controls ? Simplified installation A modular central plant allows the owner and consulting engineer to retain control on the design and implementation of the central plant. This allows for proper service and maintenance clearances even for projects with small footprints. Each modular central plant is factory assembled, trained personnel, tools and cranes are always available. Overall risk is reduced with an ETL third party label for the entire plant and the quality control element not commonly found with field built systems.

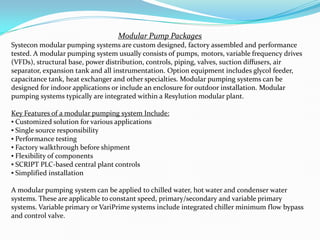

- 3. Modular Pump Packages Systecon modular pumping systems are custom designed, factory assembled and performance tested. A modular pumping system usually consists of pumps, motors, variable frequency drives (VFDs), structural base, power distribution, controls, piping, valves, suction diffusers, air separator, expansion tank and all instrumentation. Option equipment includes glycol feeder, capacitance tank, heat exchanger and other specialties. Modular pumping systems can be designed for indoor applications or include an enclosure for outdoor installation. Modular pumping systems typically are integrated within a Resylution modular plant. Key Features of a modular pumping system Include: ? Customized solution for various applications ? Single source responsibility ? Performance testing ? Factory walkthrough before shipment ? Flexibility of components ? SCRIPT PLC-based central plant controls ? Simplified installation A modular pumping system can be applied to chilled water, hot water and condenser water systems. These are applicable to constant speed, primary/secondary and variable primary systems. Variable primary or VariPrime systems include integrated chiller minimum flow bypass and control valve.

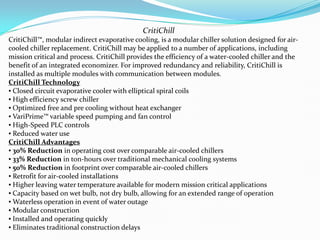

- 4. CritiChill CritiChill?, modular indirect evaporative cooling, is a modular chiller solution designed for air- cooled chiller replacement. CritiChill may be applied to a number of applications, including mission critical and process. CritiChill provides the efficiency of a water-cooled chiller and the benefit of an integrated economizer. For improved redundancy and reliability, CritiChill is installed as multiple modules with communication between modules. CritiChill Technology ? Closed circuit evaporative cooler with elliptical spiral coils ? High efficiency screw chiller ? Optimized free and pre cooling without heat exchanger ? VariPrime? variable speed pumping and fan control ? High-Speed PLC controls ? Reduced water use CritiChill Advantages ? 30% Reduction in operating cost over comparable air-cooled chillers ? 33% Reduction in ton-hours over traditional mechanical cooling systems ? 50% Reduction in footprint over comparable air-cooled chillers ? Retrofit for air-cooled installations ? Higher leaving water temperature available for modern mission critical applications ? Capacity based on wet bulb, not dry bulb, allowing for an extended range of operation ? Waterless operation in event of water outage ? Modular construction ? Installed and operating quickly ? Eliminates traditional construction delays

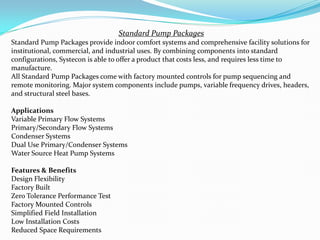

- 5. Standard Pump Packages Standard Pump Packages provide indoor comfort systems and comprehensive facility solutions for institutional, commercial, and industrial uses. By combining components into standard configurations, Systecon is able to offer a product that costs less, and requires less time to manufacture. All Standard Pump Packages come with factory mounted controls for pump sequencing and remote monitoring. Major system components include pumps, variable frequency drives, headers, and structural steel bases. Applications Variable Primary Flow Systems Primary/Secondary Flow Systems Condenser Systems Dual Use Primary/Condenser Systems Water Source Heat Pump Systems Features & Benefits Design Flexibility Factory Built Zero Tolerance Performance Test Factory Mounted Controls Simplified Field Installation Low Installation Costs Reduced Space Requirements

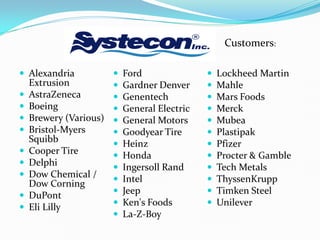

- 6. ? Alexandria Extrusion ? AstraZeneca ? Boeing ? Brewery (Various) ? Bristol-Myers Squibb ? Cooper Tire ? Delphi ? Dow Chemical / Dow Corning ? DuPont ? Eli Lilly ? Ford ? Gardner Denver ? Genentech ? General Electric ? General Motors ? Goodyear Tire ? Heinz ? Honda ? Ingersoll Rand ? Intel ? Jeep ? Ken's Foods ? La-Z-Boy ? Lockheed Martin ? Mahle ? Mars Foods ? Merck ? Mubea ? Plastipak ? Pfizer ? Procter & Gamble ? Tech Metals ? ThyssenKrupp ? Timken Steel ? Unilever Customers:
