Measurement of Maximum new NAT-sessions per second / How to send packets
4 likes18,843 views
Measurement of Maximum new NAT-sessions per second How to send packets? Tcpreplay
![試験手順／Testing procedure
(1) VyOS のNAT セッションやカウンタをリセット
Reset conntrack and clear NAT counters of VyOS
vvyyooss@@vvyyooss::~~$$ rreesseett ccoonnnnttrraacckk
This will clear all currently tracked and expected
connections. Continue? (Y/N) [N]: y
vyos@vyos:~$ clear nat source counters](https://image.slidesharecdn.com/vyos-user220141102-141101071457-conversion-gate02/85/Measurement-of-Maximum-new-NAT-sessions-per-second-How-to-send-packets-8-320.jpg)
![試験手順／Testing procedure
(2) クライアントからP[pps] でN 種類のパケットを送信
Send N different kinds of packets to VyOS at P[pps]
from client
[client]$ scapy
Welcome to Scapy (2.2.0-1)
>>>
Scapy も良いけど…
Scapy is good.](https://image.slidesharecdn.com/vyos-user220141102-141101071457-conversion-gate02/85/Measurement-of-Maximum-new-NAT-sessions-per-second-How-to-send-packets-9-320.jpg)
![試験手順／Testing procedure
(2) クライアントからP[pps] でN 種類のパケットを送信
Send N different kinds of packets to VyOS at P[pps]
from client
[client]$ sudo tcpreplay --unique-ip ?
-l ${N} --pps=${P} -K -i eth0 file.pcap
Tcpreplay もイイネ
I love Tcpreplay too.](https://image.slidesharecdn.com/vyos-user220141102-141101071457-conversion-gate02/85/Measurement-of-Maximum-new-NAT-sessions-per-second-How-to-send-packets-10-320.jpg)
![試験手順／Testing procedure
(3) サーバに届いたパケット数を数える
Count the number of packets from client
[[sseerrvveerr]]$$ ssuuddoo ttccppdduummpp --nn --ii eetthh00](https://image.slidesharecdn.com/vyos-user220141102-141101071457-conversion-gate02/85/Measurement-of-Maximum-new-NAT-sessions-per-second-How-to-send-packets-11-320.jpg)
![結果／Results
? 新規セッション20K[pps] で処理できそう
(合計20万セッションでも)
VyOS will bbee aabbllee ttoo hhaannddllee
20K new-session per sec
(with 200K unique sessions condition)](https://image.slidesharecdn.com/vyos-user220141102-141101071457-conversion-gate02/85/Measurement-of-Maximum-new-NAT-sessions-per-second-How-to-send-packets-15-320.jpg)
![備考／Notes
? >30K[pps] のパケロス発生時でも
[サーバに届いたパケット数] と
[VyOS で作られたNAT session 数] は概ね同数
>30K[pps] condition, i.e. PER != 0
[number of packets received by server]
is also nearly equal to
[number of NAT-sessions on VyOS]](https://image.slidesharecdn.com/vyos-user220141102-141101071457-conversion-gate02/85/Measurement-of-Maximum-new-NAT-sessions-per-second-How-to-send-packets-16-320.jpg)
Measurement of Maximum new NAT-sessions per second / How to send packets
- 1. 単位時間あたりの 新規NAT session 数の 最大値を測ってみた ～パケット送信方法～ 2014/11/02 #vyosjp @otsuka752 (@twovs)
- 2. Measurement of Maximum new NAT-sessions per second (How to send packets) 2014/11/02 #vyosjp @otsuka752 (@twovs)
- 3. about me ? @otsuka752 (@twovs) ? ネコ2人＋奥さん＋可愛い娘 ?? 無線LLAANN装置の開発((11999999～～22000044)) ? オンラインゲームのシステム管理者(2004～) ? ただし，ゲームには全く興味無し ? ZFS 最高!!! beadm 便利!!!

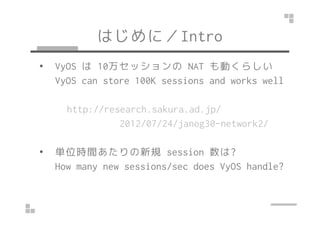

- 4. はじめに／Intro ? VyOS は10万セッションのNAT も動くらしい VyOS can store 100K sessions and works well http://research.ssaakkuurraa..aadd..jjpp// 2012/07/24/janog30-network2/ ? 単位時間あたりの新規session 数は? How many new sessions/sec does VyOS handle?

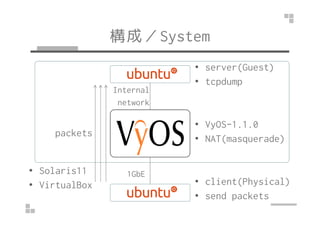

- 5. 構成／System ? server(Guest) ? tcpdump Internal network ? Host(*3) ? VirtualBox ? VyOS-1.1.0(*1) ? NAT(masquerade) ? client(Physical) ? send packets packets(*2) 1GbE
- 6. 構成／System (*1) Guest properties (VyOS) CPU x1 Memory 2GB ((**22)) IICCMMPP((たくさんのSSrrcc//DDsstt IIPPAAddddrr の組合せ)) ICMP(Many kinds of Src/Dst IPAddr pairs) (*3) Host properties CPU AMD Athlon 64 X2 Dual Core Processor 6400+ Memory 8GB OS Solaris 11.1 VirtualBox 4.3.14

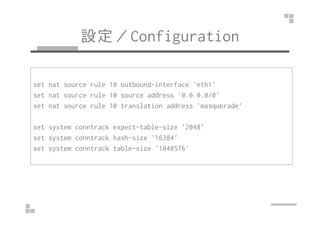

- 7. 設定／Configuration ? IPAddr と下記以外はデフォルト値 Use Default Configuration except for IPAddr and below set protocols static route 0.0.0.0/0 next-hop ‘(server)' set nat source rule 10 outbound-interface 'eth1' set nat source rule 10 source address '0.0.0.0/0' set nat source rule 10 translation address 'masquerade' set system conntrack expect-table-size '2048' set system conntrack hash-size '16384' set system conntrack table-size '1048576'

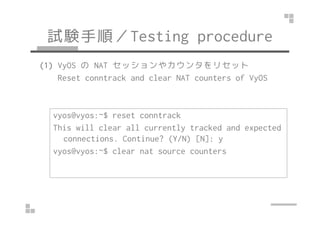

- 8. 試験手順／Testing procedure (1) VyOS のNAT セッションやカウンタをリセット Reset conntrack and clear NAT counters of VyOS vvyyooss@@vvyyooss::~~$$ rreesseett ccoonnnnttrraacckk This will clear all currently tracked and expected connections. Continue? (Y/N) [N]: y vyos@vyos:~$ clear nat source counters

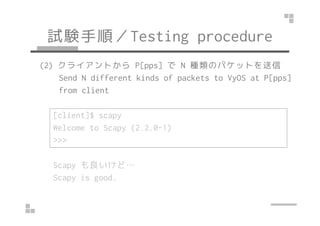

- 9. 試験手順／Testing procedure (2) クライアントからP[pps] でN 種類のパケットを送信 Send N different kinds of packets to VyOS at P[pps] from client [client]$ scapy Welcome to Scapy (2.2.0-1) >>> Scapy も良いけど… Scapy is good.

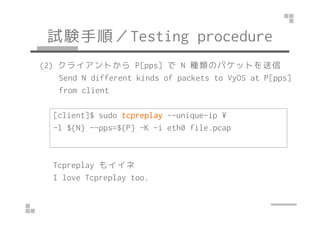

- 10. 試験手順／Testing procedure (2) クライアントからP[pps] でN 種類のパケットを送信 Send N different kinds of packets to VyOS at P[pps] from client [client]$ sudo tcpreplay --unique-ip ? -l ${N} --pps=${P} -K -i eth0 file.pcap Tcpreplay もイイネ I love Tcpreplay too.

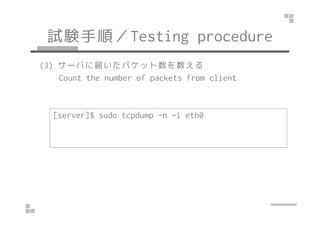

- 11. 試験手順／Testing procedure (3) サーバに届いたパケット数を数える Count the number of packets from client [[sseerrvveerr]]$$ ssuuddoo ttccppdduummpp --nn --ii eetthh00

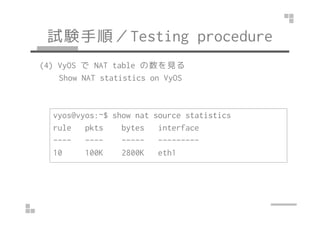

- 12. 試験手順／Testing procedure (4) VyOS でNAT table の数を見る Show NAT statistics on VyOS vyos@vyos:~$ show nat source statistics rule pkts bytes interface ---- ---- ----- --------- 10 100K 2800K eth1

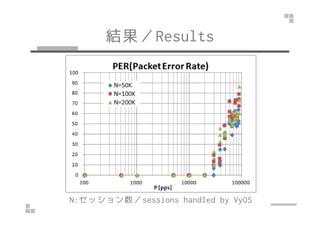

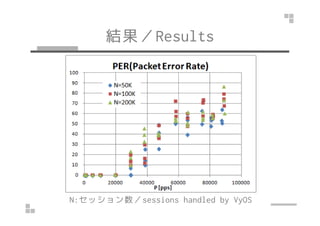

- 13. 結果／Results N:セッション数／sessions handled by VyOS
- 14. 結果／Results N:セッション数／sessions handled by VyOS

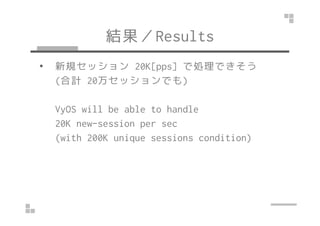

- 15. 結果／Results ? 新規セッション20K[pps] で処理できそう (合計20万セッションでも) VyOS will bbee aabbllee ttoo hhaannddllee 20K new-session per sec (with 200K unique sessions condition)

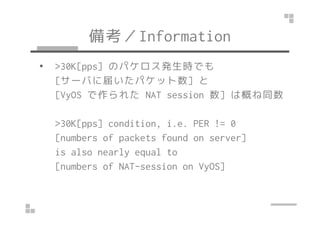

- 16. 備考／Notes ? >30K[pps] のパケロス発生時でも [サーバに届いたパケット数] と [VyOS で作られたNAT session 数] は概ね同数 >30K[pps] condition, i.e. PER != 0 [number of packets received by server] is also nearly equal to [number of NAT-sessions on VyOS]

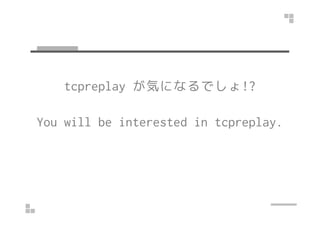

- 17. tcpreplay が気になるでしょ!? You will be interested in tcpreplay.
- 19. 続きはウェブで! Find more on the web!

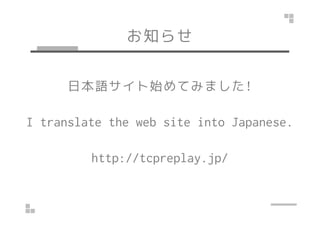

- 20. お知らせ 日本語サイト始めてみました! I translate the web site into Japanese. http://tcpreplay.jp/
- 21. お知らせ ? 日本語サイト始めてみました! ? http://tcpreplay.jp/ ? https://github.com/otsuka752/ ? Web site in English ? http://tcpreplay.appneta.com/ ? https://github.com/appneta/tcpreplay/
- 22. END
