This document provides specifications for a 32-inch single-touch LCD touch screen. Key features include a high brightness and contrast ratio, super IPS technology for wide viewing angles, HDMI and DVI inputs, and USB plug-and-play compatibility. Applications include digital signage, hospitality, wayfinding, and product selection. The touch screen has glass construction, fast and accurate touch response, and is suitable for video wall configurations.
Tg lg 32_c2

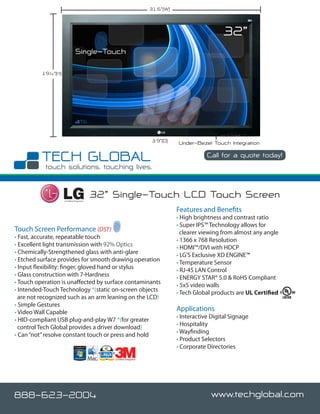

- 1. 31.6(安) 32 Single-Touch 19.4(H) 3.9(D) Under-Bezel Touch Integration Call for a quote today! Certified Integrator 32 Single-Touch LCD Touch Screen Features and Benefits High brightness and contrast ratio Super IPS Technology allows for Touch Screen Performance (DST) clearer viewing from almost any angle Fast, accurate, repeatable touch 1366 x 768 Resolution Excellent light transmission with 92% Optics HDMI/DVI with HDCP Chemically-Strengthened glass with anti-glare LGS Exclusive XD ENGINE Etched surface provides for smooth drawing operation Temperature Sensor Input flexibility: finger, gloved hand or stylus RJ-45 LAN Control Glass construction with 7-Hardness ENERGY STAR速 5.0 & RoHS Compliant Touch operation is unaffected by surface contaminants 5x5 video walls Intended-Touch Technology *(static on-screen objects Tech Global products are UL Certified are not recognized such as an arm leaning on the LCD) Simple Gestures Video Wall Capable Applications Interactive Digital Signage HID-compliant USB plug-and-play W7 *(for greater Hospitality control Tech Global provides a driver download) Wayfinding Can not resolve constant touch or press and hold Product Selectors Corporate Directories Certified Integrator 888-623-2004 www.techglobal.com

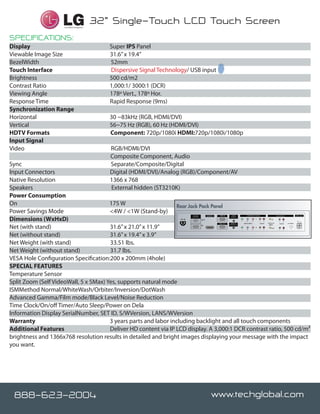

- 2. M3202T-BA 32" class (31.5" diagonal) monit lcd Certified Integrator 32 Single-Touch LCD Touch Screen SPECIFICATIONS: Display Super IPS Panel 31.6 Viewable Image Size 31.6 x 19.4 BezelWidth 52mm 21.3 Touch Interface Dispersive Signal Technology/ USB input 19.4 Brightness 500 cd/m2 Contrast Ratio 1,000:1/ 3000:1 (DCR) Viewing Angle 178尊 Vert., 178尊 Hor. Response Time Rapid Response (9ms) Synchronization Range 22.9 Horizontal 30 ~83kHz (RGB, HDMI/DVI) 4.0 Vertical 56~75 Hz (RGB), 60 Hz (HDMI/DVI) HDTV Formats Component: 720p/1080i HDMI:720p/1080i/1080p Input Signal 200mm Video RGB/HDMI/DVI 200mm Composite Component, Audio Sync Separate/Composite/Digital Input Connectors Digital (HDMI/DVI)/Analog (RGB)/Component/AV Native Resolution 1366 x 768 Speakers External hidden (ST3210K) 7.6 Power Consumption Note: Speakers and stand are optional accessories On 175 W Rear Jack Pack Panel Power Savings Mode <4W / <1W (Stand-by) Dimensions (WxHxD) RS-232C HDMI/DVI RGB IN AUDIO COMPONENT IN (BNC) AUDIO IN/OUT SPK_OUT (CONTROL) (RGB/DVI) AC-IN OUT 1 IN Y Pb Pr L R L R R L REMOTE VIDEO (BNC) AUDIO VIDEO IN S-VIDEO Net (with stand) 31.6 x 21.0 x 11.9 RGB OUT AUDIO IN CONTROL IN (BNC) 2 OUT Y Pb Pr L R L R Net (without stand) 31.6 x 19.4 x 3.9 Net Weight (with stand) 33.51 lbs. Net Weight (without stand) 31.7 lbs. LCD PANEL VESA Hole Configuration Specification:200 x 200mm (4hole) LCD Panel Type 32 Widescreen TFT (Thin Film Tra LCD (Liquid Crystal Display) Panel SPECIAL FEATURES Display Area 31.5 diagonal (M3202C-BA) Aspect Ratio 16:9 Temperature Sensor Native Resolution 1366 x 768 Pixels(H x V x 3) 3,147,264 Split Zoom (Self VideoWall, 5 x 5Max) Yes, supports natural mode Brightness 500 cd/m 2 Contrast Ratio 3,000:1(DCR) ISMMethod Normal/WhiteWash/Orbiter/Inversion/DotWash Viewing Angle 178属/ 178属 Color Depth 16.7 Million Advanced Gamma/Film mode/Black Level/Noise Reduction Response Time 9ms (G to G) Time Clock/On/off Timer/Auto Sleep/Power on Dela Surface Treatment MTBF Hard Coating (3H), Anti-glare 50,000 Hr. (Minimum), Portrait & Information Display SerialNumber, SET ID, S/WVersion, LANS/WVersion VIDEO Max Input Resolution 1600 X 1200@ 60Hz(Analog) Warranty 3 years parts and labor including backlight and all touch components 60Hz(Digital) 1920 X 1080@ Recommended Resolution 1360 X 768 @ 60Hz(Analog/Dig Additional Features Deliver HD content via IP LCD display. A 3,000:1 DCR contrast ratio, 500 cd/m族 H-Scanning Frequency 30 ~83kHz (Analog / Digital) V-Scanning Frequency 56 75 Hz(Analog), 60 Hz(Digital) brightness and 1366x768 resolution results in detailed and bright images displaying your message with~the impact you want. TO ORDER M3202T-BA, CONTACT YOUR KRISTEL DISPLAYS REPRESENTATIVE AT 1.630.443.1290 Kristel Displays 555 South Kirk Road, St. Charles, IL 60174. Contact information: Phone: 630.443.1290 EXT www.kristel.com TO ORDER OPTIONAL ACCESSORIES, CONTACT YOUR LG REGIONAL SALES MANAGER TOLL-FRE LG Electronics USA, Inc. Commercial Products Division 2000 Millbrook Drive, Lincolnshire, IL 60069. Contac For more information visit www.LGcommercial.com 888-623-2004 Stronger! Brighter, Faster, www.techglobal.com 息 Copyright 2009 LG Electronics USA, Inc. All Rights Reserved. LG Lifes Good is a registered trademark of L Screen image is simulated. Dimensions and weights are approximate. Design, features and specifications sub of Video Electronics Association. All other corporate and brand names are trademarks of their respective o high-definition broadcast. Printed in the USA. June 2009
