The history of Flash
Flash 的發展與演進
講者： Maso Lin

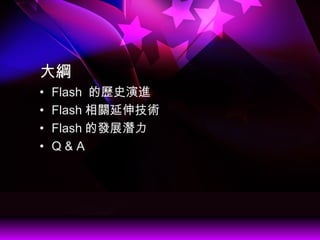

大綱

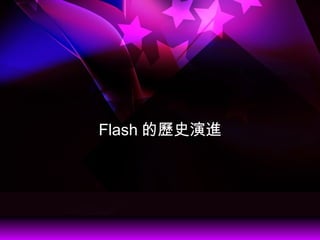

? Flash 的歷史演進

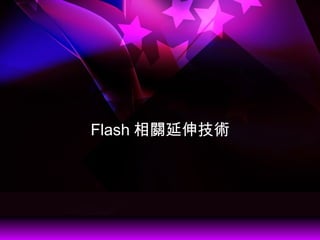

? Flash 相關延伸技術

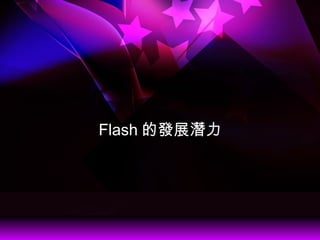

? Flash 的發展潛力

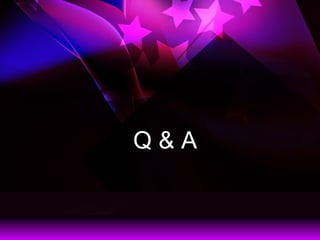

? Q & A

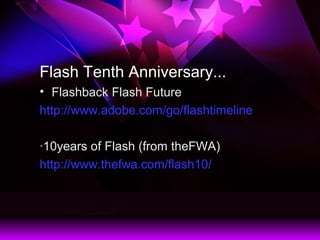

Flash Tenth Anniversary...
? Flashback Flash Future
http://www.adobe.com/go/flashtimeline
?10years of Flash (from theFWA)
http://www.thefwa.com/flash10/

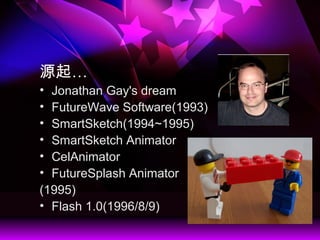

源起…
? Jonathan Gay's dream
? FutureWave Software(1993)
? SmartSketch(1994~1995)
? SmartSketch Animator
? CelAnimator

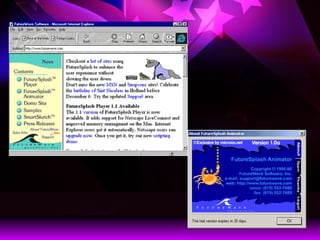

? FutureSplash Animator
(1995)
? Flash 1.0(1996/8/9)

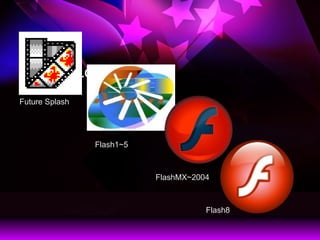

一些 Logo
Future Splash
Flash1~5
FlashMX~2004
Flash8

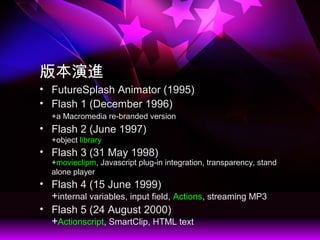

版本演進
? FutureSplash Animator (1995)
? Flash 1 (December 1996)
+a Macromedia re-branded version
? Flash 2 (June 1997)
+object library
? Flash 3 (31 May 1998)
+movieclipm, Javascript plug-in integration, transparency, stand
alone player
? Flash 4 (15 June 1999)
+internal variables, input field, Actions, streaming MP3
? Flash 5 (24 August 2000)
+Actionscript, SmartClip, HTML text

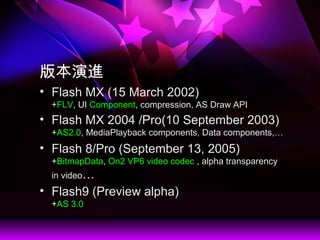

版本演進
? Flash MX (15 March 2002)
+FLV, UI Component, compression, AS Draw API
? Flash MX 2004 /Pro(10 September 2003)
+AS2.0, MediaPlayback components, Data components,…
? Flash 8/Pro (September 13, 2005)
+BitmapData, On2 VP6 video codec , alpha transparency
in video…
? Flash9 (Preview alpha)
+AS 3.0

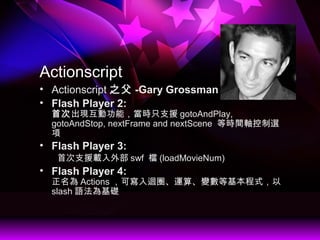

Actionscript
? Actionscript 之父 -Gary Grossman
? Flash Player 2:
首次出現互動功能，當時只支援 gotoAndPlay,
gotoAndStop, nextFrame and nextScene 等時間軸控制選
項
? Flash Player 3:
首次支援載入外部 swf 檔 (loadMovieNum)
? Flash Player 4:
正名為 Actions ，可寫入迴圈、運算、變數等基本程式，以
slash 語法為基礎

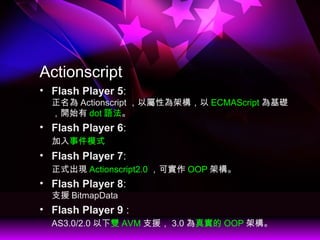

Actionscript
? Flash Player 5:
正名為 Actionscript ，以屬性為架構，以 ECMAScript 為基礎
，開始有 dot 語法。
? Flash Player 6:
加入事件模式
? Flash Player 7:
正式出現 Actionscript2.0 ，可實作 OOP 架構。
? Flash Player 8:
支援 BitmapData
? Flash Player 9 :
AS3.0/2.0 以下雙 AVM 支援， 3.0 為真實的 OOP 架構。

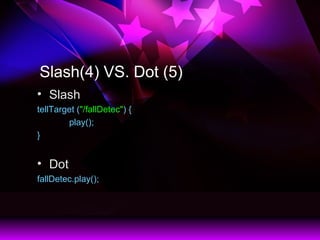

Slash(4) VS. Dot (5)
? Slash
tellTarget ("/fallDetec") {
play();
}
? Dot
fallDetec.play();

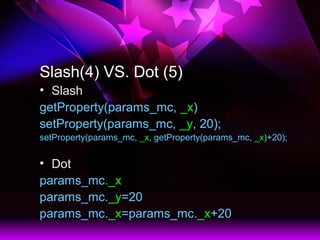

Slash(4) VS. Dot (5)
? Slash
getProperty(params_mc, _x)
setProperty(params_mc, _y, 20);
setProperty(params_mc, _x, getProperty(params_mc, _x)+20);
? Dot
params_mc._x
params_mc._y=20
params_mc._x=params_mc._x+20

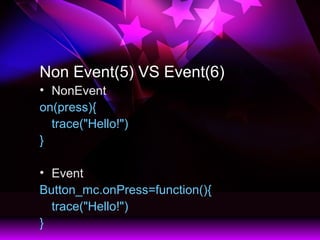

Non Event(5) VS Event(6)
? NonEvent
on(press){
trace("Hello!")
}
? Event
Button_mc.onPress=function(){
trace("Hello!")
}

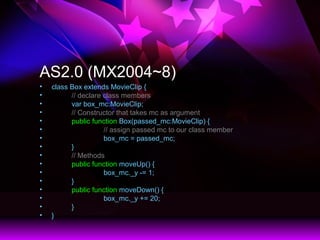

AS2.0 (MX2004~8)
? class Box extends MovieClip {
? // declare class members
? var box_mc:MovieClip;
? // Constructor that takes mc as argument
? public function Box(passed_mc:MovieClip) {
? // assign passed mc to our class member
? box_mc = passed_mc;
? }
? // Methods
? public function moveUp() {
? box_mc._y -= 1;
? }
? public function moveDown() {
? box_mc._y += 20;
? }
? }

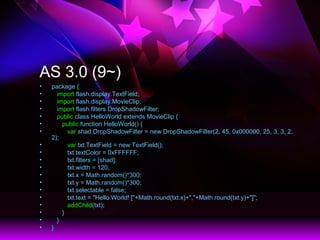

AS 3.0 (9~)
? package {
? import flash.display.TextField;
? import flash.display.MovieClip;
? import flash.filters.DropShadowFilter;
? public class HelloWorld extends MovieClip {
? public function HelloWorld() {
? var shad:DropShadowFilter = new DropShadowFilter(2, 45, 0x000000, 25, 3, 3, 2,
2);
? var txt:TextField = new TextField();
? txt.textColor = 0xFFFFFF;
? txt.filters = [shad];
? txt.width = 120;
? txt.x = Math.random()*300;
? txt.y = Math.random()*300;
? txt.selectable = false;
? txt.text = "Hello World! ["+Math.round(txt.x)+","+Math.round(txt.y)+"]";
? addChild(txt);
? }
? }
? }

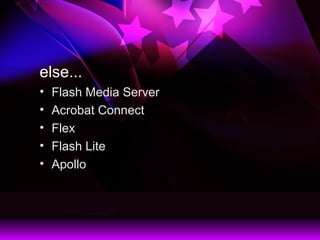

else...
? Flash Media Server
? Acrobat Connect
? Flex
? Flash Lite
? Apollo

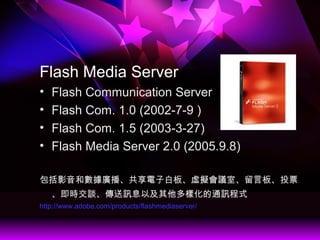

Flash Media Server
? Flash Communication Server
? Flash Com. 1.0 (2002-7-9 )
? Flash Com. 1.5 (2003-3-27)
? Flash Media Server 2.0 (2005.9.8)
包括影音和數據廣播、共享電子白板、虛擬會議室、留言板、投票
、即時交談、傳送訊息以及其他多樣化的通訊程式
http://www.adobe.com/products/flashmediaserver/

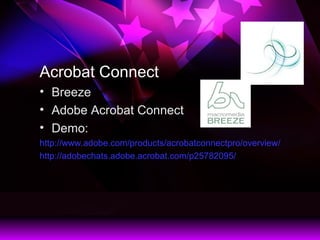

Acrobat Connect
? Breeze
? Adobe Acrobat Connect
? Demo:
http://www.adobe.com/products/acrobatconnectpro/overview/
http://adobechats.adobe.acrobat.com/p25782095/

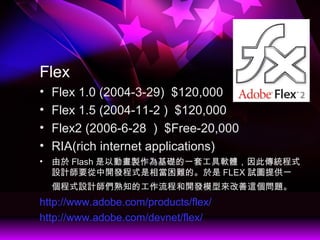

Flex
? Flex 1.0 (2004-3-29) $120,000
? Flex 1.5 (2004-11-2 ) $120,000
? Flex2 (2006-6-28 ) $Free-20,000
? RIA(rich internet applications)
? 由於 Flash 是以動畫製作為基礎的一套工具軟體，因此傳統程式
設計師要從中開發程式是相當困難的。於是 FLEX 試圖提供一
個程式設計師們熟知的工作流程和開發模型來改善這個問題。
http://www.adobe.com/products/flex/
http://www.adobe.com/devnet/flex/

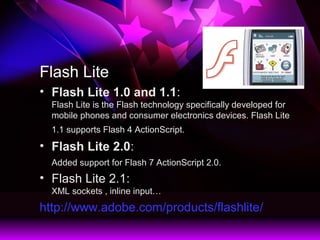

Flash Lite
? Flash Lite 1.0 and 1.1:
Flash Lite is the Flash technology specifically developed for
mobile phones and consumer electronics devices. Flash Lite
1.1 supports Flash 4 ActionScript.
? Flash Lite 2.0:
Added support for Flash 7 ActionScript 2.0.
? Flash Lite 2.1:
XML sockets , inline input…
http://www.adobe.com/products/flashlite/

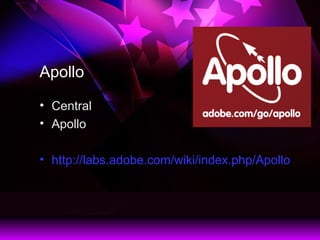

Apollo
? Central
? Apollo
? http://labs.adobe.com/wiki/index.php/Apollo

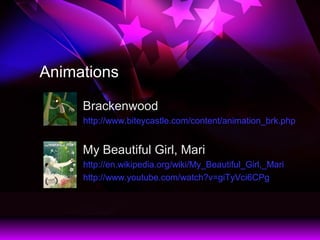

Animations
? Brackenwood
http://www.biteycastle.com/content/animation_brk.php
? My Beautiful Girl, Mari
http://en.wikipedia.org/wiki/My_Beautiful_Girl,_Mari
http://www.youtube.com/watch?v=giTyVci6CPg

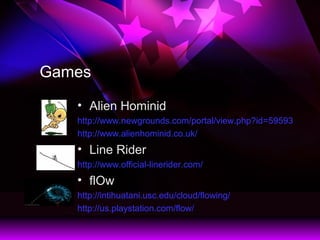

Games
? Alien Hominid
http://www.newgrounds.com/portal/view.php?id=59593
http://www.alienhominid.co.uk/
? Line Rider
http://www.official-linerider.com/
? flOw
http://intihuatani.usc.edu/cloud/flowing/
http://us.playstation.com/flow/

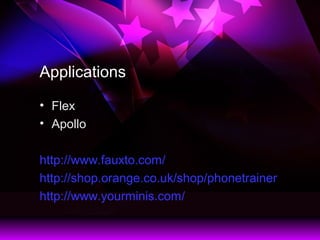

Applications
? Flex
? Apollo
http://www.fauxto.com/
http://shop.orange.co.uk/shop/phonetrainer
http://www.yourminis.com/

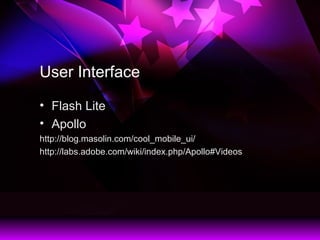

User Interface
? Flash Lite
? Apollo
http://blog.masolin.com/cool_mobile_ui/
http://labs.adobe.com/wiki/index.php/Apollo#Videos

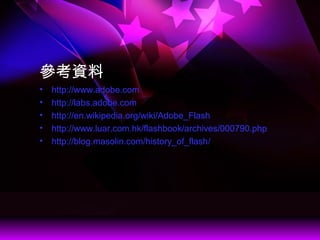

參考資料
? http://www.adobe.com
? http://labs.adobe.com
? http://en.wikipedia.org/wiki/Adobe_Flash
? http://www.luar.com.hk/flashbook/archives/000790.php
? http://blog.masolin.com/history_of_flash/
