Tidal energy harnesses the power of rising and falling tides using two main methods: tidal barrages and tidal current turbines. Tidal barrages are dams built across estuaries that generate power as tides flow in and out, while tidal current turbines extract energy directly from tidal currents. The largest tidal barrage is located on the Rance River in France and has been operating since 1967, while the European Marine Energy Centre in Scotland tests full-scale tidal current turbines. Both technologies have benefits like reliability but also challenges like high costs and potential environmental impacts that require further study.
Tidal_Energy.ppt

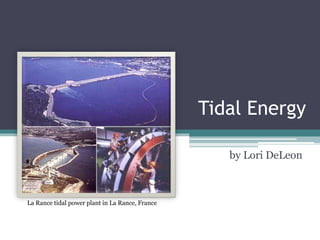

- 1. Tidal Energy by Lori DeLeon La Rance tidal power plant in La Rance, France

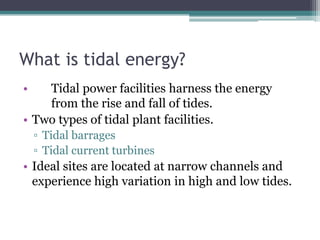

- 2. What is tidal energy? Tidal power facilities harness the energy from the rise and fall of tides. Two types of tidal plant facilities. Tidal barrages Tidal current turbines Ideal sites are located at narrow channels and experience high variation in high and low tides.

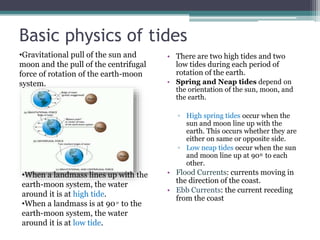

- 3. Basic physics of tides There are two high tides and two low tides during each period of rotation of the earth. Spring and Neap tides depend on the orientation of the sun, moon, and the earth. High spring tides occur when the sun and moon line up with the earth. This occurs whether they are either on same or opposite side. Low neap tides occur when the sun and moon line up at 90 勇 to each other. Flood Currents: currents moving in the direction of the coast. Ebb Currents: the current receding from the coast Gravitational pull of the sun and moon and the pull of the centrifugal force of rotation of the earth-moon system. When a landmass lines up with the earth-moon system, the water around it is at high tide. When a landmass is at 90 勇 to the earth-moon system, the water around it is at low tide.

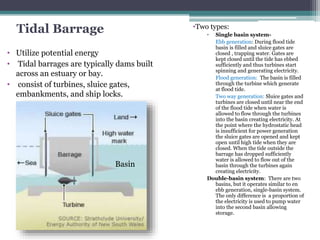

- 4. Tidal Barrage Two types: Single basin system- Ebb generation: During flood tide basin is filled and sluice gates are closed , trapping water. Gates are kept closed until the tide has ebbed sufficiently and thus turbines start spinning and generating electricity. Flood generation: The basin is filled through the turbine which generate at flood tide. Two way generation: Sluice gates and turbines are closed until near the end of the flood tide when water is allowed to flow through the turbines into the basin creating electricity. At the point where the hydrostatic head is insufficient for power generation the sluice gates are opened and kept open until high tide when they are closed. When the tide outside the barrage has dropped sufficiently water is allowed to flow out of the basin through the turbines again creating electricity. Double-basin system: There are two basins, but it operates similar to en ebb generation, single-basin system. The only difference is a proportion of the electricity is used to pump water into the second basin allowing storage. Utilize potential energy Tidal barrages are typically dams built across an estuary or bay. consist of turbines, sluice gates, embankments, and ship locks. Basin

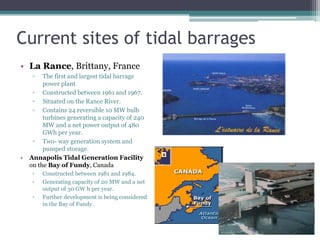

- 5. Current sites of tidal barrages La Rance, Brittany, France The first and largest tidal barrage power plant Constructed between 1961 and 1967. Situated on the Rance River. Contains 24 reversible 10 MW bulb turbines generating a capacity of 240 MW and a net power output of 480 GWh per year. Two- way generation system and pumped storage. Annapolis Tidal Generation Facility on the Bay of Fundy, Canada Constructed between 1981 and 1984. Generating capacity of 20 MW and a net output of 30 GW h per year. Further development is being considered in the Bay of Fundy.

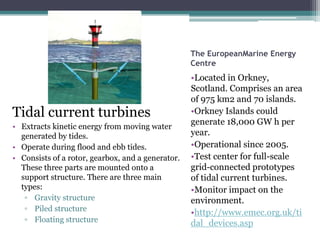

- 6. The EuropeanMarine Energy Centre Located in Orkney, Scotland. Comprises an area of 975 km2 and 70 islands. Orkney Islands could generate 18,000 GW h per year. Operational since 2005. Test center for full-scale grid-connected prototypes of tidal current turbines. Monitor impact on the environment. http://www.emec.org.uk/ti dal_devices.asp Tidal current turbines Extracts kinetic energy from moving water generated by tides. Operate during flood and ebb tides. Consists of a rotor, gearbox, and a generator. These three parts are mounted onto a support structure. There are three main types: Gravity structure Piled structure Floating structure

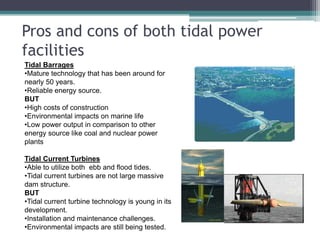

- 7. Pros and cons of both tidal power facilities Tidal Barrages Mature technology that has been around for nearly 50 years. Reliable energy source. BUT High costs of construction Environmental impacts on marine life Low power output in comparison to other energy source like coal and nuclear power plants Tidal Current Turbines Able to utilize both ebb and flood tides. Tidal current turbines are not large massive dam structure. BUT Tidal current turbine technology is young in its development. Installation and maintenance challenges. Environmental impacts are still being tested.

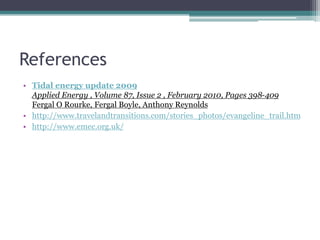

- 8. References Tidal energy update 2009 Applied Energy , Volume 87, Issue 2 , February 2010, Pages 398-409 Fergal O Rourke, Fergal Boyle, Anthony Reynolds http://www.travelandtransitions.com/stories_photos/evangeline_trail.htm http://www.emec.org.uk/
