Program dependence graph

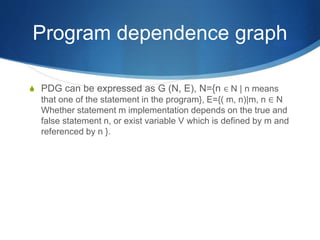

 PDG can be expressed as G (N, E), N={n ∈ N | n means
that one of the statement in the program}, E={( m, n)|m, n ∈ N
Whether statement m implementation depends on the true and
false statement n, or exist variable V which is defined by m and
referenced by n }.

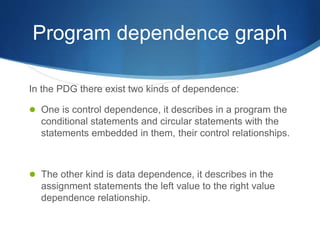

In the PDG there exist two kinds of dependence:
 One is control dependence, it describes in a program the
conditional statements and circular statements with the
statements embedded in them, their control relationships.
 The other kind is data dependence, it describes in the
assignment statements the left value to the right value
dependence relationship.

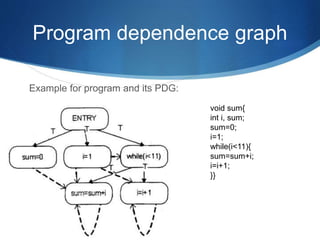

Example for program and its PDG:
void sum{
int i, sum;
sum=0;
i=1;
while(i<11){
sum=sum+i;
i=i+1;
}}

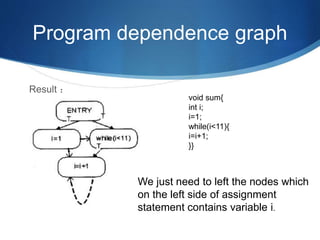

Result ：
void sum{
int i;
i=1;
while(i<11){
i=i+1;
}}
We just need to left the nodes which
on the left side of assignment
statement contains variable i.

• Each PDG has nodes for
– entry point
– procedure parameters and function result
• Each call site has nodes for
– call
– arguments and function result
• Appropriate edges
– entry node to parameters
– call node to arguments
– call node to entry node
– arguments to parameters

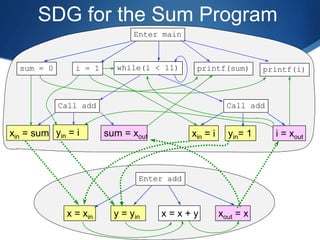

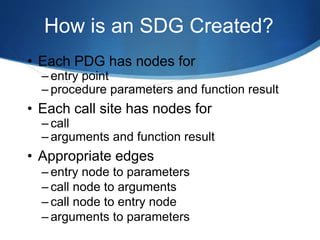

How is an SDG Created?

SDG for the Sum Program
Enter main
sum = 0 i = 1 while(i < 11) printf(sum) printf(i)
Call add Call add
xin = sum yin = i sum = xout xin = i yin= 1 i = xout
Enter add
x = xin y = yin x = x + y xout = x

System dependence graph

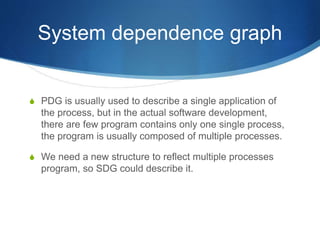

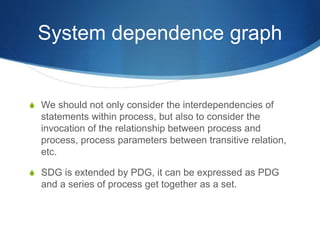

 PDG is usually used to describe a single application of
the process, but in the actual software development,
there are few program contains only one single process,
the program is usually composed of multiple processes.
 We need a new structure to reflect multiple processes
program, so SDG could describe it.

 We should not only consider the interdependencies of
statements within process, but also to consider the
invocation of the relationship between process and
process, process parameters between transitive relation,
etc.
 SDG is extended by PDG, it can be expressed as PDG
and a series of process get together as a set.

Through the following steps to construct a system
dependence graph, first of all, on the basis of PDG
increased some new nodes:
(1) For each of the called process set an Entry node
(2) For each argument set an Actual - in node finally set an
Actual - out node together, their relationship with the call
statement is control dependence.
(3) For each parameter set a Formal - in node, if the
parameter value is changed in the procedure call, then
again for this row and add a Formal - out node.

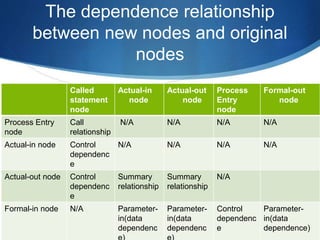

The dependence relationship
between new nodes and original
nodes
Called
statement
node
Actual-in
node
Actual-out
node
Process
Entry
node
Formal-out
node
Process Entry
node
Call
relationship
N/A N/A N/A N/A
Actual-in node Control
dependenc
e
N/A N/A N/A N/A
Actual-out node Control
dependenc
e
Summary
relationship
Summary
relationship
N/A
Formal-in node N/A Parameter-
in(data
dependenc
Parameter-
in(data
dependenc
Control
dependenc
e
Parameter-
in(data
dependence)

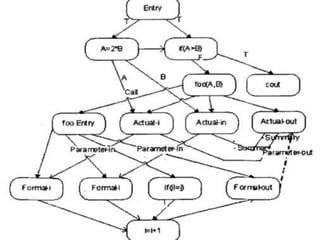

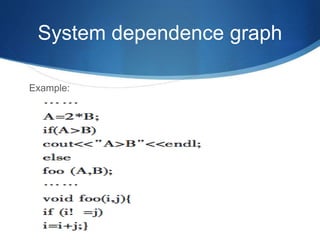

Example:

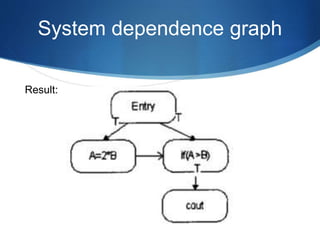

Result:
