UML relationships can be described using associations. An association describes a relationship between two or more classes. There are weak associations called dependencies that occur when a class references another class as a parameter or return type. Strong associations exist when a class holds a reference to another class. Aggregation represents a part-whole relationship where the whole class contains part classes. Composition is a strong life cycle association where if one class is deleted, associated classes are also deleted.
UML knowledge
- 1. 1 UML Knowledge Li-Wei Cheng

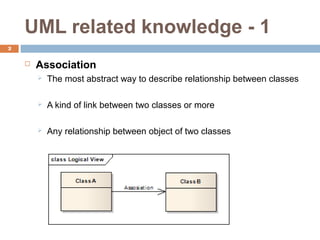

- 2. UML related knowledge - 1 2 ? Association ? The most abstract way to describe relationship between classes ? A kind of link between two classes or more ? Any relationship between object of two classes

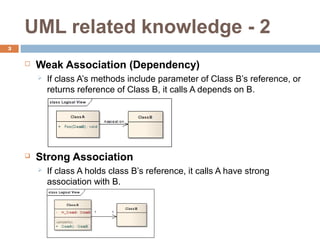

- 3. UML related knowledge - 2 3 ? Weak Association (Dependency) ? If class A¡¯s methods include parameter of Class B¡¯s reference, or returns reference of Class B, it calls A depends on B. ? Strong Association ? If class A holds class B¡¯s reference, it calls A have strong association with B.

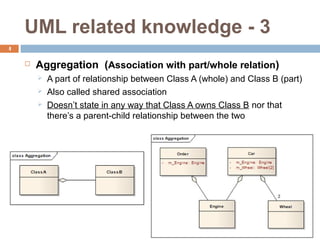

- 4. UML related knowledge - 3 4 ? Aggregation (Association with part/whole relation) ? A part of relationship between Class A (whole) and Class B (part) ? Also called shared association ? Doesn¡¯t state in any way that Class A owns Class B nor that there¡¯s a parent-child relationship between the two

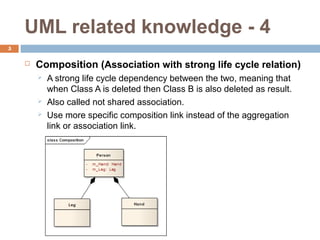

- 5. UML related knowledge - 4 5 ? Composition (Association with strong life cycle relation) ? A strong life cycle dependency between the two, meaning that when Class A is deleted then Class B is also deleted as result. ? Also called not shared association. ? Use more specific composition link instead of the aggregation link or association link.
