The BD5115 is a 1MP fixed dome network camera designed for indoor security. It captures high quality 1280x800 video at 30 fps using H.264, MPEG-4, and MJPEG compression. It has a removable IR cut filter, built-in IR illuminators for night vision up to 10m, and Power over Ethernet. The compact camera provides flexible installation and multi-streaming for various monitoring applications.
Vivotek bd5115
- 1. BD5115 Fixed Dome Network Camera 1MP?Compact Design VIVOTEK BD5115 is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, Features stylish exterior. Equipped with a 1MP sensor enabling viewing > 1-Megapixel CMOS Sensor resolution of 1280x800 at 30 fps, users need look no further for an all-in-one camera capable of capturing high quality, high resolution > Removable IR-cut Filter for Day and Night video. Function This camera supports the industry-standard H.264 compression > Built-in IR Illuminators, Effective up to 10 Meters technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also > Real-time H.264, MPEG-4 and MJPEG included, video streams can also be transmitted in any of these Compression (Triple Codec) formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further > Built-in 802.3af Compliant PoE reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, > 3-axis Mechanical Design for Ceiling and Wall frame rates, and image qualities for viewing on different platforms. Mount Installation The BD5115 model is aimed at providing 24-hour surveillance for indoor applications and features true day and night functionality with > Easy and Flexible Installation a removable IR-cut filter and built-in IR illuminators. > Compact and Attractive ID Design Also included are a number of advanced features which are standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE and VIVOTEK's 32-channel recording software. With all of these capabilities, the BD5115 prevents the best value in IP surveillance for indoor applications such as offices, banks, ATMs, and retail stores.

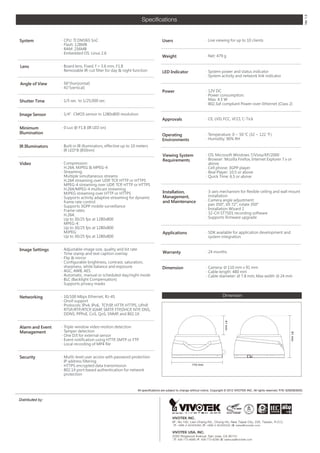

- 2. Ver 1.0 Speci?cations System £®CPU: TI DM365 SoC Users £®Live viewing for up to 10 clients £®Flash: 128MB £®RAM: 256MB £®Embedded OS: Linux 2.6 Weight £®Net: 479 g Lens £®Board lens, Fixed, f = 3.6 mm, F1.8 £®Removable IR-cut filter for day & night function LED Indicator £®System power and status indicator £®System activity and network link indicator Angle of View £®56¡ã(horizontal) £®41¡ã(vertical) Power £®12V DC £®Power consumption: Shutter Time £®1/5 sec. to 1/25,000 sec. Max. 4.5 W £®802.3af compliant Power-over-Ethernet (Class 2) Image Sensor £®1/4¡±CMOS sensor in 1280x800 resolution Approvals £®CE, LVD, FCC, VCCI, C-Tick Minimum £®0 Lux @ F1.8 (IR LED on) Illumination £®Temperature: 0 ~ 50 ¡æ (32 ~ 122 ¨H) Operating Environments £®Humidity: 90% RH IR Illuminators £®Built-in IR illuminators, effective up to 10 meters £®IR LED*8 (850nm) Viewing System £®OS: Microsoft Windows 7/Vista/XP/2000 Requirements £®Browser: Mozilla Firefox, Internet Explorer 7.x or Video £®Compression: above H.264, MJPEG & MPEG-4 £®Cell phone: 3GPP player £®Streaming: £®Real Player: 10.5 or above Multiple simultaneous streams £®Quick Time: 6.5 or above H.264 streaming over UDP, TCP, HTTP or HTTPS MPEG-4 streaming over UDP, TCP, HTTP or HTTPS H.264/MPEG-4 multicast streaming MJPEG streaming over HTTP or HTTPS Installation, £®3-axis mechanism for flexible ceiling and wall mount £®Supports activity adaptive streaming for dynamic Management, installation frame rate control and Maintenance £®Camera angle adjustment: £®Supports 3GPP mobile surveillance pan 350¡ã, tilt 72¡ã, rotate 350¡ã £®Frame rates: £®Installation Wizard 2 H.264: £®32-CH ST7501 recording software Up to 30/25 fps at 1280x800 £®Supports firmware upgrade MPEG-4: Up to 30/25 fps at 1280x800 MJPEG: Applications £®SDK available for application development and Up to 30/25 fps at 1280x800 system integration Image Settings £®Adjustable image size, quality and bit rate £®Time stamp and text caption overlay Warranty £®24 months £®Flip & mirror £®Configurable brightness, contrast, saturation, sharpness, white balance and exposure Dimension £®Camera: ? 110 mm x 91 mm £®AGC, AWB, AES £®Cable length: 480 mm £®Automatic, manual or scheduled day/night mode £®Cable diameter: ? 7.8 mm; Max width: ? 24 mm £®BLC (Backlight Compensation) £®Supports privacy masks Networking £®10/100 Mbps Ethernet, RJ-45 Dimension £®Onvif support £®Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP,DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X 41 mm Alarm and Event £®Triple-window video motion detection Management £®Tamper detection 91 mm £®One D/I for external sensor £®Event notification using HTTP, SMTP or FTP £®Local recording of MP4 file Security £®Muilti-level user access with password protection £®IP address filtering £®HTTPS encrypted data transmission 110 mm £®802.1X port-based authentication for network protection All specifications are subject to change without notice. Copyright ? 2012 VIVOTEK INC. All rights reserved. P/N: 626006300G Distributed by: VIVOTEK INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. |T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com VIVOTEK USA, INC. 2050 Ringwood Avenue, San Jose, CA 95131 |T: 408-773-8686| F: 408-773-8298| E: salesusa@vivotek.com
