Clooca is a web-based tool for domain-specific modeling (DSM) aimed at improving software productivity and quality through the generation of source code from abstract models. It allows users to create and utilize domain-specific modeling languages (DSML) efficiently, significantly reducing development time, with reports indicating DSM can be 400% faster than traditional coding methods. The tool features components such as meta-modeling, code generation, and a cloud-based editor, enabling non-programmers to develop applications effectively.
![Introduction
DSM
?DSM [Domain - Specific Modeling]
?Raise the level of abstraction
?Fine ¨C grained decomposition of
elements.
?Explicit Interactions.
?Provide reflection capabilities.
?Embed remoting.
?Fully source code generation.](https://image.slidesharecdn.com/web-basedtoolfordomainspecificmodeling-150323231234-conversion-gate01/85/Web-based-tool-for-domain-specific-modeling-2-320.jpg)
Web based tool for domain specific modeling

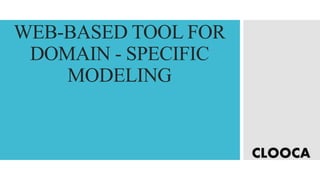

- 1. WEB-BASED TOOL FOR DOMAIN - SPECIFIC MODELING CLOOCA

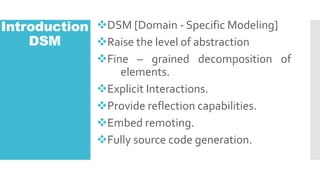

- 2. Introduction DSM ?DSM [Domain - Specific Modeling] ?Raise the level of abstraction ?Fine ¨C grained decomposition of elements. ?Explicit Interactions. ?Provide reflection capabilities. ?Embed remoting. ?Fully source code generation.

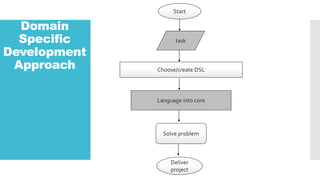

- 3. Domain Specific Development Approach Start task Choose/create DSL Language into core Solve problem Deliver project

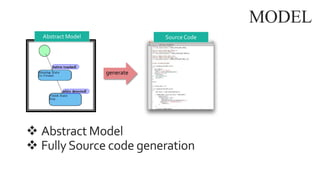

- 4. generate Abstract Model Source Code MODEL ? Abstract Model ? FullySource code generation

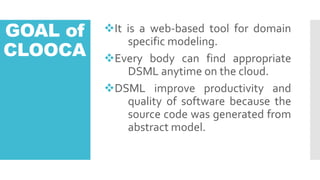

- 5. GOAL of CLOOCA ?It is a web-based tool for domain specific modeling. ?Every body can find appropriate DSML anytime on the cloud. ?DSML improve productivity and quality of software because the source code was generated from abstract model.

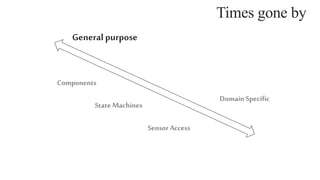

- 6. Components State Machines SensorAccess General purpose Domain Specific Times gone by

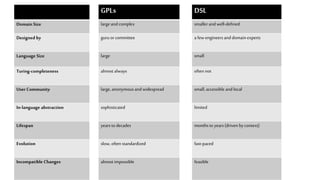

- 7. Domain Size Designed by Language Size Turing-completeness User Community In-language abstraction Lifespan Evolution Incompatible Changes GPLs large and complex guruor committee large almost always large, anonymous and widespread sophisticated years to decades slow, often standardized almost impossible DSL smaller and well-defined a few engineers and domain experts small often not small, accessible and local limited months to years(driven by context) fast-paced feasible

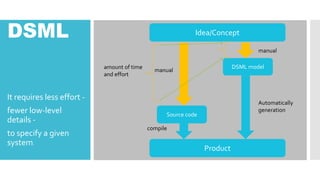

- 8. DSML It requires less effort - fewer low-level details - to specify a given system. DSML model Idea/Concept Product manual Automatically generation Source code manual compile amount of time and effort

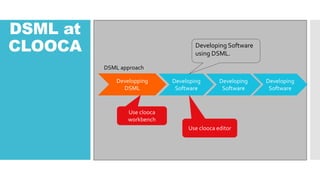

- 9. DSML at CLOOCA Developing Software Developing Software Developing Software Developping DSML DSML approach Developing Software using DSML. Use clooca workbench Use clooca editor

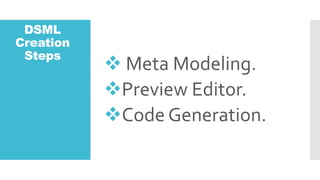

- 14. DSML Creation Steps ? Meta Modeling. ?Preview Editor. ?Code Generation.

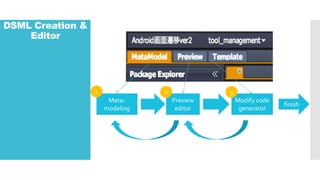

- 15. DSML Creation & Editor Meta- modeling Preview editor Modify code generator finish 1 2 3

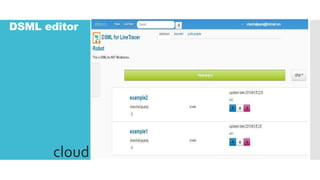

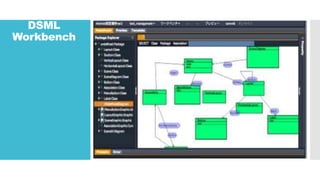

- 16. DSML Workbench

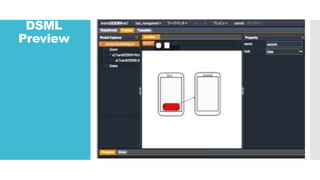

- 17. DSML Preview

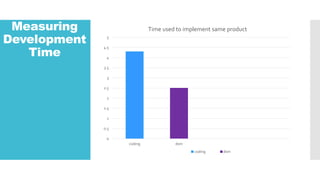

- 19. Measuring Development Time 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 coding dsm Time used to implement same product coding dsm

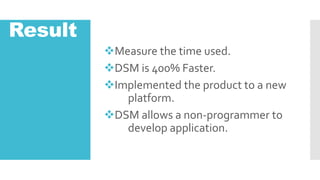

- 20. Result ?Measure the time used. ?DSM is 400% Faster. ?Implemented the product to a new platform. ?DSM allows a non-programmer to develop application.
