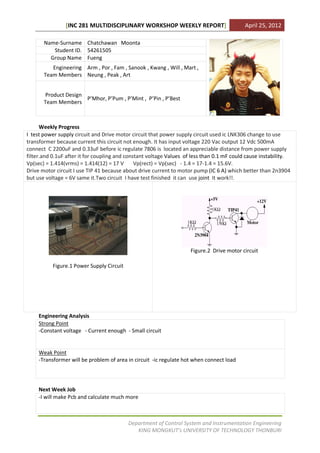

![[INC 281 MULTIDISCIPLINARY WORKSHOP WEEKLY REPORT] April 25, 2012
Name-Surname Chatchawan Moonta
Student ID. 54261505
Group Name Fueng
Engineering Arm , Por , Fam , Sanook , Kwang , Will , Mart ,
Team Members Neung , Peak , Art
Product Design
P¡¯Mhor, P¡¯Pum , P¡¯Mint , P¡¯Pin , P¡¯Best
Team Members
Weekly Progress
I test power supply circuit and Drive motor circuit that power supply circuit used ic LNK306 change to use
transformer because current this circuit not enough. It has input voltage 220 Vac output 12 Vdc 500mA
connect C 2200uF and 0.33uF before ic regulate 7806 is located an appreciable distance from power supply
filter.and 0.1uF after it for coupling and constant voltage Values of less than 0.1 mF could cause instability.
Vp(sec) = 1.414(vrms) = 1.414(12) = 17 V Vp(rect) = Vp(sec) - 1.4 = 17-1.4 = 15.6V.
Drive motor circuit I use TIP 41 because about drive current to motor pump (IC 6 A) which better than 2n3904
but use voltage = 6V same it.Two circuit I have test finished it can use joint It work!!.
Figure.2 Drive motor circuit
Figure.1 Power Supply Circuit
Engineering Analysis
Strong Point
-Constant voltage - Current enough - Small circuit
Weak Point
-Transformer will be problem of area in circuit -ic regulate hot when connect load
Next Week Job
-I will make Pcb and calculate much more
Department of Control System and Instrumentation Engineering
KING MONGKUT¡¯s UNIVERSITY OF TECHNOLOGY THONBURI](https://image.slidesharecdn.com/weekly25-0454261505-120424172256-phpapp01/85/Weekly25-04-54261505-1-320.jpg)
