This document provides specifications for the Yanmar 6LPA-STP2 marine diesel engine including its maximum output, displacement, cooling system, lubrication system, dry weight, and environmental compliance. It also includes dimension diagrams and performance curves showing torque, fuel consumption, and output at various engine speeds. Optional accessories for the engine such as flexible mounts, instrument panels, and exhaust components are listed.

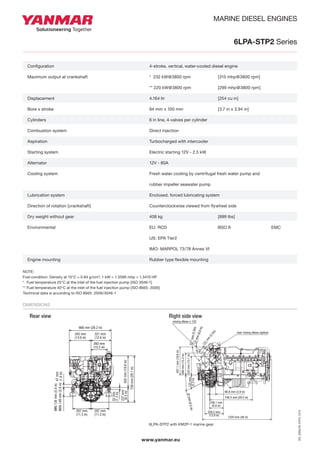

![EN_DS6LPA-STP2_1213
www.yanmar.eu
MARINE DIESEL ENGINES
6LPA-STP2 Series
Configuration 4-stroke, vertical, water-cooled diesel engine
Maximum output at crankshaft * 232 kW@3800 rpm [315 mhp@3800 rpm]
** 220 kW@3800 rpm [299 mhp@3800 rpm]
Displacement 4.164 ltr [254 cu in]
Bore x stroke 94 mm x 100 mm [3.7 in x 3.94 in]
Cylinders 6 in line, 4-valves per cylinder
Combustion system Direct injection
Aspiration Turbocharged with intercooler
Starting system Electric starting 12V - 2.5 kW
Alternator 12V - 80A
Cooling system Fresh water cooling by centrifugal fresh water pump and
rubber impeller seawater pump
Lubrication system Enclosed, forced lubricating system
Direction of rotation [crankshaft] Counterclockwise viewed from flywheel side
Dry weight without gear 408 kg [899 lbs]
Environmental EU: RCD BSO II EMC
US: EPA Tier2
IMO: MARPOL 73/78 Annex VI
Engine mounting Rubber type flexible mounting
NOTE:
Fuel condition: Density at 15属C = 0.84 g/cm続; 1 kW = 1.3596 mhp = 1.3410 HP
* Fuel temperature 25属C at the inlet of the fuel injection pump [ISO 3046-1]
** Fuel temperature 40属C at the inlet of the fuel injection pump [ISO 8665: 2006]
Technical data is according to ISO 8665: 2006/3046-1
Dimensions
MARINE DIESEL ENGINES
6LPA-STP2 / KMH50A marine gear
www.yanmarmarine.com
6LPA-STP2 Series
Configuration 4-stroke, vertical, water cooled diesel engine
Maximum output at crankshaft * 232 kW (315 mhp) / 3800 rpm
** 225 kW (306 mhp) / 3800 rpm
Continuous rating output at crankshaft 211 kW (286.4 mhp) / 3682 rpm
Displacement 4.164 L (254 cu in)
Bore x stroke 94 mm x 100 mm (3.70 in x 3.94 in)
Cylinders 6 in line cylinders, 4-valves per cylinder
Combustion system Direct injection
Aspiration Turbocharged with intercooler
Starting system Electrical starting 12 V - 2.5 kW
Alternator 12 V - 80 A
Cooling system Fresh water cooling by centrifugal fresh water pump and rubber impeller seawater pump
Lubrication system Enclosed, forced lubricating system
Direction of rotation (crankshaft) Counter clockwise viewed from flywheel side
Dry weight without gear 408 kg (899 lbs)
Environmental EU RCD, US EPA Tier2, BSO II, EMC & Marpol 73/78 Annex VI
Engine mounting Rubber type flexible mounting
NOTE: Fuel condition: Density at 15属C = 0.86 g/cm 3; 1kW = 1.3596 mhp = 1.3410 HP
* Fuel temperature 25属C at the inlet of the fuel injection pump (ISO 3046-1)
**Fuel temperature 40属C at the inlet of the fuel injection pump (ISO 8665)
Technical data is according to ISO 8665 / 3046
Dimensions (For detailed line-drawings, please refer to our web-site: www.yanmarmarine.com)
321 mm
(12.6 in)
260 mm
(10.2 in)
MIN.138mm(5.4in)
MAX.148mm(5.8in)
739mm(29.1in)
237mm
(9.3in)502mm(19.8in)
287 mm
(11,3 in)
287 mm
(11,3 in)
32mm
(1.3in)
47mm
(1.9in)
345 mm
(13.6 in)
666 mm (26.2 in)
riser mixing elbow (option)
mixing elbow o 102
748.4 mm (29.5 in)
132mm
(5.2in)
389mm(15.3in)
497.1mm(19.6in)
15尊mm(0.6in)
55尊mm(2.2in)
328.2 mm
(12.9 in)
248.1 mm
(9.8 in)
98.8 mm (3.9 in)
333mm(13.1in)
131mm
(5.2in)
8尊mm(0.3in)
1220 mm (48 in)
Rear view Right side view
6LPA-STP2 with KM2P-1 marine gear](https://image.slidesharecdn.com/yanmar-6lpa-stp2datasheet-161220181404/85/Yanmar-6-lpa-stp2datasheet-ANDREW-BOWDEN-DUBAI-1-320.jpg)

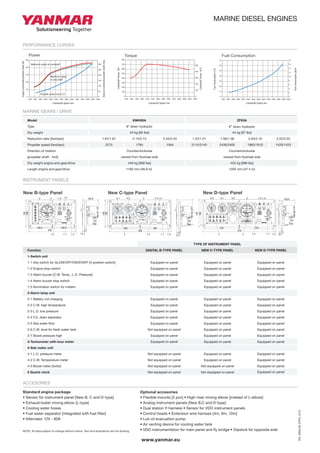

![EN_DS6LPA-STP2_1213
www.yanmar.eu
MARINE DIESEL ENGINES
Texts and illustrations are not binding. Yanmar Marine reserves the right to introduce adaptations without prior notification.
www.yanmarmarine.com
Version: 2011-09
Yanmar Europe BV
0
100
200
300
400
500
600
700
800
1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000
0
100
200
300
400
500
0
10
20
30
40
50
60
70
1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000
0
2
4
6
8
10
12
14
16
18
Marine gear (example) ***
Instrument Panels
Model KMH50A ZF63A
Type 8属 down hydraulic 8属 down hydraulic
Dry weight 43 kg (95 lbs) 44 kg (97 lbs)
Reduction ratio (fwd/asn) 1.67/1.67 2.13/2.13 2.43/2.43 1.22/1.21 1.56/1.58 2.04/2.10 2.52/2.53
Propeller speed (fwd/asn) 2275 1784 1564 3115/3140 2436/2405 1863/1810 1429/1423
Direction of rotation Counter clockwise Counter clockwise
(propeller shaft - fwd) viewed from flywheel side viewed from flywheel side
Dry weight engine and gear/drive 449 kg (990 lbs) 452 kg (996 lbs)
Length engine and gear/drive 1190 mm (46.9 in) 1205 mm (47.4 in)
Torque Fuel Consumption
CrankshaftTorquelb-ft
FuelConsumptionL/hr
FuelConsumptiongal/hr
Crankshaft Speed min-1
Crankshaft Speed min-1
Crankshaft Speed min-1
Performance Curves (Output is according ISO 8665)
1-1 1-21-3
2 1-5
New B-type Panel
180
3 1-4
12.7
11
4-1 4-2 3 1-4
1-4
2
400
76
90
New C-type Panel
160
142.5 142.5
305
1-5
1-21-3
180
160
190 190
1-1
103.6
12.7
11
New D-type Panel
103.6
12.7
11
4-3 4-1 4-2 3 1-4 1-5
1-21-11-352
225225
470
180
160
Note: O = Equipped on panel X = Not equipped on panel
Type of instrument panel
Function New B-type Panel New C-type Panel New D-type Panel
1 Switch unit
1-1 Key switch for GLOW/OFF/ON/START (4-position switch) O O O
1-2 Engine stop switch O O O
1-3 Alarm buzzer (C.W. Temp., L.O. Pressure) O O O
1-4 Alarm buzzer stop switch O O O
1-5 Illumination switch for meters O O O
2 Alarm lamp unit
Battery not charging O O O
C.W. high temperature O O O
L.O. low pressure O O O
F.O. drain separator (water level) O O O
Sea water flow O O O
C.W. level for fresh water tank X O O
Boost pressure high O O O
3 Tachometer with hour meter O O O
4 Sub meter unit
4-1 L.O. pressure meter X O O
4-2 C.W. Temperature meter X O O
4-3 Boost meter (turbo) X X O
5 Quartz clock X X O
*** Gear also available in; ZF63 (Parallel) reduction ratio: 1.51 & 1.93; ZF63IV (V-drive) reduction ratio: 1.29, 1.56 & 2.00
*** Other marine gearboxes and configurations available upon request. Contact your local supplier for more information.
Standard Package
Sensor for instrument panel Cooling water hoses
(New B, C and D-type) Fuel water separator (integrated with fuel filter)
Exhaust/water mixing elbow (L-type) Alternator 12 V - 80 A
Optional
Flexible mounts (2 pcs) Sensor for VDO instrument panels Control heads
Exhaust mixing elbow, U-type (high riser) Control heads Air venting device for cooling water tank
Analog instrument panels Various Wire Harnesses (4, 6, 10M) VDO instrumentation for main panel
(New B,C and D-type) Lub oil evacuation pump and fly bridge
Dual station Y harness Dipstick for opposite side
Accessories
0
50
100
150
200
250
1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000
0
50
100
150
200
250
300Maximum output at crankshaft
Propeller power curve 2.5
Output(crankshaft/propellershaft)kW
CrankshaftTorqueNm
Output(crankshaft/propellershaft)mhp
Maximum output
at prop shaft
Texts and illustrations are not binding. Yanmar Marine reserves the right to introduce adaptations without prior notification.
www.yanmarmarine.com
Version: 2011-09
Yanmar Europe BV
0
100
200
300
400
500
600
700
800
1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000
0
100
200
300
400
500
0
10
20
30
40
50
60
70
1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000
0
2
4
6
8
10
12
14
16
18
Marine gear (example) ***
Instrument Panels
Model KMH50A ZF63A
Type 8属 down hydraulic 8属 down hydraulic
Dry weight 43 kg (95 lbs) 44 kg (97 lbs)
Reduction ratio (fwd/asn) 1.67/1.67 2.13/2.13 2.43/2.43 1.22/1.21 1.56/1.58 2.04/2.10 2.52/2.53
Propeller speed (fwd/asn) 2275 1784 1564 3115/3140 2436/2405 1863/1810 1429/1423
Direction of rotation Counter clockwise Counter clockwise
(propeller shaft - fwd) viewed from flywheel side viewed from flywheel side
Dry weight engine and gear/drive 449 kg (990 lbs) 452 kg (996 lbs)
Length engine and gear/drive 1190 mm (46.9 in) 1205 mm (47.4 in)
Torque Fuel Consumption
CrankshaftTorquelb-ft
FuelConsumptionL/hr
FuelConsumptiongal/hr
Crankshaft Speed min-1
Crankshaft Speed min-1
Crankshaft Speed min-1
Performance Curves (Output is according ISO 8665)
1-1 1-21-3
2 1-5
New B-type Panel
180
3 1-4
12.7
11
4-1 4-2 3 1-4
1-4
2
400
76
90
New C-type Panel
160
142.5 142.5
305
1-5
1-21-3
180
160
190 190
1-1
103.6
12.7
11
New D-type Panel
103.6
12.7
11
4-3 4-1 4-2 3 1-4 1-5
1-21-11-352
225225
470
180
160
Note: O = Equipped on panel X = Not equipped on panel
Type of instrument panel
Function New B-type Panel New C-type Panel New D-type Panel
1 Switch unit
1-1 Key switch for GLOW/OFF/ON/START (4-position switch) O O O
1-2 Engine stop switch O O O
1-3 Alarm buzzer (C.W. Temp., L.O. Pressure) O O O
1-4 Alarm buzzer stop switch O O O
1-5 Illumination switch for meters O O O
2 Alarm lamp unit
Battery not charging O O O
C.W. high temperature O O O
L.O. low pressure O O O
F.O. drain separator (water level) O O O
Sea water flow O O O
C.W. level for fresh water tank X O O
Boost pressure high O O O
3 Tachometer with hour meter O O O
4 Sub meter unit
4-1 L.O. pressure meter X O O
4-2 C.W. Temperature meter X O O
4-3 Boost meter (turbo) X X O
5 Quartz clock X X O
*** Gear also available in; ZF63 (Parallel) reduction ratio: 1.51 & 1.93; ZF63IV (V-drive) reduction ratio: 1.29, 1.56 & 2.00
*** Other marine gearboxes and configurations available upon request. Contact your local supplier for more information.
Standard Package
Sensor for instrument panel Cooling water hoses
(New B, C and D-type) Fuel water separator (integrated with fuel filter)
Exhaust/water mixing elbow (L-type) Alternator 12 V - 80 A
Optional
Flexible mounts (2 pcs) Sensor for VDO instrument panels Control heads
Exhaust mixing elbow, U-type (high riser) Control heads Air venting device for cooling water tank
Analog instrument panels Various Wire Harnesses (4, 6, 10M) VDO instrumentation for main panel
(New B,C and D-type) Lub oil evacuation pump and fly bridge
Dual station Y harness Dipstick for opposite side
Accessories
0
50
100
150
200
250
1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000
0
50
100
150
200
250
300Maximum output at crankshaft
Propeller power curve 2.5
Output(crankshaft/propellershaft)kW
CrankshaftTorqueNm
Output(crankshaft/propellershaft)mhp
Maximum output
at prop shaft
Performance Curves
Instrument panels
Standard engine package
Sensor for instrument panel [New B, C and D-type]
Exhaust/water mixing elbow [L-type]
Cooling water hoses
Fuel water separator [integrated with fuel filter]
Alternator 12V - 80A
Optional accesories
Flexible mounts [2 pcs] High-riser mixing elbow [instead of L-elbow]
Analog instrument panels [New B,C and D-type]
Dual station Y-harness Sensor for VDO instrument panels
Control heads Extension wire harness [4m, 6m, 10m]
Lub oil evacuation pump
Air venting device for cooling water tank
VDO instrumentation for main panel and fly bridge Dipstick for opposite side
Accesories
marine gears / drive
Length engine and gear/drive
KMH50A
8属 down hydraulic
43 kg [95 lbs]
1.67/1.67 2.13/2.13 2.43/2.43 1.22/1.21
3115/3140
1.56/1.58
2436/2405
2.04/2.10
1863/1810
2.52/2.53
1429/14232275 1784 1564
Counterclockwise
viewed from flywheel side
449 kg [990 lbs]
Model
Type
Dry weight
Reduction ratio [fwd/asn]
Propeller speed [fwd/asn]
Direction of rotation
[propeller shaft - fwd]
Dry weight engine and gear/drive
1190 mm [46.9 in]
ZF63A
8属 down hydraulic
44 kg [97 lbs]
Counterclockwise
viewed from flywheel side
452 kg [996 lbs]
1205 mm [47.4 in]
NOTE: All data subject to change without notice. Text and illustrations are not binding.
Not equipped on panel
Not equipped on panel
Not equipped on panel
Not equipped on panel
Equipped on panel
Equipped on panel
Digital B-type Panel New c-type panel new d-type panel
Equipped on panel Equipped on panel Equipped on panel
Equipped on panel Equipped on panel Equipped on panel
Equipped on panel Equipped on panel Equipped on panel
Equipped on panel Equipped on panel Equipped on panel
Equipped on panel Equipped on panel Equipped on panel
Equipped on panel Equipped on panel Equipped on panel
Function
1-Switch unit
1-1 Key switch for GLOW/OFF/ON/START [4-position switch]
1-2 Engine stop switch
1-3 Alarm buzzer [C.W. Temp., L.O. Pressure]
1-4 Alarm buzzer stop switch
1-5 Illumination switch for meters
2-Alarm lamp unit
2-1 Battery not charging
2-2 C.W. high temperature
2-3 L.O. low pressure
2-4 F.O. drain seperator
2-5 Sea water flow
2-6 C.W. level for fresh water tank
2-7 Boost pressure high
3-Tachometer with hour meter
4-Sub meter unit
4-1 L.O. pressure meter
4-2 C.W. Temperature meter
4-3 Boost meter [turbo]
Equipped on panel Equipped on panel Equipped on panel
Equipped on panel Equipped on panel Equipped on panel
Equipped on panel Equipped on panel Equipped on panel
Equipped on panel Equipped on panel Equipped on panel
Not equipped on panel Equipped on panel
Equipped on panel
Equipped on panel
Equipped on panelEquipped on panel
Equipped on panel Equipped on panel Equipped on panel
Not equipped on panel Equipped on panel Equipped on panel
Not equipped on panel Equipped on panel Equipped on panel
Type of instrument panel
5 Quartz clock
Texts and illustrations are not binding. Yanmar Marine reserves the right to introduce adaptations without prior notification.
www.yanmarmarine.com
Version: 2011-01
Yanmar Europe BV
0
50
100
150
200
250
1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000
0
50
100
150
200
250
300
Instrument Panels
0
100
200
300
400
500
600
700
800
1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000
0
100
200
300
400
500
0
10
20
30
40
50
60
70
1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000
0
2
4
6
8
10
12
14
16
18
Maximum output at crankshaft
Power Torque
Maximum output
at prop shaft
Propeller power curve 2,5
Fuel Consumption
Output(crankshaft/propellershaft)kW
Output(crankshaft/propellershaft)mhp
CrankshaftTorqueNm
CrankshaftTorquelb-ft
FuelConsumptionL/hr
FuelConsumptiongal/hr
Crankshaft Speed min-1
Crankshaft Speed min-1
Crankshaft Speed min-1
Performance Curves (Output is according ISO 8665)
1-1 1-21-3
2 1-5
180
3 1-4
12.7
11
4-1 4-2 3 1-4
1-4
2
400
76
90
160
142.5 142.5
305
1-5
1-21-3
180
160
190 190
1-1
103.6
12.7
11
103.6
12.7
11
4-3 4-1 4-2 3 1-4 1-5
1-21-11-352
225225
470
180
160
Note: O = Equipped on panel X = Not equipped on panel
Type of instrument panel
Function New B-type Panel New C-type Panel New D-type Panel
1 Switch unit
1-1 Key switch for GLOW/OFF/ON/START (4-position switch) O O O
1-2 Engine stop switch O O O
1-3 Alarm buzzer (C.W. Temp., L.O. Pressure) O O O
1-4 Alarm buzzer stop switch O O O
1-5 Illumination switch for meters O O O
2 Alarm lamp unit
Battery not charging O O O
C.W. high temperature O O O
L.O. low pressure O O O
F.O. drain separator (water level) O O O
Sea water flow O O O
C.W. level for fresh water tank X O O
Boost pressure high X O O
3 Tachometer with hour meter O O O
4 Sub meter unit X
4-1 L.O. pressure meter X O O
4-2 C.W. Temperature meter X O O
4-3 Boost meter (turbo) X X O
5 Quartz clock X X O
Accessories
Standard Package
Sensor for instrument panel (New B, C and D-type) Fuel water separator (integrated with fuel filter)
Exhaust mixing elbow (L-type thru' drive) Hydraulic Steering pump
Cooling water hoses Alternator 12 V - 80 A
Optional
Analog instrument panels (New B,C and D-type) Dipstick for opposite side
Flexible mounts (2pcs) Various Wire Harnesses (4,6,10 m)
Exhaust mixing elbow, U-type (high riser transom type) Tie Bar (for twin installation)
Lub oil evacuation pump VDO instrumentation for main panel and fly bridge
Remark: Engine also available without Hydraulic steering pump for twin installation
New B-type Panel New C-type Panel New D-type Panel
Drive systems
Model ZT370 (Steerable Z-drive with dual prop)
Type Hydraulic Actuated Multi-friction disc clutch
Dry Weight 100 Kg
Reduction Ratio 1,65/1,65 1,78/1,78
propellor speed 2424/2424 2247/2247
Direction of rotation viewed from the stern Clockwise (rear prop) & Counterclockwise (front prop)
Lub oil specifications API class: GL5 SAE grade #80W90
Dry weight engine with sterndrive 550 kg (1213 lbs)
Shift control Mechanical or Electro-magnetic
Trim range -6属 - +10属
Trailer limit 51属](https://image.slidesharecdn.com/yanmar-6lpa-stp2datasheet-161220181404/85/Yanmar-6-lpa-stp2datasheet-ANDREW-BOWDEN-DUBAI-2-320.jpg)
Yanmar 6 lpa-stp2datasheet ANDREW BOWDEN DUBAI
- 1. EN_DS6LPA-STP2_1213 www.yanmar.eu MARINE DIESEL ENGINES 6LPA-STP2 Series Configuration 4-stroke, vertical, water-cooled diesel engine Maximum output at crankshaft * 232 kW@3800 rpm [315 mhp@3800 rpm] ** 220 kW@3800 rpm [299 mhp@3800 rpm] Displacement 4.164 ltr [254 cu in] Bore x stroke 94 mm x 100 mm [3.7 in x 3.94 in] Cylinders 6 in line, 4-valves per cylinder Combustion system Direct injection Aspiration Turbocharged with intercooler Starting system Electric starting 12V - 2.5 kW Alternator 12V - 80A Cooling system Fresh water cooling by centrifugal fresh water pump and rubber impeller seawater pump Lubrication system Enclosed, forced lubricating system Direction of rotation [crankshaft] Counterclockwise viewed from flywheel side Dry weight without gear 408 kg [899 lbs] Environmental EU: RCD BSO II EMC US: EPA Tier2 IMO: MARPOL 73/78 Annex VI Engine mounting Rubber type flexible mounting NOTE: Fuel condition: Density at 15属C = 0.84 g/cm続; 1 kW = 1.3596 mhp = 1.3410 HP * Fuel temperature 25属C at the inlet of the fuel injection pump [ISO 3046-1] ** Fuel temperature 40属C at the inlet of the fuel injection pump [ISO 8665: 2006] Technical data is according to ISO 8665: 2006/3046-1 Dimensions MARINE DIESEL ENGINES 6LPA-STP2 / KMH50A marine gear www.yanmarmarine.com 6LPA-STP2 Series Configuration 4-stroke, vertical, water cooled diesel engine Maximum output at crankshaft * 232 kW (315 mhp) / 3800 rpm ** 225 kW (306 mhp) / 3800 rpm Continuous rating output at crankshaft 211 kW (286.4 mhp) / 3682 rpm Displacement 4.164 L (254 cu in) Bore x stroke 94 mm x 100 mm (3.70 in x 3.94 in) Cylinders 6 in line cylinders, 4-valves per cylinder Combustion system Direct injection Aspiration Turbocharged with intercooler Starting system Electrical starting 12 V - 2.5 kW Alternator 12 V - 80 A Cooling system Fresh water cooling by centrifugal fresh water pump and rubber impeller seawater pump Lubrication system Enclosed, forced lubricating system Direction of rotation (crankshaft) Counter clockwise viewed from flywheel side Dry weight without gear 408 kg (899 lbs) Environmental EU RCD, US EPA Tier2, BSO II, EMC & Marpol 73/78 Annex VI Engine mounting Rubber type flexible mounting NOTE: Fuel condition: Density at 15属C = 0.86 g/cm 3; 1kW = 1.3596 mhp = 1.3410 HP * Fuel temperature 25属C at the inlet of the fuel injection pump (ISO 3046-1) **Fuel temperature 40属C at the inlet of the fuel injection pump (ISO 8665) Technical data is according to ISO 8665 / 3046 Dimensions (For detailed line-drawings, please refer to our web-site: www.yanmarmarine.com) 321 mm (12.6 in) 260 mm (10.2 in) MIN.138mm(5.4in) MAX.148mm(5.8in) 739mm(29.1in) 237mm (9.3in)502mm(19.8in) 287 mm (11,3 in) 287 mm (11,3 in) 32mm (1.3in) 47mm (1.9in) 345 mm (13.6 in) 666 mm (26.2 in) riser mixing elbow (option) mixing elbow o 102 748.4 mm (29.5 in) 132mm (5.2in) 389mm(15.3in) 497.1mm(19.6in) 15尊mm(0.6in) 55尊mm(2.2in) 328.2 mm (12.9 in) 248.1 mm (9.8 in) 98.8 mm (3.9 in) 333mm(13.1in) 131mm (5.2in) 8尊mm(0.3in) 1220 mm (48 in) Rear view Right side view 6LPA-STP2 with KM2P-1 marine gear
- 2. EN_DS6LPA-STP2_1213 www.yanmar.eu MARINE DIESEL ENGINES Texts and illustrations are not binding. Yanmar Marine reserves the right to introduce adaptations without prior notification. www.yanmarmarine.com Version: 2011-09 Yanmar Europe BV 0 100 200 300 400 500 600 700 800 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 0 100 200 300 400 500 0 10 20 30 40 50 60 70 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 0 2 4 6 8 10 12 14 16 18 Marine gear (example) *** Instrument Panels Model KMH50A ZF63A Type 8属 down hydraulic 8属 down hydraulic Dry weight 43 kg (95 lbs) 44 kg (97 lbs) Reduction ratio (fwd/asn) 1.67/1.67 2.13/2.13 2.43/2.43 1.22/1.21 1.56/1.58 2.04/2.10 2.52/2.53 Propeller speed (fwd/asn) 2275 1784 1564 3115/3140 2436/2405 1863/1810 1429/1423 Direction of rotation Counter clockwise Counter clockwise (propeller shaft - fwd) viewed from flywheel side viewed from flywheel side Dry weight engine and gear/drive 449 kg (990 lbs) 452 kg (996 lbs) Length engine and gear/drive 1190 mm (46.9 in) 1205 mm (47.4 in) Torque Fuel Consumption CrankshaftTorquelb-ft FuelConsumptionL/hr FuelConsumptiongal/hr Crankshaft Speed min-1 Crankshaft Speed min-1 Crankshaft Speed min-1 Performance Curves (Output is according ISO 8665) 1-1 1-21-3 2 1-5 New B-type Panel 180 3 1-4 12.7 11 4-1 4-2 3 1-4 1-4 2 400 76 90 New C-type Panel 160 142.5 142.5 305 1-5 1-21-3 180 160 190 190 1-1 103.6 12.7 11 New D-type Panel 103.6 12.7 11 4-3 4-1 4-2 3 1-4 1-5 1-21-11-352 225225 470 180 160 Note: O = Equipped on panel X = Not equipped on panel Type of instrument panel Function New B-type Panel New C-type Panel New D-type Panel 1 Switch unit 1-1 Key switch for GLOW/OFF/ON/START (4-position switch) O O O 1-2 Engine stop switch O O O 1-3 Alarm buzzer (C.W. Temp., L.O. Pressure) O O O 1-4 Alarm buzzer stop switch O O O 1-5 Illumination switch for meters O O O 2 Alarm lamp unit Battery not charging O O O C.W. high temperature O O O L.O. low pressure O O O F.O. drain separator (water level) O O O Sea water flow O O O C.W. level for fresh water tank X O O Boost pressure high O O O 3 Tachometer with hour meter O O O 4 Sub meter unit 4-1 L.O. pressure meter X O O 4-2 C.W. Temperature meter X O O 4-3 Boost meter (turbo) X X O 5 Quartz clock X X O *** Gear also available in; ZF63 (Parallel) reduction ratio: 1.51 & 1.93; ZF63IV (V-drive) reduction ratio: 1.29, 1.56 & 2.00 *** Other marine gearboxes and configurations available upon request. Contact your local supplier for more information. Standard Package Sensor for instrument panel Cooling water hoses (New B, C and D-type) Fuel water separator (integrated with fuel filter) Exhaust/water mixing elbow (L-type) Alternator 12 V - 80 A Optional Flexible mounts (2 pcs) Sensor for VDO instrument panels Control heads Exhaust mixing elbow, U-type (high riser) Control heads Air venting device for cooling water tank Analog instrument panels Various Wire Harnesses (4, 6, 10M) VDO instrumentation for main panel (New B,C and D-type) Lub oil evacuation pump and fly bridge Dual station Y harness Dipstick for opposite side Accessories 0 50 100 150 200 250 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 0 50 100 150 200 250 300Maximum output at crankshaft Propeller power curve 2.5 Output(crankshaft/propellershaft)kW CrankshaftTorqueNm Output(crankshaft/propellershaft)mhp Maximum output at prop shaft Texts and illustrations are not binding. Yanmar Marine reserves the right to introduce adaptations without prior notification. www.yanmarmarine.com Version: 2011-09 Yanmar Europe BV 0 100 200 300 400 500 600 700 800 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 0 100 200 300 400 500 0 10 20 30 40 50 60 70 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 0 2 4 6 8 10 12 14 16 18 Marine gear (example) *** Instrument Panels Model KMH50A ZF63A Type 8属 down hydraulic 8属 down hydraulic Dry weight 43 kg (95 lbs) 44 kg (97 lbs) Reduction ratio (fwd/asn) 1.67/1.67 2.13/2.13 2.43/2.43 1.22/1.21 1.56/1.58 2.04/2.10 2.52/2.53 Propeller speed (fwd/asn) 2275 1784 1564 3115/3140 2436/2405 1863/1810 1429/1423 Direction of rotation Counter clockwise Counter clockwise (propeller shaft - fwd) viewed from flywheel side viewed from flywheel side Dry weight engine and gear/drive 449 kg (990 lbs) 452 kg (996 lbs) Length engine and gear/drive 1190 mm (46.9 in) 1205 mm (47.4 in) Torque Fuel Consumption CrankshaftTorquelb-ft FuelConsumptionL/hr FuelConsumptiongal/hr Crankshaft Speed min-1 Crankshaft Speed min-1 Crankshaft Speed min-1 Performance Curves (Output is according ISO 8665) 1-1 1-21-3 2 1-5 New B-type Panel 180 3 1-4 12.7 11 4-1 4-2 3 1-4 1-4 2 400 76 90 New C-type Panel 160 142.5 142.5 305 1-5 1-21-3 180 160 190 190 1-1 103.6 12.7 11 New D-type Panel 103.6 12.7 11 4-3 4-1 4-2 3 1-4 1-5 1-21-11-352 225225 470 180 160 Note: O = Equipped on panel X = Not equipped on panel Type of instrument panel Function New B-type Panel New C-type Panel New D-type Panel 1 Switch unit 1-1 Key switch for GLOW/OFF/ON/START (4-position switch) O O O 1-2 Engine stop switch O O O 1-3 Alarm buzzer (C.W. Temp., L.O. Pressure) O O O 1-4 Alarm buzzer stop switch O O O 1-5 Illumination switch for meters O O O 2 Alarm lamp unit Battery not charging O O O C.W. high temperature O O O L.O. low pressure O O O F.O. drain separator (water level) O O O Sea water flow O O O C.W. level for fresh water tank X O O Boost pressure high O O O 3 Tachometer with hour meter O O O 4 Sub meter unit 4-1 L.O. pressure meter X O O 4-2 C.W. Temperature meter X O O 4-3 Boost meter (turbo) X X O 5 Quartz clock X X O *** Gear also available in; ZF63 (Parallel) reduction ratio: 1.51 & 1.93; ZF63IV (V-drive) reduction ratio: 1.29, 1.56 & 2.00 *** Other marine gearboxes and configurations available upon request. Contact your local supplier for more information. Standard Package Sensor for instrument panel Cooling water hoses (New B, C and D-type) Fuel water separator (integrated with fuel filter) Exhaust/water mixing elbow (L-type) Alternator 12 V - 80 A Optional Flexible mounts (2 pcs) Sensor for VDO instrument panels Control heads Exhaust mixing elbow, U-type (high riser) Control heads Air venting device for cooling water tank Analog instrument panels Various Wire Harnesses (4, 6, 10M) VDO instrumentation for main panel (New B,C and D-type) Lub oil evacuation pump and fly bridge Dual station Y harness Dipstick for opposite side Accessories 0 50 100 150 200 250 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 0 50 100 150 200 250 300Maximum output at crankshaft Propeller power curve 2.5 Output(crankshaft/propellershaft)kW CrankshaftTorqueNm Output(crankshaft/propellershaft)mhp Maximum output at prop shaft Performance Curves Instrument panels Standard engine package Sensor for instrument panel [New B, C and D-type] Exhaust/water mixing elbow [L-type] Cooling water hoses Fuel water separator [integrated with fuel filter] Alternator 12V - 80A Optional accesories Flexible mounts [2 pcs] High-riser mixing elbow [instead of L-elbow] Analog instrument panels [New B,C and D-type] Dual station Y-harness Sensor for VDO instrument panels Control heads Extension wire harness [4m, 6m, 10m] Lub oil evacuation pump Air venting device for cooling water tank VDO instrumentation for main panel and fly bridge Dipstick for opposite side Accesories marine gears / drive Length engine and gear/drive KMH50A 8属 down hydraulic 43 kg [95 lbs] 1.67/1.67 2.13/2.13 2.43/2.43 1.22/1.21 3115/3140 1.56/1.58 2436/2405 2.04/2.10 1863/1810 2.52/2.53 1429/14232275 1784 1564 Counterclockwise viewed from flywheel side 449 kg [990 lbs] Model Type Dry weight Reduction ratio [fwd/asn] Propeller speed [fwd/asn] Direction of rotation [propeller shaft - fwd] Dry weight engine and gear/drive 1190 mm [46.9 in] ZF63A 8属 down hydraulic 44 kg [97 lbs] Counterclockwise viewed from flywheel side 452 kg [996 lbs] 1205 mm [47.4 in] NOTE: All data subject to change without notice. Text and illustrations are not binding. Not equipped on panel Not equipped on panel Not equipped on panel Not equipped on panel Equipped on panel Equipped on panel Digital B-type Panel New c-type panel new d-type panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Function 1-Switch unit 1-1 Key switch for GLOW/OFF/ON/START [4-position switch] 1-2 Engine stop switch 1-3 Alarm buzzer [C.W. Temp., L.O. Pressure] 1-4 Alarm buzzer stop switch 1-5 Illumination switch for meters 2-Alarm lamp unit 2-1 Battery not charging 2-2 C.W. high temperature 2-3 L.O. low pressure 2-4 F.O. drain seperator 2-5 Sea water flow 2-6 C.W. level for fresh water tank 2-7 Boost pressure high 3-Tachometer with hour meter 4-Sub meter unit 4-1 L.O. pressure meter 4-2 C.W. Temperature meter 4-3 Boost meter [turbo] Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panel Not equipped on panel Equipped on panel Equipped on panel Equipped on panel Equipped on panelEquipped on panel Equipped on panel Equipped on panel Equipped on panel Not equipped on panel Equipped on panel Equipped on panel Not equipped on panel Equipped on panel Equipped on panel Type of instrument panel 5 Quartz clock Texts and illustrations are not binding. Yanmar Marine reserves the right to introduce adaptations without prior notification. www.yanmarmarine.com Version: 2011-01 Yanmar Europe BV 0 50 100 150 200 250 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 0 50 100 150 200 250 300 Instrument Panels 0 100 200 300 400 500 600 700 800 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 0 100 200 300 400 500 0 10 20 30 40 50 60 70 1600 1800 2000 2200 2400 2600 2800 3000 3200 3400 3600 3800 4000 0 2 4 6 8 10 12 14 16 18 Maximum output at crankshaft Power Torque Maximum output at prop shaft Propeller power curve 2,5 Fuel Consumption Output(crankshaft/propellershaft)kW Output(crankshaft/propellershaft)mhp CrankshaftTorqueNm CrankshaftTorquelb-ft FuelConsumptionL/hr FuelConsumptiongal/hr Crankshaft Speed min-1 Crankshaft Speed min-1 Crankshaft Speed min-1 Performance Curves (Output is according ISO 8665) 1-1 1-21-3 2 1-5 180 3 1-4 12.7 11 4-1 4-2 3 1-4 1-4 2 400 76 90 160 142.5 142.5 305 1-5 1-21-3 180 160 190 190 1-1 103.6 12.7 11 103.6 12.7 11 4-3 4-1 4-2 3 1-4 1-5 1-21-11-352 225225 470 180 160 Note: O = Equipped on panel X = Not equipped on panel Type of instrument panel Function New B-type Panel New C-type Panel New D-type Panel 1 Switch unit 1-1 Key switch for GLOW/OFF/ON/START (4-position switch) O O O 1-2 Engine stop switch O O O 1-3 Alarm buzzer (C.W. Temp., L.O. Pressure) O O O 1-4 Alarm buzzer stop switch O O O 1-5 Illumination switch for meters O O O 2 Alarm lamp unit Battery not charging O O O C.W. high temperature O O O L.O. low pressure O O O F.O. drain separator (water level) O O O Sea water flow O O O C.W. level for fresh water tank X O O Boost pressure high X O O 3 Tachometer with hour meter O O O 4 Sub meter unit X 4-1 L.O. pressure meter X O O 4-2 C.W. Temperature meter X O O 4-3 Boost meter (turbo) X X O 5 Quartz clock X X O Accessories Standard Package Sensor for instrument panel (New B, C and D-type) Fuel water separator (integrated with fuel filter) Exhaust mixing elbow (L-type thru' drive) Hydraulic Steering pump Cooling water hoses Alternator 12 V - 80 A Optional Analog instrument panels (New B,C and D-type) Dipstick for opposite side Flexible mounts (2pcs) Various Wire Harnesses (4,6,10 m) Exhaust mixing elbow, U-type (high riser transom type) Tie Bar (for twin installation) Lub oil evacuation pump VDO instrumentation for main panel and fly bridge Remark: Engine also available without Hydraulic steering pump for twin installation New B-type Panel New C-type Panel New D-type Panel Drive systems Model ZT370 (Steerable Z-drive with dual prop) Type Hydraulic Actuated Multi-friction disc clutch Dry Weight 100 Kg Reduction Ratio 1,65/1,65 1,78/1,78 propellor speed 2424/2424 2247/2247 Direction of rotation viewed from the stern Clockwise (rear prop) & Counterclockwise (front prop) Lub oil specifications API class: GL5 SAE grade #80W90 Dry weight engine with sterndrive 550 kg (1213 lbs) Shift control Mechanical or Electro-magnetic Trim range -6属 - +10属 Trailer limit 51属
