Speaker¡¯s Name: Prof. Salih Ofluoglu BIM-Enabled Performative Design Education for Achieving Sustainable and High-Performance Buildings Zero Build Forum¡¯20 International Virtual Forum on Zero Energy Buildings Speaker¡¯s Position & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University

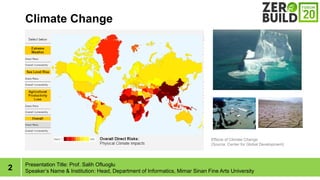

2 Climate Change Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Effects of Climate Change (Source: Center for Global Development)

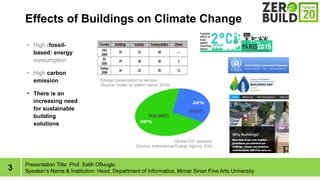

3 Effects of Buildings on Climate Change Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Global CO2 emission (Source: International Energy Agency, EIA) ? High (fossil- based) energy consumption ? High carbon emission ? There is an increasing need for sustainable building solutions Energy Consumption by sectors (Source: ?zoder ?s? yal?t?m report, 2010)
4 Energy Efficient/Sustainable Buildings Initiatives Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University ? EU: 2050 Energy Strategy %80- 95 reduction in carbon emission ? USA: Architecture 2030 Initiative: carbon neutral building ? Green Building Certitification programs ? Turkey: ? Energy Performance Legislation, ? Mandatory Energy ID Document and the BEP-TR software Green Bulding Certification Programs

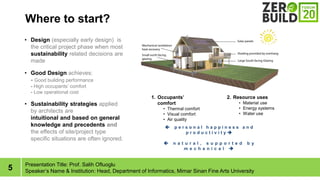

5 Where to start? Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University ? Design (especially early design) is the critical project phase when most sustainability related decisions are made ? Good Design achieves: - Good building performance - High occupants¡¯ comfort - Low operational cost ? Sustainability strategies applied by architects are intuitional and based on general knowledge and precedents and the effects of site/project type specific situations are often ignored. 1. Occupants¡¯ comfort ? Thermal comfort ? Visual comfort ? Air quality 2. Resource uses ? Material use ? Energy systems ? Water use ? p e r s o n a l h a p p i n e s s a n d p r o d u c t i v i t y ? ? n a t u r a l , s u p p o r t e d b y m e c h a n i c a l ?

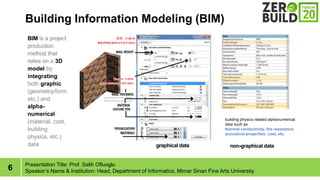

6 Building Information Modeling (BIM) Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University BIM is a project production method that relies on a 3D model by integrating both graphic (geometry/form etc.) and alpha- numerical (material, cost, building physics, etc.) data non-graphical data graphical data building physics related alphanumerical data such as thermal conductivity, fire resistance acoustical properties, cost, etc.

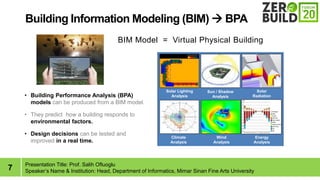

7 Building Information Modeling (BIM) ? BPA Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Sun / Shadow Analysis Solar Radiation Analysis Solar Lighting Analysis Wind Analysis Energy Analysis Climate Analysis ? Building Performance Analysis (BPA) models can be produced from a BIM model. ? They predict how a building responds to environmental factors. ? Design decisions can be tested and improved in a real time. BIM Model = Virtual Physical Building

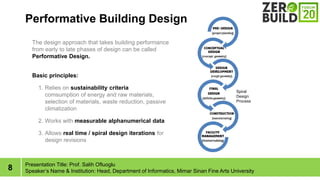

8 Performative Building Design Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Spiral Design Process The design approach that takes building performance from early to late phases of design can be called Performative Design. Basic principles: 1. Relies on sustainability criteria comsumption of energy and raw materials, selection of materials, waste reduction, passive climatization 2. Works with measurable alphanumerical data 3. Allows real time / spiral design iterations for design revisions

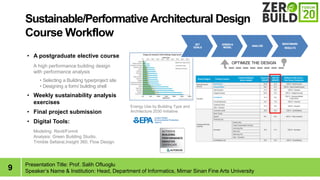

9 Sustainable/PerformativeArchitectural Design Course Workflow Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University ? A postgraduate elective course A high performance building design with performance analysis ? Selecting a Building type/project site ? Designing a form/ building shell ? Weekly sustainability analysis exercises ? Final project submission ? Digital Tools: Modeling: Revit/Formit Analysis: Green Building Studio, Trimble Sefairai,Insight 360, Flow Design Energy Use by Building Type and Architecture 2030 Initiative SET GOALS DESIGN& MODEL ANALYZE BENCHMARK RESULTS OPTIMIZE THE DESIGN

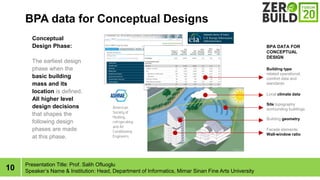

10 BPA data for Conceptual Designs Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Conceptual Design Phase: The earliest design phase when the basic building mass and its location is defined. All higher level design decisions that shapes the following design phases are made at this phase. Site topography surrounding buildings Building type related operational, comfort data and standards Building geometry Facade elements: Wall-window ratio Local climate data BPA DATA FOR CONCEPTUAL DESIGN

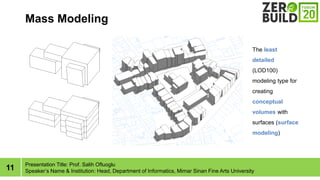

11 Mass Modeling Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University The least detailed (LOD100) modeling type for creating conceptual volumes with surfaces (surface modeling)

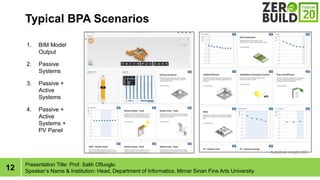

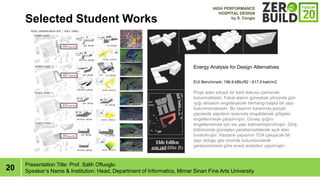

12 Typical BPA Scenarios Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Autodesk Insight 360 1. BIM Model Output 2. Passive Systems 3. Passive + Active Systems 4. Passive + Active Systems + PV Panel

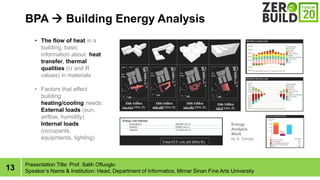

13 BPA ? Building Energy Analysis Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Energy Analysis Work by S. Cengiz ? The flow of heat in a building, basic information about heat transfer, thermal qualities (U and R values) in materials ? Factors that affect building heating/cooling needs: External loads (sun, airflow, humidity) Internal loads (occupants, equipments, lighting)

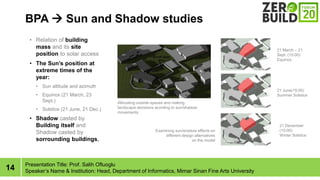

14 BPA ? Sun and Shadow studies Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University ? Relation of building mass and its site position to solar access ? The Sun¡¯s position at extreme times of the year: ? Sun altitude and azimuth ? Equinox (21 March, 23 Sept.) ? Solstice (21 June, 21 Dec.) ? Shadow casted by Building itself and Shadow casted by sorrounding buildings, Allocating outside spaces and making landscape decisions acording to sun/shadow movements Examining sun/shadow effects on different design alternatives on the model 21 June(15:00) Summer Solstice 21 December (15:00) Winter Solstice 21 March ¨C 21 Sept. (15:00) Equinox

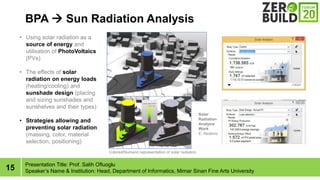

15 BPA ? Sun Radiation Analysis Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University ? Using solar radiation as a source of energy and utilisation of PhotoVoltaics (PVs) ? The effects of solar radiation on energy loads (heating/cooling) and sunshade design (placing and sizing sunshades and sunshelves and their types) ? Strategies allowing and preventing solar radiation (massing, color, material selection, positioning) Colored/Numeric representation of solar radiation Solar Radiation Analysis Work E. Akdeniz

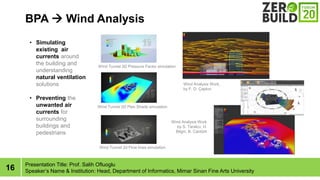

16 BPA ? Wind Analysis Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University ? Simulating existing air currents around the building and understanding natural ventilation solutions ? Preventing the unwanted air currents for surrounding buildings and pedestrians Wind Tunnel 3D Pressure Factor simulation Wind Tunnel 2D Plan Shade simulation Wind Tunnel 2d Flow lines simulation Wind Analysis Work by S. Tarakc?, H. Bilgin, B. Cant¨¹rk Wind Analysis Work, by F. D. ?apk?n

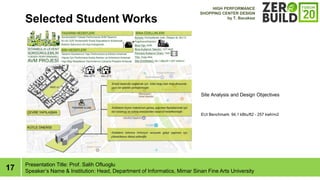

17 Selected Student Works Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Site Analysis and Design Objectives EUI Benchmark: 94,1 kBtu/ft2 - 257 kwh/m2 HIGH PERFORMANCE SHOPPING CENTER DESIGN by T. Bacaks?z

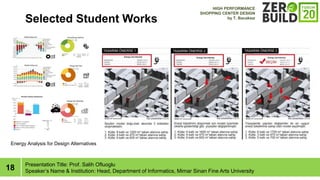

18 Selected Student Works Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Energy Analysis for Design Alternatives HIGH PERFORMANCE SHOPPING CENTER DESIGN by T. Bacaks?z
19 Selected Student Works Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Solar radiation and Wind Analyses for the Selected Design HIGH PERFORMANCE SHOPPING CENTER DESIGN by T. Bacaks?z
20 Selected Student Works Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University EUI Benchmark: 196.9 kBtu/ft2 - 617,4 kwh/m2 Proje alan? s?k???k bir kent dokusu i?erisinde bulunmaktad?r. Fakat alan?n g¨¹neybat? y?n¨¹nde g¨¹n ????? almas?n? engelleyecek herhangi ba?ka bir yap? bulunmamaktad?r. Bu tasar?m karar?nda par?al? yap?larda yap?lar?n aras?nda olu?abilecek g?lgeler engellenmeye ?al???lm??t?r. G¨¹ne? ?????n? engellememek i?in ise yap? katmanla?t?r?lm??t?r. Giri? b?l¨¹m¨¹nde g¨¹ne?ten yararlan?labilecek a??k alan b?rak?lm??t?r. Hastane yap?s?n?n 7/24 ?al??acak bir yap? oldu?u g?z ?n¨¹nde bulundurularak gereksinimlere g?re enerji analizleri yap?lm??t?r . Energy Analysis for Design Alternatives HIGH PERFORMANCE HOSPITAL DESIGN by S. Cengiz

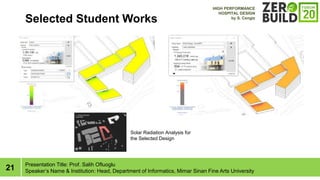

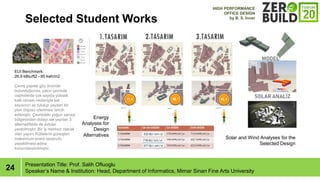

21 Selected Student Works Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University Solar Radiation Analysis for the Selected Design HIGH PERFORMANCE HOSPITAL DESIGN by S. Cengiz

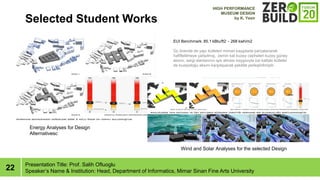

22 Selected Student Works Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University EUI Benchmark: 85.1 kBtu/ft2 - 268 kwh/m2 ?? ?neride de yap? k¨¹tleleri mimari kayg?larla par?alanarak hafifletilmeye ?al???lm??, zemin kat kuzey cepheleri kuzey g¨¹ney aks?n?, sergi alanlar?n?n ???k almas? kayg?s?yla ¨¹st kattaki k¨¹tleler de kuzeydo?u aks?n? kar??layacak ?ekilde yerle?tirilmi?tir. Energy Analyses for Design Alternativesc Wind and Solar Analyses for the selected Design HIGH PERFORMANCE MUSEUM DESIGN by K. Yesir
23 Selected Student Works Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University EUI Benchmark: 58.2 kBtu/ft2 - 183,33 kwh/m2 G¨¹ne? enerjisinden maksimum derecede yararlanabilmek i?in yap? g¨¹ney-bat? ve kuzey-do?u y?n¨¹nde konumland?r?lm??t?r. Par?al? olu?an yap?da, yap?n?n her alan?nda maksimum g¨¹ne? enerjisinden yararlanabilmek i?in kat say?lar? farkl? tutulmu?tur. B?ylece yap? i?erisinde olu?abilecek g?lgeler en aza indirgenmeye ?al???lm??t?r. HIGH PERFORMANCE ELEMENTARY SCHOOL DESIGN by Z. G¨¹l Energy Analyses for Design Alternatives
24 Selected Student Works Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University EUI Benchmark: 26,9 kBtu/ft2 - 85 kwh/m2 ?evre yap?lar g?z ?n¨¹nde bulundu?unda, yak?n ?evrede cephelerde ?ok say?da y¨¹ksek katl? olmas? nedeniyle kat say?s?n?n az tutulup yay?lan bir plan ?rg¨¹s¨¹ izlenmesi tercih edilmi?tir. ?evredeki yo?un sanayi b?lgesinden dolay? ise yap?lan 3 alternatiftede de avlular yarat?lm??t?r. Bir i? merkezi olacak olan yap?n? K¨¹tlelerin g¨¹ne?ten maksimum enerji tasarrufu yapabilmesi ad?na konumland?r?lm??t?r. HIGH PERFORMANCE OFFICE DESIGN by B. S. ?nner Energy Analyses for Design Alternatives Solar and Wind Analyses for the Selected Design
25 Selected Student Works Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University HIGH PERFORMANCE URBAN LAB DESIGN by M. I??kl?, E. Y?lmaz, M. Rahmanali Energy Analyses for Design Alternatives and Space Allocations
26 Final Words Presentation Title: Prof. Salih Ofluoglu Speaker¡¯s Name & Institution: Head, Department of Informatics, Mimar Sinan Fine Arts University ¡°informed design decisions¡± with measurable data and instant feedback and gained valuable insights regarding sustainable architectural design. By simulating real world conditions in the Performative Design framework, students made
Questions and Comments Thank you ? E-mail sayisalmimar@gmail.com ? Blog: www.sayisalmimar.com ? Facebook: facebook/sayisalmimar ? Twitter: @sofluoglu (art-tech-ture) ? Linkedin: tr.linkedin.com/in/sayisalmimar
