NEW
0 5 10 15 20 25 30 35 40 45 50 55
5
10
15
20
25
30
35
40
45
50
25
50
75
100
125
150
0 5 10
0 5 10
0 0.5 1 1.5 2 2.5 3
US g.p.m.
Imp g.p.m.
feet
l/min
m³/h
JSW1A-N
JSW1B-N
JSW1C-N

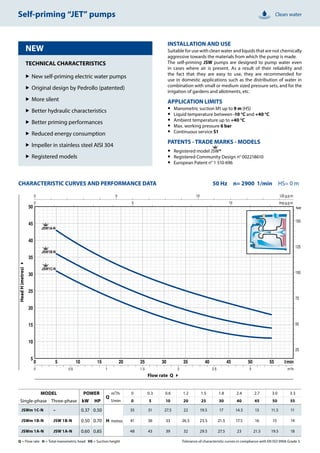

CHARACTERISTIC CURVES AND PERFORMANCE DATA 50 Hz n= 2900 1/min HS= 0 m
INSTALLATION AND USE
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The self-priming JSW pumps are designed to pump water even
in cases where air is present. As a result of their reliability and
the fact that they are easy to use, they are recommended for
use in domestic applications such as the distribution of water in
combination with small or medium sized pressure sets, and for the
irrigation of gardens and allotments, etc.
APPLICATION LIMITS
•• Manometric suction lift up to 9 m (HS)
•• Liquid temperature between -10 °C and +40 °C
•• Ambient temperature up to +40 °C
•• Max. working pressure 6 bar
•• Continuous service S1
PATENTS - TRADE MARKS - MODELS
•• Registered model JSW®
•• Registered Community Design n° 002218610
•• European Patent n° 1 510 696
TECHNICAL CHARACTERISTICS
u New self-priming electric water pumps
u Original design by Pedrollo (patented)
u More silent
u Better hydraulic characteristics
u Better priming performances
u Reduced energy consumption
u Impeller in stainless steel AISI 304
u Registered models
Q = Flow rate H = Total manometric head HS = Suction height Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3.
Flow rate Q 4
HeadH(metres)4
Self-priming “JET” pumps
MODEL POWER
Q
m³/h 0 0.3 0.6 1.2 1.5 1.8 2.4 2.7 3.0 3.3
Single-phase Three-phase kW HP l/min 0 5 10 20 25 30 40 45 50 55
JSWm 1 C-N – 0.37 0.50
H metres
35 31 27.5 22 19.5 17 14.5 13 11.5 11
JSWm 1 B-N JSW 1 B-N 0.50 0.70 41 36 33 26.5 23.5 21.5 17.5 16 15 14
JSWm 1 A-N JSW 1 A-N 0.60 0.85 48 43 39 32 29.5 27.5 23 21.5 19.5 18
Clean water

2
0 bar
4 6
8
10
2
0 bar
4 6
8
10
1 43 6 95
772 8

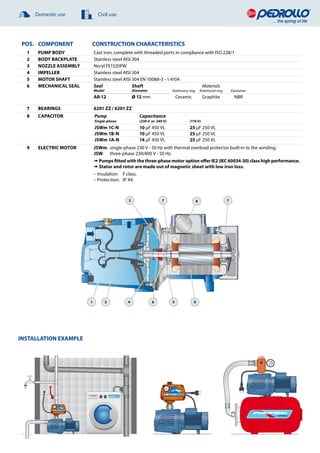

POS. COMPONENT CONSTRUCTION CHARACTERISTICS
1 PUMP BODY Cast iron, complete with threaded ports in compliance with ISO 228/1
2 BODY BACKPLATE Stainless steel AISI 304
3 NOZZLE ASSEMBLY Noryl FE1520PW
4 IMPELLER Stainless steel AISI 304
5 MOTOR SHAFT Stainless steel AISI 304 EN 10088-3 - 1.4104
6 MECHANICAL SEAL Seal Shaft Materials
Model Diameter Stationary ring Rotational ring Elastomer
AR-12 Ø 12 mm Ceramic Graphite NBR
7 BEARINGS 6201 ZZ / 6201 ZZ
8 CAPACITOR Pump Capacitance
Single-phase (230 V or 240 V) (110 V)
JSWm 1C-N 10 μF 450 VL 25 μF 250 VL
JSWm 1B-N 10 μF 450 VL 25 μF 250 VL
JSWm 1A-N 14 μF 450 VL 25 μF 250 VL
9 ELECTRIC MOTOR JSWm: single-phase 230 V - 50 Hz with thermal overload protector built-in to the winding.
JSW: three-phase 230/400 V - 50 Hz.
➠ Pumps fitted with the three-phase motor option offer IE2 (IEC 60034-30) class high performance.
➠ Stator and rotor are made out of magnetic sheet with low iron loss.
– Insulation: F class.
– Protection: IP X4.
INSTALLATION EXAMPLE
Domestic use Civil use

f
a
w
DN1
h1
h3
h2
n
n1
h
s
DN2

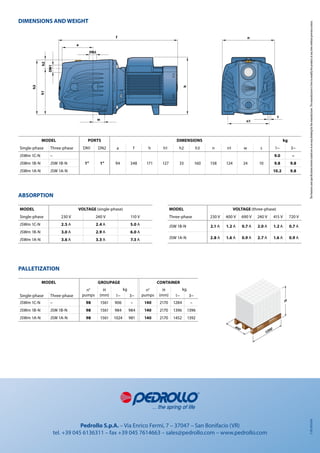

DIMENSIONS AND WEIGHT
ABSORPTION
PALLETIZATION
MODEL GROUPAGE CONTAINER
n°
pumps
H
(mm)
kg n°
pumps
H
(mm)
kg
Single-phase Three-phase 1~ 3~ 1~ 3~
JSWm 1C-N – 98 1561 906 – 140 2170 1284 –
JSWm 1B-N JSW 1B-N 98 1561 984 984 140 2170 1396 1396
JSWm 1A-N JSW 1A-N 98 1561 1024 981 140 2170 1452 1392
Z-DPL90030UK Thefeaturesandspecificationshereinstatedareinnowaybindingforthemanufacturer.Themanufacturerisfreetomodifytheproductatanytimewithoutpreviousnotice.
800
H
1200
Pedrollo S.p.A. – Via Enrico Fermi, 7 – 37047 – San Bonifacio (VR)
tel. +39 045 6136311 – fax +39 045 7614663 – sales@pedrollo.com – www.pedrollo.com
MODEL VOLTAGE (three-phase)
Three-phase 230 V 400 V 690 V 240 V 415 V 720 V
JSW 1B-N 2.1 A 1.2 A 0.7 A 2.0 A 1.2 A 0.7 A
JSW 1A-N 2.8 A 1.6 A 0.9 A 2.7 A 1.6 A 0.9 A
MODEL VOLTAGE (single-phase)
Single-phase 230 V 240 V 110 V
JSWm 1C-N 2.5 A 2.4 A 5.0 A
JSWm 1B-N 3.0 A 2.9 A 6.0 A
JSWm 1A-N 3.6 A 3.3 A 7.3 A
MODEL PORTS DIMENSIONS kg
Single-phase Three-phase DN1 DN2 a f h h1 h2 h3 n n1 w s 1~ 3~
JSWm 1C-N –
1” 1” 94 348 171 127 33 160 158 124 24 10
9.0 –
JSWm 1B-N JSW 1B-N 9.8 9.8
JSWm 1A-N JSW 1A-N 10.2 9.8
