The document provides specifications for various types of medical device PCB products, including details on layer counts, materials, dimensions, and minimum tolerances. Examples include single layer copper core PCBs and multi-layer FR4 PCBs with various surface finishes. It outlines specific part numbers and applications in fields like industrial control and communication equipment.
HDI PCB Manufacturing at EFPCB

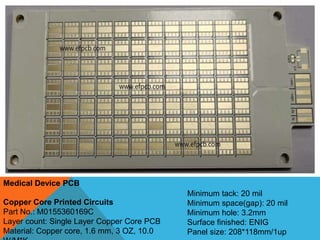

- 2. Medical Device PCB Copper Core Printed Circuits Part No.: M0155360169C Layer count: Single Layer Copper Core PCB Material: Copper core, 1.6 mm, 3 OZ, 10.0 Minimum tack: 20 mil Minimum space(gap): 20 mil Minimum hole: 3.2mm Surface finished: ENIG Panel size: 208*118mm/1up

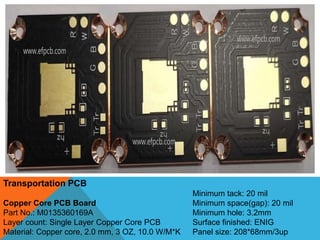

- 3. Transportation PCB Copper Core PCB Board Part No.: M0135360169A Layer count: Single Layer Copper Core PCB Material: Copper core, 2.0 mm, 3 OZ, 10.0 W/M*K Minimum tack: 20 mil Minimum space(gap): 20 mil Minimum hole: 3.2mm Surface finished: ENIG Panel size: 208*68mm/3up

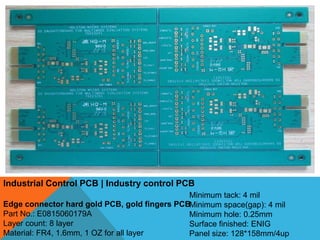

- 4. Industrial Control PCB | Industry control PCB Edge connector hard gold PCB, gold fingers PCB Part No.: E0815060179A Layer count: 8 layer Material: FR4, 1.6mm, 1 OZ for all layer Minimum tack: 4 mil Minimum space(gap): 4 mil Minimum hole: 0.25mm Surface finished: ENIG Panel size: 128*158mm/4up

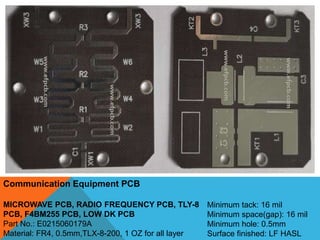

- 5. Communication Equipment PCB MICROWAVE PCB, RADIO FREQUENCY PCB, TLY-8 PCB, F4BM255 PCB, LOW DK PCB Part No.: E0215060179A Material: FR4, 0.5mm,TLX-8-200, 1 OZ for all layer Minimum tack: 16 mil Minimum space(gap): 16 mil Minimum hole: 0.5mm Surface finished: LF HASL
