Acoustical wall detail and window jamb
0 likes456 views
The document provides details for acoustical wall construction including an aluminum glazing system, EMSEAL expansion joints, metal framing, gypsum board furring channels, sound break gypsum board, fiberglass batt insulation, and other components to isolate sound transmission. Dimensions and material callouts are provided for the wall sill, jamb, and head conditions. The drawings also specify fastening spacing and construction adhesive use.
Acoustical wall detail and window jamb

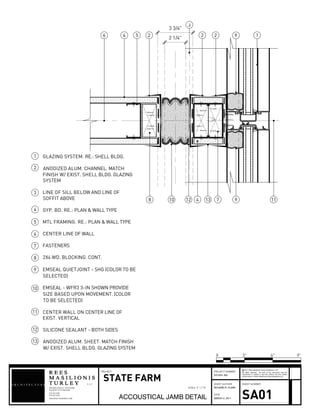

- 1. 2 1/4" 3 3/4" GLAZING SYSTEM. RE.: SHELL BLDG. ANODIZED ALUM. CHANNEL. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM LINE OF SILL BELOW AND LINE OF SOFFIT ABOVE GYP. BD. RE.: PLAN & WALL TYPE MTL FRAMING. RE.: PLAN & WALL TYPE CENTER LINE OF WALL FASTENERS 2X4 WD. BLOCKING. CONT. EMSEAL QUIETJOINT - SHG (COLOR TO BE SELECTED) EMSEAL - WFR3 3-IN SHOWN PROVIDE SIZE BASED UPON MOVEMENT. (COLOR TO BE SELECTED) CENTER WALL ON CENTER LINE OF EXIST. VERTICAL SILICONE SEALANT - BOTH SIDES ANODIZED ALUM. SHEET. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM 1 2 3 4 5 6 7 8 9 10 11 12 3 4 56 78 910 11 22 9 12 4 1312 13 908 BROADWAY 6THFLOOR L L C KANSAS CITY MO64105 816.842.1878 816.842.1292 ARCHITECTURERMT.COM SHEET AUTHOR DATE SHEET NUMBER All rights reserved. No part of this document may be reproduced or utilized in any form without the prior written authorization of Rees Masilionis Turley Architecture, LLC. c 2011 Rees Masilionis Turley Architecture, LLC PROJECT NUMBERPROJECT STATE FARM ACCOUSTICAL JAMB DETAIL 2010331.002 RICHARD R. CLARK MARCH 2, 2011 SA01 0 3" 9"6" SCALE 3" = 1'-0"

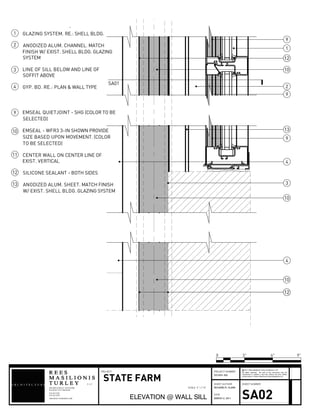

- 2. 1 2 3 4 9 10 10 10 4 9 9 1212 1212 13 SA01 GLAZING SYSTEM. RE.: SHELL BLDG. ANODIZED ALUM. CHANNEL. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM LINE OF SILL BELOW AND LINE OF SOFFIT ABOVE GYP. BD. RE.: PLAN & WALL TYPE 1 2 3 4 EMSEAL QUIETJOINT - SHG (COLOR TO BE SELECTED) EMSEAL - WFR3 3-IN SHOWN PROVIDE SIZE BASED UPON MOVEMENT. (COLOR TO BE SELECTED) CENTER WALL ON CENTER LINE OF EXIST. VERTICAL SILICONE SEALANT - BOTH SIDES ANODIZED ALUM. SHEET. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM 9 10 11 12 13 908 BROADWAY 6THFLOOR L L C KANSAS CITY MO64105 816.842.1878 816.842.1292 ARCHITECTURERMT.COM SHEET AUTHOR DATE SHEET NUMBER All rights reserved. No part of this document may be reproduced or utilized in any form without the prior written authorization of Rees Masilionis Turley Architecture, LLC. c 2011 Rees Masilionis Turley Architecture, LLC PROJECT NUMBERPROJECT STATE FARM ELEVATION @ WALL SILL 2010331.002 RICHARD R. CLARK MARCH 2, 2011 SA02 0 3" 9"6" SCALE 3" = 1'-0"

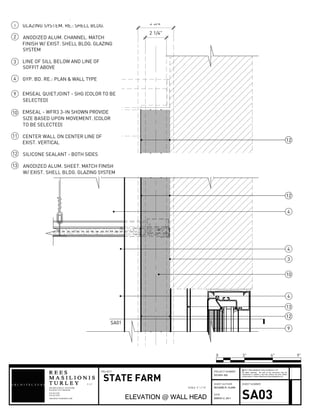

- 3. 2 1/4" 3 3/4 1212 12 13 10 4 4 4 3 9 12 1212 SA01 GLAZING SYSTEM. RE.: SHELL BLDG. ANODIZED ALUM. CHANNEL. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM LINE OF SILL BELOW AND LINE OF SOFFIT ABOVE GYP. BD. RE.: PLAN & WALL TYPE 1 2 3 4 EMSEAL QUIETJOINT - SHG (COLOR TO BE SELECTED) EMSEAL - WFR3 3-IN SHOWN PROVIDE SIZE BASED UPON MOVEMENT. (COLOR TO BE SELECTED) CENTER WALL ON CENTER LINE OF EXIST. VERTICAL SILICONE SEALANT - BOTH SIDES ANODIZED ALUM. SHEET. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM 9 10 11 12 13 908 BROADWAY 6THFLOOR L L C KANSAS CITY MO64105 816.842.1878 816.842.1292 ARCHITECTURERMT.COM SHEET AUTHOR DATE SHEET NUMBER All rights reserved. No part of this document may be reproduced or utilized in any form without the prior written authorization of Rees Masilionis Turley Architecture, LLC. c 2011 Rees Masilionis Turley Architecture, LLC PROJECT NUMBERPROJECT STATE FARM ELEVATION @ WALL HEAD 2010331.002 RICHARD R. CLARK MARCH 2, 2011 SA03 0 3" 9"6" SCALE 3" = 1'-0"

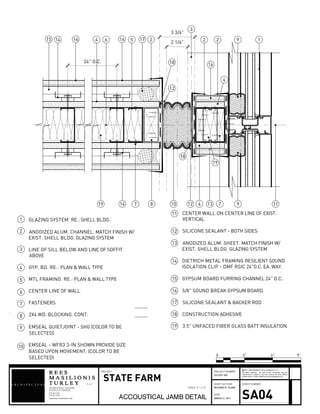

- 4. 2 1/4" 3 3/4" 12 3 4 56 78 910 11 22 9 4 1312 24" O.C. 1415 16 18 7 17 12 14 16 16 4 19 19 18 GLAZING SYSTEM. RE.: SHELL BLDG. ANODIZED ALUM. CHANNEL. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM LINE OF SILL BELOW AND LINE OF SOFFIT ABOVE GYP. BD. RE.: PLAN & WALL TYPE MTL FRAMING. RE.: PLAN & WALL TYPE CENTER LINE OF WALL FASTENERS 2X4 WD. BLOCKING. CONT. EMSEAL QUIETJOINT - SHG (COLOR TO BE SELECTED) EMSEAL - WFR3 3-IN SHOWN PROVIDE SIZE BASED UPON MOVEMENT. (COLOR TO BE SELECTED) 1 2 3 4 5 6 7 8 9 10 CENTER WALL ON CENTER LINE OF EXIST. VERTICAL SILICONE SEALANT - BOTH SIDES ANODIZED ALUM. SHEET. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM DIETRICH METAL FRAMING RESILIENT SOUND ISOLATION CLIP - DMF RSIC 24"O.C. EA. WAY. GYPSUM BOARD FURRING CHANNEL 24" O.C. 5/8" SOUND BREAK GYPSUM BOARD SILICONE SEALANT & BACKER ROD CONSTRUCTION ADHESIVE 3.5" UNFACED FIBER GLASS BATT INSULATION 11 12 13 14 15 16 17 18 19 908 BROADWAY 6THFLOOR L L C KANSAS CITY MO64105 816.842.1878 816.842.1292 ARCHITECTURERMT.COM SHEET AUTHOR DATE SHEET NUMBER All rights reserved. No part of this document may be reproduced or utilized in any form without the prior written authorization of Rees Masilionis Turley Architecture, LLC. c 2011 Rees Masilionis Turley Architecture, LLC PROJECT NUMBERPROJECT STATE FARM ACCOUSTICAL JAMB DETAIL 2010331.002 RICHARD R. CLARK MARCH 2, 2011 SA04 0 3" 9"6" SCALE 3" = 1'-0"

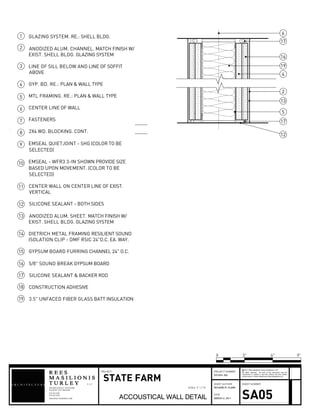

- 5. 2 4 5 6 12 13 16 17 19 17 GLAZING SYSTEM. RE.: SHELL BLDG. ANODIZED ALUM. CHANNEL. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM LINE OF SILL BELOW AND LINE OF SOFFIT ABOVE GYP. BD. RE.: PLAN & WALL TYPE MTL FRAMING. RE.: PLAN & WALL TYPE CENTER LINE OF WALL FASTENERS 2X4 WD. BLOCKING. CONT. EMSEAL QUIETJOINT - SHG (COLOR TO BE SELECTED) EMSEAL - WFR3 3-IN SHOWN PROVIDE SIZE BASED UPON MOVEMENT. (COLOR TO BE SELECTED) CENTER WALL ON CENTER LINE OF EXIST. VERTICAL SILICONE SEALANT - BOTH SIDES ANODIZED ALUM. SHEET. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM DIETRICH METAL FRAMING RESILIENT SOUND ISOLATION CLIP - DMF RSIC 24"O.C. EA. WAY. GYPSUM BOARD FURRING CHANNEL 24" O.C. 5/8" SOUND BREAK GYPSUM BOARD SILICONE SEALANT & BACKER ROD CONSTRUCTION ADHESIVE 3.5" UNFACED FIBER GLASS BATT INSULATION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 908 BROADWAY 6THFLOOR L L C KANSAS CITY MO64105 816.842.1878 816.842.1292 ARCHITECTURERMT.COM SHEET AUTHOR DATE SHEET NUMBER All rights reserved. No part of this document may be reproduced or utilized in any form without the prior written authorization of Rees Masilionis Turley Architecture, LLC. c 2011 Rees Masilionis Turley Architecture, LLC PROJECT NUMBERPROJECT STATE FARM ACCOUSTICAL WALL DETAIL 2010331.002 RICHARD R. CLARK MARCH 2, 2011 SA05 0 3" 9"6" SCALE 3" = 1'-0"

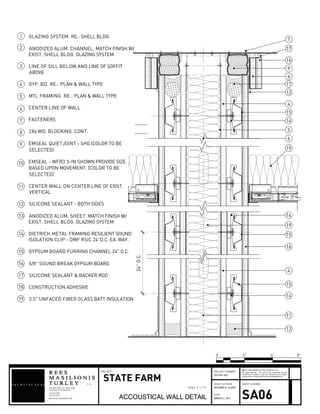

- 6. 24"O.C. 4 5 6 7 9 11 12 14 15 16 17 19 19 4 4 16 17 14 15 14 15 12 GLAZING SYSTEM. RE.: SHELL BLDG. ANODIZED ALUM. CHANNEL. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM LINE OF SILL BELOW AND LINE OF SOFFIT ABOVE GYP. BD. RE.: PLAN & WALL TYPE MTL FRAMING. RE.: PLAN & WALL TYPE CENTER LINE OF WALL FASTENERS 2X4 WD. BLOCKING. CONT. EMSEAL QUIETJOINT - SHG (COLOR TO BE SELECTED) EMSEAL - WFR3 3-IN SHOWN PROVIDE SIZE BASED UPON MOVEMENT. (COLOR TO BE SELECTED) CENTER WALL ON CENTER LINE OF EXIST. VERTICAL SILICONE SEALANT - BOTH SIDES ANODIZED ALUM. SHEET. MATCH FINISH W/ EXIST. SHELL BLDG. GLAZING SYSTEM DIETRICH METAL FRAMING RESILIENT SOUND ISOLATION CLIP - DMF RSIC 24"O.C. EA. WAY. GYPSUM BOARD FURRING CHANNEL 24" O.C. 5/8" SOUND BREAK GYPSUM BOARD SILICONE SEALANT & BACKER ROD CONSTRUCTION ADHESIVE 3.5" UNFACED FIBER GLASS BATT INSULATION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 908 BROADWAY 6THFLOOR L L C KANSAS CITY MO64105 816.842.1878 816.842.1292 ARCHITECTURERMT.COM SHEET AUTHOR DATE SHEET NUMBER All rights reserved. No part of this document may be reproduced or utilized in any form without the prior written authorization of Rees Masilionis Turley Architecture, LLC. c 2011 Rees Masilionis Turley Architecture, LLC PROJECT NUMBERPROJECT STATE FARM ACCOUSTICAL WALL DETAIL 2010331.002 RICHARD R. CLARK MARCH 2, 2011 SA06 0 3" 9"6" SCALE 3" = 1'-0"
