The M/V "EDT JANE" is a 2013-built, Cyprus-flagged multipurpose support vessel owned by Desedo Shipping Ltd and operated by EDT Shipmanagement Ltd. Key specifications include a gross tonnage of 4,953, an overall length of 88.8 meters, capacity for 69 persons accommodation, and propulsion via four main engines and a combination of bow, stern, and retractable azimuth thrusters. The vessel is equipped for a variety of offshore support functions including DP system operations, deck space for equipment, ROV operations, and tank capacities for fuels, liquids, ballast, and dry bulk.
234
- 1. M/V EDT JANE DPII MULTI PURPOSE SUPPORT VESSEL (MPSV) GENERAL INFORMATION Owner Desedo Shipping Ltd Operator EDT Shipmanagement Ltd Built 2013, Constructiones Vavales Del Nort Flag Cyprus Call Sign 5BXW3 Classification DNV+1A1, SPS, SF, LFL* COMF-V(3), E0, DYNPOS-AUTR, NAUT-OSV(A), CLEAN DESIGN, DK(+), HL(2.8) IMO Number 9491410 MMSI Number 210369000 Operation World Wide Endurance 45 days plus Maximum Speed 15.5 knots DIMENSIONS Gross Tonnage 4953 Net Tonnage 1486 Deadweight 4570 Length Overall 88.8 m Breadth Moulded 19.0 m Depth to Main Deck 8.0 m Draft 6.6 m Freeboard max draft 1.4 m TANK CAPACITIES Marine Diesel 1080 m3 Fresh Water 1260 m3 Ballast / Drill water 1760 m3 Liquid Mud 755 m3 Brine 470 m3 Dry Bulk 390 m3 (6 tanks) Base Oil 216 m3 LFL 290 m3

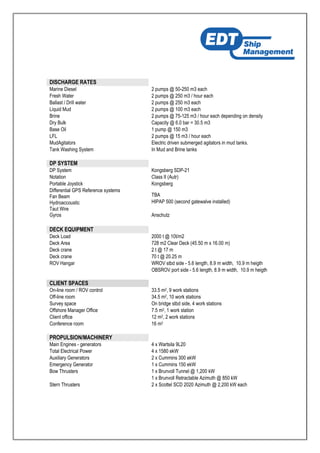

- 2. DISCHARGE RATES Marine Diesel 2 pumps @ 50-250 m3 each Fresh Water 2 pumps @ 250 m3 / hour each Ballast / Drill water 2 pumps @ 250 m3 each Liquid Mud 2 pumps @ 100 m3 each Brine 2 pumps @ 75-125 m3 / hour each depending on density Dry Bulk Capacity @ 6.0 bar = 30.5 m3 Base Oil 1 pump @ 150 m3 LFL 2 pumps @ 15 m3 / hour each MudAgitators Electric driven submerged agitators in mud tanks. Tank Washing System In Mud and Brine tanks DP SYSTEM DP System Kongsberg SDP-21 Notation Class II (Autr) Portable Joystick Kongsberg Differential GPS Reference systems Fan Beam Hydroaccoustic Taut Wire TBA HIPAP 500 (second gatewalve installed) Gyros Anschutz DECK EQUIPMENT Deck Load 2000 t @ 10t/m2 Deck Area 728 m2 Clear Deck (45.50 m x 16.00 m) Deck crane 2 t @ 17 m Deck crane 70 t @ 20.25 m ROV Hangar WROV stbd side - 5.6 length, 8.9 m width, 10.9 m heigth OBSROV port side - 5.6 length, 8.9 m width, 10.9 m heigth CLIENT SPACES On-line room / ROV control 33.5 m2, 9 work stations Off-line room 34.5 m2, 10 work stations Survey space On bridge stbd side, 4 work stations Offshore Manager Office 7.5 m2, 1 work station Client office 12 m2, 2 work stations Conference room 16 m2 PROPULSION/MACHINERY Main Engines - generators 4 x Wartsila 9L20 Total Electrical Power 4 x 1580 ekW Auxiliary Generators 2 x Cummins 300 ekW Emergency Generator 1 x Cummins 150 ekW Bow Thrusters 1 x Brunvoll Tunnel @ 1,200 kW 1 x Brunvoll Retractable Azimuth @ 850 kW Stern Thrusters 2 x Scottel SCD 2020 Azimuth @ 2,200 kW each

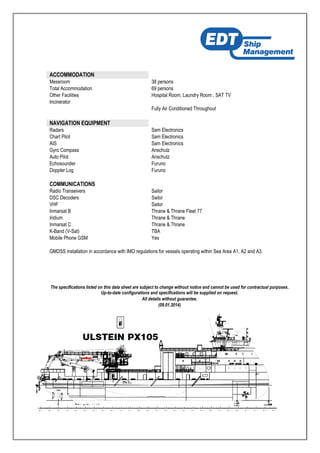

- 3. ACCOMMODATION Messroom 38 persons Total Accommodation 69 persons Other Facilities Hospital Room, Laundry Room , SAT TV Incinerator Fully Air Conditioned Throughout NAVIGATION EQUIPMENT Radars Sam Electronics Chart Pilot Sam Electronics AIS Sam Electronics Gyro Compass Anschutz Auto Pilot Anschutz Echosounder Furuno Doppler Log Furuno COMMUNICATIONS Radio Transeivers Sailor DSC Decoders Sailor VHF Sailor Inmarsat B Thrane & Thrane Fleet 77 Iridium Thrane & Thrane Inmarsat C Thrane & Thrane K-Band (V-Sat) TBA Mobile Phone GSM Yes GMDSS installation in accordance with IMO regulations for vessels operating within Sea Area A1, A2 and A3. The specifications listed on this data sheet are subject to change without notice and cannot be used for contractual purposes. Up-to-date configurations and specifications will be supplied on request. All details without guarantee. (09.01.2014)
