5

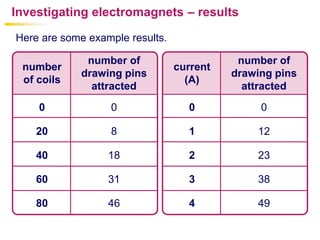

- 1. Investigating electromagnets results Here are some example results. number of number of number current drawing pins drawing pins of coils (A) attracted attracted 0 0 0 0 20 8 1 12 40 18 2 23 60 31 3 38 80 46 4 49

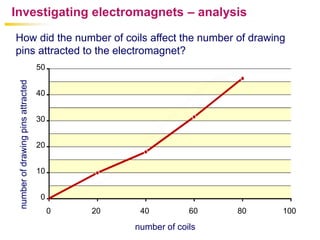

- 2. Investigating electromagnets analysis How did the number of coils affect the number of drawing pins attracted to the electromagnet? 50 number of drawing pins attracted 40 30 20 10 0 0 20 40 60 80 100 number of coils

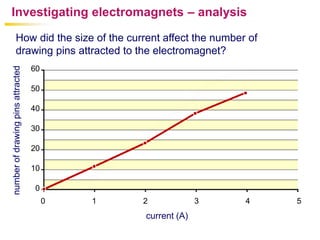

- 3. Investigating electromagnets analysis How did the size of the current affect the number of drawing pins attracted to the electromagnet? 60 number of drawing pins attracted 50 40 30 20 10 0 0 1 2 3 4 5 current (A)
