2

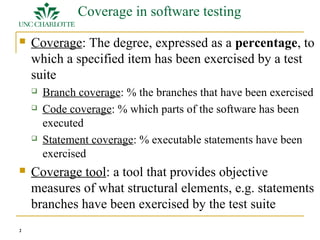

Coverage in software testing
 Coverage: The degree, expressed as a percentage, to
which a specified item has been exercised by a test
suite
 Branch coverage: % the branches that have been exercised
 Code coverage: % which parts of the software has been
executed
 Statement coverage: % executable statements have been
exercised
 Coverage tool: a tool that provides objective
measures of what structural elements, e.g. statements
branches have been exercised by the test suite

3

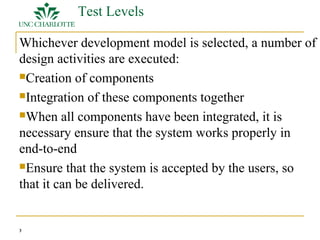

Test Levels
Whichever development model is selected, a number of
design activities are executed:
Creation of components
Integration of these components together
When all components have been integrated, it is
necessary ensure that the system works properly in
end-to-end
Ensure that the system is accepted by the users, so
that it can be delivered.

4

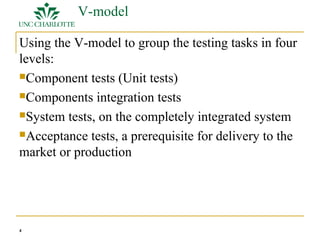

V-model
Using the V-model to group the testing tasks in four
levels:
Component tests (Unit tests)
Components integration tests
System tests, on the completely integrated system
Acceptance tests, a prerequisite for delivery to the
market or production

5

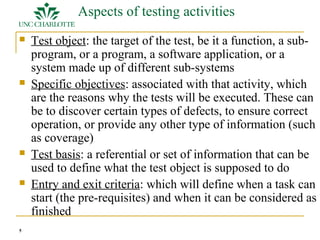

Aspects of testing activities
 Test object: the target of the test, be it a function, a sub-program,
or a program, a software application, or a
system made up of different sub-systems
 Specific objectives: associated with that activity, which
are the reasons why the tests will be executed. These can
be to discover certain types of defects, to ensure correct
operation, or provide any other type of information (such
as coverage)
 Test basis: a referential or set of information that can be
used to define what the test object is supposed to do
 Entry and exit criteria: which will define when a task can
start (the pre-requisites) and when it can be considered as
finished

6

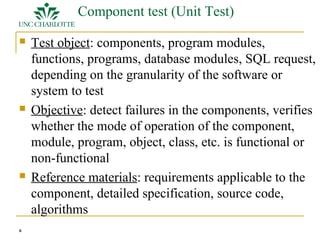

Component test (Unit Test)
 Test object: components, program modules,
functions, programs, database modules, SQL request,
depending on the granularity of the software or
system to test
 Objective: detect failures in the components, verifies
whether the mode of operation of the component,
module, program, object, class, etc. is functional or
non-functional
 Reference materials: requirements applicable to the
component, detailed specification, source code,
algorithms

7

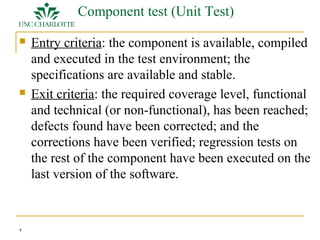

Component test (Unit Test)
 Entry criteria: the component is available, compiled
and executed in the test environment; the
specifications are available and stable.
 Exit criteria: the required coverage level, functional
and technical (or non-functional), has been reached;
defects found have been corrected; and the
corrections have been verified; regression tests on
the rest of the component have been executed on the
last version of the software.

8

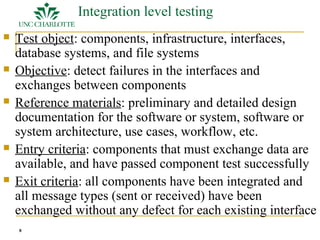

Integration level testing
 Test object: components, infrastructure, interfaces,
database systems, and file systems
 Objective: detect failures in the interfaces and
exchanges between components
 Reference materials: preliminary and detailed design
documentation for the software or system, software or
system architecture, use cases, workflow, etc.
 Entry criteria: components that must exchange data are
available, and have passed component test successfully
 Exit criteria: all components have been integrated and
all message types (sent or received) have been
exchanged without any defect for each existing interface

9

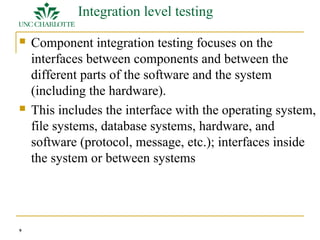

Integration level testing
 Component integration testing focuses on the
interfaces between components and between the
different parts of the software and the system
(including the hardware).
 This includes the interface with the operating system,
file systems, database systems, hardware, and
software (protocol, message, etc.); interfaces inside
the system or between systems

10

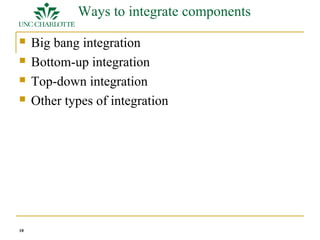

Ways to integrate components
 Big bang integration
 Bottom-up integration
 Top-down integration
 Other types of integration

11

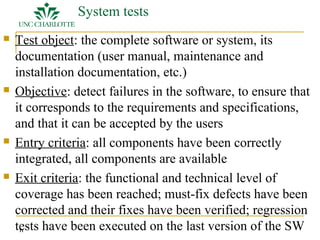

System tests
 Test object: the complete software or system, its
documentation (user manual, maintenance and
installation documentation, etc.)
 Objective: detect failures in the software, to ensure that
it corresponds to the requirements and specifications,
and that it can be accepted by the users
 Entry criteria: all components have been correctly
integrated, all components are available
 Exit criteria: the functional and technical level of
coverage has been reached; must-fix defects have been
corrected and their fixes have been verified; regression
tests have been executed on the last version of the SW

12

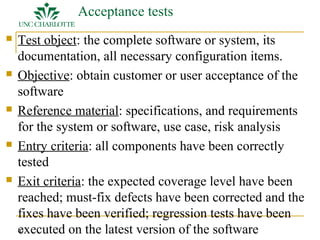

Acceptance tests
 Test object: the complete software or system, its
documentation, all necessary configuration items.
 Objective: obtain customer or user acceptance of the
software
 Reference material: specifications, and requirements
for the system or software, use case, risk analysis
 Entry criteria: all components have been correctly
tested
 Exit criteria: the expected coverage level have been
reached; must-fix defects have been corrected and the
fixes have been verified; regression tests have been
executed on the latest version of the software

13

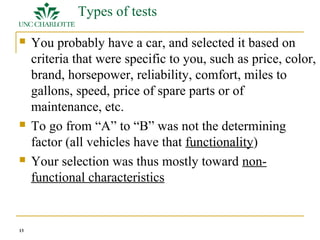

Types of tests
 You probably have a car, and selected it based on
criteria that were specific to you, such as price, color,
brand, horsepower, reliability, comfort, miles to
gallons, speed, price of spare parts or of
maintenance, etc.
 To go from “A” to “B” was not the determining
factor (all vehicles have that functionality)
 Your selection was thus mostly toward non-functional
characteristics

14

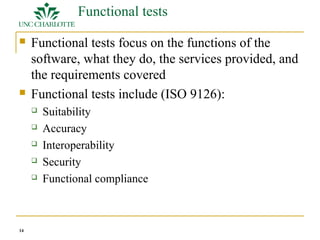

Functional tests
 Functional tests focus on the functions of the
software, what they do, the services provided, and
the requirements covered
 Functional tests include (ISO 9126):
 Suitability
 Accuracy
 Interoperability
 Security
 Functional compliance

15

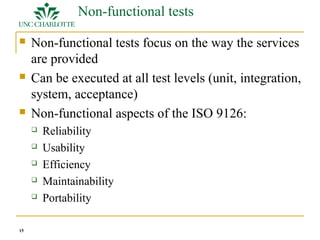

Non-functional tests
 Non-functional tests focus on the way the services
are provided
 Can be executed at all test levels (unit, integration,
system, acceptance)
 Non-functional aspects of the ISO 9126:
 Reliability
 Usability
 Efficiency
 Maintainability
 Portability

16

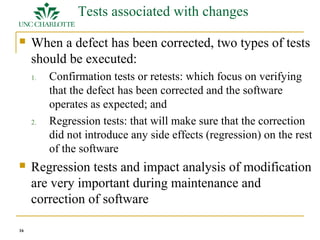

Tests associated with changes
 When a defect has been corrected, two types of tests
should be executed:
1. Confirmation tests or retests: which focus on verifying
that the defect has been corrected and the software
operates as expected; and
2. Regression tests: that will make sure that the correction
did not introduce any side effects (regression) on the rest
of the software
 Regression tests and impact analysis of modification
are very important during maintenance and
correction of software

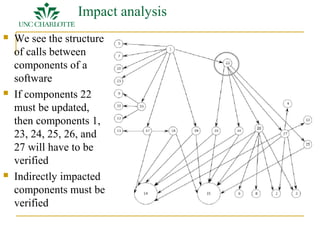

Impact analysis
 We see the structure
of calls between
components of a
software
 If components 22
must be updated,
then components 1,
23, 24, 25, 26, and
27 will have to be
verified
 Indirectly impacted
components must be
verified

18

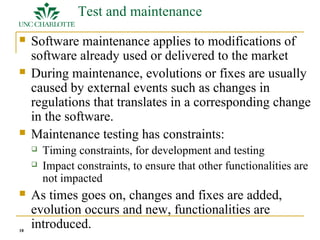

Test and maintenance
 Software maintenance applies to modifications of
software already used or delivered to the market
 During maintenance, evolutions or fixes are usually
caused by external events such as changes in
regulations that translates in a corresponding change
in the software.
 Maintenance testing has constraints:
 Timing constraints, for development and testing
 Impact constraints, to ensure that other functionalities are
not impacted
 As times goes on, changes and fixes are added,
evolution occurs and new, functionalities are
introduced.

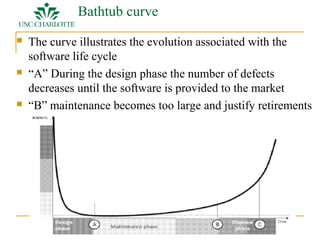

Bathtub curve
 The curve illustrates the evolution associated with the
software life cycle
 “A” During the design phase the number of defects
decreases until the software is provided to the market
 “B” maintenance becomes too large and justify retirements
