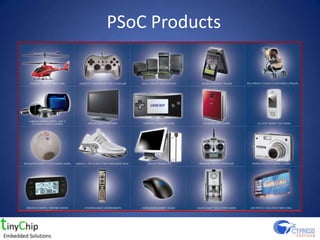

This document introduces the PSoC 3, which is described as the world's only programmable system on chip (SoC). It integrates configurable analog and digital peripherals, memory and a microcontroller onto a single chip. This was the first programmable SoC and offers benefits over traditional embedded solutions like reduced board costs, power efficiency, flexibility for changing specs, and the ability to address complex mixed-signal requirements with one programmable device. The document lists industries that use PSoC and different PSoC products.
About PSoC
- 1. WELCOME TO THE PSoC? 3 WORKSHOP The World¡¯s only Programmable Embedded SoC (System on Chip)

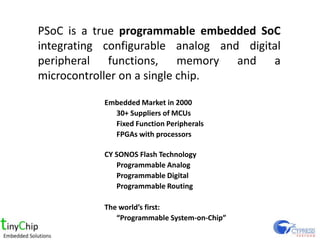

- 2. PSoC is a true programmable embedded SoC integrating configurable analog and digital peripheral functions, memory and a microcontroller on a single chip. Embedded Market in 2000 30+ Suppliers of MCUs Fixed Function Peripherals FPGAs with processors CY SONOS Flash Technology Programmable Analog Programmable Digital Programmable Routing The world¡¯s first: ¡°Programmable System-on-Chip¡±

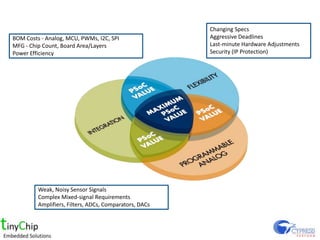

- 3. Changing Specs BOM Costs - Analog, MCU, PWMs, I2C, SPI Aggressive Deadlines MFG - Chip Count, Board Area/Layers Last-minute Hardware Adjustments Power Efficiency Security (IP Protection) Weak, Noisy Sensor Signals Complex Mixed-signal Requirements Amplifiers, Filters, ADCs, Comparators, DACs

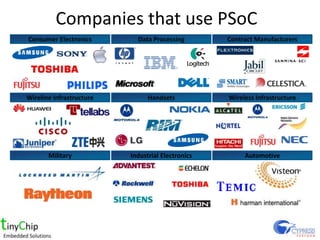

- 4. Companies that use PSoC Consumer Electronics Data Processing Contract Manufacturers Wireline Infrastructure Handsets Wireless Infrastructure Military Industrial Electronics Automotive
