- 1. S E R I E S

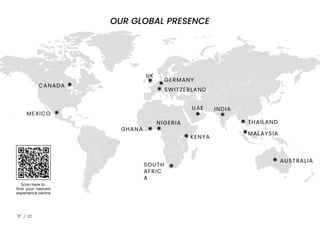

- 2. OUR GLOBAL PRESENCE MEXICO CANADA GHANA UK SOUTH AFRIC A NIGERIA UAE GERMANY SWITZERLAND KENYA INDIA THAILAND MALAYSIA AUSTRALIA 02 Scan here to find your nearest experience centre
- 3. NIBAV STANDS TALL WITH 1600 EMPLOYEES IN OVER 40 EXPERIENCE CENTRES, SPREAD ACROSS THE GLOBE 03
- 4. 04

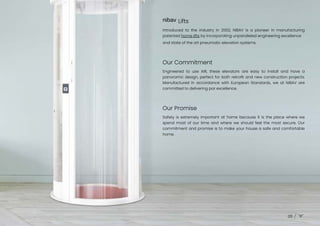

- 5. nibav Lifts Our Promise Our Commitment 05 Introduced to the industry in 2002, NIBAV is a pioneer in manufacturing patented home lifts by incorporating unparalleled engineering excellence and state of the art pneumatic elevation systems. Engineered to use AIR, these elevators are easy to install and have a panoramic design, perfect for both retrofit and new construction projects. Manufactured in accordance with European Standards, we at NIBAV are committed to delivering par excellence. Safety is extremely important at home because it is the place where we spend most of our time and where we should feel the most secure. Our commitment and promise is to make your house a safe and comfortable home.

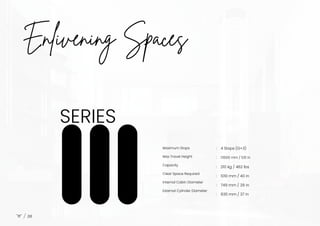

- 6. Enlivening Spaces Maximum Stops Max Travel Height Capacity Clear Space Required Internal Cabin Diameter External Cylinder Diameter 13500 mm / 531 in 06 : : : : : : 4 Stops (G+3) 210 kg / 462 lbs 1010 mm / 40 in 749 mm / 29 in 935 mm / 37 in SERIES

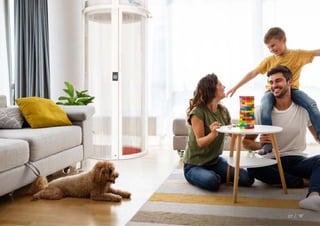

- 7. 07

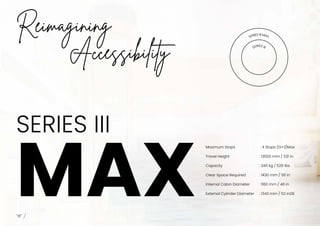

- 8. SERIES III MAX I Reimagining Accessibility SERIES II MAX SERIES III Maximum Stops Travel Height Capacity Clear Space Required Internal Cabin Diameter External Cylinder Diameter : 4 Stops (G+3)Max : 13500 mm / 531 in : 240 kg / 529 lbs : 1430 mm / 56 in : 1160 mm / 46 in : 1343 mm / 53 in08

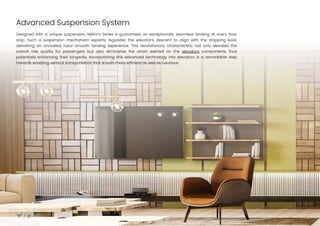

- 10. Advanced Suspension System 10 Designed with a unique suspension, NIBAV’s Series III guarantees an exceptionally seamless landing at every floor stop. Such a suspension mechanism expertly regulates the elevator’s descent to align with the stopping level, delivering an unrivaled, razor-smooth landing experience. This revolutionary characteristic not only elevates the overall ride quality for passengers but also diminishes the strain exerted on the elevators components, thus potentially enhancing their longevity. Incorporating this advanced technology into elevators is a remarkable step towards enabling vertical transportation that is both more efficient as well as luxurious.
- 11. 11

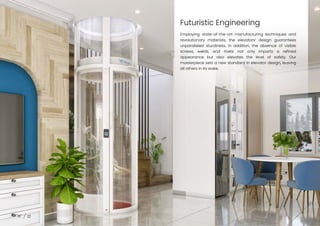

- 12. Futuristic Engineering 12 Employing state-of-the-art manufacturing techniques and revolutionary materials, the elevators’ design guarantees unparalleled sturdiness. In addition, the absence of visible screws, welds, and rivets not only imparts a refined appearance but also elevates the level of safety. Our masterpiece sets a new standard in elevator design, leaving all others in its wake.

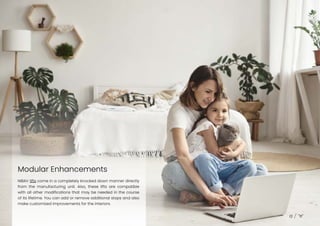

- 13. Modular Enhancements NIBAV lifts come in a completely knocked down manner directly from the manufacturing unit. Also, these lifts are compatible with all other modifications that may be needed in the course of its lifetime. You can add or remove additional stops and also make customized improvements for the interiors. 13

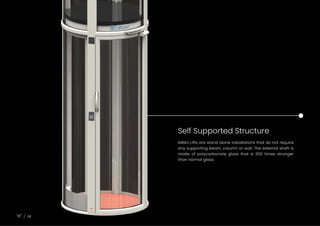

- 14. Self Supported Structure 14 NIBAV Lifts are stand alone installations that do not require any supporting beam, column or wall. The external shaft is made of polycarbonate glass that is 250 times stronger than normal glass.

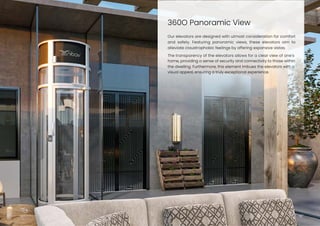

- 15. 360O Panoramic View 15 Our elevators are designed with utmost consideration for comfort and safety. Featuring panoramic views, these elevators aim to alleviate claustrophobic feelings by offering expansive vistas. The transparency of the elevators allows for a clear view of one’s home, providing a sense of security and connectivity to those within the dwelling. Furthermore, this element imbues the elevators with a visual appeal, ensuring a truly exceptional experience.
- 16. 16
- 17. Personalized Aesthetics 17 Owning a custom elevator goes beyond transportation - it is a statement of esteem. The unique design and custom engraving within the cabin reinforces this connection, conveying that the elevator is truly one-of-a-kind and built specifically for the homeowner.

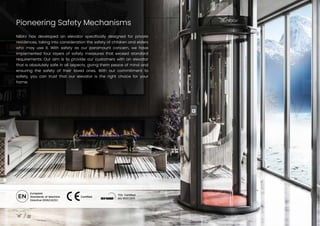

- 18. Pioneering Safety Mechanisms 18 NIBAV has developed an elevator specifically designed for private residences, taking into consideration the safety of children and elders who may use it. With safety as our paramount concern, we have implemented four layers of safety measures that exceed standard requirements. Our aim is to provide our customers with an elevator that is absolutely safe in all aspects, giving them peace of mind and ensuring the safety of their loved ones. With our commitment to safety, you can trust that our elevator is the right choice for your home. European Standards of Machine Directive 2006/42/EC Certified TÜV Certified ISO 9001:2015

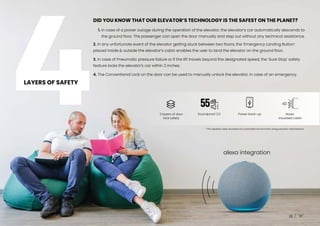

- 19. alexa integration DID YOU KNOW THAT OUR ELEVATOR’S TECHNOLOGY IS THE SAFEST ON THE PLANET? 19 1. In case of a power outage during the operation of the elevator, the elevator’s car automatically descends to the ground floor. The passenger can open the door manually and step out without any technical assistance. 2. In any unfortunate event of the elevator getting stuck between two floors, the ‘Emergency Landing Button’ placed inside & outside the elevator’s cabin enables the user to land the elevator on the ground floor. 3. In case of Pneumatic pressure failure or if the lift travels beyond the designated speed, the ‘Sure Stop’ safety feature locks the elevator’s car within 2 inches. 4. The Conventional Lock on the door can be used to manually unlock the elevator, in case of an emergency. LAYERS OF SAFETY 3 layers of door lock safety Soundproof 2.0 Power back-up Noise insulated cabin *The decibels were recorded at a controlled environment using precision mechanisms
- 20. 20

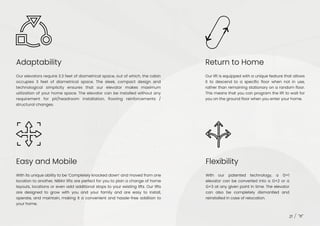

- 21. Adaptability Easy and Mobile Flexibility Return to Home Our elevators require 3.3 feet of diametrical space, out of which, the cabin occupies 3 feet of diametrical space. The sleek, compact design and technological simplicity ensures that our elevator makes maximum utilization of your home space. The elevator can be installed without any requirement for pit/headroom installation, flooring reinforcements / structural changes. With its unique ability to be ‘Completely knocked down’ and moved from one location to another, NIBAV lifts are perfect for you to plan a change of home layouts, locations or even add additional stops to your existing lifts. Our lifts are designed to grow with you and your family and are easy to install, operate, and maintain, making it a convenient and hassle-free addition to your home. With our patented technology, a G+1 elevator can be converted into a G+2 or a G+3 at any given point in time. The elevator can also be completely dismantled and reinstalled in case of relocation. 21 Our lift is equipped with a unique feature that allows it to descend to a specific floor when not in use, rather than remaining stationary on a random floor. This means that you can program the lift to wait for you on the ground floor when you enter your home.

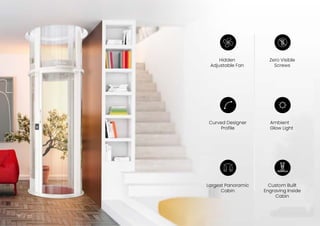

- 22. Hidden Adjustable Fan Curved Designer Profile Largest Panoramic Cabin Ambient Glow Light Zero Visible Screws Custom Built Engraving Inside Cabin 22

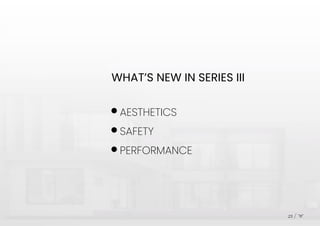

- 23. AESTHETICS SAFETY PERFORMANCE WHAT’S NEW IN SERIES III 23

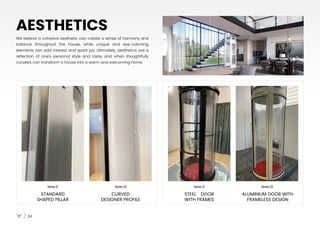

- 24. SeriesII SeriesIII SeriesII SeriesIII STANDARD SHAPED PILLAR CURVED DESIGNER PROFILE STEEL DOOR WITH FRAMES ALUMINIUM DOOR WITH FRAMELESS DESIGN 24 We believe a cohesive aesthetic can create a sense of harmony and balance throughout the house, while unique and eye-catching elements can add interest and spark joy. Ultimately, aesthetics are a reflection of one’s personal style and taste, and when thoughtfully curated, can transform a house into a warm and welcoming home. AESTHETICS

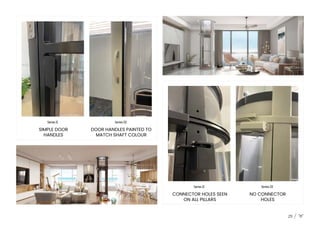

- 25. SeriesII SeriesIII SeriesII SeriesIII SIMPLE DOOR HANDLES DOOR HANDLES PAINTED TO MATCH SHAFT COLOUR CONNECTOR HOLES SEEN ON ALL PILLARS NO CONNECTOR HOLES 25

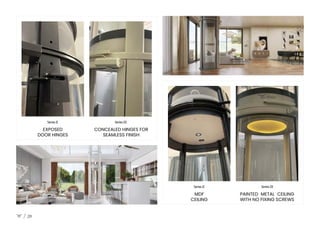

- 26. SeriesII SeriesIII SeriesII SeriesIII EXPOSED DOOR HINGES CONCEALED HINGES FOR SEAMLESS FINISH MDF CEILING PAINTED METAL CEILING WITH NO FIXING SCREWS 26

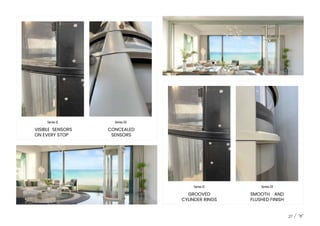

- 27. SeriesII SeriesIII SeriesII SeriesIII VISIBLE SENSORS ON EVERY STOP CONCEALED SENSORS GROOVED CYLINDER RINGS SMOOTH AND FLUSHED FINISH 27

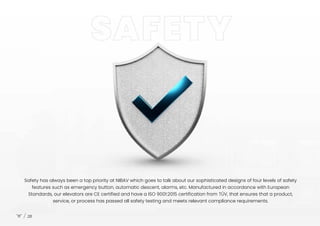

- 28. Safety has always been a top priority at NIBAV which goes to talk about our sophisticated designs of four levels of safety features such as emergency button, automatic descent, alarms, etc. Manufactured in accordance with European Standards, our elevators are CE certified and have a ISO 9001:2015 certification from TÜV, that ensures that a product, service, or process has passed all safety testing and meets relevant compliance requirements. 28

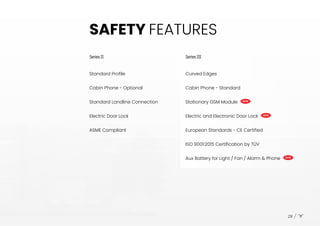

- 29. SAFETY FEATURES SeriesII SeriesIII Standard Profile ASME Compliant Electric Door Lock Cabin Phone - Optional Standard Landline Connection Curved Edges Stationary GSM Module Cabin Phone - Standard ISO 9001:2015 Certification by TÜV Electric and Electronic Door Lock European Standards - CE Certified Aux Battery for Light / Fan / Alarm & Phone 29
- 30. Our state-of-the-art elevators stand at the pinnacle of innovation, style and elegance, setting a new standard for home elevators in the industry. The Series III is a true work of engineering and design, crafted to perfection with a focus on functionality, safety, and aesthetics. This work of art will elevate your home to new heights, both in terms of style as well as convenience. 30

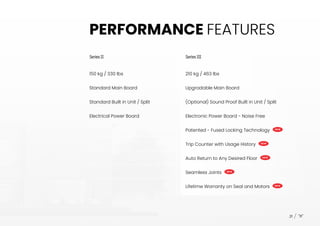

- 31. PERFORMANCE FEATURES SeriesII SeriesIII 150 kg / 330 lbs Standard Main Board Electrical Power Board Standard Built in Unit / Split 210 kg / 463 lbs Seamless Joints Upgradable Main Board Trip Counter with Usage History Auto Return to Any Desired Floor Electronic Power Board - Noise Free Lifetime Warranty on Seal and Motors Patented - Fused Locking Technology (Optional) Sound Proof Built in Unit / Split 31

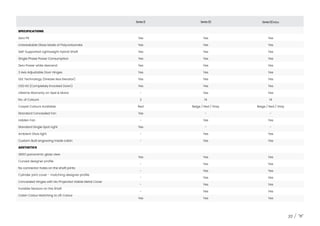

- 33. SeriesII SeriesIII SeriesIII SPECIFICATIONS Zero Pit Unbreakable Glass Made of Polycarbonate Self-Supported Lightweight Hybrid Shaft Single Phase Power Consumption Zero Power while descend 3 Axis Adjustable Door Hinges GLE Technology (Grease less Elevator) CKD Kit (Completely Knocked Down) Lifetime Warranty on Seal & Motor No. of Colours Carpet Colours Available Standard Concealed Fan Hidden Fan Standard Single Spot Light Ambient Glow light Custom Built engraving inside cabin AESTHETICS 360O panoramic glass view Curved designer profile No connector holes on the shaft joints Cylinder joint cover - matching designer profile Concealed Hinges with No Projected Visible Metal Cover Invisible Sensors on the Shaft Cabin Colour Matching to Lift Colour Yes - - - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes - 2 Red Yes - Yes - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes 14 Beige / Red / Grey - Yes - Yes Yes Yes Yes Yes Yes Yes Yes Yes Max Yes Yes Yes Yes Yes Yes Yes Yes Yes 14 Beige / Red / Grey - Yes - Yes Yes 33

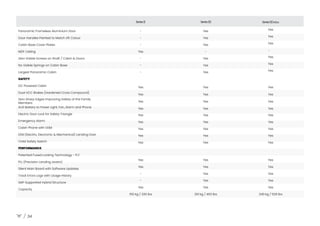

- 34. SeriesII SeriesIII SeriesIII Panoramic Frameless Aluminium Door Door Handles Painted to Match Lift Colour Cabin Base Cover Plates MDF Ceiling Zero Visible Screws on Shaft / Cabin & Doors No Visible Springs on Cabin Base Largest Panoramic Cabin SAFETY DC Powered Cabin Dual HCC Brakes (Hardened Cross Compound) Zero Sharp Edges Improving Safety of the Family Members AUX Battery to Power Light, Fan, Alarm and Phone Electric Door Lock for Safety Triangle Emergency Alarm Cabin Phone with GSM EEM (Electric, Electronic & Mechanical) Landing Door Child Safety Switch PERFORMANCE Patented Fused Locking Technology - FLT PLL (Precision Landing Levers) Silent Main Board with Software Updates Track Errors Logs with Usage History Self-Supported Hybrid Structure Capacity - - - Yes - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes - - Yes 150 kg / 330 lbs Yes Yes Yes - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes 210 kg / 463 lbs Yes Yes Yes Yes Yes Yes Yes Yes Yes Max Yes Yes Yes - Yes Yes Yes Yes Yes Yes Yes Yes 240 kg / 529 lbs 34

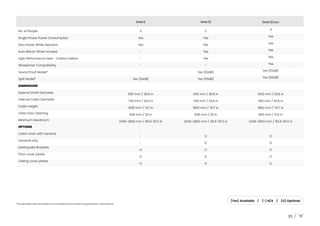

- 35. SeriesII SeriesIII SeriesIII No. of People Single Phase Power Consumption Zero Power While Descend Auto Return When Unused High Performance Seal - Carbon Edition Wheelchair Compatibility Sound Proof Model* Split Model* DIMENSIONS External Shaft Diameter Internal Cabin Diameter Cabin Height Clear Door Opening Minimum Headroom OPTIONS Cabin chair with handrail Handrail only Earthquake Brackets Floor cover plates Ceiling cover plates - - O O O 2 Yes Yes - - - - Yes (64dB) 935 mm / 36.8 in 749 mm / 29.4 in 1935 mm / 76.1 in 508 mm / 20 in 2436-2800 mm / 95.9-110.2 in O O O O O 2 Yes Yes Yes Yes - Yes (62dB) Yes (55dB) 935 mm / 36.8 in 749 mm / 29.4 in 1950 mm / 76.7 in 508 mm / 20 in 2436-2800 mm / 95.9-110.2 in (Yes) Available / O O O O O (-) N/A / Max 4 Yes Yes Yes Yes Yes Yes (62dB) Yes (55dB) 1343 mm / 52.8 in 1160 mm / 45.6 in 1950 mm / 76.7 in 805 mm / 31.6 in 2436-2800 mm / 95.9-110.2 in (O) Optional *The decibels were recorded at a controlled environment using precision mechanisms 35

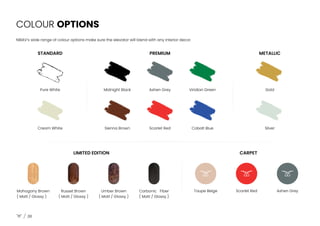

- 36. COLOUR OPTIONS 36 Mahogany Brown ( Matt / Glossy ) Pure White Cream White Russet Brown ( Matt / Glossy ) Sienna Brown Umber Brown ( Matt / Glossy ) Midnight Black Carbonic Fiber ( Matt / Glossy ) Scarlet Red Ashen Grey NIBAV’s wide range of colour options make sure the elevator will blend with any interior decor. Cobalt Blue Viridian Green Taupe Beige Scarlet Red Gold Silver Ashen Grey STANDARD LIMITED EDITION PREMIUM CARPET METALLIC

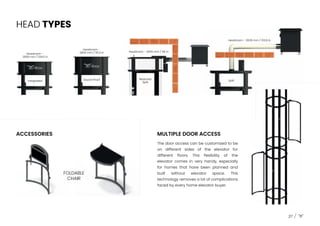

- 37. HEAD TYPES Integrated Headroom - 2656 mm / 104.5 in Sound Proof Headroom - 2800 mm / 110.2 in Reduced Split Headroom - 2439 mm / 96 in Split Headroom - 2639 mm / 103.8 in ACCESSORIES MULTIPLE DOOR ACCESS FOLDABLE CHAIR The door access can be customized to be on different sides of the elevator for different floors. This flexibility of the elevator comes in very handy, especially for homes that have been planned and built without elevator space. This technology removes a lot of complications faced by every home elevator buyer. 37
- 38. 38
- 39. HERE’S WHAT THEY HAVE TO SAY “Climbing stairs has always a great form of exercise but owing to my knee injuries, I wasn’t able to take the stairs as often and also found it difficult to access my home gym. NIBAV lifts has eliminated the problem entirely as I don’t add any additional stress to my knees” Rashid, UAE “As a chef, I was finding it hard to have regular access to my workspace at the basement, but the NIBAV elevator’s compact design made it the perfect solution. It not only looks sleek and stylish, but it also provides convenient access to my kitchen on the lowest level of my house” Chef John Cristopher, Malaysia “I always adhered to the principles of Vastu. I never thought I could have an elevator in my home without digging a pit, but NIBAV made it possible. They have installed it without any disruptions to my home’s Vastu. Thank you, NIBAV“ Manish Tiwari, India “I am so grateful for my NIBAV elevator. It allows me to maintain my independence and move around my home with ease. Thank you, NIBAV!” George Modest, Australia “NIBAV Lifts has been a big boon for me and my wife as we were finding it difficult to move around the house. It has been a huge relief to use an elevator that offers these many safety features as the NIBAV Lift” Frank, Australia “As a parent, I am grateful to NIBAV Home Lifts for their commitment to safety, which is evident in the EN, CE, and TÜV certifications. Their dedication to safety gives me confidence in the products I purchase for my home” Deion Kentay, Nigeria 39
- 40. The product shown in the brochure may vary from the actual product. The Brochure is only for your reference. Please refer to the respective technical documents as items may change due to continuous improvement. Conditions apply.
