Basics Of Computed
Tomography (CT)
Lecture Five
Gamal Fathalla M.
Mahdaly
gamal_mahdaly@hotmail.com

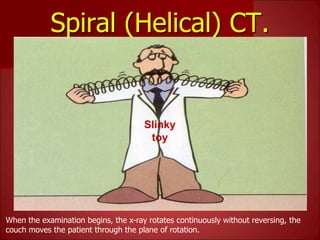

Spiral (Helical) CT.
Slinky
toy
When the examination begins, the x-ray rotates continuously without reversing, the
couch moves the patient through the plane of rotation.

A
B

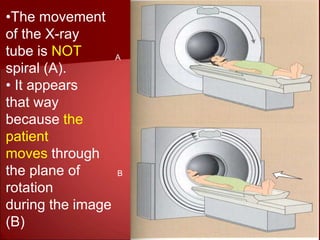

•The movement
of the X-ray
tube is NOT
spiral (A).
• It appears
that way
because the
patient
moves through
the plane of
rotation
during the image
(B)

Scanner Design
 Slip ring technology made spiral CT
possible.
 Advanced imaging protocols are due to
improvements in X-ray tube, High voltage
generator and the Detectors arrays.

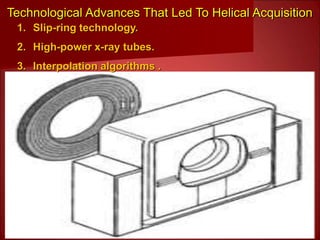

Technological Advances That Led To Helical Acquisition
1. Slip-ring technology.
2. High-power x-ray tubes.
3. Interpolation algorithms .

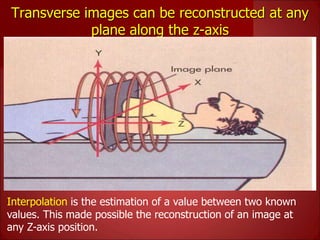

Transverse images can be reconstructed at any
plane along the z-axis

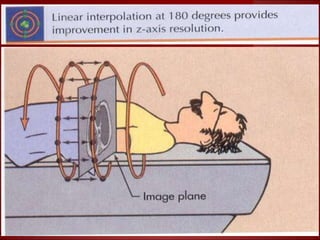

Interpolation is the estimation of a value between two known
values. This made possible the reconstruction of an image at
any Z-axis position.

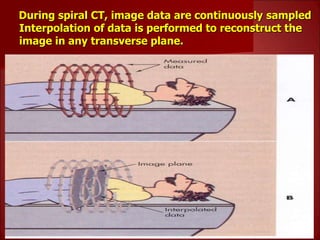

During spiral CT, image data are continuously sampled
Interpolation of data is performed to reconstruct the
image in any transverse plane.

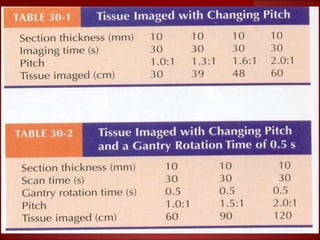

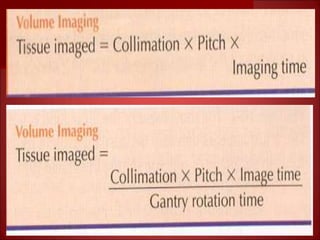

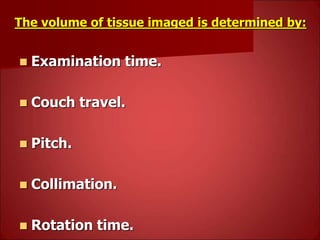

The volume of tissue imaged is determined by:
 Examination time.
 Couch travel.

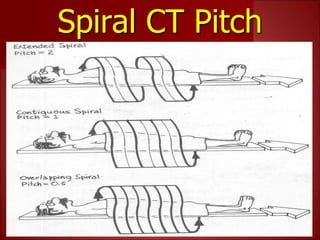

 Pitch.
 Collimation.
 Rotation time.

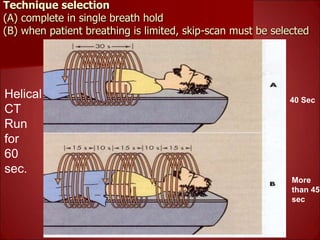

Technique selection
(A) complete in single breath hold
(B) when patient breathing is limited, skip-scan must be selected
40 Sec
More
than 45
sec
Helical
CT
Run
for
60
sec.

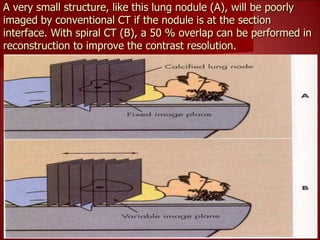

A very small structure, like this lung nodule (A), will be poorly
imaged by conventional CT if the nodule is at the section
interface. With spiral CT (B), a 50 % overlap can be performed in
reconstruction to improve the contrast resolution.

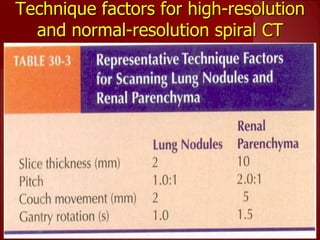

Technique factors for high-resolution
and normal-resolution spiral CT

Any Question???.
Take your Tiiime!!! .
Again Any Question???.
Otherwise, I’m going to ask!!!.
Should I Ask???.

The document provides an overview of k-space trajectories in MRI, including a detailed discussion of magnetic fields, the Fourier transform, and various k-space trajectory designs such as Cartesian, echo-planar, radial, and spiral trajectories. It outlines example problems for designing these trajectories, demonstrates their reconstruction challenges, and compares their efficiencies and applications. Acknowledgments are made to contributors and institutions involved in the research and development.

L 5 ct physicsShahid Younas

��

The document outlines the evolution of computed tomography (CT) technology through different generations, detailing the characteristics and innovations associated with each. It discusses various beam geometries used in CT scanners and the advantages of helical scanning over traditional methods, including faster scan times and improved image quality. Key terms such as projections, detector geometry, and special reconstruction techniques are highlighted throughout the lecture content.

CT- SCANNING SYSTEMCT- SCANNING SYSTEMCT- SCANNING SYSTEM.pptxWaqasMahmood55

��

1) CT scanners have progressed through several generations, each with improvements over the previous generation such as faster scan times, higher image quality, and ability to image larger areas of the body. 2) Early generations used parallel beams and translation-rotation motions, while later generations used fan beams, multiple detectors, and continuous rotation to gather more data simultaneously and reduce scan times. 3) Modern multi-slice CT scanners can acquire multiple slices simultaneously using an array of detectors, allowing for very fast whole-body scans.

2.pptx development of ct Elsayed Ramadan

��

A CT scanner uses an X-ray beam and detectors to acquire multiple views of the patient from different angles. The data is reconstructed into axial slices using an algorithm. Conventional scanners rotate around a stationary patient between acquisitions, while helical scanners provide continuous rotation and table motion, acquiring a continuous stream of data. Helical scanners have no interscan delays and can image larger volumes faster with fewer motion artifacts. CT technology has advanced through multiple generations with improvements like multiple detectors, larger fan beams, and complete ring detectors.

Ct instrumentRiadh Al-Haidari

��

This document provides an overview of computed tomography (CT) technology. It describes the basic components and evolution of CT scanners from first to seventh generation machines. Key points include: CT uses X-rays and computers to produce 3D images of the body's soft tissues and organs. Early scanners moved in a linear path, while newer scanners allow continuous rotation. Detector arrays have expanded from single to multi-row designs for faster image acquisition. Helical and volume scanning allow imaging of entire regions rather than individual slices.

Computed tomography Riadh Al-Haidari

��

Basics of CT- Lecture 3.pptMagde Gad

��

This document summarizes the evolution of computed tomography (CT) technology over several generations: - 1st generation CT scanners from the 1970s took 5 minutes to generate a single image using a pencil-shaped beam and single detector. - 3rd generation scanners from the 1980s reduced scan time to 3-5 seconds using a fan beam and detector array while rotating continuously. - Current multislice CT scanners can scan multiple slices simultaneously in under 1 second using multiple detector arrays. - The latest technology uses a stationary beam and detector configuration to achieve scan times under 50 milliseconds.

CT scannerSabari Kumar

��

The document summarizes the history and technology of computed tomography (CT) scanners. It describes how CT was developed in the 1970s by Godfrey Hounsfield and Alan Cormack, who were later awarded the Nobel Prize. It outlines the key innovations in each generation of CT scanners, from the first generation's pencil beam geometry to later generations' use of detector arrays and helical scanning, which reduced scan times. The document also discusses the components of a CT scanner, including the x-ray tube, detectors, and techniques for image reconstruction and calibration.

Basics of CT- Lecture 6.pptMagde Gad

��

This document discusses the basics of computed tomography (CT) and multislice CT. It explains that multislice CT uses multiple parallel detector arrays rather than a single detector array, and an X-ray tube with high heat capacity. It describes the increasing number of slices used in multislice CT scanners over time, from dual to 64 slices. The document also discusses clinical applications of multislice CT such as improved imaging of trauma patients and angiography, as well as advantages over conventional CT such as faster acquisition and reduced radiation dose.

9.MDCT AND ITS ADVANCEMENTS by Ravindra Kumar.pptxRavindra Kumar

��

The document discusses advancements in Multi-Detector Computed Tomography (MDCT), highlighting its historical development, technological innovations, and clinical applications. MDCT offers significant benefits over conventional CT, including faster scan times, improved spatial resolution, and reduced radiation exposure, while also presenting challenges such as increased image noise and patient dose concerns. It covers various generations of CT technology and recent advancements, emphasizing the evolution of CT systems from single-slice to multi-slice capabilities, particularly in the context of improved detection technologies.

computed tomographyAbhijeetSingh567

��

Physics of ct mriLokender Yadav

��

The document provides an overview of the fundamentals of CT and MRI imaging. It discusses how CT was introduced in 1972 and revolutionized medical imaging by providing high-quality transverse cross-sectional images of the body without tissue superimposition. It also describes the evolution of CT technology from early generation pencil-beam systems to current helical CT scanners that acquire continuous data as the patient passes through the rotating gantry. Key developments included increasing the number of detectors to acquire wider beams, implementing rotating gantries to speed up scans, and incorporating slip-ring technology to allow continuous 360-degree rotation.

CT- GENERATIONS.pptRAGHAVAAS

��

The document provides an overview of the evolution of computed tomography (CT) scanners, detailing their capabilities and design changes from first generation to fifth generation. Key developments include advancements in scanning speed, image quality, and detector configurations, culminating in modern technologies such as spiral/helical CT and multi-slice CT that enhance diagnostic imaging. It also discusses the implications of various scan types on radiation exposure and their specific applications in medical imaging.

2nd lecture (ct).pptxghhnmkkiubvdekkkigrrrSajedaGergab

��

Computed Tomography (CT) was first developed by Godfrey Hounsfield in 1967, leading to a Nobel Prize win in 1979. CT uses computer-processed x-rays to create cross-sectional images of the body, significantly improving the detail compared to conventional x-rays. Various generations of CT scanners have evolved over time, enhancing speed, detail, and imaging capabilities for diagnosing internal injuries and abnormalities.

Basics and Generations of computed tomography.pptxRohit Bansal

��

This document summarizes the history and generations of computed tomography (CT) scans. It discusses 7 generations of CT scanners: 1) first generation used a translate-rotate motion with one detector, 2) second generation used translate-rotate with multiple detectors, 3) third generation used continuous rotate-rotate motion, 4) fourth generation used a rotate-fixed system with many detectors, 5) fifth generation could acquire data 10x faster, 6) sixth generation introduced spiral/helical scanning, and 7) seventh generation may use flat panel detectors. Each generation enabled faster scanning and improved imaging capabilities.

computed TomographyScholars of Medical Imaging BPKIHS Dharan

��

Computed tomography (CT) uses rotating X-rays and computer processing to create cross-sectional images of the body. CT provides advantages over conventional radiography like distinguishing between tissues with similar densities and detecting differences as small as 0.5% contrast. Modern CT systems use multiple detector rows to acquire multiple slices simultaneously during each rotation, improving coverage and reducing scan time. Advanced techniques like multiplanar reformation and 3D rendering provide additional diagnostic information from CT images. Artifacts can arise from factors like the helical acquisition and differences between detector rows.

Computed TomographySujan Poudel

��

Computed tomography (CT) provides cross-sectional images of the body using X-rays. CT has evolved through several generations with advances in technology. Modern multi-detector CT allows acquisition of multiple slices simultaneously, reducing scan time. Helical or spiral CT involves continuous table movement and X-ray rotation, allowing whole organ or body coverage with minimal artifacts. Pitch relates the table speed to beam width and affects radiation dose and anatomic coverage. CT has advantages over conventional radiography including better contrast resolution and ability to distinguish between tissues.

Ct scan and its interpretation in omfsanusha vadlapatla

��

CT scanning uses X-rays and digital processing to create cross-sectional images of the body. It has become an important medical imaging tool since its invention in the 1970s. A CT scan produces detailed images of tissues and organs to help diagnose medical conditions and guide treatment. The document discusses the history, generations, and clinical applications of CT scanning as well as how to interpret CT images.

Computed Tomography and Spiral Computed Tomography JAMES JACKY

��

This document discusses computed tomography (CT) as an advanced imaging modality for evaluating the body, highlighting its advantages over conventional radiography, including improved contrast and the ability to visualize 3D structures. It explains the principles of CT imaging, including parameters like slice thickness, pitch, and CT numbers, as well as the steps involved in image formation from data acquisition to reconstruction. The document also addresses advancements in CT technology, specifically helical CT, which offers benefits such as increased speed and improved image continuity.

INTROD TO CT IMAGING - DR BYAKsafkuIKA.pptxpierresemeko1989

��

The document serves as an introduction to computed tomography (CT) imaging, detailing its history, construction, operating principles, and applications across various medical fields. It covers essential topics including image quality, radiation doses, the role of contrast media, CT-guided interventions, and advanced techniques like dual-energy CT and perfusion imaging. Additionally, it discusses factors affecting image quality and the various types of artifacts encountered in CT imaging.

GENERATIONS OF COMPUTED TOMOGRAPHY MamtaSharma158

��

There are 7 generations of CT scanners that have advanced over time to provide faster acquisition times, better spatial resolution, and shorter reconstruction times. The document describes each generation's key features and advantages/disadvantages. First generation used a pencil beam and translate-rotate motion. Later generations introduced fan beams, complete rotation, ring detectors, and dual x-ray sources to improve imaging capabilities while reducing motion artifacts and scan times. The latest generations aim to differentiate tissue composition using dual-energy techniques.

CT GENERATION.pptxananyagirishbabu1

��

The document provides a comprehensive overview of the evolution of CT scanners from first to seventh generation, detailing their operational principles, advancements, and limitations. Each generation is characterized by specific technological improvements, such as changes in beam geometry, speed of scanning, and methods for imaging moving structures. The most recent developments include the use of flat-panel digital detectors in seventh-generation scanners, still under prototype development.

Computerised tomography scanJekadeshnaidu Panirselvam

��

The document provides an in-depth overview of Computer Tomography (CT), detailing its definition, history, diagnostic applications, and benefits versus risks. CT is a non-invasive imaging technique that uses advanced x-ray technology to create detailed cross-sectional images of the body, aiding in the detection of various medical conditions including cancers and vascular diseases. It highlights the evolution of CT technology, its various generations, and the importance of contrast materials, while also addressing potential hazards associated with contrast agents.

Basics of CT & MRIVibhuti Kaul

��

This document provides an overview of computed tomography (CT) and magnetic resonance imaging (MRI). It discusses the history and development of CT from the early 1970s to present day, including the evolution from first to fifth generation CT scanners. Key aspects of CT technology covered include the basic principles, components like the x-ray tube and detectors, and types of scans like conventional tomography and cone beam CT. The document also briefly introduces magnetic resonance imaging.

L 4 ct physicsShahid Younas

��

The document introduces the principles of computed tomography (CT) physics, describing ray measurement and projection in CT imaging. It outlines the evolution of CT scanners from first-generation systems using pencil beams to advanced multi-detector configurations addressing issues like ring artifacts. Key features of each generation are highlighted, emphasizing technological advancements in detector arrangements and reconstruction methods.

Diagnostic aspects of CT {Miscellaneous (CT).pptxUrooj Mushtaq Bhat

��

advancement in CT Sahara.pptxsahara mahato

��

The document discusses advances in computed tomography (CT) scanning technology. It describes the development of helical/spiral CT scanning using slip ring technology in the 1990s, allowing for continuous tube rotation. It then outlines the progression of multidetector CT (MDCT) from dual to 64+ slices, enabled by advances in detector arrays. MDCT provides improvements like faster scanning, thinner slices, reduced motion artifacts, and longer anatomical coverage. The document also reviews developments in CT tubes, reconstruction techniques, post-processing methods, and dual-source CT configurations.

Basic principle of CT and generation of CT.pptxsarita gaire

��

The document provides a comprehensive overview of computed tomography (CT), detailing its principles, historical development, and advancements across different generations. It explains the superiority of CT over conventional radiography in producing detailed cross-sectional images and discusses the mathematical algorithms involved in image reconstruction. Additionally, it highlights the evolution of CT technology from the first to the sixth generation, focusing on improvements in scan time, image quality, and the introduction of innovations such as slip ring technology.

_3 very important.pptMagde Gad

��

The document discusses the physical principles behind signal generation in magnetic resonance imaging (MRI). It describes how hydrogen protons generate a signal when placed in a strong magnetic field. The protons precess around the field at their Larmor frequency. A radiofrequency pulse excites the protons, which then relax back to equilibrium and emit a magnetic resonance signal that is detected by a receiver coil. The signal decays over time according to the T1 longitudinal relaxation time and T2* transverse relaxation time, which are tissue properties that can provide contrast for MRI.

Basics of CT- Lecture 4.pptMagde Gad

��

The document provides details on the key components of a computed tomography (CT) scanner. It discusses the gantry, which houses the x-ray tube, detector array, and high voltage generator. It describes different types of x-ray tubes, detectors, including scintillation and gas ionization detectors, and collimators. The computer is also highlighted as a crucial component, processing the data collected and representing the cross-sectional images.

More Related Content

Similar to Basics of CT- Lecture 5.ppt (20)

Basics of CT- Lecture 6.pptMagde Gad

��

9.MDCT AND ITS ADVANCEMENTS by Ravindra Kumar.pptxRavindra Kumar

��

computed tomographyAbhijeetSingh567

��

Physics of ct mriLokender Yadav

��

CT- GENERATIONS.pptRAGHAVAAS

��

2nd lecture (ct).pptxghhnmkkiubvdekkkigrrrSajedaGergab

��

Basics and Generations of computed tomography.pptxRohit Bansal

��

computed TomographyScholars of Medical Imaging BPKIHS Dharan

��

Computed TomographySujan Poudel

��

Ct scan and its interpretation in omfsanusha vadlapatla

��

Computed Tomography and Spiral Computed Tomography JAMES JACKY

��

INTROD TO CT IMAGING - DR BYAKsafkuIKA.pptxpierresemeko1989

��

GENERATIONS OF COMPUTED TOMOGRAPHY MamtaSharma158

��

CT GENERATION.pptxananyagirishbabu1

��

Computerised tomography scanJekadeshnaidu Panirselvam

��

Basics of CT & MRIVibhuti Kaul

��

L 4 ct physicsShahid Younas

��

Diagnostic aspects of CT {Miscellaneous (CT).pptxUrooj Mushtaq Bhat

��

advancement in CT Sahara.pptxsahara mahato

��

Basic principle of CT and generation of CT.pptxsarita gaire

��

Basics of CT- Lecture 6.pptMagde Gad

��

9.MDCT AND ITS ADVANCEMENTS by Ravindra Kumar.pptxRavindra Kumar

��

computed tomographyAbhijeetSingh567

��

Physics of ct mriLokender Yadav

��

CT- GENERATIONS.pptRAGHAVAAS

��

2nd lecture (ct).pptxghhnmkkiubvdekkkigrrrSajedaGergab

��

Basics and Generations of computed tomography.pptxRohit Bansal

��

computed TomographyScholars of Medical Imaging BPKIHS Dharan

��

Computed TomographySujan Poudel

��

Ct scan and its interpretation in omfsanusha vadlapatla

��

Computed Tomography and Spiral Computed Tomography JAMES JACKY

��

INTROD TO CT IMAGING - DR BYAKsafkuIKA.pptxpierresemeko1989

��

GENERATIONS OF COMPUTED TOMOGRAPHY MamtaSharma158

��

CT GENERATION.pptxananyagirishbabu1

��

Computerised tomography scanJekadeshnaidu Panirselvam

��

Basics of CT & MRIVibhuti Kaul

��

L 4 ct physicsShahid Younas

��

Diagnostic aspects of CT {Miscellaneous (CT).pptxUrooj Mushtaq Bhat

��

advancement in CT Sahara.pptxsahara mahato

��

Basic principle of CT and generation of CT.pptxsarita gaire

��

More from Magde Gad (11)

_3 very important.pptMagde Gad

��

Basics of CT- Lecture 4.pptMagde Gad

��

Basics of CT- Lecture 7.pptMagde Gad

��

This document discusses the basics of computed tomography (CT) image manipulation and windowing. It explains that CT images can be modified in various ways, including changing filters and storing or transmitting images. It then describes windowing as a method to manipulate CT images by altering the CT numbers to optimize different structures. Finally, it discusses how window width and level are used to select an appropriate range of CT numbers to display tissues of interest in different grey scales for optimal viewing.

.pptMagde Gad

��

This document provides guidelines for performing CT angiography exams of various body parts to evaluate for pulmonary embolism, deep vein thrombosis, and other vascular conditions. It describes patient positioning, contrast injection protocols, scan parameters and reconstruction techniques for CT angiography of the chest, upper extremities, lower extremities, brain, and abdomen. The goal is to comprehensively examine the vasculature with thin slices and multiplanar reconstructions to detect blood clots, aneurysms, and other abnormalities.

- Lecture 2.pptMagde Gad

��

The document provides an overview of computed tomography (CT) image reconstruction. It explains that after transmission measurements are taken by detectors, the data is sent to a computer for processing using reconstruction algorithms. The most widely used algorithm is filtered backprojection, which builds up the CT image by essentially reversing the data acquisition steps and smearing attenuation values along ray paths in the image. This reinforces areas of similar attenuation, reconstructing the image matrix. The document also discusses CT number scales, windowing, and other techniques for manipulating and displaying the reconstructed CT image.

-Lecture 1.pptMagde Gad

��

This document discusses radiation safety and protection in computed tomography (CT) scanning. It defines stochastic and deterministic effects of radiation, and explains that stochastic effects depend on probability of occurrence with increased exposure while deterministic effects have a threshold dose above which the probability of the effect is 100%. It also discusses units used to measure radiation dose exposure, absorbed dose, and dose equivalent. The document focuses on measuring radiation dose from CT scanning, defining and measuring the CT dose index (CTDI) and multiple scan average dose (MSAD). It explains how changing parameters like kVp can affect radiation dose and image quality.

-Lecture 2.pptMagde Gad

��

This document provides information about computed tomography (CT) scans and factors that affect radiation dose, including: 1. Helical pitch affects dose, with lower pitches increasing dose and higher pitches decreasing dose. Tube current and time also affect dose linearly, with higher mAs increasing dose. 2. Effective radiation dose from CT scans is much higher than conventional x-rays but still less than typical background radiation exposure per year. Automatic exposure control helps reduce dose by modulating tube current based on patient attenuation. 3. Radiation dose to patients and staff is carefully monitored and controlled through techniques like collimation, time, distance and shielding to keep exposure As Low As Reasonably Achievable.

Basics of CT- Lecture 9.pptMagde Gad

��

This document provides a summary of key concepts in computed tomography (CT) imaging. It discusses back projection reconstruction techniques which can produce blurred images. It also describes filtered back projection which uses digital subtraction filtering to reduce blurring. Fourier reconstruction techniques are described where projection data is transformed to the frequency domain using Fourier transforms before being reconstructed into a spatial domain image. Different window widths and window levels are discussed for optimizing soft tissue versus bone imaging.

Basics of CT- Lecture 1.pptMagde Gad

��

This document provides an overview of computed tomography (CT) scanning. It discusses limitations of conventional x-rays like superimposition and poor contrast resolution. CT addresses these issues by using a narrow x-ray beam and detectors to measure transmission and calculate attenuation values for image reconstruction. The data acquisition system acquires multiple projections from different angles to form cross-sectional images with excellent contrast and no superimposition. CT numbers provide numerical values related to tissue density and attenuation.

E mri mr_signal_slidesMagde Gad

��

E mri spatialencoding_slidesMagde Gad

��

_3 very important.pptMagde Gad

��

Basics of CT- Lecture 4.pptMagde Gad

��

Basics of CT- Lecture 7.pptMagde Gad

��

.pptMagde Gad

��

- Lecture 2.pptMagde Gad

��

-Lecture 1.pptMagde Gad

��

-Lecture 2.pptMagde Gad

��

Basics of CT- Lecture 9.pptMagde Gad

��

Basics of CT- Lecture 1.pptMagde Gad

��

E mri mr_signal_slidesMagde Gad

��

E mri spatialencoding_slidesMagde Gad

��

Recently uploaded (20)

Environmental Science, Environmental Health, and Sanitation – Unit 3 | B.Sc N...RAKESH SAJJAN

��

This PowerPoint presentation covers Unit 3 – Environmental Science, Environmental Health, and Sanitation from the 5th Semester B.Sc Nursing syllabus prescribed by the Indian Nursing Council (INC). It is carefully designed to support nursing students, educators, and community health professionals in understanding the environmental components that influence health and disease prevention. The unit emphasizes the interrelationship between the environment and human health, highlighting various environmental factors, hazards, and strategies for disease prevention through sanitation and public health initiatives. ✳️ Topics Covered in the PPT: Definition and scope of environmental science and environmental health Importance of a safe environment for public health Types of environmental pollution – air, water, soil, noise, and radiation Sources, effects, and prevention of different types of pollution Concept of ecosystem and its components Water safety and purification methods at household and community levels Disposal of waste and excreta – types, methods, health risks Introduction to environmental sanitation Vector control measures: Mosquitoes, houseflies, rodents, etc. Biological and non-biological health hazards in the environment National programs related to environmental health and sanitation Health education for safe water, hygiene, and sanitation behavior change Role of a community health nurse in promoting environmental health Use of community bags and home visit kits to educate rural families Practical methods for solid waste management and waste segregation This presentation supports: Class lectures and revision Health teaching in field visits Community awareness campaigns Internal assessments and final exam preparation It ensures that all essential environmental health concepts are simplified and well-structured for easy understanding and application in nursing practice.

Paper 108 | Thoreau’s Influence on Gandhi: The Evolution of Civil DisobedienceRajdeep Bavaliya

��

Dive into the powerful journey from Thoreau’s 19th‑century essay to Gandhi’s mass movement, and discover how one man’s moral stand became the backbone of nonviolent resistance worldwide. Learn how conscience met strategy to spark revolutions, and why their legacy still inspires today’s social justice warriors. Uncover the evolution of civil disobedience. Don’t forget to like, share, and follow for more deep dives into the ideas that changed the world. M.A. Sem - 2 | Presentation Presentation Season - 2 Paper - 108: The American Literature Submitted Date: April 2, 2025 Paper Name: The American Literature Topic: Thoreau’s Influence on Gandhi: The Evolution of Civil Disobedience [Please copy the link and paste it into any web browser to access the content.] Video Link: https://youtu.be/HXeq6utg7iQ For a more in-depth discussion of this presentation, please visit the full blog post at the following link: https://rajdeepbavaliya2.blogspot.com/2025/04/thoreau-s-influence-on-gandhi-the-evolution-of-civil-disobedience.html Please visit this blog to explore additional presentations from this season: Hashtags: #CivilDisobedience #ThoreauToGandhi #NonviolentResistance #Satyagraha #Transcendentalism #SocialJustice #HistoryUncovered #GandhiLegacy #ThoreauInfluence #PeacefulProtest Keyword Tags: civil disobedience, Thoreau, Gandhi, Satyagraha, nonviolent protest, transcendentalism, moral resistance, Gandhi Thoreau connection, social change, political philosophy

Q1_ENGLISH_PPT_WEEK 1 power point grade 3 Quarter 1 week 1jutaydeonne

��

How to Implement Least Package Removal Strategy in Odoo 18 InventoryCeline George

��

“THE BEST CLASS IN SCHOOL”. _Colégio Santa Teresinha

��

ECONOMICS, DISASTER MANAGEMENT, ROAD SAFETY - STUDY MATERIAL [10TH]SHERAZ AHMAD LONE

��

This study material for Class 10th covers the core subjects of Economics, Disaster Management, and Road Safety Education, developed strictly in line with the JKBOSE textbook. It presents the content in a simplified, structured, and student-friendly format, ensuring clarity in concepts. The material includes reframed explanations, flowcharts, infographics, and key point summaries to support better understanding and retention. Designed for classroom teaching and exam preparation, it aims to enhance comprehension, critical thinking, and practical awareness among students.

University of Ghana Cracks Down on Misconduct: Over 100 Students SanctionedKweku Zurek

��

How to Manage Inventory Movement in Odoo 18 POSCeline George

��

Introduction to Generative AI and Copilot.pdfTechSoup

��

Publishing Your Memoir with Brooke WarnerBrooke Warner

��

2025 June Year 9 Presentation: Subject selection.pptxmansk2

��

THE PSYCHOANALYTIC OF THE BLACK CAT BY EDGAR ALLAN POE (1).pdfnabilahk908

��

Psychoanalytic Analysis of The Black Cat by Edgar Allan Poe explores the deep psychological dimensions of the narrator’s disturbed mind through the lens of Sigmund Freud’s psychoanalytic theory. According to Freud (1923), the human psyche is structured into three components: the Id, which contains primitive and unconscious desires; the Ego, which operates on the reality principle and mediates between the Id and the external world; and the Superego, which reflects internalized moral standards. In this story, Poe presents a narrator who experiences a psychological breakdown triggered by repressed guilt, aggression, and internal conflict. This analysis focuses not only on the gothic horror elements of the narrative but also on the narrator’s mental instability and emotional repression, demonstrating how the imbalance of these three psychic forces contributes to his downfall.

YSPH VMOC Special Report - Measles Outbreak Southwest US 6-14-2025.pptxYale School of Public Health - The Virtual Medical Operations Center (VMOC)

��

BLUF: The Texas outbreak has slowed down, but sporadic cases continue to emerge in Kansas, Oklahoma, and New Mexico. Elsewhere in the US, we continue to see signs of acceleration due to outbreaks outside the Southwest (North Dakota, Montana, and Colorado) and travel-related cases. Measles exposures due to travel are expected to pose a significant challenge throughout the summer. The U.S. is on track to exceed its 30-year high for measles cases (1,274) within the next two weeks. Here is the latest update: CURRENT CASE COUNT: 919 •Texas: 744 (+2) (55% of cases are in Gaines County). •New Mexico: 81 (83% of cases are from Lea County). •Oklahoma: 20 (+2) •Kansas: 74 (+5) (38.89% of the cases are from Gray County). HOSPITALIZATIONS: 104 • Texas: 96 (+2) – This accounts for 13% of all cases in Texas. • New Mexico: 7 – This accounts for 9.47% of all cases in New Mexico. • Kansas: 3 – This accounts for 5.08% of all cases in the state of Kansas. DEATHS: 3 •Texas: 2 – This is 0.27% of all cases in Texas. •New Mexico: 1 – This is 1.23% of all cases in New Mexico. US NATIONAL CASE COUNT: 1,197 INTERNATIONAL SPREAD •Mexico: 2337 (+257), 5 fatalities ‒Chihuahua, Mexico: 2,179 (+239) cases, 4 fatalities, 7 currently hospitalized. •Canada: 3,207 (+208), 1 fatality ‒Ontario Outbreak, Canada: 2,115 (+74) cases, 158 hospitalizations, 1 fatality. ‒Alberta, Canada: 879(+118) cases, 5 currently hospitalized.

LDMMIA Practitioner Student Reiki Yoga S2 Video PDF Without Yogi GoddessLDM & Mia eStudios

��

A bonus dept update. Happy Summer 25 almost. Do Welcome or Welcome back. Our 10th Free workshop will be released the end of this week, June 20th Weekend. All Materials/updates/Workshops are timeless for future students. ♥ Your Attendance is valued. We hit over 5k views for Spring Workshops and Updates-TY. ♥ Coming to our Shop This Weekend. Timeless for Future Grad Level Students. Practitioner Student. Level/Session 2 Packages. * ♥The Review & Topics: * All virtual, adult, education students must be over 18 years to attend LDMMIA eClasses and vStudio Thx. * Please refer to our Free Workshops anytime for review/notes. * Orientation Counts as S1 on introduction. Sold Separately as a PDF. Our S2 includes 2 Videos within 2 Mp4s. Sold Separately for Uploading. * Reiki Is Japanese Energy Healing used Globally. * Yoga is over 5k years old from India. It hosts many styles, teacher versions, and it’s Mainstream now vs decades ago. * Teaching Vod, 720 Res, Mp4: Yoga Therapy is Reviewed as a Hatha, Classical, Med Yoga (ND) Base. Take practice notes as needed or repeat videos. * Fused Teaching Vod, 720 Res, Mp4: Yoga Therapy Meets Reiki Review. Take Practice notes as needed or repeat videos. * Video, 720 Res, Mp4: Practitioner Congrats and Workshop Visual Review with Suggestions. ♥ Bonus Studio Video, 720 Res, Mp4: Our 1st Reiki Video. Produced under Yogi Goddess, LDM Recording. As a Reiki, Kundalini, ASMR Spa, Music Visual. For Our Remastered, Beatz Single for Goddess Vevo Watchers. https://www.reverbnation.com/yogigoddess * ♥ Our Videos are Vevo TV and promoted within the LDMMIA Profiles. * Scheduled upload for or by Weekend Friday June 13th. * LDMMIA Digital & Merch Shop: https://ldm-mia.creator-spring.com * ♥ As a student, make sure you have high speed connections/wifi for attendance. This sounds basic, I know lol. But, for our video section. The High Speed and Tech is necessary. Otherwise, any device can be used. Our Zip drive files should serve MAC/PC as well. * ♥ On TECH Emergency: I have had some rare, rough, horrid timed situations as a Remote Student. Pros and Cons to being on campus. So Any Starbucks (coffee shop) or library can be used for wifi hot spots. You can work at your own speed and pace. * ♥ We will not be hosting deadlines, tests/exams. * ♥Any homework will be session practice and business planning. Nothing stressful or assignment submissions.

GEOGRAPHY-Study Material [ Class 10th] .pdfSHERAZ AHMAD LONE

��

"Geography Study Material for Class 10th" provides a comprehensive and easy-to-understand resource for key topics like Resources & Development, Water Resources, Agriculture, Minerals & Energy, Manufacturing Industries, and Lifelines of the National Economy. Designed as per the latest NCERT/JKBOSE syllabus, it includes notes, maps, diagrams, and MODEL question Paper to help students excel in exams. Whether revising for exams or strengthening conceptual clarity, this material ensures effective learning and high scores. Perfect for last-minute revisions and structured study sessions.

Paper 107 | From Watchdog to Lapdog: Ishiguro’s Fiction and the Rise of “Godi...Rajdeep Bavaliya

��

Dive into a captivating analysis where Kazuo Ishiguro’s nuanced fiction meets the stark realities of post‑2014 Indian journalism. Uncover how “Godi Media” turned from watchdog to lapdog, echoing the moral compromises of Ishiguro’s protagonists. We’ll draw parallels between restrained narrative silences and sensationalist headlines—are our media heroes or traitors? Don’t forget to follow for more deep dives! M.A. Sem - 2 | Presentation Presentation Season - 2 Paper - 107: The Twentieth Century Literature: From World War II to the End of the Century Submitted Date: April 4, 2025 Paper Name: The Twentieth Century Literature: From World War II to the End of the Century Topic: From Watchdog to Lapdog: Ishiguro’s Fiction and the Rise of “Godi Media” in Post-2014 Indian Journalism [Please copy the link and paste it into any web browser to access the content.] Video Link: https://youtu.be/kIEqwzhHJ54 For a more in-depth discussion of this presentation, please visit the full blog post at the following link: https://rajdeepbavaliya2.blogspot.com/2025/04/from-watchdog-to-lapdog-ishiguro-s-fiction-and-the-rise-of-godi-media-in-post-2014-indian-journalism.html Please visit this blog to explore additional presentations from this season: Hashtags: #GodiMedia #Ishiguro #MediaEthics #WatchdogVsLapdog #IndianJournalism #PressFreedom #LiteraryCritique #AnArtistOfTheFloatingWorld #MediaCapture #KazuoIshiguro Keyword Tags: Godi Media, Ishiguro fiction, post-2014 Indian journalism, media capture, Kazuo Ishiguro analysis, watchdog to lapdog, press freedom India, media ethics, literature and media, An Artist of the Floating World

ENGLISH_Q1_W1 PowerPoint grade 3 quarter 1 week 1jutaydeonne

��

LAZY SUNDAY QUIZ "A GENERAL QUIZ" JUNE 2025 SMC QUIZ CLUB, SILCHAR MEDICAL CO...Ultimatewinner0342

��

🧠 Lazy Sunday Quiz | General Knowledge Trivia by SMC Quiz Club – Silchar Medical College Presenting the Lazy Sunday Quiz, a fun and thought-provoking general knowledge quiz created by the SMC Quiz Club of Silchar Medical College & Hospital (SMCH). This quiz is designed for casual learners, quiz enthusiasts, and competitive teams looking for a diverse, engaging set of questions with clean visuals and smart clues. 🎯 What is the Lazy Sunday Quiz? The Lazy Sunday Quiz is a light-hearted yet intellectually rewarding quiz session held under the SMC Quiz Club banner. It’s a general quiz covering a mix of current affairs, pop culture, history, India, sports, medicine, science, and more. Whether you’re hosting a quiz event, preparing a session for students, or just looking for quality trivia to enjoy with friends, this PowerPoint deck is perfect for you. 📋 Quiz Format & Structure Total Questions: ~50 Types: MCQs, one-liners, image-based, visual connects, lateral thinking Rounds: Warm-up, Main Quiz, Visual Round, Connects (optional bonus) Design: Simple, clear slides with answer explanations included Tools Needed: Just a projector or screen – ready to use! 🧠 Who Is It For? College quiz clubs School or medical students Teachers or faculty for classroom engagement Event organizers needing quiz content Quizzers preparing for competitions Freelancers building quiz portfolios 💡 Why Use This Quiz? Ready-made, high-quality content Curated with lateral thinking and storytelling in mind Covers both academic and pop culture topics Designed by a quizzer with real event experience Usable in inter-college fests, informal quizzes, or Sunday brain workouts 📚 About the Creators This quiz has been created by Rana Mayank Pratap, an MBBS student and quizmaster at SMC Quiz Club, Silchar Medical College. The club aims to promote a culture of curiosity and smart thinking through weekly and monthly quiz events. 🔍 SEO Tags: quiz, general knowledge quiz, trivia quiz, �ݺ�ߣShare quiz, college quiz, fun quiz, medical college quiz, India quiz, pop culture quiz, visual quiz, MCQ quiz, connect quiz, science quiz, current affairs quiz, SMC Quiz Club, Silchar Medical College 📣 Reuse & Credit You’re free to use or adapt this quiz for your own events or sessions with credit to: SMC Quiz Club – Silchar Medical College & Hospital Curated by: Rana Mayank Pratap

How to Manage Multi Language for Invoice in Odoo 18Celine George

��

Gibson "Secrets to Changing Behaviour in Scholarly Communication: A 2025 NISO...National Information Standards Organization (NISO)

��

Environmental Science, Environmental Health, and Sanitation – Unit 3 | B.Sc N...RAKESH SAJJAN

��

Paper 108 | Thoreau’s Influence on Gandhi: The Evolution of Civil DisobedienceRajdeep Bavaliya

��

Q1_ENGLISH_PPT_WEEK 1 power point grade 3 Quarter 1 week 1jutaydeonne

��

How to Implement Least Package Removal Strategy in Odoo 18 InventoryCeline George

��

“THE BEST CLASS IN SCHOOL”. _Colégio Santa Teresinha

��

ECONOMICS, DISASTER MANAGEMENT, ROAD SAFETY - STUDY MATERIAL [10TH]SHERAZ AHMAD LONE

��

University of Ghana Cracks Down on Misconduct: Over 100 Students SanctionedKweku Zurek

��

How to Manage Inventory Movement in Odoo 18 POSCeline George

��

Introduction to Generative AI and Copilot.pdfTechSoup

��

Publishing Your Memoir with Brooke WarnerBrooke Warner

��

2025 June Year 9 Presentation: Subject selection.pptxmansk2

��

THE PSYCHOANALYTIC OF THE BLACK CAT BY EDGAR ALLAN POE (1).pdfnabilahk908

��

YSPH VMOC Special Report - Measles Outbreak Southwest US 6-14-2025.pptxYale School of Public Health - The Virtual Medical Operations Center (VMOC)

��

LDMMIA Practitioner Student Reiki Yoga S2 Video PDF Without Yogi GoddessLDM & Mia eStudios

��

GEOGRAPHY-Study Material [ Class 10th] .pdfSHERAZ AHMAD LONE

��

Paper 107 | From Watchdog to Lapdog: Ishiguro’s Fiction and the Rise of “Godi...Rajdeep Bavaliya

��

ENGLISH_Q1_W1 PowerPoint grade 3 quarter 1 week 1jutaydeonne

��

LAZY SUNDAY QUIZ "A GENERAL QUIZ" JUNE 2025 SMC QUIZ CLUB, SILCHAR MEDICAL CO...Ultimatewinner0342

��

How to Manage Multi Language for Invoice in Odoo 18Celine George

��

Gibson "Secrets to Changing Behaviour in Scholarly Communication: A 2025 NISO...National Information Standards Organization (NISO)

��

Basics of CT- Lecture 5.ppt

1. ‫تعلم‬ ‫تكن‬ ‫مالم‬ ‫وعلمك‬ ‫هللا‬ ‫فضل‬ ‫وكان‬ ‫عظيما‬ ‫عليك‬

2. Basics Of Computed Tomography (CT) Lecture Five Gamal Fathalla M. Mahdaly gamal_mahdaly@hotmail.com

3. Spiral (Helical) CT. Slinky toy When the examination begins, the x-ray rotates continuously without reversing, the couch moves the patient through the plane of rotation.

4. A B •The movement of the X-ray tube is NOT spiral (A). • It appears that way because the patient moves through the plane of rotation during the image (B)

5. SLIICE BY SLICE VOLUME Axial Helical

6. Scanner Design  Slip ring technology made spiral CT possible.  Advanced imaging protocols are due to improvements in X-ray tube, High voltage generator and the Detectors arrays.

7. Technological Advances That Led To Helical Acquisition 1. Slip-ring technology. 2. High-power x-ray tubes. 3. Interpolation algorithms .

8. Transverse images can be reconstructed at any plane along the z-axis Interpolation is the estimation of a value between two known values. This made possible the reconstruction of an image at any Z-axis position.

9. Interpolation

10. During spiral CT, image data are continuously sampled Interpolation of data is performed to reconstruct the image in any transverse plane.

13. Spiral CT Pitch

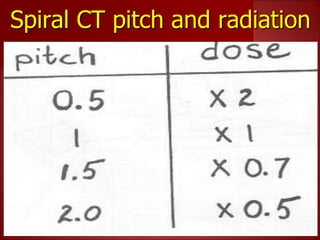

14. Spiral CT pitch and radiation

15. The volume of tissue imaged is determined by:  Examination time.  Couch travel.  Pitch.  Collimation.  Rotation time.

18. Technique selection (A) complete in single breath hold (B) when patient breathing is limited, skip-scan must be selected 40 Sec More than 45 sec Helical CT Run for 60 sec.

19. A very small structure, like this lung nodule (A), will be poorly imaged by conventional CT if the nodule is at the section interface. With spiral CT (B), a 50 % overlap can be performed in reconstruction to improve the contrast resolution.

20. Technique factors for high-resolution and normal-resolution spiral CT

22. Any Question???. Take your Tiiime!!! . Again Any Question???. Otherwise, I’m going to ask!!!. Should I Ask???.

23. Have a nice day

Editor's Notes

#2: 1

�ݺ�ߣ

Basics of CT- Lecture 5.ppt

Recommended

More Related Content

Similar to Basics of CT- Lecture 5.ppt (20)

More from Magde Gad (11)

Recently uploaded (20)

Basics of CT- Lecture 5.ppt

Editor's Notes
