- 1. CBduinoCBduino geocaching eventgeocaching event Kuba76, Owar, McHaKuba76, Owar, McHa GC4DJMBGC4DJMB GC4DJMBGC4DJMB GC4DJMBGC4DJMB GC4DJMBGC4DJMB GC4DJMBGC4DJMB

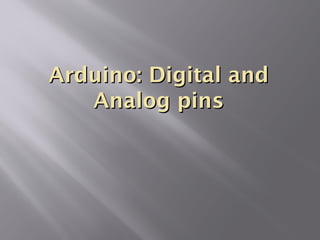

- 2. Arduino: Digital andArduino: Digital and Analog pinsAnalog pins

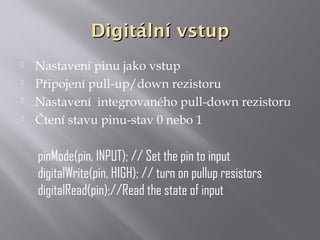

- 4. Digit叩ln鱈 vstupDigit叩ln鱈 vstup Nastaven鱈 pinu jako vstup Pipojen鱈 pull-up/down rezistoru Nastaven鱈 integrovan辿ho pull-down rezistoru ten鱈 stavu pinu-stav 0 nebo 1 pinMode(pin, INPUT); // Set the pin to input digitalWrite(pin, HIGH); // turn on pullup resistors digitalRead(pin);//Read the state of input

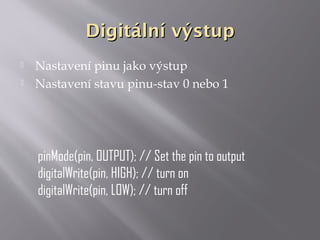

- 5. Digit叩ln鱈 v箪stupDigit叩ln鱈 v箪stup Nastaven鱈 pinu jako v箪stup Nastaven鱈 stavu pinu-stav 0 nebo 1 pinMode(pin, OUTPUT); // Set the pin to output digitalWrite(pin, HIGH); // turn on digitalWrite(pin, LOW); // turn off

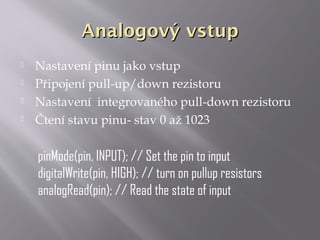

- 6. Analogov箪 vstupAnalogov箪 vstup Nastaven鱈 pinu jako vstup Pipojen鱈 pull-up/down rezistoru Nastaven鱈 integrovan辿ho pull-down rezistoru ten鱈 stavu pinu- stav 0 a転 1023 pinMode(pin, INPUT); // Set the pin to input digitalWrite(pin, HIGH); // turn on pullup resistors analogRead(pin); // Read the state of input

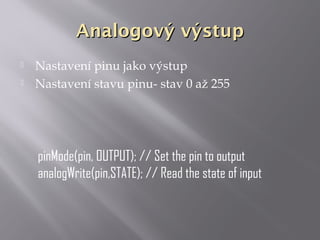

- 7. Analogov箪 v箪stupAnalogov箪 v箪stup Nastaven鱈 pinu jako v箪stup Nastaven鱈 stavu pinu- stav 0 a転 255 pinMode(pin, OUTPUT); // Set the pin to output analogWrite(pin,STATE); // Read the state of input

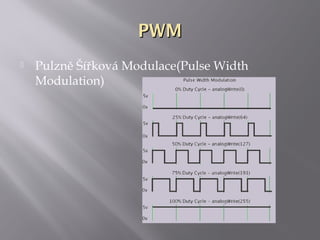

- 8. PWMPWM Pulzn 鱈kov叩 Modulace(Pulse Width Modulation)

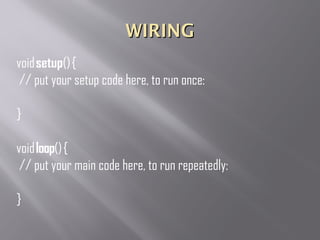

- 9. WIRINGWIRING void油setup()油{ 油油// put your setup code here, to run once: } void油loop()油{ 油油// put your main code here, to run repeatedly:油 油油 }

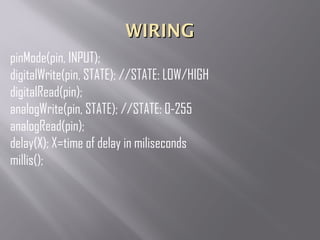

- 10. WIRINGWIRING pinMode(pin, INPUT); digitalWrite(pin, STATE); //STATE: LOW/HIGH digitalRead(pin); analogWrite(pin, STATE); //STATE: 0-255 analogRead(pin); delay(X); X=time of delay in miliseconds millis();

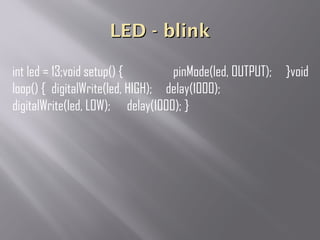

- 12. LED - blinkLED - blink int led = 13;void setup() { pinMode(led, OUTPUT); }void loop() { digitalWrite(led, HIGH); delay(1000); digitalWrite(led, LOW); delay(1000); }

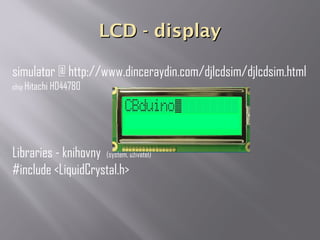

- 13. LCD - displayLCD - display simulator @ http://www.dinceraydin.com/djlcdsim/djlcdsim.html chip Hitachi HD44780 Libraries - knihovny (system, u転ivatel) #include <LiquidCrystal.h>

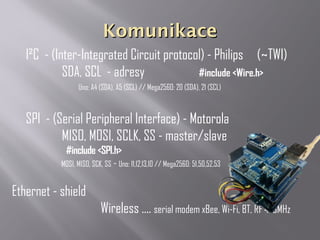

- 15. KomunikaceKomunikace I族C - (Inter-Integrated Circuit protocol) - Philips (~TWI) SDA, SCL - adresy #include <Wire.h> Uno: A4 (SDA), A5 (SCL) // Mega2560: 20 (SDA), 21 (SCL) SPI - (Serial Peripheral Interface) - Motorola MISO, MOSI, SCLK, SS - master/slave #include <SPI.h> MOSI, MISO, SCK, SS - Uno: 11,12,13,10 // Mega2560: 51,50,52,53 Ethernet - shield Wireless .... serial modem xBee, Wi-Fi, BT, RF 443MHz

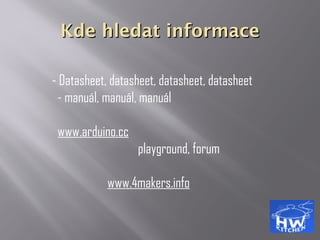

- 16. Kde hledat informaceKde hledat informace - Datasheet, datasheet, datasheet, datasheet - manu叩l, manu叩l, manu叩l www.arduino.cc playground, forum www.4makers.info

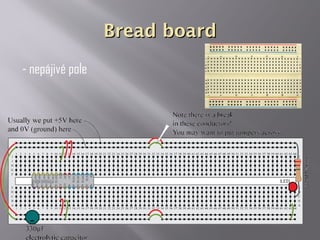

- 17. Bread boardBread board - nep叩jiv辿 pole
