CEA Project Logistics Thailand was contracted to transport a 17-meter catamaran ferry weighing 17 tonnes from Chonburi, Thailand to Freetown, Sierra Leone in West Africa. The ferry was lifted from the water by a marine straddle carrier and loaded onto a custom frame attached to a lowbed trailer. Due to height restrictions, the top section was removed and transported separately. After a 7 day storage period, the ferry was transported to port and loaded onto a shipping vessel. CEA provided transportation, storage, export documentation, and supervision of the entire process over 7 days to deliver the ferry overseas.
Catamaran Transport & Export

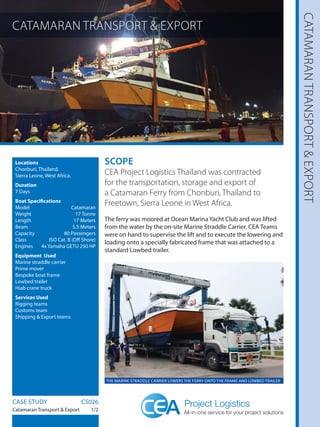

- 1. SCOPE CEA Project Logistics Thailand was contracted for the transportation, storage and export of a Catamaran Ferry from Chonburi, Thailand to Freetown, Sierra Leone in West Africa. The ferry was moored at Ocean Marina Yacht Club and was lifted from the water by the on-site Marine Straddle Carrier. CEA Teams were on hand to supervise the lift and to execute the lowering and loading onto a specially fabricated frame that was attached to a standard Lowbed trailer. CATAMARANTRANSPORT&EXPORT Locations Chonburi, Thailand. Sierra Leone, West Africa. Duration 7 Days Boat Specifications ModelCatamaran Weight 17 Tonne Length 17 Meters Beam 5.5 Meters Capacity 80 Passengers Class ISO Cat. B (Off Shore) Engines 4x Yamaha GETU 250 HP Equipment Used Marine straddle carrier Prime mover Bespoke boat frame Lowbed trailer Hiab crane truck Services Used Rigging teams Customs team Shipping Export teams CASE STUDY CS026 Catamaran Transport Export 1/2 CATAMARAN TRANSPORT EXPORT THE MARINE STRADDLE CARRIER LOWERS THE FERRY ONTO THE FRAME AND LOWBED TRAILER

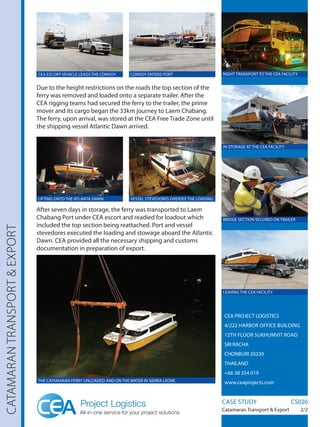

- 2. CEA PROJECT LOGISTICS 4/222 HARBOR OFFICE BUILDING 12TH FLOOR SUKHUMVIT ROAD SRI RACHA CHONBURI 20230 THAILAND +66 38 354 019 www.ceaprojects.com CATAMARANTRANSPORTEXPORT Due to the height restrictions on the roads the top section of the ferry was removed and loaded onto a separate trailer. After the CEA rigging teams had secured the ferry to the trailer, the prime mover and its cargo began the 33km journey to Laem Chabang. The ferry, upon arrival, was stored at the CEA Free Trade Zone until the shipping vessel Atlantic Dawn arrived. After seven days in storage, the ferry was transported to Laem Chabang Port under CEA escort and readied for loadout which included the top section being reattached. Port and vessel stevedores executed the loading and stowage aboard the Atlantic Dawn. CEA provided all the necessary shipping and customs documentation in preparation of export. CASE STUDY CS026 Catamaran Transport Export 2/2 IN STORAGE AT THE CEA FACILITY NIGHT TRANSPORT TO THE CEA FACILITY LEAVING THE CEA FACILITY BRIDGE SECTION SECURED ON TRAILER VESSEL STEVEDORES OVERSEE THE LOADINGLIFTING ONTO THE ATLANTA DAWN CONVOY ENTERS PORTCEA ESCORT VEHICLE LEADS THE CONVOY THE CATAMARAN FERRY UNLOADED AND ON THE WATER IN SIERRA LEONE
