control and instrumentation lab 2.pptx
Download as pptx, pdf0 likes14 views

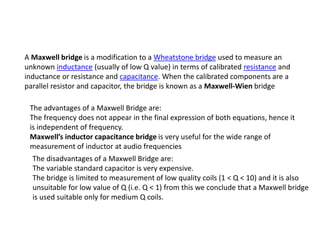

A Maxwell bridge is used to measure an unknown low inductance value by comparing it to a calibrated variable capacitor. An audio oscillator supplies a 1 kHz signal to the bridge circuit, which contains the unknown inductance, calibrated resistances and capacitor. By adjusting the capacitor to minimize the sound in headphones connected to the bridge, the unknown inductance can be calculated using the formula L=PRC, where P and R are the calibrated resistances and C is the adjusted capacitor value. The Maxwell bridge allows measuring inductance independently of frequency and is suitable for medium quality coils with Q values between 1 and 10.
1 of 10
Download to read offline

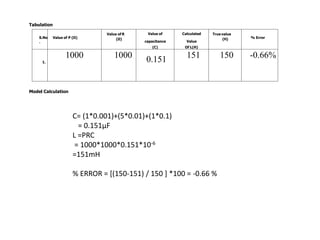

![Tabulation
Model Calculation
S.No
.
Value of P (?)
Value of R
(?)
Value of
capacitance
(C)
Calculated
Value
Of L(H)
True value
(H) % Error
1.
1000 1000 0.151 151 150 -0.66%
C= (1*0.001)+(5*0.01)+(1*0.1)
= 0.151?F
L =PRC
= 1000*1000*0.151*10-6
=151mH
% ERROR = [(150-151) / 150 ] *100 = -0.66 %](https://image.slidesharecdn.com/controlandinstrumentationlab2-230801104833-fc88e477/85/control-and-instrumentation-lab-2-pptx-4-320.jpg)
Ad
Recommended
AC & DC bridges
AC & DC bridgesMariya Yeldhos
?
This document discusses various types of bridges used to measure electrical components such as inductance, capacitance, and mutual inductance. It describes Maxwell, Hay's, Anderson, and Owen's bridges, which can be used to measure inductance in terms of a standard variable inductance or capacitance. The advantages and disadvantages of each bridge are provided. Maxwell and Hay's bridges are suitable for different ranges of Q values. Anderson's bridge allows for accurate capacitance measurement and is better than Maxwell's bridge for low Q coils, but is more complex.A.C. bridges
A.C. bridgesHarish Kumawat
?
This document summarizes several types of AC bridges used to measure resistance, inductance, and capacitance. It describes Maxwell's inductance bridge, which uses two known impedances and two pure resistances to measure an unknown inductance. It also discusses Hay's bridge, a modification of Maxwell's bridge that can measure higher quality factor inductors. The document outlines Schering bridge, which measures capacitance and loss of a capacitor using a loss-free standard capacitor. Finally, it briefly introduces Wien's parallel bridge, a ratio bridge used in audio-frequency R-C oscillators to measure capacitance ratios.Unit 5 - Resonance.pptx
Unit 5 - Resonance.pptxvimala elumalai
?
This document discusses series and parallel resonance in RLC circuits. Some key points:
- Series resonance occurs when the capacitive and inductive reactances are equal, resulting in purely resistive impedance. The impedance is purely resistive (Z=R) and the current and voltage are in phase.
- In parallel resonance, the impedance is maximum and the current is purely resistive. The impedance is purely resistive (Z=1/R) and the current and voltage are in phase.
- Quality factor Q relates bandwidth to center frequency. As Q increases, bandwidth decreases. Q is proportional to center frequency and inversely proportional to bandwidth.
The document provides several example problemsAC_bridges ???????? ????? ????????????? ??????? ?????
AC_bridges ???????? ????? ????????????? ??????? ?????YogeshKumawat63
?
The document provides an overview of various AC bridge circuits used for measuring unknown resistances, capacitances, and inductances. It details specific types of bridges such as Maxwell's bridge, Hay's bridge, Anderson bridge, and Schering bridge, explaining their configurations and applications. Additionally, it includes examples, balance conditions, and practical considerations for measuring inductance and frequency.TRANSMISSION LINES and capacity.pptx
TRANSMISSION LINES and capacity.pptxSatish Pydimarla
?
1) The document discusses power flow through transmission lines and various methods to control it, including altering voltages, lowering line impedance, and controlling the power angle.
2) Phase shift transformers are effective for controlling power angle by creating a phase shift between primary and secondary voltages, thereby regulating the direction and magnitude of power flow.
3) Direct, asymmetrical phase shift transformers control power flow by inducing a quadrature voltage through a tap, with switches determining the direction of phase shift.bridge anderson and desauty bridge emi.ppt
bridge anderson and desauty bridge emi.pptChandraPrakash715640
?
The document discusses various electronic measurement bridges, including Anderson's, De-Sauty's, Schering, and Wien's bridges, highlighting their construction, advantages, and disadvantages. Anderson's bridge offers accurate self-inductance measurements but is complex, while De-Sauty's bridge is simpler for capacitance but less effective with lossy capacitors. Other bridges like Schering and Wien serve specific applications in capacitance measurement and frequency determination, respectively.White paper pi 11012011
White paper pi 11012011Hany Fahmy
?
This document summarizes simulation techniques for power integrity in FPGAs using S-parameter models. It discusses power distribution networks and the need to simulate their frequency-dependent self-impedance profiles. Key concepts covered include series and parallel resonance, frequency components of electrical signals, and using S-parameter models of decoupling capacitors. The document provides an example simulation in Agilent ADS comparing cases with and without PCB decoupling capacitors for an Xilinx 7-series FPGA. Measurement results from an oscilloscope show equivalent jitter performance between the two cases.Ac bridge
Ac bridgeKesavan T
?
A.C. bridges are circuits used to measure unknown resistances, capacitances, inductances, frequencies, and mutual inductances. Some common bridges include the Wheatstone bridge for measuring resistance using direct current, Maxwell's bridges for measuring inductance using alternating current, and the De Sauty, Schering, Wien series, and Wien parallel bridges for measuring capacitance using various balanced circuit configurations. Each bridge uses a balanced circuit equation to relate known components to unknown values.HV 2.pptx
HV 2.pptxZirwaKhan2
?
1. The Schering bridge is used to measure the capacitance and dissipation factor of capacitors and insulating materials. It works by balancing the impedance arms of the bridge circuit.
2. When balanced, the potential across the detector is zero. This allows the user to calculate the capacitance of the unknown capacitor and its dissipation factor using equations that are independent of frequency.
3. A high voltage Schering bridge can also be used to measure small capacitances. It utilizes high voltage operational amplifiers, high voltage capacitors, and spark gaps for safety. The bridge can also measure the relative permeability and permittivity of dielectric materials.Bridge ckt eim
Bridge ckt eimAkshata Thorat
?
Bridge circuits operate by comparing a known value to an unknown value to determine the unknown. The document discusses several types of bridge circuits including Wheatstone bridges, Kelvin double bridges, mega ohm bridges, and Schering bridges. The Wheatstone bridge is used to measure low resistances from 1 ohm to 10 megohms by balancing the bridge. The Kelvin double bridge eliminates errors from lead resistance and is used to measure very low resistances from 1 ohm to 0.00001 ohms. The mega ohm bridge measures very high resistances from 0.1 megohms to 10,000 megohms. The Schering bridge measures capacitance and dissipation factor by balancing the bridge circuit.Week 3
Week 3TAUSIQUE SHEIKH
?
This document discusses techniques for measuring high resistance and inductance. It describes difficulties in measuring high resistance due to very small currents and leakage currents. It introduces guard circuits to eliminate errors from leakage currents. It also covers various bridges used to measure inductance through comparison, including Maxwell, capacitance comparison, and Anderson bridges. The balance equations for these bridges relate the product and sum of phase angles in the opposite arms.Alternating Current
Alternating CurrentMayank Pandey
?
The document provides comprehensive information on alternating current (AC) and thermoelectricity, detailing definitions and expressions of RMS and average values, sinusoidal wave representation, circuit responses, resonance conditions, and the Maxwell bridge for inductance measurement. It also covers thermoelectric phenomena including the Seebeck, Peltier, and Thomson effects, their coefficients, and practical applications in thermoelectric circuits. Additionally, calculations related to circuit quality factors, bandwidth, and thermoelectric power are presented, alongside experimental setups for measuring thermoelectric effects.Ac bridges
Ac bridgesRanjal Agrawal
?
This document discusses several types of AC bridges used to measure unknown resistances, capacitances, and inductances. The Maxwell's inductance bridge uses two known impedances on one side and two pure resistances on the other to measure an unknown impedance. The Maxwell's capacitance bridge can measure unknown inductance by compensating the positive phase angle of inductance with the negative phase angle of capacitance. The Anderson bridge precisely measures unknown inductance over a wide range by using a known capacitance and resistance.Chapter 2 passive components, resonators and impedance matching
Chapter 2 passive components, resonators and impedance matchingki┷n l?
?
This document is a chapter from a textbook on electronic circuits for communication written by Dr. Cuong Huynh from the Telecommunications Department at HCMUT. The chapter discusses passive components, resonators, and impedance matching. It covers the high frequency characteristics of passive components like resistors, capacitors, and inductors. It also discusses series and parallel RLC resonator circuits and their quality factors. Impedance transformations between series and parallel circuits are described while maintaining the same quality factor value.Bridge Measurement Circuit
Bridge Measurement CircuitMoncy Babu
?
This document discusses different types of bridge circuits used to measure electrical components. It describes Maxwell's bridge which can measure inductance by comparing it to a variable standard inductance or capacitance. Maxwell's inductance bridge measures inductance directly while his inductance-capacitance bridge measures it based on a variable capacitor. DeSauty bridge is a simple four-arm circuit to compare two capacitances. Schering bridge is widely used to measure unknown capacitors and dielectric losses at alternating current. It has a balance equation independent of frequency.EEE 117L Network Analysis Laboratory Lab 1 1
EEE 117L Network Analysis Laboratory Lab 1 1 EvonCanales257
?
The document outlines Lab 1 of the EEE 117L Network Analysis course, focusing on voltage/current division, filters, and the use of passive R, C devices in circuits. Students are required to conduct prelab calculations and simulations before constructing circuits on breadboards, including voltage dividers, current dividers, and low- and high-pass filters. The lab includes designing circuits to meet specific performance criteria, measuring circuit behaviors, and understanding the implications of component tolerances on filter performance.power system 1 unit 2 ppt (2).pptx
power system 1 unit 2 ppt (2).pptxmonikavardia
?
The document compares overhead transmission lines and underground cables. It discusses that overhead lines have easier fault location, lower initial cost, higher chance of faults, lower safety, shorter useful life, and lower maintenance cost than underground cables. Underground cables have more difficult fault location, higher initial cost due to trenching requirements, lower chance of faults, higher safety as cables are underground, longer useful life, and higher maintenance cost to locate and repair faults. The document also discusses parameters of transmission lines like resistance, inductance, capacitance and classifications of transmission lines by length.Power supplies without transformers lightweight
Power supplies without transformers lightweightSibasish Singh Samanta
?
Power supplies without transformers
lightweight; low cost
can be electromagnetically noisy
Use a DC-to-DC conversion process that relies on flipping a switch on and off, storing energy in an inductor and capacitorUNIT 4 BRIDGES instrumetations .pptx
UNIT 4 BRIDGES instrumetations .pptxKrishnaS242618
?
The document discusses various bridge circuits, including Wheatstone, Anderson, and Kelvin bridges, focusing on their applications in measuring resistance, inductance, and capacitance. It highlights their advantages in industrial applications while addressing limitations and sources of errors encountered during measurements. Additionally, it covers the operation of Q-meters for assessing electrical properties of coils and capacitors, emphasizing proper techniques to reduce measurement errors.Comparision methods of measurements
Comparision methods of measurementsPrabhaMaheswariM
?
The document discusses various methods for measuring electrical quantities like voltage, current, resistance, inductance and capacitance. It describes potentiometer techniques for measuring voltage and current using a known resistance. It also explains different types of bridges - DC Wheatstone bridge, AC impedance bridge, Maxwell bridge, Schering bridge and Hay bridge - that provide accurate measurement of resistance, inductance and capacitance using null detection. The working and balancing equations of these bridges are provided. The document also discusses Wien bridge oscillator and amplitude stabilization using a positive temperature coefficient thermistor.685556970-AC-Circuit.pdfgggggggggggggggggggggggggggggggg
685556970-AC-Circuit.pdfggggggggggggggggggggggggggggggggmayank6638
?
This document outlines the principles of alternating current (AC) circuits, discussing concepts such as root mean square (RMS) values, single elements in AC circuits, RLC series and parallel circuits, and power calculations. It emphasizes the behavior of AC, including phase relationships and resonance phenomena, and provides formulas for various components like resistors, capacitors, and inductors. The chapter aims to equip readers with basic techniques for analyzing AC circuits, including example problems related to current, phase angles, and power loss.power system 1 unit 2 ppt (2).pptx
power system 1 unit 2 ppt (2).pptxmonikavardia
?
This document compares overhead transmission lines and underground cables. It discusses that overhead lines have easier fault location, lower initial cost, higher chance of faults, lower safety, shorter useful life, and lower maintenance cost than underground cables. Underground cables have more difficult fault location, higher initial cost due to trenching requirements, lower chance of faults, higher safety as cables are underground, longer useful life, and higher maintenance cost to locate and repair faults. The document also discusses power system components like transmission lines, cables, and their parameters.TLW_Unit I material pdf.ppt
TLW_Unit I material pdf.pptKanmaniRajamanickam
?
This document discusses transmission lines and their parameters. It begins by introducing common types of transmission lines including two-wire lines, coaxial cables, and waveguides. It then describes how a transmission line can be modeled as a series of lumped inductors and shunt capacitors, known as the transmission line parameters. These parameters include the series resistance R', inductance L', shunt conductance G', and capacitance C' per unit length. Using these parameters, expressions are derived for the characteristic impedance Z0 and propagation constant γ of the transmission line.Buck converter
Buck converterTroy Stahley
?
This document describes a buck converter subsystem and current sensing techniques. It contains the following key points:
1. The objective is to efficiently step down DC voltage while reducing ripple to produce a smooth output voltage, and to measure the inductor current.
2. The subsystem includes a circuit configuration, components, design equations, and current waveforms. Techniques for current sensing include simplified and advanced methods.
3. An advanced current sensing model uses a simplified inductor model with a parasitic resistance and capacitor to determine the inductor current based on the voltage across a sensing capacitor. Assumptions are provided for component values and tolerances.Types of klystron Amplifier
Types of klystron AmplifierNupurRathi7
?
This document discusses the design and applications of multicavity klystron amplifiers. It begins by explaining how multicavity klystrons are able to make use of transit time instead of fighting it. It then provides details on the design of multicavity klystrons, including how they contain multiple cavities to improve bunching and efficiency. Finally, it discusses several applications of multicavity klystron amplifiers, including use in UHF-TV transmitters, satellite communication ground stations, radar transmission, and as power oscillators.Radio frequency circuit
Radio frequency circuitpinky0687
?
This document discusses radio frequency circuits. It begins by introducing radio frequency and defining the frequency ranges. It then discusses different RF circuit components like amplifiers, oscillators, and mixers. It explains the effects of high frequency on circuit design and components. Different circuit topologies for narrowband and wideband amplifiers are described, along with classes of amplifier operation. Construction techniques for RF circuits involving shielding and bypassing are covered. The document also discusses frequency multipliers, mixers, and RF system concepts like tuning and neutralization.bridges and measurement of physical parameters
bridges and measurement of physical parametersGopalakrishnaU
?
The document discusses various types of bridge circuits used for measuring physical parameters such as resistance, capacitance, and inductance. It specifically details the Wheatstone bridge, Kelvin bridge, and Maxwell bridge, explaining their configurations, measurements, advantages, and limitations. Additionally, the document includes problem-solving examples related to these measurement techniques.How Binning Affects LED Performance & Consistency.pdf
How Binning Affects LED Performance & Consistency.pdfMina Anis
?
? What¨s Inside:
? What Is LED Binning?
? The process of sorting LEDs by color temperature, brightness, voltage, and CRI
? Ensures visual and performance consistency across large installations
? Why It Matters:
? Inconsistent binning leads to uneven color and brightness
? Impacts brand perception, customer satisfaction, and warranty claims
? Key Concepts Explained:
? SDCM (Standard Deviation of Color Matching)
? Recommended bin tolerances by application (e.g., 1C3 SDCM for retail/museums)
? How to read bin codes from LED datasheets
? The difference between ANSI/NEMA standards and proprietary bin maps
? Advanced Practices:
? AI-assisted bin prediction
? Color blending and dynamic calibration
? Customized binning for high-end or global projectsMore Related Content
Similar to control and instrumentation lab 2.pptx (20)
HV 2.pptx
HV 2.pptxZirwaKhan2
?
1. The Schering bridge is used to measure the capacitance and dissipation factor of capacitors and insulating materials. It works by balancing the impedance arms of the bridge circuit.
2. When balanced, the potential across the detector is zero. This allows the user to calculate the capacitance of the unknown capacitor and its dissipation factor using equations that are independent of frequency.
3. A high voltage Schering bridge can also be used to measure small capacitances. It utilizes high voltage operational amplifiers, high voltage capacitors, and spark gaps for safety. The bridge can also measure the relative permeability and permittivity of dielectric materials.Bridge ckt eim
Bridge ckt eimAkshata Thorat
?
Bridge circuits operate by comparing a known value to an unknown value to determine the unknown. The document discusses several types of bridge circuits including Wheatstone bridges, Kelvin double bridges, mega ohm bridges, and Schering bridges. The Wheatstone bridge is used to measure low resistances from 1 ohm to 10 megohms by balancing the bridge. The Kelvin double bridge eliminates errors from lead resistance and is used to measure very low resistances from 1 ohm to 0.00001 ohms. The mega ohm bridge measures very high resistances from 0.1 megohms to 10,000 megohms. The Schering bridge measures capacitance and dissipation factor by balancing the bridge circuit.Week 3
Week 3TAUSIQUE SHEIKH
?
This document discusses techniques for measuring high resistance and inductance. It describes difficulties in measuring high resistance due to very small currents and leakage currents. It introduces guard circuits to eliminate errors from leakage currents. It also covers various bridges used to measure inductance through comparison, including Maxwell, capacitance comparison, and Anderson bridges. The balance equations for these bridges relate the product and sum of phase angles in the opposite arms.Alternating Current
Alternating CurrentMayank Pandey
?
The document provides comprehensive information on alternating current (AC) and thermoelectricity, detailing definitions and expressions of RMS and average values, sinusoidal wave representation, circuit responses, resonance conditions, and the Maxwell bridge for inductance measurement. It also covers thermoelectric phenomena including the Seebeck, Peltier, and Thomson effects, their coefficients, and practical applications in thermoelectric circuits. Additionally, calculations related to circuit quality factors, bandwidth, and thermoelectric power are presented, alongside experimental setups for measuring thermoelectric effects.Ac bridges
Ac bridgesRanjal Agrawal
?
This document discusses several types of AC bridges used to measure unknown resistances, capacitances, and inductances. The Maxwell's inductance bridge uses two known impedances on one side and two pure resistances on the other to measure an unknown impedance. The Maxwell's capacitance bridge can measure unknown inductance by compensating the positive phase angle of inductance with the negative phase angle of capacitance. The Anderson bridge precisely measures unknown inductance over a wide range by using a known capacitance and resistance.Chapter 2 passive components, resonators and impedance matching
Chapter 2 passive components, resonators and impedance matchingki┷n l?
?
This document is a chapter from a textbook on electronic circuits for communication written by Dr. Cuong Huynh from the Telecommunications Department at HCMUT. The chapter discusses passive components, resonators, and impedance matching. It covers the high frequency characteristics of passive components like resistors, capacitors, and inductors. It also discusses series and parallel RLC resonator circuits and their quality factors. Impedance transformations between series and parallel circuits are described while maintaining the same quality factor value.Bridge Measurement Circuit
Bridge Measurement CircuitMoncy Babu
?
This document discusses different types of bridge circuits used to measure electrical components. It describes Maxwell's bridge which can measure inductance by comparing it to a variable standard inductance or capacitance. Maxwell's inductance bridge measures inductance directly while his inductance-capacitance bridge measures it based on a variable capacitor. DeSauty bridge is a simple four-arm circuit to compare two capacitances. Schering bridge is widely used to measure unknown capacitors and dielectric losses at alternating current. It has a balance equation independent of frequency.EEE 117L Network Analysis Laboratory Lab 1 1
EEE 117L Network Analysis Laboratory Lab 1 1 EvonCanales257
?
The document outlines Lab 1 of the EEE 117L Network Analysis course, focusing on voltage/current division, filters, and the use of passive R, C devices in circuits. Students are required to conduct prelab calculations and simulations before constructing circuits on breadboards, including voltage dividers, current dividers, and low- and high-pass filters. The lab includes designing circuits to meet specific performance criteria, measuring circuit behaviors, and understanding the implications of component tolerances on filter performance.power system 1 unit 2 ppt (2).pptx
power system 1 unit 2 ppt (2).pptxmonikavardia
?
The document compares overhead transmission lines and underground cables. It discusses that overhead lines have easier fault location, lower initial cost, higher chance of faults, lower safety, shorter useful life, and lower maintenance cost than underground cables. Underground cables have more difficult fault location, higher initial cost due to trenching requirements, lower chance of faults, higher safety as cables are underground, longer useful life, and higher maintenance cost to locate and repair faults. The document also discusses parameters of transmission lines like resistance, inductance, capacitance and classifications of transmission lines by length.Power supplies without transformers lightweight
Power supplies without transformers lightweightSibasish Singh Samanta
?
Power supplies without transformers
lightweight; low cost
can be electromagnetically noisy
Use a DC-to-DC conversion process that relies on flipping a switch on and off, storing energy in an inductor and capacitorUNIT 4 BRIDGES instrumetations .pptx
UNIT 4 BRIDGES instrumetations .pptxKrishnaS242618
?
The document discusses various bridge circuits, including Wheatstone, Anderson, and Kelvin bridges, focusing on their applications in measuring resistance, inductance, and capacitance. It highlights their advantages in industrial applications while addressing limitations and sources of errors encountered during measurements. Additionally, it covers the operation of Q-meters for assessing electrical properties of coils and capacitors, emphasizing proper techniques to reduce measurement errors.Comparision methods of measurements
Comparision methods of measurementsPrabhaMaheswariM
?
The document discusses various methods for measuring electrical quantities like voltage, current, resistance, inductance and capacitance. It describes potentiometer techniques for measuring voltage and current using a known resistance. It also explains different types of bridges - DC Wheatstone bridge, AC impedance bridge, Maxwell bridge, Schering bridge and Hay bridge - that provide accurate measurement of resistance, inductance and capacitance using null detection. The working and balancing equations of these bridges are provided. The document also discusses Wien bridge oscillator and amplitude stabilization using a positive temperature coefficient thermistor.685556970-AC-Circuit.pdfgggggggggggggggggggggggggggggggg
685556970-AC-Circuit.pdfggggggggggggggggggggggggggggggggmayank6638
?
This document outlines the principles of alternating current (AC) circuits, discussing concepts such as root mean square (RMS) values, single elements in AC circuits, RLC series and parallel circuits, and power calculations. It emphasizes the behavior of AC, including phase relationships and resonance phenomena, and provides formulas for various components like resistors, capacitors, and inductors. The chapter aims to equip readers with basic techniques for analyzing AC circuits, including example problems related to current, phase angles, and power loss.power system 1 unit 2 ppt (2).pptx
power system 1 unit 2 ppt (2).pptxmonikavardia
?
This document compares overhead transmission lines and underground cables. It discusses that overhead lines have easier fault location, lower initial cost, higher chance of faults, lower safety, shorter useful life, and lower maintenance cost than underground cables. Underground cables have more difficult fault location, higher initial cost due to trenching requirements, lower chance of faults, higher safety as cables are underground, longer useful life, and higher maintenance cost to locate and repair faults. The document also discusses power system components like transmission lines, cables, and their parameters.TLW_Unit I material pdf.ppt
TLW_Unit I material pdf.pptKanmaniRajamanickam
?
This document discusses transmission lines and their parameters. It begins by introducing common types of transmission lines including two-wire lines, coaxial cables, and waveguides. It then describes how a transmission line can be modeled as a series of lumped inductors and shunt capacitors, known as the transmission line parameters. These parameters include the series resistance R', inductance L', shunt conductance G', and capacitance C' per unit length. Using these parameters, expressions are derived for the characteristic impedance Z0 and propagation constant γ of the transmission line.Buck converter
Buck converterTroy Stahley
?
This document describes a buck converter subsystem and current sensing techniques. It contains the following key points:
1. The objective is to efficiently step down DC voltage while reducing ripple to produce a smooth output voltage, and to measure the inductor current.
2. The subsystem includes a circuit configuration, components, design equations, and current waveforms. Techniques for current sensing include simplified and advanced methods.
3. An advanced current sensing model uses a simplified inductor model with a parasitic resistance and capacitor to determine the inductor current based on the voltage across a sensing capacitor. Assumptions are provided for component values and tolerances.Types of klystron Amplifier
Types of klystron AmplifierNupurRathi7
?
This document discusses the design and applications of multicavity klystron amplifiers. It begins by explaining how multicavity klystrons are able to make use of transit time instead of fighting it. It then provides details on the design of multicavity klystrons, including how they contain multiple cavities to improve bunching and efficiency. Finally, it discusses several applications of multicavity klystron amplifiers, including use in UHF-TV transmitters, satellite communication ground stations, radar transmission, and as power oscillators.Radio frequency circuit
Radio frequency circuitpinky0687
?
This document discusses radio frequency circuits. It begins by introducing radio frequency and defining the frequency ranges. It then discusses different RF circuit components like amplifiers, oscillators, and mixers. It explains the effects of high frequency on circuit design and components. Different circuit topologies for narrowband and wideband amplifiers are described, along with classes of amplifier operation. Construction techniques for RF circuits involving shielding and bypassing are covered. The document also discusses frequency multipliers, mixers, and RF system concepts like tuning and neutralization.bridges and measurement of physical parameters
bridges and measurement of physical parametersGopalakrishnaU
?
The document discusses various types of bridge circuits used for measuring physical parameters such as resistance, capacitance, and inductance. It specifically details the Wheatstone bridge, Kelvin bridge, and Maxwell bridge, explaining their configurations, measurements, advantages, and limitations. Additionally, the document includes problem-solving examples related to these measurement techniques.Recently uploaded (20)
How Binning Affects LED Performance & Consistency.pdf
How Binning Affects LED Performance & Consistency.pdfMina Anis
?
? What¨s Inside:
? What Is LED Binning?
? The process of sorting LEDs by color temperature, brightness, voltage, and CRI
? Ensures visual and performance consistency across large installations
? Why It Matters:
? Inconsistent binning leads to uneven color and brightness
? Impacts brand perception, customer satisfaction, and warranty claims
? Key Concepts Explained:
? SDCM (Standard Deviation of Color Matching)
? Recommended bin tolerances by application (e.g., 1C3 SDCM for retail/museums)
? How to read bin codes from LED datasheets
? The difference between ANSI/NEMA standards and proprietary bin maps
? Advanced Practices:
? AI-assisted bin prediction
? Color blending and dynamic calibration
? Customized binning for high-end or global projectsPavement and its types, Application of rigid and Flexible Pavements
Pavement and its types, Application of rigid and Flexible PavementsSakthivel M
?
Pavement and its types, Application of rigid and Flexible PavementsModern multi-proposer consensus implementations
Modern multi-proposer consensus implementationsFran?ois Garillot
?
Multi-proposer consensus protocols let multiple validators propose blocks in parallel, breaking the single-leader throughput bottleneck of classic designs. Yet the modern multi-proposer consensus implementation has grown a lot since HotStuff. THisworkshop will explore the implementation details of recent advances C DAG-based approaches like Narwhal and Sui¨s Mysticeti C and reveal how implementation details translate to real-world performance gains. We focus on the nitty-gritty: how network communication patterns and data handling affect throughput and latency. New techniques such as Turbine-like block propagation (inspired by Solana¨s erasure-coded broadcast) and lazy push gossip broadcasting dramatically cut communication overhead. These optimizations aren¨t just theoretical C they enable modern blockchains to process over 100,000 transactions per second with finality in mere milliseconds? redefining what is possible in decentralized systems.
Understanding Amplitude Modulation : A Guide
Understanding Amplitude Modulation : A GuideCircuitDigest
?
Discover how amplitude modulation works through a detailed guide covering its principles, waveform behavior, and hands-on AM circuit demo using simple electronic components. Great for students and RF beginners.
Read more : https://circuitdigest.com/electronic-circuits/what-is-amplitude-modulation-complete-guide-formula-circuit-diagram-practical-demonstrationWeek 6- PC HARDWARE AND MAINTENANCE-THEORY.pptx
Week 6- PC HARDWARE AND MAINTENANCE-THEORY.pptxdayananda54
?
Basics of computer hardware for beginners Cadastral Maps
Cadastral MapsGoogle
?
Preparation of cadastral maps based by Engineer Dungo Tizazu from Dire Dawa University NALCO Green Anode Plant,Compositions of CPC,Pitch
NALCO Green Anode Plant,Compositions of CPC,Pitcharpitprachi123
?
Its a pdf about all the process involving in the green anode production芙坪茶氏Y創_Chain of Thought .
芙坪茶氏Y創_Chain of Thought .鰻粥京晦粥皆幄塀氏芙
?
云Y創仝To CoT or not to CoT?々では、寄ﾄＱ壞ZモデルにおけるChain of ThoughtCoTプロンプトの森についてしく盾hしています。
CoTはあらゆるタスクに燭嵐嬬な返隈ではなく、蒙に方僥議?尖議?アルゴリズム議な容を育うn}で互い森をk]することがgYから幣されています。
匯圭で、械Rや匯違岑Rをう}にしては森が浙┻弔任△襪海箸眞らかになりました。
}jな}を粁A議に蛍盾?g佩する仝鮫とg佩々のプロセスにおいて、CoTのみが試かされる泣も廣朕ポイントです。
This presentation explores when Chain of Thought (CoT) prompting is truly effective in large language models.
The findings show that CoT significantly improves performance on tasks involving mathematical or logical reasoning, while its impact is limited on general knowledge or commonsense tasks.Development of Portable Biomass Briquetting Machine (S, A & D)-1.pptx
Development of Portable Biomass Briquetting Machine (S, A & D)-1.pptxaniket862935
?
Biomass briquetting Machine Low Power SI Class E Power Amplifier and Rf Switch for Health Care
Low Power SI Class E Power Amplifier and Rf Switch for Health Careieijjournal
?
This research was to design a 2.4 GHz class E Power Amplifier (PA) for health care, with 0.18um Semiconductor Manufacturing International Corporation CMOS technology by using Cadence software. And also RF switch was designed at cadence software with power Jazz 180nm SOI process. The ultimate goal for such application is to reach high performance and low cost, and between high performance and low power consumption design. This paper introduces the design of a 2.4GHz class E power amplifier and RF switch design. PA consists of cascade stage with negative capacitance. This power amplifier can transmit 16dBm output power to a 50? load. The performance of the power amplifier and switch meet the specification requirements of the desired.
Water demand - Types , variations and WDS
Water demand - Types , variations and WDSdhanashree78
?
Water demand refers to the volume of water needed or requested by users for various purposes. It encompasses the water required for domestic, industrial, agricultural, public, and other uses. Essentially, it represents the overall need or quantity of water required to meet the demands of different sectors and activities. Introduction to Natural Language Processing - Stages in NLP Pipeline, Challen...
Introduction to Natural Language Processing - Stages in NLP Pipeline, Challen...resming1
?
Lecture delivered in 2021. This gives an introduction to Natural Language Processing. It describes the use cases of NLP in daily life. It discusses the stages in NLP Pipeline. It highlights the challenges involved covering the different levels of ambiguity that could arise. It also gives a brief note on the present scenario with the latest language models, tools and frameworks/libraries for NLP.Machine Learning - Classification Algorithms
Machine Learning - Classification Algorithmsresming1
?
This covers traditional machine learning algorithms for classification. It includes Support vector machines, decision trees, Naive Bayes classifier , neural networks, etc.
It also discusses about model evaluation and selection. It discusses ID3 and C4.5 algorithms. It also describes k-nearest neighbor classifer.Fundamentals of Digital Design_Class_21st May - Copy.pptx
Fundamentals of Digital Design_Class_21st May - Copy.pptxdrdebarshi1993
?
Basics of Number Systems and Logic GatesAd
control and instrumentation lab 2.pptx
- 1. Ex. No 1 (b) Bridge Networks C AC Bridges Aim To measure the unknown value of low inductance using bridge network with built in 1 kHz oscillator and headphone. Apparatus Required S.No. Apparatus Required Quantity 1. Maxwell bridge kit. 1 No 2. Audio Oscillator 1 No 3. Head phone 1 No 4. Unknown value inductance 1 No 5. Connecting wires As Required

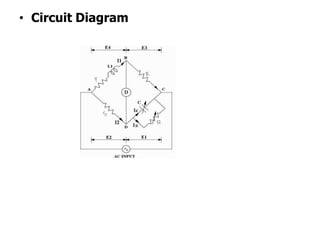

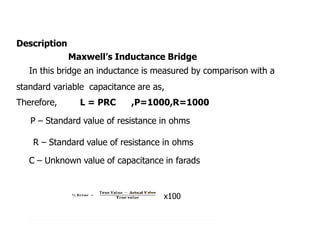

- 3. Description Maxwell¨s Inductance Bridge In this bridge an inductance is measured by comparison with a standard variable capacitance are as, Therefore, L = PRC ,P=1000,R=1000 P C Standard value of resistance in ohms R C Standard value of resistance in ohms C C Unknown value of capacitance in farads х100
- 4. Tabulation Model Calculation S.No . Value of P (?) Value of R (?) Value of capacitance (C) Calculated Value Of L(H) True value (H) % Error 1. 1000 1000 0.151 151 150 -0.66% C= (1*0.001)+(5*0.01)+(1*0.1) = 0.151?F L =PRC = 1000*1000*0.151*10-6 =151mH % ERROR = [(150-151) / 150 ] *100 = -0.66 %

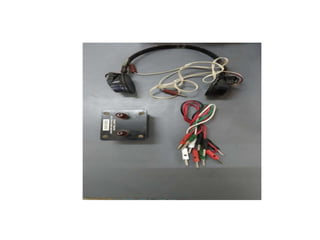

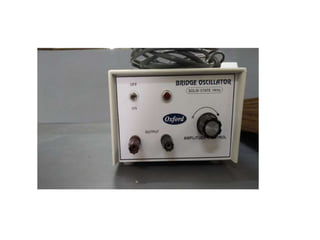

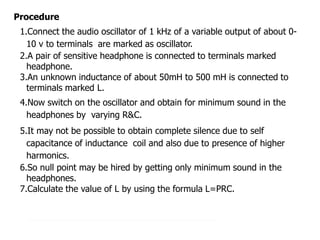

- 5. Procedure 1.Connect the audio oscillator of 1 kHz of a variable output of about 0- 10 v to terminals are marked as oscillator. 2.A pair of sensitive headphone is connected to terminals marked headphone. 3.An unknown inductance of about 50mH to 500 mH is connected to terminals marked L. 4.Now switch on the oscillator and obtain for minimum sound in the headphones by varying R&C. 5.It may not be possible to obtain complete silence due to self capacitance of inductance coil and also due to presence of higher harmonics. 6.So null point may be hired by getting only minimum sound in the headphones. 7.Calculate the value of L by using the formula L=PRC.

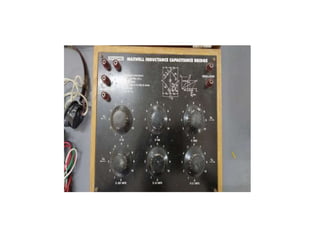

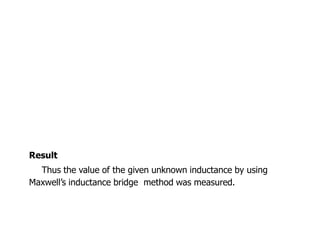

- 6. Result Thus the value of the given unknown inductance by using Maxwell¨s inductance bridge method was measured.
- 10. A Maxwell bridge is a modification to a Wheatstone bridge used to measure an unknown inductance (usually of low Q value) in terms of calibrated resistance and inductance or resistance and capacitance. When the calibrated components are a parallel resistor and capacitor, the bridge is known as a Maxwell-Wien bridge The advantages of a Maxwell Bridge are: The frequency does not appear in the final expression of both equations, hence it is independent of frequency. Maxwell¨s inductor capacitance bridge is very useful for the wide range of measurement of inductor at audio frequencies The disadvantages of a Maxwell Bridge are: The variable standard capacitor is very expensive. The bridge is limited to measurement of low quality coils (1 < Q < 10) and it is also unsuitable for low value of Q (i.e. Q < 1) from this we conclude that a Maxwell bridge is used suitable only for medium Q coils.
