D-exponenet
Download as pptx, pdf0 likes192 views

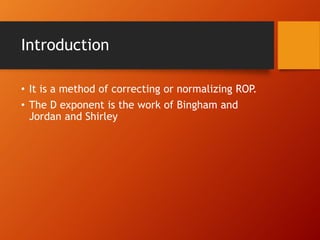

The D exponent is a method for normalizing the rate of penetration (ROP) during drilling operations. It was developed by Bingham and Jordan and Shirley to account for the effect of rotation per minute (RPM), weight on bit (WOB), and bit diameter on ROP. However, the D exponent does not always accurately reflect rock strength, as it may decrease with depth in abnormally pressured formations rather than increasing linearly. A modification was later proposed by Rehm et al. to correct the D exponent for the effect of changes in mud weight. However, the corrected D exponent is still influenced by factors like lithology and geological variations between formations.
1 of 9
Download to read offline
