DSG COAL SPECIFICATIONS

0 likes899 views

The document outlines typical specifications for coal grades ranging from 5100-7300 including aspects like ash content, moisture, volatile matter, size and sulfur content. Specifications are given as typical and reject ranges for each grade and aspects generally improve (lower moisture, ash, sulfur and higher heating value) at higher grades.

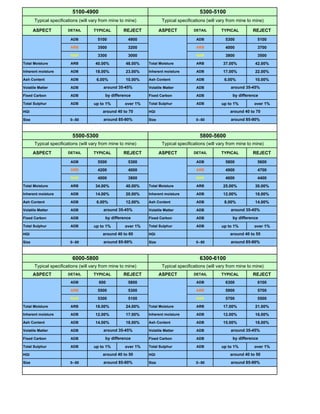

5100-4900 5300-5100
Typical specifications (will vary from mine to mine) Typical specifications (will vary from mine to mine)

ASPECT DETAIL TYPICAL REJECT ASPECT DETAIL TYPICAL REJECT
ADB 5100 4900 ADB 5300 5100
ARB 3500 3200 ARB 4000 3700
NAR 3300 3000 NAR 3800 3500
Total Moisture ARB 40.00% 48.00% Total Moisture ARB 37.00% 42.00%
Inherent moisture ADB 18.00% 23.00% Inherent moisture ADB 17.00% 22.00%
Ash Content ADB 6.00% 10.00% Ash Content ADB 6.00% 10.00%
Volatile Matter ADB around 35-45% Volatile Matter ADB around 35-45%
Fixed Carbon ADB by difference Fixed Carbon ADB by difference
Total Sulphur ADB up to 1% over 1% Total Sulphur ADB up to 1% over 1%
HGI around 40 to 70 HGI around 40 to 70
Size 0--50 around 85-90% Size 0--50 around 85-90%

5500-5300 5800-5600
Typical specifications (will vary from mine to mine) Typical specifications (will vary from mine to mine)

ASPECT DETAIL TYPICAL REJECT ASPECT DETAIL TYPICAL REJECT
ADB 5500 5300 ADB 5800 5600
ARB 4200 4000 ARB 4900 4700
NAR 4000 3800 NAR 4600 4400
Total Moisture ARB 34.00% 40.00% Total Moisture ARB 25.00% 30.00%
Inherent moisture ADB 14.00% 20.00% Inherent moisture ADB 12.00% 18.00%
Ash Content ADB 6.00% 12.00% Ash Content ADB 8.00% 14.00%
Volatile Matter ADB around 35-45% Volatile Matter ADB around 35-45%
Fixed Carbon ADB by difference Fixed Carbon ADB by difference
Total Sulphur ADB up to 1% over 1% Total Sulphur ADB up to 1% over 1%
HGI around 40 to 60 HGI around 40 to 55
Size 0--50 around 85-90% Size 0--50 around 85-90%

6000-5800 6300-6100
Typical specifications (will vary from mine to mine) Typical specifications (will vary from mine to mine)
ASPECT DETAIL TYPICAL REJECT ASPECT DETAIL TYPICAL REJECT
ADB 600 5800 ADB 6300 6100
ARB 5500 5300 ARB 5900 5700
NAR 5300 5100 NAR 5700 5500
Total Moisture ARB 18.00% 24.00% Total Moisture ARB 17.00% 21.00%
Inherent moisture ADB 12.00% 17.00% Inherent moisture ADB 12.00% 16.00%
Ash Content ADB 14.00% 18.00% Ash Content ADB 15.00% 18.00%
Volatile Matter ADB around 35-45% Volatile Matter ADB around 35-45%
Fixed Carbon ADB by difference Fixed Carbon ADB by difference
Total Sulphur ADB up to 1% over 1% Total Sulphur ADB up to 1% over 1%
HGI around 40 to 50 HGI around 40 to 50
Size 0--50 around 85-90% Size 0--50 around 85-90%

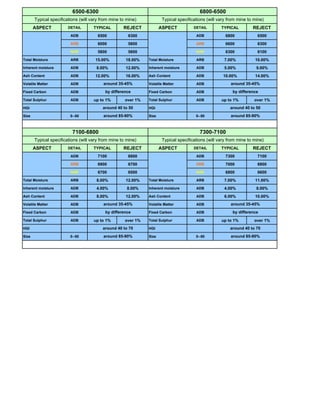

6500-6300 6800-6500
Typical specifications (will vary from mine to mine) Typical specifications (will vary from mine to mine)
ASPECT DETAIL TYPICAL REJECT ASPECT DETAIL TYPICAL REJECT
ADB 6500 6300 ADB 6800 6500
ARB 6000 5800 ARB 6600 6300
NAR 5800 5600 NAR 6300 6100
Total Moisture ARB 15.00% 18.00% Total Moisture ARB 7.00% 10.00%
Inherent moisture ADB 8.00% 12.00% Inherent moisture ADB 5.00% 9.00%
Ash Content ADB 12.00% 16.00% Ash Content ADB 10.00% 14.00%
Volatile Matter ADB around 35-45% Volatile Matter ADB around 35-45%
Fixed Carbon ADB by difference Fixed Carbon ADB by difference
Total Sulphur ADB up to 1% over 1% Total Sulphur ADB up to 1% over 1%
HGI around 40 to 50 HGI around 40 to 50
Size 0--50 around 85-90% Size 0--50 around 85-90%

7100-6800 7300-7100
Typical specifications (will vary from mine to mine) Typical specifications (will vary from mine to mine)
ASPECT DETAIL TYPICAL REJECT ASPECT DETAIL TYPICAL REJECT
ADB 7100 6800 ADB 7300 7100
ARB 6900 6700 ARB 7000 6800
NAR 6700 6500 NAR 6800 6600
Total Moisture ARB 8.00% 12.00% Total Moisture ARB 7.00% 11.00%
Inherent moisture ADB 4.00% 8.00% Inherent moisture ADB 4.00% 8.00%
Ash Content ADB 8.00% 12.00% Ash Content ADB 6.00% 10.00%
Volatile Matter ADB around 35-45% Volatile Matter ADB around 35-45%
Fixed Carbon ADB by difference Fixed Carbon ADB by difference
Total Sulphur ADB up to 1% over 1% Total Sulphur ADB up to 1% over 1%
HGI around 40 to 70 HGI around 40 to 70
Size 0--50 around 85-90% Size 0--50 around 85-90%
