Fire Protection Products

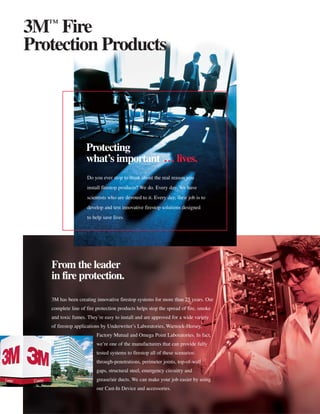

- 2. 3珂 Fire Protection Products Protecting whats important lives. Do you ever stop to think about the real reason you install firestop products? We do. Every day. We have scientists who are devoted to it. Every day, their job is to develop and test innovative firestop solutions designed to help save lives. From the leader in fire protection. 3M has been creating innovative firestop systems for more than 25 years. Our complete line of fire protection products helps stop the spread of fire, smoke and toxic fumes. Theyre easy to install and are approved for a wide variety of firestop applications by Underwriters Laboratories, Warnock-Hersey, Factory Mutual and Omega Point Laboratories. In fact, were one of the manufacturers that can provide fully tested systems to firestop all of these scenarios: through-penetrations, perimeter joints, top-of-wall gaps, structural steel, emergency circuitry and grease/air ducts. We can make your job easier by using our Cast-In Device and accessories.

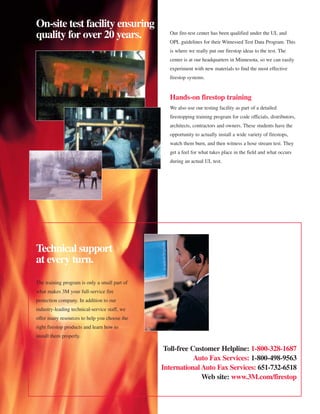

- 3. On-site test facility ensuring quality for over 20 years. Our fire-test center has been qualified under the UL and OPL guidelines for their Witnessed Test Data Program. This is where we really put our firestop ideas to the test. The center is at our headquarters in Minnesota, so we can easily experiment with new materials to find the most effective firestop systems. Hands-on firestop training We also use our testing facility as part of a detailed firestopping training program for code officials, distributors, architects, contractors and owners. These students have the opportunity to actually install a wide variety of firestops, watch them burn, and then witness a hose stream test. They get a feel for what takes place in the field and what occurs during an actual UL test. Technical support at every turn. The training program is only a small part of what makes 3M your full-service fire protection company. In addition to our industry-leading technical-service staff, we offer many resources to help you choose the right firestop products and learn how to install them properly. Toll-free Customer Helpline: 1-800-328-1687 Auto Fax Services: 1-800-498-9563 International Auto Fax Services: 651-732-6518 Web site: www.3M.com/firestop

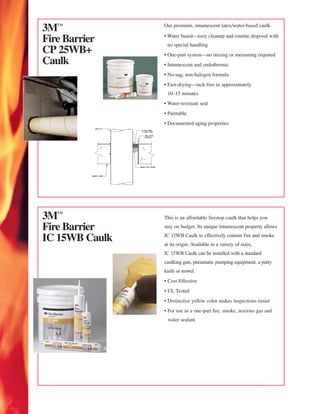

- 4. 3珂 Our premium, intumescent latex/water-based caulk. Water basedeasy cleanup and routine disposal with Fire Barrier no special handling CP 25WB+ One-part systemno mixing or measuring required Caulk Intumescent and endothermic No-sag, non-halogen formula Fast-dryingtack-free in approximately 1015 minutes Water-resistant seal Paintable Documented aging properties 3珂 This is an affordable firestop caulk that helps you Fire Barrier stay on budget. Its unique intumescent property allows IC 15WB Caulk IC 15WB Caulk to effectively contain fire and smoke at its origin. Available in a variety of sizes, IC 15WB Caulk can be installed with a standard caulking gun, pneumatic pumping equipment, a putty knife or trowel. Cost Effective UL Tested Distinctive yellow color makes inspections easier For use as a one-part fire, smoke, noxious gas and water sealant

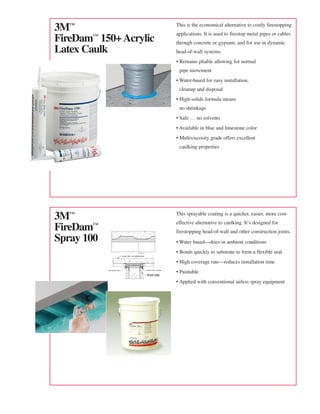

- 5. 3珂 This is the economical alternative to costly firestopping applications. It is used to firestop metal pipes or cables FireDam 150+ Acrylic through concrete or gypsum, and for use in dynamic Latex Caulk head-of-wall systems. Remains pliable allowing for normal pipe movement Water-based for easy installation, cleanup and disposal High-solids formula means no shrinkage Safe no solvents Available in blue and limestone color Multiviscosity grade offers excellent caulking properties 3珂 This sprayable coating is a quicker, easier, more cost- effective alternative to caulking. Its designed for FireDam firestopping head-of-wall and other construction joints. Spray 100 Water baseddries in ambient conditions Bonds quickly to substrate to form a flexible seal High coverage ratereduces installation time Paintable Applied with conventional airless spray equipment

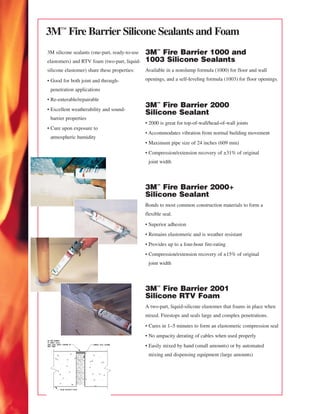

- 6. 3珂 Fire Barrier Silicone Sealants and Foam 3M silicone sealants (one-part, ready-to-use 3珂 Fire Barrier 1000 and elastomers) and RTV foam (two-part, liquid- 1003 Silicone Sealants silicone elastomer) share these properties: Available in a nonslump formula (1000) for floor and wall Good for both joint and through- openings, and a self-leveling formula (1003) for floor openings. penetration applications Re-enterable/repairable 3珂 Fire Barrier 2000 Excellent weatherability and sound- Silicone Sealant barrier properties 2000 is great for top-of-wall/head-of-wall joints Cure upon exposure to Accommodates vibration from normal building movement atmospheric humidity Maximum pipe size of 24 inches (609 mm) Compression/extension recovery of 賊31% of original joint width 3珂 Fire Barrier 2000+ Silicone Sealant Bonds to most common construction materials to form a flexible seal. Superior adhesion Remains elastomeric and is weather resistant Provides up to a four-hour fire-rating Compression/extension recovery of 賊15% of original joint width 3珂 Fire Barrier 2001 Silicone RTV Foam A two-part, liquid-silicone elastomer that foams in place when mixed. Firestops and seals large and complex penetrations. Cures in 15 minutes to form an elastomeric compression seal No ampacity derating of cables when used properly Easily mixed by hand (small amounts) or by automated mixing and dispensing equipment (large amounts)

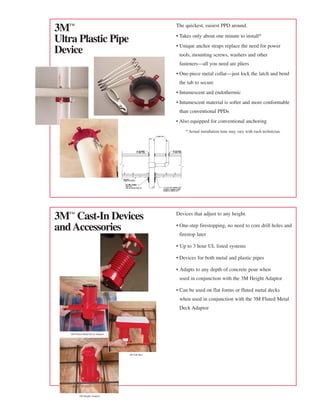

- 7. 3珂 The quickest, easiest PPD around. Takes only about one minute to install* Ultra Plastic Pipe Unique anchor straps replace the need for power Device tools, mounting screws, washers and other fastenersall you need are pliers One-piece metal collarjust lock the latch and bend the tab to secure Intumescent and endothermic Intumescent material is softer and more conformable than conventional PPDs Also equipped for conventional anchoring * Actual installation time may vary with each technician. 3珂 Cast-In Devices Devices that adjust to any height. and Accessories One-step firestopping, no need to core drill holes and firestop later Up to 3 hour UL listed systems Devices for both metal and plastic pipes Adapts to any depth of concrete pour when used in conjunction with the 3M Height Adaptor Can be used on flat forms or fluted metal decks when used in conjunction with the 3M Fluted Metal Deck Adaptor 3M Fluted Metal Deck Adaptor 3M Tub Box 3M Height Adaptor

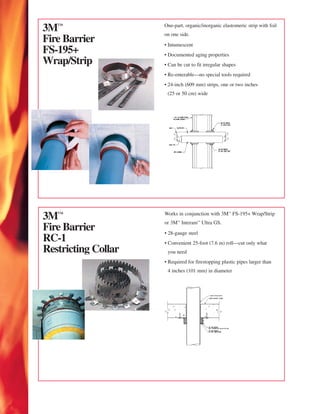

- 8. 3珂 One-part, organic/inorganic elastomeric strip with foil on one side. Fire Barrier Intumescent FS-195+ Documented aging properties Wrap/Strip Can be cut to fit irregular shapes Re-enterableno special tools required 24-inch (609 mm) strips, one or two inches (25 or 50 cm) wide 3珂 Works in conjunction with 3珂 FS-195+ Wrap/Strip or 3珂 Interam Ultra GS. Fire Barrier 28-gauge steel RC-1 Convenient 25-foot (7.6 m) rollcut only what Restricting Collar you need Required for firestopping plastic pipes larger than 4 inches (101 mm) in diameter

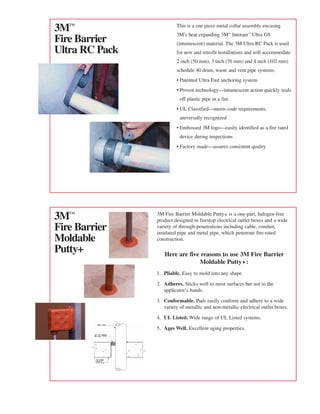

- 9. 3珂 This is a one piece metal collar assembly encasing 3Ms heat expanding 3珂 Interam Ultra GS Fire Barrier (intumescent) material. The 3M Ultra RC Pack is used Ultra RC Pack for new and retrofit installations and will accommodate 2 inch (50 mm), 3 inch (76 mm) and 4 inch (102 mm) schedule 40 drain, waste and vent pipe systems. Patented Ultra Fast anchoring system Proven technologyintumescent action quickly seals off plastic pipe in a fire UL Classifiedmeets code requirements, universally recognized Embossed 3M logoeasily identified as a fire rated device during inspections Factory madeassures consistent quality 3珂 3M Fire Barrier Moldable Putty + is a one-part, halogen-free product designed to firestop electrical outlet boxes and a wide Fire Barrier variety of through-penetrations including cable, conduit, insulated pipe and metal pipe, which penetrate fire-rated Moldable construction. Putty+ Here are five reasons to use 3M Fire Barrier Moldable Putty+: 1. Pliable. Easy to mold into any shape. 2. Adheres. Sticks well to most surfaces but not to the applicators hands. 3. Conformable. Pads easily conform and adhere to a wide variety of metallic and non-metallic electrical outlet boxes. 4. UL Listed. Wide range of UL Listed systems. 5. Ages Well. Excellent aging properties.

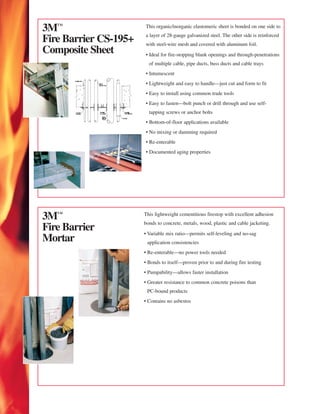

- 10. 3珂 This organic/inorganic elastomeric sheet is bonded on one side to a layer of 28-gauge galvanized steel. The other side is reinforced Fire Barrier CS-195+ with steel-wire mesh and covered with aluminum foil. Composite Sheet Ideal for fire-stopping blank openings and through-penetrations of multiple cable, pipe ducts, buss ducts and cable trays Intumescent Lightweight and easy to handlejust cut and form to fit Easy to install using common trade tools Easy to fastenbolt punch or drill through and use self- tapping screws or anchor bolts Bottom-of-floor applications available No mixing or damming required Re-enterable Documented aging properties 3珂 This lightweight cementitious firestop with excellent adhesion bonds to concrete, metals, wood, plastic and cable jacketing. Fire Barrier Variable mix ratiopermits self-leveling and no-sag Mortar application consistencies Re-enterableno power tools needed Bonds to itselfproven prior to and during fire testing Pumpabilityallows faster installation Greater resistance to common concrete poisons than PC-bound products Contains no asbestos

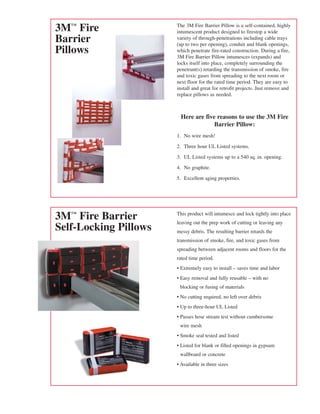

- 11. 3珂 Fire The 3M Fire Barrier Pillow is a self-contained, highly intumescent product designed to firestop a wide Barrier variety of through-penetrations including cable trays (up to two per opening), conduit and blank openings, Pillows which penetrate fire-rated construction. During a fire, 3M Fire Barrier Pillow intumesces (expands) and locks itself into place, completely surrounding the penetrant(s) retarding the transmission of smoke, fire and toxic gases from spreading to the next room or next floor for the rated time period. They are easy to install and great for retrofit projects. Just remove and replace pillows as needed. Here are five reasons to use the 3M Fire Barrier Pillow: 1. No wire mesh! 2. Three hour UL Listed systems. 3. UL Listed systems up to a 540 sq. in. opening. 4. No graphite. 5. Excellent aging properties. 3珂 Fire Barrier This product will intumesce and lock tightly into place leaving out the prep work of cutting or leaving any Self-Locking Pillows messy debris. The resulting barrier retards the transmission of smoke, fire, and toxic gases from spreading between adjacent rooms and floors for the rated time period. Extremely easy to install saves time and labor Easy removal and fully reusable with no blocking or fusing of materials No cutting required, no left over debris Up to three-hour UL Listed Passes hose stream test without cumbersome wire mesh Smoke seal tested and listed Listed for blank or filled openings in gypsum wallboard or concrete Available in three sizes

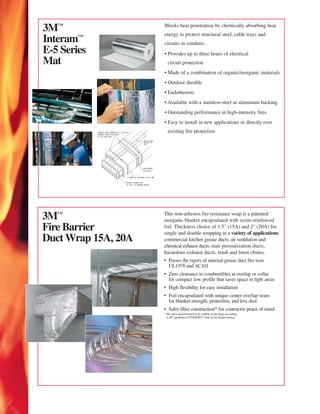

- 12. 3珂 Blocks heat penetration by chemically absorbing heat energy to protect structural steel, cable trays and Interam circuits in conduits. E-5 Series Provides up to three hours of electrical Mat circuit protection Made of a combination of organic/inorganic materials Outdoor durable Endothermic Available with a stainless-steel or aluminum backing Outstanding performance in high-intensity fires Easy to install in new applications or directly over existing fire protection 3珂 This non-asbestos fire resistance wrap is a patented inorganic blanket encapsulated with scrim-reinforced Fire Barrier foil. Thickness choice of 1.5" (15A) and 2" (20A) for single and double wrapping in a variety of applications: Duct Wrap 15A, 20A commercial kitchen grease ducts, air ventilation and chemical exhaust ducts, stair pressurization ducts, hazardous exhaust ducts, trash and linen chutes. Passes the rigors of internal grease duct fire tests UL1978 and AC101 Zero clearance to combustibles at overlap or collar for compact low profile that saves space in tight areas High flexibility for easy installation Foil encapsulated with unique center overlap seam for blanket strength, protection, and less dust Safer fiber construction* for contractor peace of mind * Has been demonstrated to be soluble in the lungs according to EU guidelines 67/548/EWG, Note Q for biopersistence.

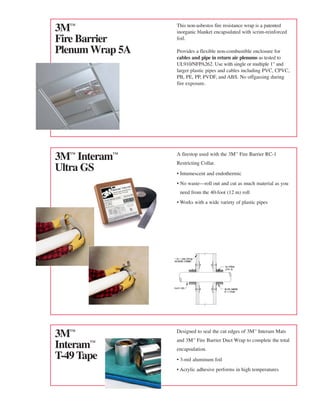

- 13. 3珂 This non-asbestos fire resistance wrap is a patented inorganic blanket encapsulated with scrim-reinforced Fire Barrier foil. Plenum Wrap 5A Provides a flexible non-combustible enclosure for cables and pipe in return air plenums as tested to UL910/NFPA262. Use with single or multiple 1" and larger plastic pipes and cables including PVC, CPVC, PB, PE, PP, PVDF, and ABS. No offgassing during fire exposure. 3珂 Interam A firestop used with the 3珂 Fire Barrier RC-1 Restricting Collar. Ultra GS Intumescent and endothermic No wasteroll out and cut as much material as you need from the 40-foot (12 m) roll Works with a wide variety of plastic pipes 3珂 Designed to seal the cut edges of 3珂 Interam Mats and 3珂 Fire Barrier Duct Wrap to complete the total Interam encapsulation. T-49 Tape 3-mil aluminum foil Acrylic adhesive performs in high temperatures

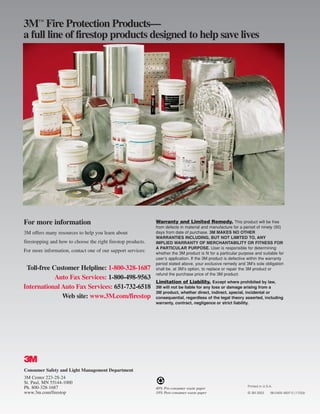

- 14. 3珂 Fire Protection Products a full line of firestop products designed to help save lives For more information Warranty and Limited Remedy. This product will be free from defects in material and manufacture for a period of ninety (90) 3M offers many resources to help you learn about days from date of purchase. 3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY firestopping and how to choose the right firestop products. IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. User is responsible for determining For more information, contact one of our support services: whether the 3M product is fit for a particular purpose and suitable for users application. If the 3M product is defective within the warranty period stated above, your exclusive remedy and 3Ms sole obligation Toll-free Customer Helpline: 1-800-328-1687 shall be, at 3Ms option, to replace or repair the 3M product or refund the purchase price of the 3M product. Auto Fax Services: 1-800-498-9563 Limitation of Liability. Except where prohibited by law, International Auto Fax Services: 651-732-6518 3M will not be liable for any loss or damage arising from a 3M product, whether direct, indirect, special, incidental or Web site: www.3M.com/firestop consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability. # Consumer Safety and Light Management Department 3M Center 223-2S-24 St. Paul, MN 55144-1000 Ph. 800-328-1687 Printed in U.S.A. 40% Pre-consumer waste paper www.3m.com/firestop 10% Post-consumer waste paper 息 3M 2003 98-0400-4937-5 (1133)ii
