Algorithm and Programming
Saniati
saniati@teknokrat .ac.id

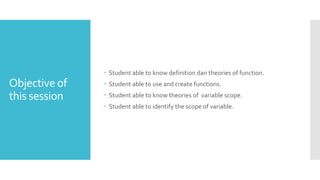

Objective of
this session
 Student able to know definition dan theories of function.
 Student able to use and create functions.
 Student able to know theories of variable scope.
 Student able to identify the scope of variable.

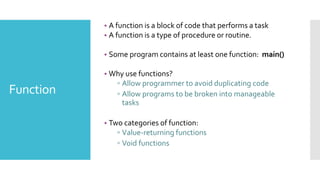

Function
 A function is a block of code that performs a task
 A function is a type of procedure or routine.
 Some program contains at least one function: main()
 Why use functions?
 Allow programmer to avoid duplicating code
 Allow programs to be broken into manageable
tasks
 Two categories of function:
 Value-returning functions
 Void functions

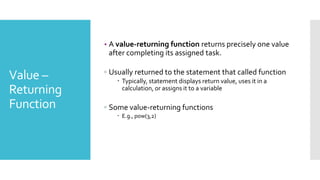

Value
Returning
Function
 A value-returning function returns precisely one value
after completing its assigned task.
 Usually returned to the statement that called function
 Typically, statement displays return value, uses it in a
calculation, or assigns it to a variable
 Some value-returning functions
 E.g., pow(3,2)
Value
Returning
Function
 A value-returning function returns precisely one value
after completing its assigned task.
 Usually returned to the statement that called function
 Typically, statement displays return value, uses it in a
calculation, or assigns it to a variable
 Some value-returning functions
 E.g., pow(3,2)

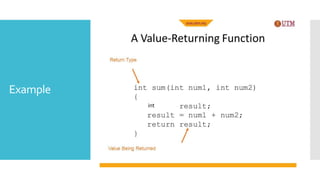

Example
int

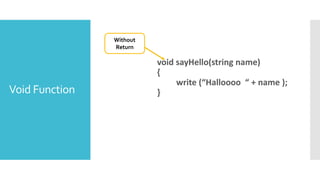

Void Function
void sayHello(string name)
{
write (Halloooo  + name );
}
Without
Return

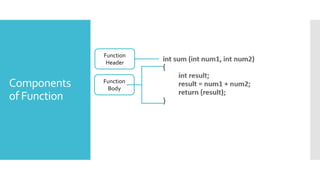

Components
of Function
Function
Header
Function
Body

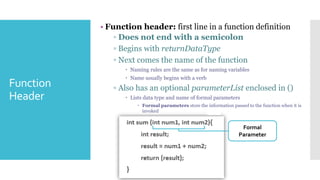

Function
Header
 Function header: first line in a function definition
 Does not end with a semicolon
 Begins with returnDataType
 Next comes the name of the function
 Naming rules are the same as for naming variables
 Name usually begins with a verb
 Also has an optional parameterList enclosed in ()
 Lists data type and name of formal parameters
 Formal parameters store the information passed to the function when it is
invoked
Formal
Parameter
Function
Body
 Function body contains instructions the function
follows to perform its assigned task
 Begins with { and ends with }
 The last statement is usually return expression;
 expression represents the value the function returns to the statement
that called it
 return statement alerts computer that the
function has completed its task
 Data type of expression must agree with the returnDataType specified
in function header
11

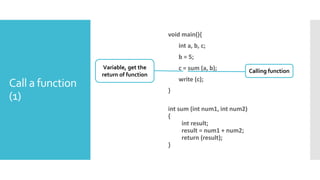

Call a function
(1)
void main(){
int a, b, c;
b = 5;
c = sum (a, b);
write (c);
}
int sum (int num1, int num2)
{
int result;
result = num1 + num2;
return (result);
}
Calling function
Variable, get the
return of function

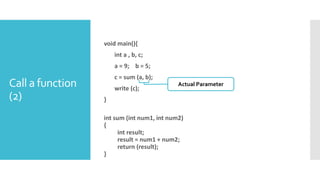

Call a function
(2)
void main(){
int a , b, c;
a = 9; b = 5;
c = sum (a, b);
write (c);
}
int sum (int num1, int num2)
{
int result;
result = num1 + num2;
return (result);
}
Actual Parameter

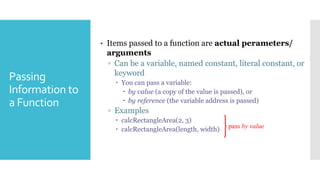

Passing
Information to
a Function
 Items passed to a function are actual perameters/
arguments
 Can be a variable, named constant, literal constant, or
keyword
 You can pass a variable:
 by value (a copy of the value is passed), or
 by reference (the variable address is passed)
 Examples
 calcRectangleArea(2, 3)
 calcRectangleArea(length, width) pass by value

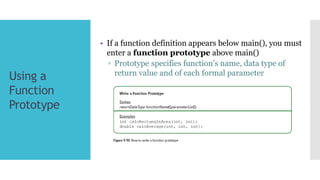

Using a
Function
Prototype
 If a function definition appears below main(), you must
enter a function prototype above main()
 Prototype specifies functions name, data type of
return value and of each formal parameter
16

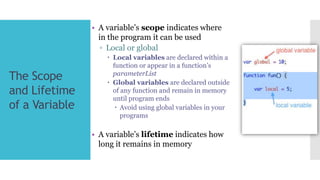

The Scope
and Lifetime
of a Variable
 A variables scope indicates where
in the program it can be used
 Local or global
 Local variables are declared within a
function or appear in a functions
parameterList
 Global variables are declared outside
of any function and remain in memory
until program ends
 Avoid using global variables in your
programs
 A variables lifetime indicates how
long it remains in memory

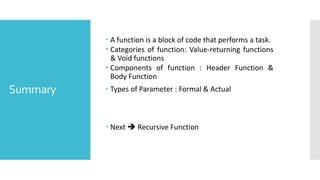

Summary
 A function is a block of code that performs a task.
 Categories of function: Value-returning functions
& Void functions
 Components of function : Header Function &
Body Function
 Types of Parameter : Formal & Actual
 Next  Recursive Function
