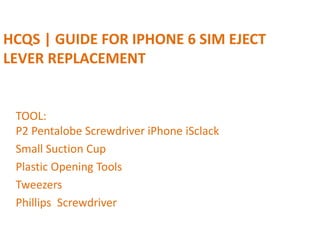

HCQS | GUIDE FOR IPHONE 6 SIM EJECT
LEVER REPLACEMENT
TOOL:
P2 Pentalobe Screwdriver iPhone iSclack
Small Suction Cup
Plastic Opening Tools
Tweezers
Phillips Screwdriver

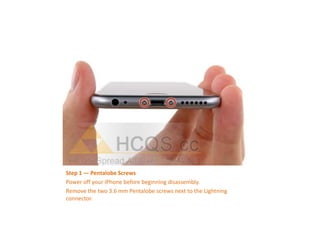

Step 1 �� Pentalobe Screws
Power off your iPhone before beginning disassembly.
Remove the two 3.6 mm Pentalobe screws next to the Lightning
connector.

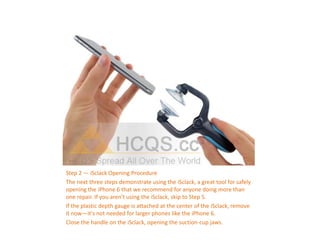

Step 2 �� iSclack Opening Procedure
The next three steps demonstrate using the iSclack, a great tool for safely
opening the iPhone 6 that we recommend for anyone doing more than
one repair. If you aren't using the iSclack, skip to Step 5.
If the plastic depth gauge is attached at the center of the iSclack, remove
it now��it's not needed for larger phones like the iPhone 6.
Close the handle on the iSclack, opening the suction-cup jaws.

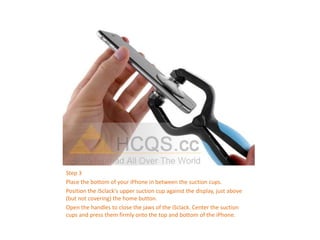

Step 3
Place the bottom of your iPhone in between the suction cups.
Position the iSclack's upper suction cup against the display, just above
(but not covering) the home button.
Open the handles to close the jaws of the iSclack. Center the suction
cups and press them firmly onto the top and bottom of the iPhone.

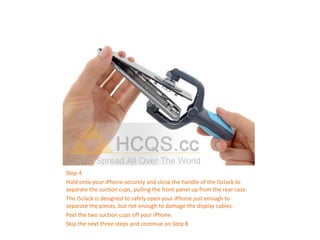

Step 4
Hold onto your iPhone securely and close the handle of the iSclack to
separate the suction cups, pulling the front panel up from the rear case.
The iSclack is designed to safely open your iPhone just enough to
separate the pieces, but not enough to damage the display cables.
Peel the two suction cups off your iPhone.
Skip the next three steps and continue on Step 8

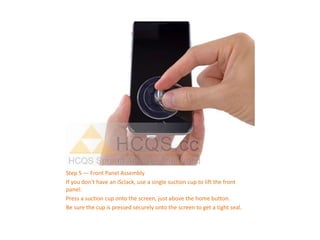

Step 5 �� Front Panel Assembly
If you don't have an iSclack, use a single suction cup to lift the front
panel:
Press a suction cup onto the screen, just above the home button.
Be sure the cup is pressed securely onto the screen to get a tight seal.

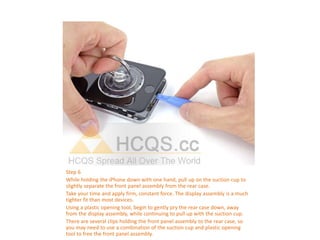

Step 6
While holding the iPhone down with one hand, pull up on the suction cup to
slightly separate the front panel assembly from the rear case.
Take your time and apply firm, constant force. The display assembly is a much
tighter fit than most devices.
Using a plastic opening tool, begin to gently pry the rear case down, away
from the display assembly, while continuing to pull up with the suction cup.
There are several clips holding the front panel assembly to the rear case, so
you may need to use a combination of the suction cup and plastic opening
tool to free the front panel assembly.

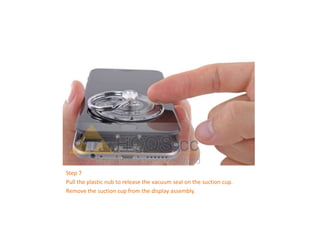

Step 7
Pull the plastic nub to release the vacuum seal on the suction cup.
Remove the suction cup from the display assembly.

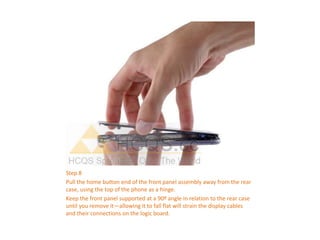

Step 8
Pull the home button end of the front panel assembly away from the rear
case, using the top of the phone as a hinge.
Keep the front panel supported at a 90? angle in relation to the rear case
until you remove it��allowing it to fall flat will strain the display cables
and their connections on the logic board.

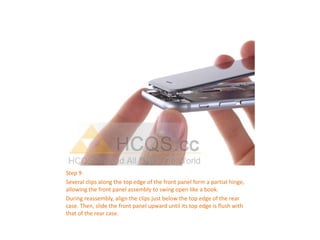

Step 9
Several clips along the top edge of the front panel form a partial hinge,
allowing the front panel assembly to swing open like a book.
During reassembly, align the clips just below the top edge of the rear
case. Then, slide the front panel upward until its top edge is flush with
that of the rear case.

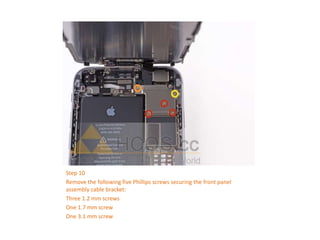

Step 10
Remove the following five Phillips screws securing the front panel
assembly cable bracket:
Three 1.2 mm screws
One 1.7 mm screw
One 3.1 mm screw

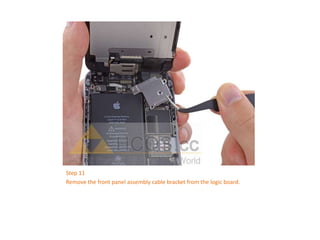

Step 11
Remove the front panel assembly cable bracket from the logic board.

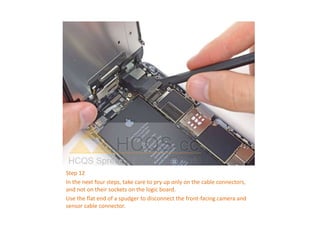

Step 12
In the next four steps, take care to pry up only on the cable connectors,
and not on their sockets on the logic board.
Use the flat end of a spudger to disconnect the front-facing camera and
sensor cable connector.

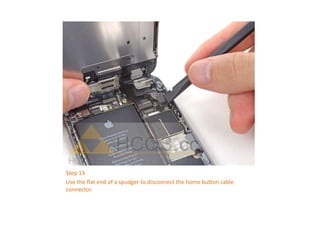

Step 13
Use the flat end of a spudger to disconnect the home button cable
connector.

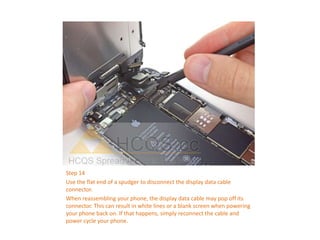

Step 14
Use the flat end of a spudger to disconnect the display data cable
connector.
When reassembling your phone, the display data cable may pop off its
connector. This can result in white lines or a blank screen when powering
your phone back on. If that happens, simply reconnect the cable and
power cycle your phone.

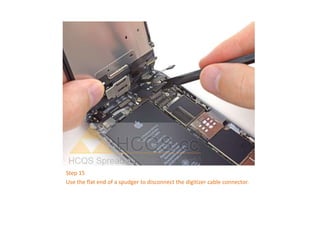

Step 15
Use the flat end of a spudger to disconnect the digitizer cable connector.

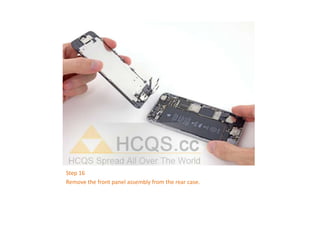

Step 16
Remove the front panel assembly from the rear case.

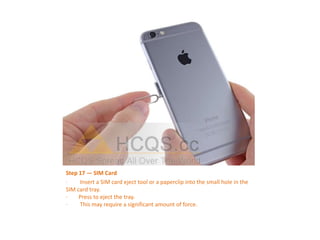

Step 17 �� SIM Card
�� Insert a SIM card eject tool or a paperclip into the small hole in the
SIM card tray.
�� Press to eject the tray.
�� This may require a significant amount of force.

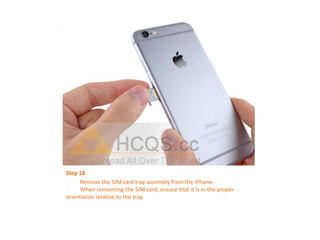

Step 18
�� Remove the SIM card tray assembly from the iPhone.
�� When reinserting the SIM card, ensure that it is in the proper
orientation relative to the tray.

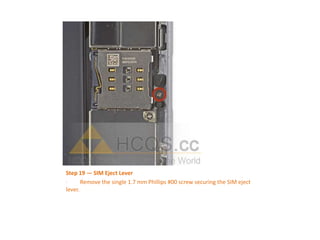

Step 19 �� SIM Eject Lever
�� Remove the single 1.7 mm Phillips #00 screw securing the SIM eject
lever.

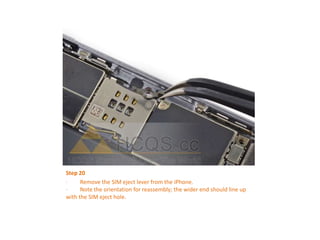

Step 20
�� Remove the SIM eject lever from the iPhone.
�� Note the orientation for reassembly; the wider end should line up
with the SIM eject hole.
