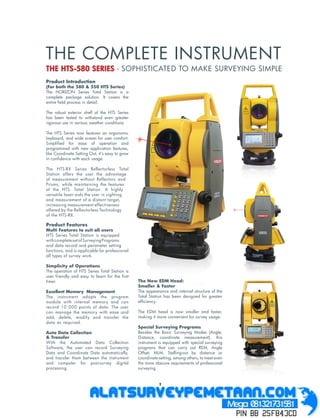

- 1. THE COMPLETE INSTRUMENT THE HTS-580 SERIES - SOPHISTICATED TO MAKE SURVEYING SIMPLE Product Introduction (For both the 580 & 550 HTS Series) The HORIZON Series Total Station is a complete package solution. It covers the entire 鍖eld process in detail. The robust exterior shell of the HTS Series has been tested to withstand even greater rigorous use in various weather conditions The HTS Series now features an ergonomic keyboard, and wide screen for user comfort. Simpli鍖ed for ease of operation and programmed with new application features, like Coordinate Setting Out, its easy to grow in con鍖dence with each usage. The HTS-RX Series Reflectorless Total Station offers the user the advantage of measurement without Reflectors and Prisms, while maintaining the features of the HTS- Total Station. A highly versatile laser aids the user in sighting and measurement of a distant target, increasing measurement effectiveness offered by the Reflectorless Technology of the HTS-RX. Product Features Multi Features to suit all users HTS Series Total Station is equipped with complete set of Surveying Programs and data record and parameter setting functions, and is applicable for professional all types of survey work. Simplicity of Operations The operation of HTS Series Total Station is user friendly and easy to learn for the 鍖rst timer. The New EDM Head: Smaller & Faster Excellent Memory Management The appearance and internal structure of the The instrument adopts the program Total Station has been designed for greater module with internal memory and can ef鍖ciency. record 10 000 points of data. The user can manage the memory with ease and The EDM head is now smaller and faster, add, delete, modify and transfer the making it more convenient for survey usage. data as required. Special Surveying Programs Auto Data Collection Besides the Basic Surveying Modes (Angle, & Transfer Distance, coordinate measurement), this With the Automated Data Collection instrument is equipped with special surveying Software, the user can record Surveying programs that can carry out REM, Angle Data and Coordinate Data automatically, Offset, MLM, Stalling-out by distance or and transfer them between the instrument coordinate-setting, among others, to meet even and computer for post-survey digital the more obscure requirements of professional processing. surveying. 2

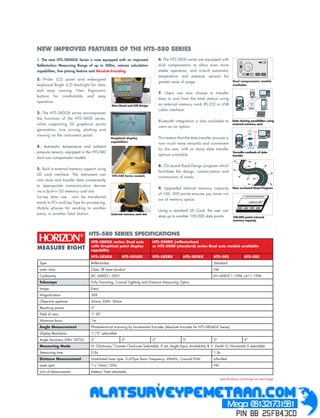

- 2. NEW IMPROVED FEATURES OF THE HTS-580 SERIES 1. The new HTS-580AGX Series is now equipped with an improved 6. The HTS-580D series are equipped with Re鍖ectorless Measuring Range of up to 300m, volume calculation dual compensators to allow even more capabilities, line joining feature and Absolute Encoding. stable operation, and in-built automatic temperature and pressure sensors for 2. Wider LCD panel and redesigned greater ease of usage. Dual compensator models keyboard Bright LCD backlight for clear available: and easy viewing. New Ergonomic 7. Users can now choose to transfer buttons for comfortable and easy data to and from the total station using operation. New Panel and LCD Design an external memory card, RS-232 or USB cable interface. A 3. The HTS-580GX series encompasses the functions of the HTS-580D series, Bluetooth integration is also available to Data sharing possibilities using while supporting 50 graphical points external memory card users as an option. generation, line joining, plotting and viewing on the instrument panel. Graphical display This means that the data transfer process is capabilities now much more versatile and convenient 4. Automatic temperature and ambient A for the user, with so many data transfer pressure sensors, equipped in the HTS-580 Versatile methods of data options available. transfer dual axis compensator models 8. On board Road Design program which 5. Built in external memory support using facilitates the design, customi-sation and SD card interface. The instrument can HTS-580 Series models construction of roads. now store and transfer data conveniently to appropriate communication devices 9. Upgraded Internal memory capacity New on-board Road Program via a built-in SD memory card slot. of 100, 000 points ensures you never run Survey data can now be transferred out of memory space. easily to PCs and Lap Tops for processing, Mobile phones for sending to another Using a standard SD Card, the user can party, or another Total Station. External memory card slot store up to another 100,000 data points. 100,000 points internal memory capacity HTS-580GX series: Dual axis HTS-580DX (re鍖ectorless) with Graphical point display or HTS-580D (standard) series Dual axis models available capability HTS-582GX HTS-585GX HTS-582RX HTS-585RX HTS-582 HTS-585 Type Re鍖ectorless Standard Laser class Class 3R Laser product NA Conformity IEC 60852-1:2001 EN 60825-1:1994 +A11:1996 Telescope Fully Transiting, Coaxial Sighting and Distance Measuring Optics Image Erect Magni鍖cation 30X Objective aperture 45mm; EDM: 50mm Resolving power 3 Field of view 1尊 30 Minimum focus 1m Angle Measurement Photoelectrical scanning by Incremental Encoder (Absolute Encoder for HTS-580AGX Series) Display Resolution 1/5 selectable Angle Accuracy (DIN 18723) 2 5 2 5 2 5 Measuring Mode H: Clockwise/ Counter Clockwise Selectable, 0 set, Angle Input, Availability & V: Zenith 0/ Horizontal 0 selectable Measuring time 0.8s 1.8s Distance Measurement Modulated laser type: 0.670 m Basic Frequency: 60MHz, Coaxial EDM Infra-Red Laser spot 7 x 14mm /20m NA Unit of Measurement Meters/ Feet selectable Speci鍖cations continued on next page 3

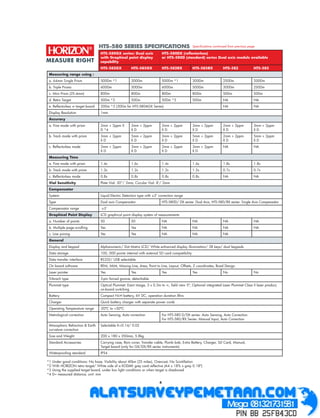

- 3. Speci鍖cations continued from previous page HTS-580GX series: Dual axis HTS-580DX (re鍖ectorless) with Graphical point display or HTS-580D (standard) series Dual axis models available capability HTS-582GX HTS-585GX HTS-582RX HTS-585RX HTS-582 HTS-585 Measuring range using : a. 64mm Single Prism 5000m *1 3000m 5000m *1 3000m 2500m 2000m b. Triple Prisms 6000m 5000m 6000m 5000m 3000m 2500m c. Mini Prism (25.4mm) 800m 800m 800m 800m 500m 500m d. Retro Target 500m *2 500m 500m *2 500m NA NA e. Re鍖ectorless w target board 200m *3 (300m for HTS-580AGX Series) NA NA Display Resolution 1mm Accuracy a. Fine mode with prism 2mm + 2ppm X 3mm + 2ppm 2mm + 2ppm 3mm + 2ppm 2mm + 2ppm 3mm + 2ppm D *4 XD XD XD XD XD b. Track mode with prism 3mm + 2ppm 5mm + 2ppm 3mm + 2ppm 5mm + 2ppm 2mm + 2ppm 5mm + 2ppm XD XD XD XD XD XD c. Re鍖ectorless mode 2mm + 2ppm 3mm + 2ppm 2mm + 2ppm 3mm + 2ppm NA NA XD XD XD XD Measuring Time a. Fine mode with prism 1.4s 1.6s 1.4s 1.6s 1.8s 1.8s b. Track mode with prism 1.2s 1.2s 1.2s 1.2s 0.7s 0.7s c. Re鍖ectorless mode 0.8s 0.8s 0.8s 0.8s NA NA Vial Sensitivity Plate Vial: 30/ 2mm, Circular Vial: 8/ 2mm Compensator System Liquid Electric Detection type with 賊3 correction range Type Dual axis Compensator HTS-580D/ DX series: Dual Axis, HTS-580/RX series: Single Axis Compensator Compensator range 賊3 Graphical Point Display LCD graphical point display system of measurements a. Number of points 50 50 NA NA NA NA b. Multiple page scrolling Yes Yes NA NA NA NA c. Line joining Yes Yes NA NA NA General Display and keypad Alphanumeric/ Dot Matrix LCD/ White enhanced display illumination/ 28 keys/ dual keypads Data storage 100, 000 points internal with external SD card compatibility Data transfer interface RS232/ USB selectable On board software REM, MLM, Missing Line, Area, Point to Line, Layout, Offsets, Z coordinates, Road Design Laser pointer Yes Yes Yes Yes No No Tribrach type 3-pin forced groove, detachable Plummet type Optical Plummet: Erect image, 3 x 0.3m to , 鍖eld view 5尊, Optional integrated Laser Plummet Class II laser product, on-board switching Battery Compact Ni-H battery, 6V DC, operation duration 8hrs Charger Quick battery charger with separate power cords Operating Temperature range -20尊C to +50尊C Metrological correction Auto Sensing, Auto correction For HTS-580 D/DX series: Auto Sensing, Auto Correction For HTS-580/RX Series: Manual Input, Auto Correction Atmospheric Refraction & Earth Selectable K=0.14/ 0.02 curvature correction Size and Weight 200 x 180 x 350mm, 5.8kg Standard Accessories Carrying case, Rain cover, Transfer cable, Plumb bob, Extra Battery, Charger, SD Card, Manual, Target board (only for GX/DX/RX series instruments) Waterproo鍖ng standard IP54 *1 Under good conditions: No haze, Visibility about 40km (25 miles), Overcast, No Scintillation *2 With HORIZON retro target/ White side of a KODAK grey card re鍖ective (A4 x 18% x gray 0.18尊) *3 Using the supplied target board, under low light conditions or when target is shadowed *4 D= measured distance, unit: mm 4

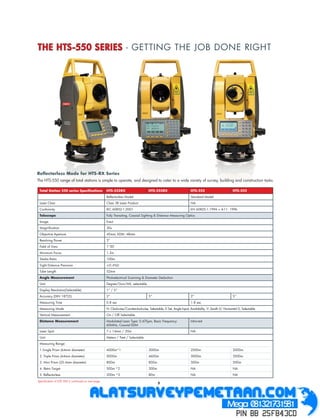

- 4. THE HTS-550 SERIES - GETTING THE JOB DONE RIGHT Re鍖ectorless Mode for HTS-RX Series The HTS-550 range of total stations is simple to operate, and designed to cater to a wide variety of survey, building and construction tasks. Total Station 550 series Speci鍖cations HTS-552RX HTS-555RX HTS-552 HTS-555 Re鍖ectorless Model Standard Model Laser Class Class 3R Laser Product NA Conformity IEC 60852-1:2001 EN 60825-1:1994 + A11: 1996 Telescope Fully Transiting, Coaxial Sighting & Distance Measuring Optics Image Erect Magni鍖cation 30x Objective Aperture 45mm, EDM: 48mm Resolving Power 3 Field of View 1属30 Minimum Focus 1.3m Stadia Ratio 100m Sight Distance Precision 0.4%D Tube Length 52mm Angle Measurement Photoelectrical Scanning & Diameter Deduction Unit Degree/Gon/Mil, selectable Display Resolution(Selectable) 1 / 5 Accuracy (DIN 18723) 2 5 2 5 Measuring Time 0.8 sec 1.8 sec Measuring Mode H: Clockwise/Counterclockwise, Selectable, 0 Set, Angle Input, Availability. V: Zenith 0/ Horizontal 0, Selectable Vertical Measurement On / Off Selectable Distance Measurement Modulated Laser Type: 0.670 m, Basic Frequency: Infra-red 60MHz, Coaxial EDM Laser Spot 7 x 14mm / 20m NA Unit Meters / Feet / Selectable Measuring Range: 1.Single Prism (64mm diameter) 4000m*1 3000m 2500m 2000m 2. Triple Prism (64mm diameter) 5000m 4600m 3000m 2500m 3. Mini Prism (25.4mm diameter) 800m 800m 500m 500m 4. Retro Target 500m *2 300m NA NA 5. Re鍖ectorless 200m *3 80m NA NA Speci鍖cation of HTS 550 is continued on next page 5

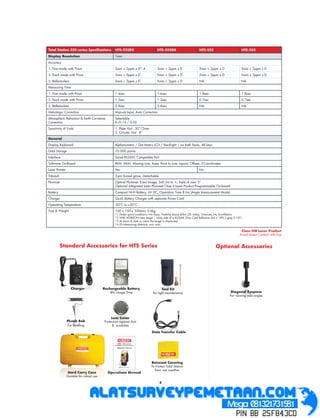

- 5. Total Station 550 series Speci鍖cations HTS-552RX HTS-555RX HTS-552 HTS-555 Display Resolution 1mm Accuracy 1. Fine mode with Prism 2mm + 2ppm x D* 4 3mm + 2ppm x D 2mm + 2ppm x D 3mm + 2ppm x D 2. Track mode with Prism 3mm + 2ppm x D 5mm + 2ppm x D 2mm + 3ppm x D 5mm + 2ppm x D 3. Re鍖ectorless 5mm + 2ppm x D 5mm + 2ppm x D NA NA Measuring Time 1. Fine mode with Prism 1.4sec 1.6sec 1.8sec 1.8sec 2. Track mode with Prism 1.2sec 1.2sec 0.7sec 0.7sec 3. Re鍖ectorless 0.8sec 0.8sec NA NA Metrologic Correction Manual Input, Auto Correction Atmospheric Refraction & Earth Curvature Selectable Correction K=0.14 / 0.02 Sensitivity of Vials: 1. Plate Vial - 30/2mm 2. Circular Vial - 8 General Display Keyboard Alphanumeric / Dot Matrix LCD / Backlight / on both faces, 48 keys Data Storage 10 000 points Interface Serial RS232C Compatible Port Software On-Board REM. MLM, Missing Line, Area, Point to Line, Layout, Offsets, Z-Coordinates Laser Pointer Yes No Tribrach 3-pin forced grove, Detachable Plummet Optical Plummet: Erect Image, 3x0.3m to , Field of view 5属 Optional Integrated Laser Plummet Class II Laser Product Programmable On-board Battery Compact Ni-H Battery, 6V DC, Operation Time 8 hrs (Angle Measurement Mode) Charger Quick Battery Charger with separate Power Cord Operating Temperature -20属C to +50属C Size & Weight 160 x 150 x 330mm, 5.4kg *1 Under good conditions: No haze, Visibility about 40km (25 miles), Overcast, No Scintillation *2 With HORIZON retro target / white side of a KODAK Grey Card Re鍖ective (A4 x 18% x gray 0.18属) *3 At dawn & dusk or when the target is shadowed *4 (D=Measuring distance, unit: mm) Class IIIR Laser Product Avoid Direct Contact with Eye Standard Accessories for HTS Series Optional Accessories Charger h Charger Rechargeable Battery Tool Kit 8hr Usage Time for light maintenance Diagonal Eyepiece For viewing odd angles Lens Cover Plumb Bob Protection against dust For levelling & scratches Data Transfer Ca Data Transfer Ca ata Transfer Cable Raincoat Covering To Protect Total Station from wet weather Hard Carry Case Operations Man perations Man rations Manual n Durable for robust use 6
