Automate Test Execution using Jenkins
-Ankit (ankitsharma0087@gmail.com)
Jenkins & Squish
5/12/2016(c) Ankit

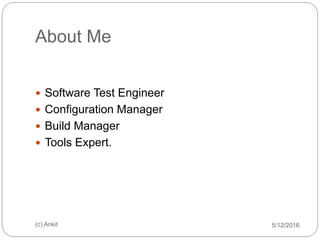

About Me
 Software Test Engineer
 Configuration Manager
 Build Manager
 Tools Expert.
5/12/2016(c) Ankit

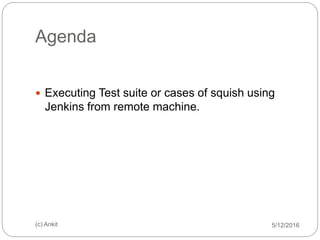

Agenda
 Executing Test suite or cases of squish using
Jenkins from remote machine.
5/12/2016(c) Ankit

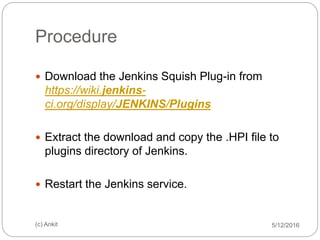

Procedure
 Download the Jenkins Squish Plug-in from
https://wiki.jenkins-
ci.org/display/JENKINS/Plugins
 Extract the download and copy the .HPI file to
plugins directory of Jenkins.
 Restart the Jenkins service.
5/12/2016(c) Ankit
Procedure cont.

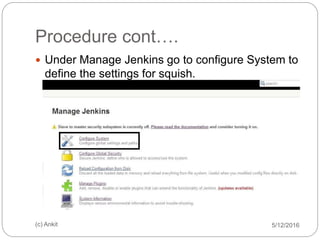

 Under Manage Jenkins go to configure System to
define the settings for squish.
5/12/2016(c) Ankit
Procedure cont.
5/12/2016(c) Ankit
 Provide the details as shown below.
Procedure cont.
5/12/2016(c) Ankit

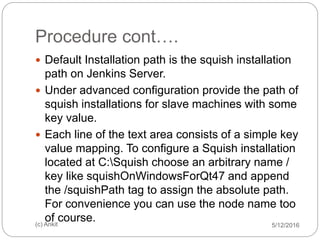

 Default Installation path is the squish installation
path on Jenkins Server.
 Under advanced configuration provide the path of
squish installations for slave machines with some
key value.
 Each line of the text area consists of a simple key
value mapping. To configure a Squish installation
located at C:Squish choose an arbitrary name /
key like squishOnWindowsForQt47 and append
the /squishPath tag to assign the absolute path.
For convenience you can use the node name too
of course.
Procedure cont.
5/12/2016(c) Ankit

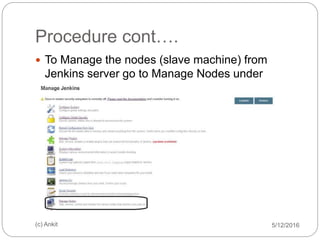

 To Manage the nodes (slave machine) from
Jenkins server go to Manage Nodes under
Manage Jenkins.
Procedure cont.
5/12/2016(c) Ankit

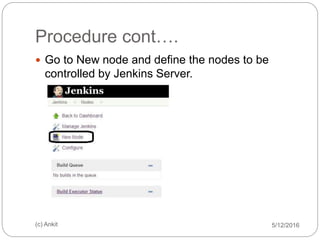

 Go to New node and define the nodes to be
controlled by Jenkins Server.
Procedure cont.
5/12/2016(c) Ankit

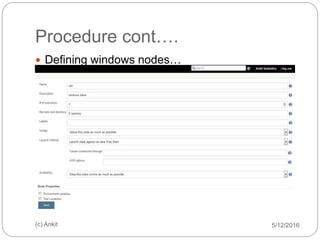

 Defining windows nodes
Procedure cont.
5/12/2016(c) Ankit

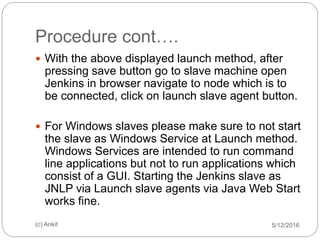

 With the above displayed launch method, after
pressing save button go to slave machine open
Jenkins in browser navigate to node which is to
be connected, click on launch slave agent button.
 For Windows slaves please make sure to not start
the slave as Windows Service at Launch method.
Windows Services are intended to run command
line applications but not to run applications which
consist of a GUI. Starting the Jenkins slave as
JNLP via Launch slave agents via Java Web Start
works fine.
Procedure cont.
5/12/2016(c) Ankit

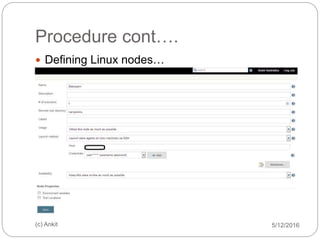

 Defining Linux nodes
Procedure cont.
5/12/2016(c) Ankit

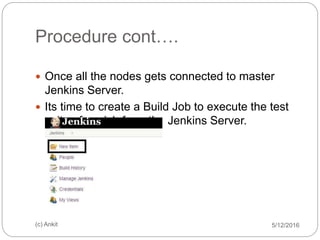

 Once all the nodes gets connected to master
Jenkins Server.
 Its time to create a Build Job to execute the test
suite of squish from the Jenkins Server.
Procedure cont.
5/12/2016(c) Ankit

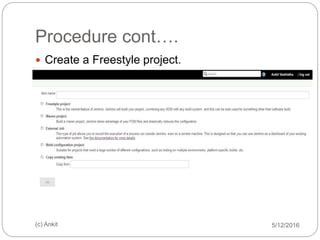

 Create a Freestyle project.
Procedure cont.
5/12/2016(c) Ankit

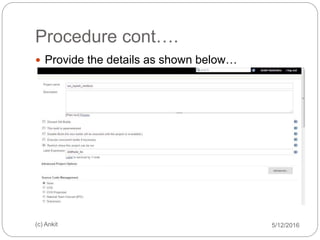

 Provide the details as shown below
Procedure cont.
5/12/2016(c) Ankit

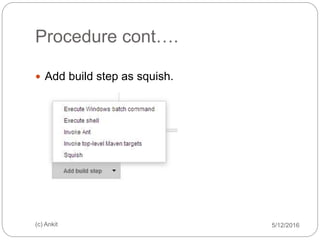

 Add build step as squish.
Procedure cont.
5/12/2016(c) Ankit

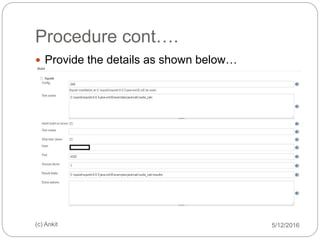

 Provide the details as shown below
Procedure cont.
5/12/2016(c) Ankit

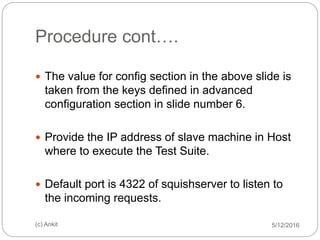

 The value for config section in the above slide is
taken from the keys defined in advanced
configuration section in slide number 6.
 Provide the IP address of slave machine in Host
where to execute the Test Suite.
 Default port is 4322 of squishserver to listen to
the incoming requests.
Procedure cont.
5/12/2016(c) Ankit

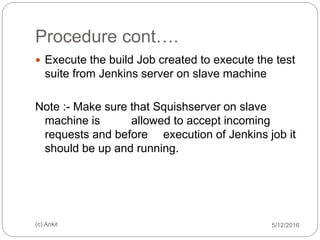

 Execute the build Job created to execute the test
suite from Jenkins server on slave machine
Note :- Make sure that Squishserver on slave
machine is allowed to accept incoming
requests and before execution of Jenkins job it
should be up and running.
Procedure cont.
5/12/2016(c) Ankit

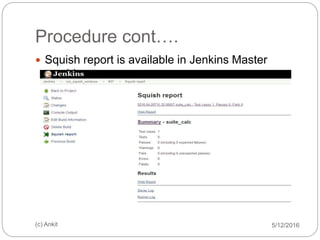

 Squish report is available in Jenkins Master
machine.
Procedure cont.
5/12/2016(c) Ankit

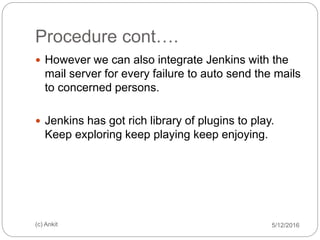

 However we can also integrate Jenkins with the
mail server for every failure to auto send the mails
to concerned persons.
 Jenkins has got rich library of plugins to play.
Keep exploring keep playing keep enjoying.
5/12/2016(c) Ankit

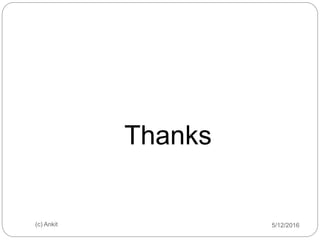

Thanks
