OSPF
Load Balancing
Sharif University of Technology
Department of Computer Engineering
Winter 2016
By: Arash Pourdamghani
Arash PourdamghaniWinter 2016

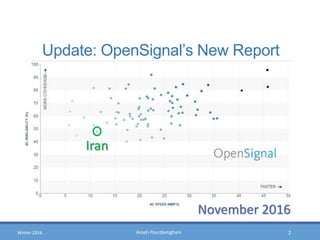

Update: OpenSignals New Report
2
November 2016
Iran
Arash PourdamghaniWinter 2016

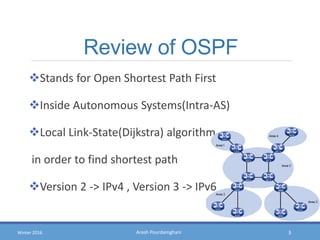

Review of OSPF
Stands for Open Shortest Path First
Inside Autonomous Systems(Intra-AS)
Local Link-State(Dijkstra) algorithm
in order to find shortest path
Version 2 -> IPv4 , Version 3 -> IPv6
3
Arash PourdamghaniWinter 2016

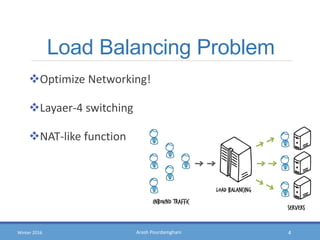

Load Balancing Problem
Optimize Networking!
Layaer-4 switching
NAT-like function
4
Arash PourdamghaniWinter 2016

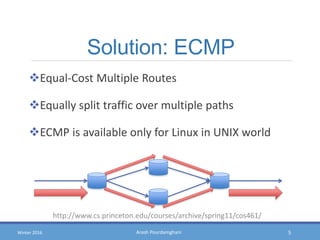

Solution: ECMP
Equal-Cost Multiple Routes
Equally split traffic over multiple paths
ECMP is available only for Linux in UNIX world
5
http://www.cs.princeton.edu/courses/archive/spring11/cos461/
Arash PourdamghaniWinter 2016
Benefits of ECMP
Load balancing
Improve bandwidth utilization
Mitigate congestion
6
Arash PourdamghaniWinter 2016

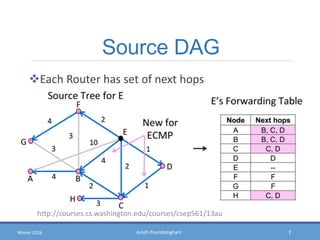

Source DAG
Each Router has set of next hops
7
http://courses.cs.washington.edu/courses/csep561/13au
Arash PourdamghaniWinter 2016

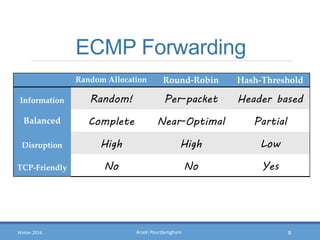

ECMP Forwarding
Random Allocation Round-Robin Hash-Threshold
Information Random! Per-packet Header based
Balanced Complete Near-Optimal Partial
Disruption High High Low
TCP-Friendly No No Yes
8
Arash PourdamghaniWinter 2016

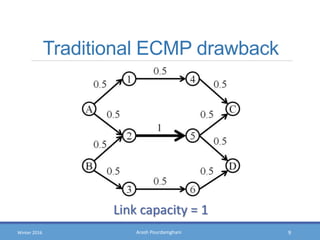

Traditional ECMP drawback
9
Link capacity = 1
Arash PourdamghaniWinter 2016

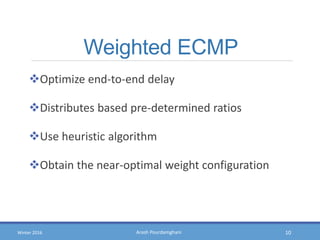

Weighted ECMP
Optimize end-to-end delay
Distributes based pre-determined ratios
Use heuristic algorithm
Obtain the near-optimal weight configuration
10
Arash PourdamghaniWinter 2016

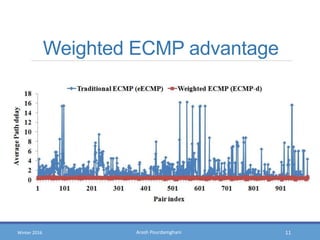

Weighted ECMP advantage
11
Arash PourdamghaniWinter 2016

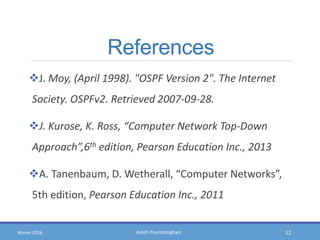

References
J. Moy, (April 1998). "OSPF Version 2". The Internet
Society. OSPFv2. Retrieved 2007-09-28.
J. Kurose, K. Ross, Computer Network Top-Down
Approach,6th edition, Pearson Education Inc., 2013
A. Tanenbaum, D. Wetherall, Computer Networks,
5th edition, Pearson Education Inc., 2011
12
Arash PourdamghaniWinter 2016

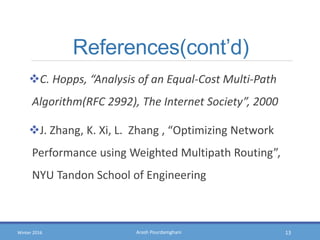

References(contd)
C. Hopps, Analysis of an Equal-Cost Multi-Path
Algorithm(RFC 2992), The Internet Society, 2000
J. Zhang, K. Xi, L. Zhang , Optimizing Network
Performance using Weighted Multipath Routing,
NYU Tandon School of Engineering
13
Arash PourdamghaniWinter 2016
Thank You
14
