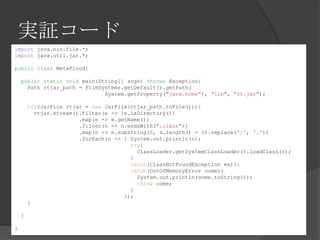

![実証コード
import java.nio.file.*;
import java.util.jar.*;
public class MetaFlood{
public static void main(String[] args) throws Exception{
Path rtjar_path = FileSystems.getDefault().getPath(
System.getProperty("java.home"), "lib", "rt.jar");
try(JarFile rtjar = new JarFile(rtjar_path.toFile())){
rtjar.stream().filter(e -> !e.isDirectory())
.map(e -> e.getName())
.filter(n -> n.endsWith(".class"))
.map(n -> n.substring(0, n.length() - 6).replace('/', '.'))
.forEach(n -> { System.out.println(n);
try{
ClassLoader.getSystemClassLoader().loadClass(n);
}
catch(ClassNotFoundException ex){}
catch(OutOfMemoryError oome){
System.out.println(oome.toString());
throw oome;
}
});
}
}
}](https://image.slidesharecdn.com/metaspace-140518094955-phpapp02/85/Metaspace-23-320.jpg)
![GCログの例
[Full GC (Metadata GC Threshold)
[PSYoungGen: 496K->0K(2560K)]
[ParOldGen: 388K->836K(6656K)] 884K->836K(9216K),
[Metaspace: 7292K->7292K(9216K)], 0.0123187 secs]
[Times: user=0.02 sys=0.00, real=0.01 secs]
[Full GC (Last ditch collection)
[PSYoungGen: 0K->0K(2560K)]
[ParOldGen: 836K->792K(6656K)] 836K->792K(9216K),
[Metaspace: 7292K->7292K(9216K)], 0.0134180 secs]
[Times: user=0.04 sys=0.00, real=0.02 secs]
※見やすく改行しています
Metaspaceが
足りなくて
GCが発生
GCしても
まだ足りないため
最後の悪あがき](https://image.slidesharecdn.com/metaspace-140518094955-phpapp02/85/Metaspace-29-320.jpg)

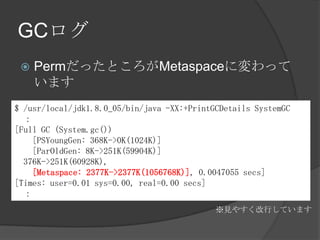

![GCログ
? PermだったところがMetaspaceに変わって
います
$ /usr/local/jdk1.8.0_05/bin/java -XX:+PrintGCDetails SystemGC
：
[Full GC (System.gc())
[PSYoungGen: 368K->0K(1024K)]
[ParOldGen: 8K->251K(59904K)]
376K->251K(60928K),
[Metaspace: 2377K->2377K(1056768K)], 0.0047055 secs]
[Times: user=0.01 sys=0.00, real=0.00 secs]
：
※見やすく改行しています](https://image.slidesharecdn.com/metaspace-140518094955-phpapp02/85/Metaspace-38-320.jpg)

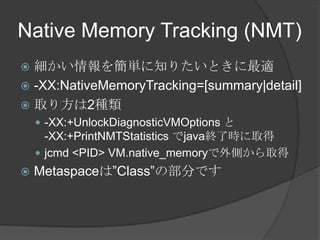

![Native Memory Tracking (NMT)
? 細かい情報を簡単に知りたいときに最適
? -XX:NativeMemoryTracking=[summary|detail]
? 取り方は2種類
? -XX:+UnlockDiagnosticVMOptions と
-XX:+PrintNMTStatistics でjava終了時に取得

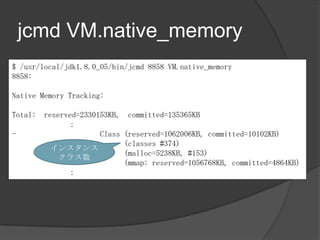

? jcmd <PID> VM.native_memoryで外側から取得

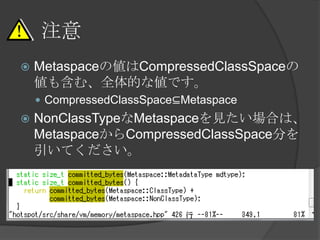

? Metaspaceは”Class”の部分です](https://image.slidesharecdn.com/metaspace-140518094955-phpapp02/85/Metaspace-39-320.jpg)
