Node cluster
- 1. 进程管理的利器 node-cluster 张轩丞（朋春） @我是aleafs

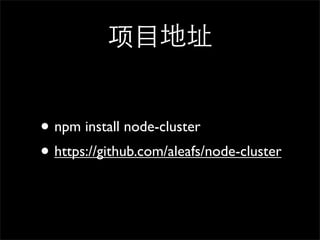

- 2. 项目地址 ? npm install node-cluster ? https://github.com/aleafs/node-cluster

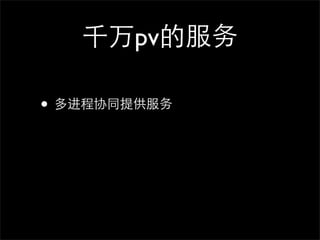

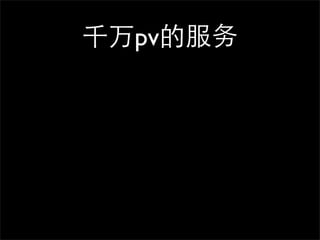

- 3. 千万辫惫的服务

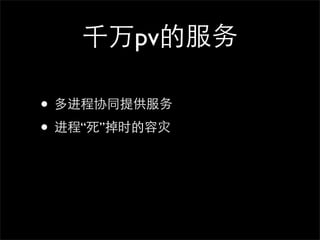

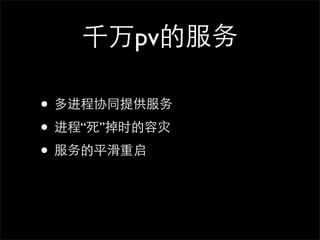

- 6. 千万辫惫的服务 ? 多进程协同提供服务 ? 进程“死”掉时的容灾 ? 服务的平滑重启

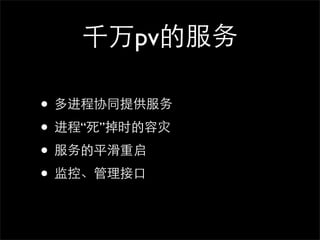

- 7. 千万辫惫的服务 ? 多进程协同提供服务 ? 进程“死”掉时的容灾 ? 服务的平滑重启 ? 监控、管理接口

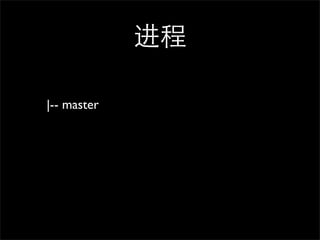

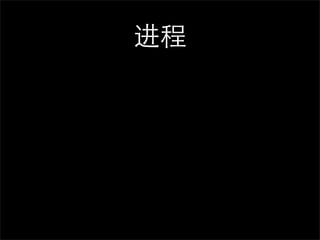

- 8. 进程

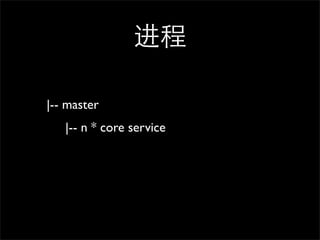

- 10. 进程 |-- master |-- n * core service

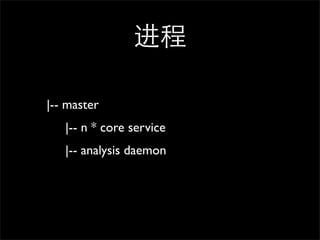

- 11. 进程 |-- master |-- n * core service |-- analysis daemon

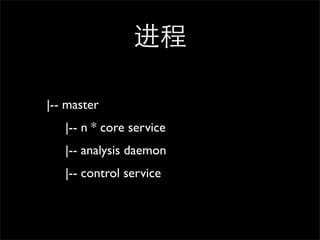

- 12. 进程 |-- master |-- n * core service |-- analysis daemon |-- control service

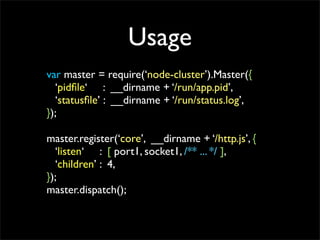

- 13. Usage var master = require(‘node-cluster’).Master({ ‘pid?le‘ : __dirname + ‘/run/app.pid’, ‘status?le’ : __dirname + ‘/run/status.log’, }); master.register(‘core’, __dirname + ‘/http.js’, { ‘listen‘ : [ port1, socket1, /** ... */ ], ‘children’ : 4, }); master.dispatch();

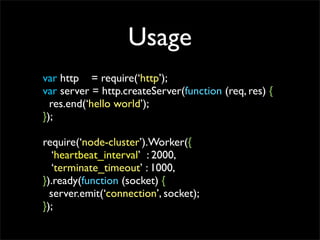

- 14. Usage var http = require(‘http’); var server = http.createServer(function (req, res) { res.end(‘hello world’); }); require(‘node-cluster’).Worker({ ‘heartbeat_interval’ : 2000, ‘terminate_timeout’ : 1000, }).ready(function (socket) { server.emit(‘connection’, socket); });

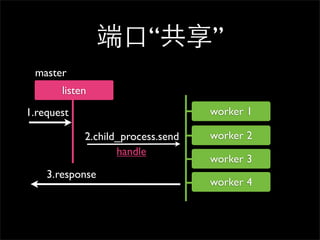

- 16. 端口“共享” master listen 1.request worker 1 2.child_process.send worker 2 handle worker 3 3.response worker 4

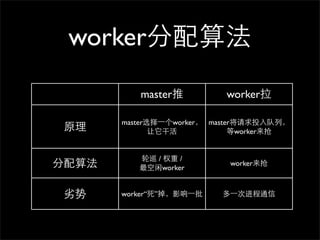

- 17. 飞辞谤办别谤分配算法 master推 worker拉 master选择?一个worker， master将请求投入队列， 原理 让它干活 等worker来抢 轮巡 / 权重 / 分配算法 最空闲worker worker来抢 劣势 worker“死”掉，影响?一批 多?一次进程通信
- 18. case MESSAGE.WAKEUP: if (STATUS.RUNNING === mstat.status) { _send(MESSAGE.GET_FD); } break; case MESSAGE.REQ_FD: mstat.scores++; _accept(handle, callback); if (STATUS.RUNNING === mstat.status && msg.data) { process.nextTick(function () { _send(MESSAGE.GET_FD); }); } break;

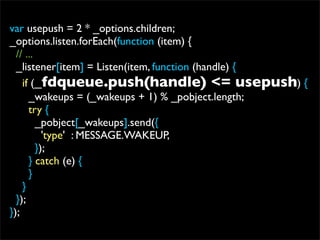

- 19. var usepush = 2 * _options.children; _options.listen.forEach(function (item) { // ... _listener[item] = Listen(item, function (handle) { if (_fdqueue.push(handle) <= usepush) { _wakeups = (_wakeups + 1) % _pobject.length; try { _pobject[_wakeups].send({ 'type' : MESSAGE.WAKEUP, }); } catch (e) { } } }); });

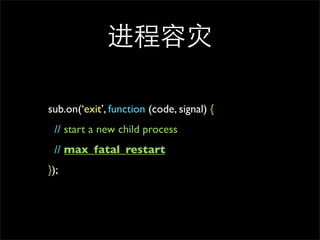

- 20. 进程容灾 sub.on(‘exit’, function (code, signal) { // start a new child process // max_fatal_restart });

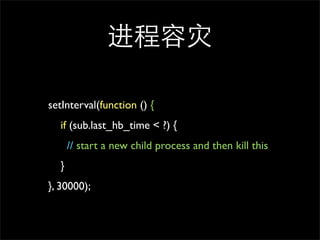

- 21. 进程容灾 setInterval(function () { if (sub.last_hb_time < ?) { // start a new child process and then kill this } }, 30000);

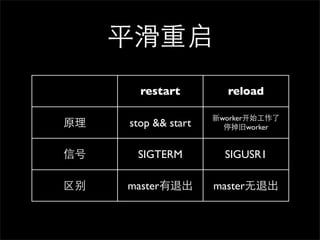

- 22. 平滑重启 restart reload 新worker开始工作了 原理 stop && start 停掉旧worker 信号 SIGTERM SIGUSR1 区别 master有退出 master无退出

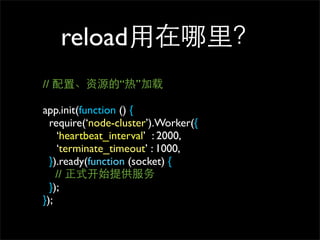

- 23. reload用在哪里？ // 配置、资源的“热”加载 app.init(function () { require(‘node-cluster’).Worker({ ‘heartbeat_interval’ : 2000, ‘terminate_timeout’ : 1000, }).ready(function (socket) { // 正式开始提供服务 }); });

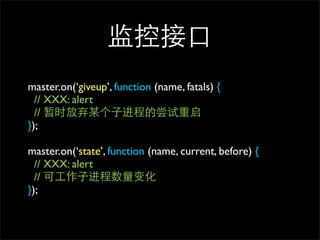

- 24. 监控接口 master.on(‘giveup’, function (name, fatals) { // XXX: alert // 暂时放弃某个子进程的尝试重启 }); master.on(‘state’, function (name, current, before) { // XXX: alert // 可工作子进程数量变化 });

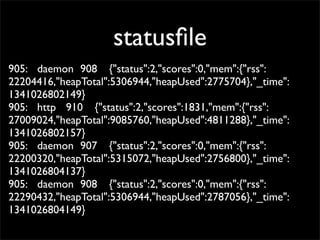

- 25. status?le 905: daemon 908 {"status":2,"scores":0,"mem":{"rss": 22204416,"heapTotal":5306944,"heapUsed":2775704},"_time": 1341026802149} 905: http 910 {"status":2,"scores":1831,"mem":{"rss": 27009024,"heapTotal":9085760,"heapUsed":4811288},"_time": 1341026802157} 905: daemon 907 {"status":2,"scores":0,"mem":{"rss": 22200320,"heapTotal":5315072,"heapUsed":2756800},"_time": 1341026804137} 905: daemon 908 {"status":2,"scores":0,"mem":{"rss": 22290432,"heapTotal":5306944,"heapUsed":2787056},"_time": 1341026804149}

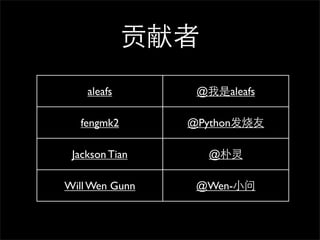

- 26. 贡献者 aleafs @我是aleafs fengmk2 @Python发烧友 Jackson Tian @朴灵 Will Wen Gunn @Wen-小问
