This document provides examples of using Byteman to intercept method calls and get additional information during application deployment. It demonstrates getting the hash code when deploying an application by intercepting the addContent method and outputting the repoRoot and messageDigest parameters. It also shows an example of intercepting the getContentInputStream method using an AFTER WRITE rule to output the input stream after it is set. Finally, it mentions the ability to intercept exceptions using AT CATCH rules.
![Find Related Source
Class : Method
org.jboss.as.repository.ContentRepository (Interface)
public byte[] addContent(InputStream in) throws IOException](https://image.slidesharecdn.com/practicalbytemansample20131128-131127202926-phpapp02/85/Practical-byteman-sample-20131128-5-320.jpg)
Practical byteman sample 20131128
- 1. Practical Byteman Sample Jooho Lee(Jay) JBoss Technical Engineer

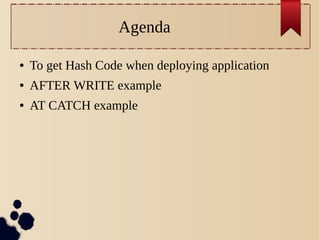

- 2. Agenda To get Hash Code when deploying application AFTER WRITE example AT CATCH example

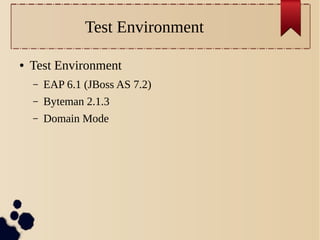

- 3. Test Environment Test Environment EAP 6.1 (JBoss AS 7.2) Byteman 2.1.3 Domain Mode

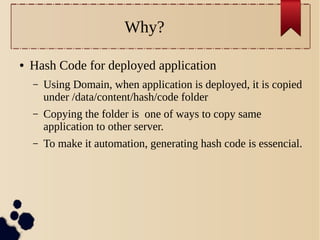

- 4. Why? Hash Code for deployed application Using Domain, when application is deployed, it is copied under /data/content/hash/code folder Copying the folder is one of ways to copy same application to other server. To make it automation, generating hash code is essencial.

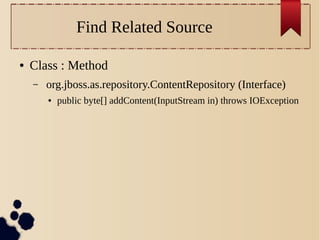

- 5. Find Related Source Class : Method org.jboss.as.repository.ContentRepository (Interface) public byte[] addContent(InputStream in) throws IOException

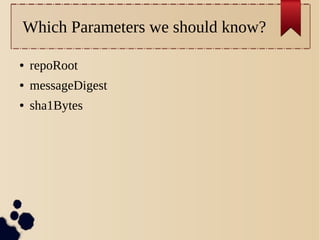

- 6. Which Parameters we should know? repoRoot messageDigest sha1Bytes

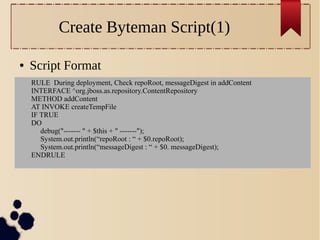

- 7. Create Byteman Script(1) Script Format RULE During deployment, Check repoRoot, messageDigest in addContent INTERFACE ^org.jboss.as.repository.ContentRepository METHOD addContent AT INVOKE createTempFile IF TRUE DO debug("------- " + $this + " -------"); System.out.println(repoRoot : + $0.repoRoot); System.out.println(messageDigest : + $0. messageDigest); ENDRULE

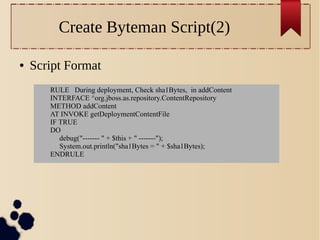

- 8. Create Byteman Script(2) Script Format RULE During deployment, Check sha1Bytes, in addContent INTERFACE ^org.jboss.as.repository.ContentRepository METHOD addContent AT INVOKE getDeploymentContentFile IF TRUE DO debug("------- " + $this + " -------"); System.out.println("sha1Bytes = " + $sha1Bytes); ENDRULE

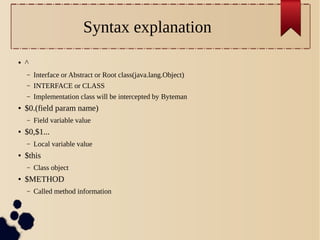

- 9. Syntax explanation ^ INTERFACE or CLASS Interface or Abstract or Root class(java.lang.Object) Implementation class will be intercepted by Byteman $0.(field param name) $0,$1... Local variable value $this Field variable value Class object $METHOD Called method information

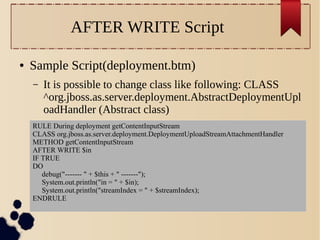

- 10. AFTER WRITE Script Sample Script(deployment.btm) It is possible to change class like following: CLASS ^org.jboss.as.server.deployment.AbstractDeploymentUpl oadHandler (Abstract class) RULE During deployment getContentInputStream CLASS org.jboss.as.server.deployment.DeploymentUploadStreamAttachmentHandler METHOD getContentInputStream AFTER WRITE $in IF TRUE DO debug("------- " + $this + " -------"); System.out.println("in = " + $in); System.out.println("streamIndex = " + $streamIndex); ENDRULE

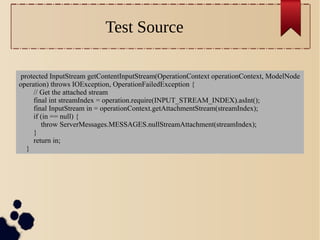

- 11. Test Source protected InputStream getContentInputStream(OperationContext operationContext, ModelNode operation) throws IOException, OperationFailedException { // Get the attached stream final int streamIndex = operation.require(INPUT_STREAM_INDEX).asInt(); final InputStream in = operationContext.getAttachmentStream(streamIndex); if (in == null) { throw ServerMessages.MESSAGES.nullStreamAttachment(streamIndex); } return in; }

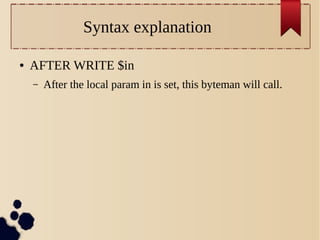

- 12. Syntax explanation AFTER WRITE $in After the local param in is set, this byteman will call.

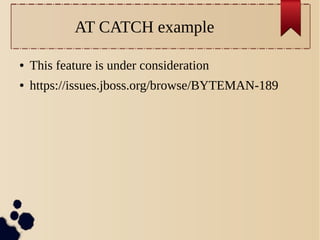

- 13. AT CATCH example This feature is under consideration https://issues.jboss.org/browse/BYTEMAN-189

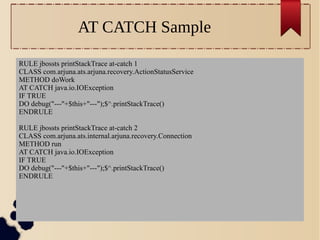

- 14. AT CATCH Sample RULE jbossts printStackTrace at-catch 1 CLASS com.arjuna.ats.arjuna.recovery.ActionStatusService METHOD doWork AT CATCH java.io.IOException IF TRUE DO debug("---"+$this+"---");$^.printStackTrace() ENDRULE RULE jbossts printStackTrace at-catch 2 CLASS com.arjuna.ats.internal.arjuna.recovery.Connection METHOD run AT CATCH java.io.IOException IF TRUE DO debug("---"+$this+"---");$^.printStackTrace() ENDRULE
