PROCESS BOOK MICHELLE MARSHALL QUALIFYING DESIGN STUDIO INT 602-03 / SP 16
TABLE OF CONTENTS P1: INGEGRATED HEALTH CENTER P2: NOGUCHI ANNEX

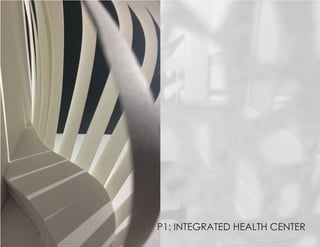

P1: INTEGRATED HEALTH CENTER

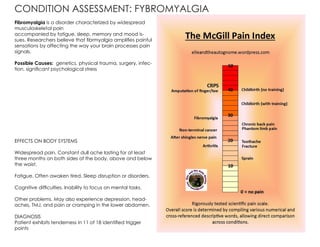

Fibromyalgia is a disorder characterized by widespread musculoskeletal pain accompanied by fatigue, sleep, memory and mood is- sues. Researchers believe that fibrmyalgia amplifies painful sensations by affecting the way your brain processes pain signals. Possible Causes: genetics, physical trauma, surgery, infec- tion, significant psychological stress *Women are much more likely to develop fibromyalgia than are men. EFFECTS ON BODY SYSTEMS Widespread pain. Constant dull ache lasting for at least three months on both sides of the body, above and below the waist. Fatigue. Often awaken tired. Sleep disruption or disorders. Cognitive difficulties. Inability to focus on mental tasks. Other problems. May also experience depression, head- aches, TMJ, and pain or cramping in the lower abdomen. DIAGNOSIS Patient exhibits tenderness in 11 of 18 identified trigger points CONDITION ASSESSMENT: FYBROMYALGIA

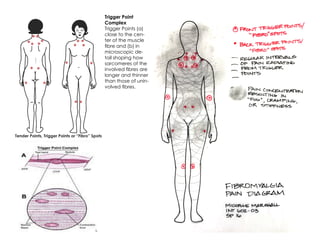

Trigger Point Complex Trigger Points (a) close to the cen- ter of the muscle fibre and (b) in microscopic de- tail shoping how sarcomeres of the involved fibres are longer and thinner than those of unin- volved fibres. Tender Points, Trigger Points or Fibro Spots

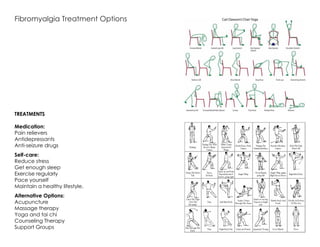

Fibromyalgia Treatment Options TREATMENTS Medication: Pain relievers Antidepressants Anti-seizure drugs Self-care: Reduce stress Get enough sleep Exercise regularly Pace yourself Maintain a healthy lifestyle. Alternative Options: Acupuncture Massage therapy Yoga and tai chi Counseling Therapy Support Groups

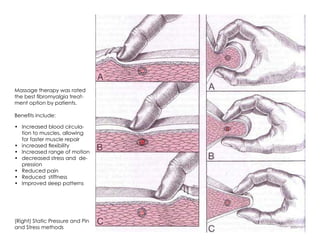

Massage therapy was rated the best fibromyalgia treat- ment option by patients. Benefits include: Increased blood circula- tion to muscles, allowing for faster muscle repair increased flexibility Increased range of motion decreased stress and de- pression Reduced pain Reduced stiffness Improved sleep patterns (Right) Static Pressure and Pin and Stress methods

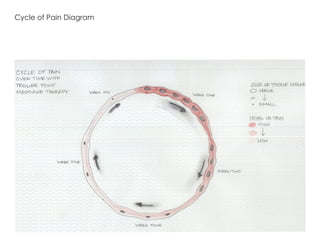

Cycle of Pain Diagram
Illustration of muscle fibers with trigger points Muscle strands represent timeline Trigger points represent pain specific to fibromyalgia Darkness to light (left to right) symbolizes coming out of the fog after treatment in various forms (e.g. yoga, meditation, support groups and massage therapy Collage

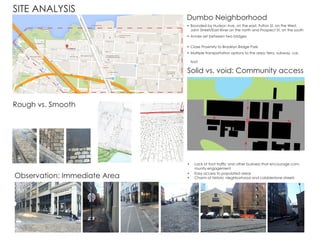

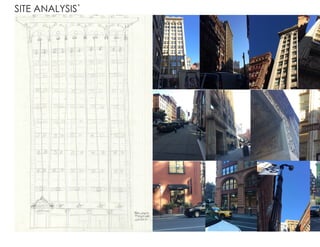

SITE ANALYSIS`

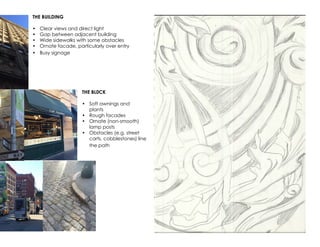

THE BUILDING Clear views and direct light Gap between adjacent building Wide sidewalks with some obstacles Ornate facade, particularly over entry Busy signage THE BL0CK Soft awnings and plants Rough facades Ornate (non-smooth) lamp posts Obstacles (e.g. street carts, cobblestones) line the path

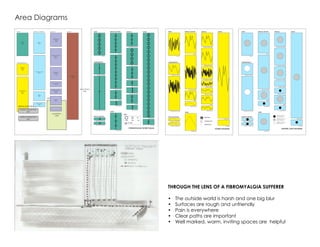

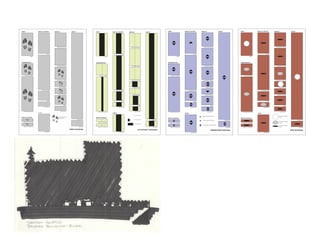

GROUP ADMINISTRATIVE ENTRY OTHER MEDICAL SUPPORT SERVICE/STORAGE MEDICAL AREA DIAGRAM Scale: 1/8 = 1-0 Lobby 200sf Directors Office 100sf Administrative Area 300sf Janitors Closet (UL) 25sf Medtation 150sf Linen Room 40sf Toilets 80sf Shower/Lockers 300 sf Sauna 180sf Examination Room 120sf Massage Therapy Room 150 sf Janitors Closet (LL) 25sf Practitioners Office 110sf Nurses Station 50sf Medical Supplies Storage 50sf Toilets 80sf Linen Room 40sf Yoga Room 750sf Storage 50sf GROUP ADMINISTRATIVE ENTRY OTHER MEDICAL SUPPORT SERVICE/STORAGE MEDICAL FYBROMYALGIA PATIENT USAGE Lobby Directors Office Administrative Area Janitors Closet (UL) Meditation Linen Room Toilets Shower/Lockers Sauna Examination Room Massage Therapy Janitors Closet (LL) Practitioners Office Nurses Station Medical Storage Toilets Linen Room Yoga Room Storage High - Med - Low No Usage KEY: GROUP ADMINISTRATIVE ENTRY OTHER MEDICAL SUPPORT SERVICE/STORAGE MEDICAL SOUND DIAGRAM Lobby Directors Office Administrative Area Janitors Closet (UL) Medtation Linen Room Toilets Shower/Lockers Sauna Examination Room Massage Therapy Janitors Closet (LL) Practitioners Office Nurses Station Medical Storage Toilets Linen Room Yoga Room Storage Bright Noise Moderate Noise Muffled Noise GROUP ADMINISTRATIVE ENTRY OTHER MEDICAL SUPPORT SERVICE/STORAGE MEDICAL NATURAL LIGHT DIAGRAM Lobby Directors Office Administrative Area Janitors Closet (UL) Medtation Linen Room Toilets Shower/Lockers Sauna Examination Room Massage Therapy Janitors Closet (LL) Practitioners Office Nurses Station Medical Storage Toilets Linen Room Yoga Room Storage Minimal Natural Light Required Maximum Natural LIght Required Moderate Natural Light Required THROUGH THE LENS OF A FIBROMYALGIA SUFFERER The outside world is harsh and one big blur Surfaces are rough and unfriendly Pain is everywhere Clear paths are important Well marked, warm, inviting spaces are helpful Area Diagrams
GROUP ADMINISTRATIVE ENTRY OTHER MEDICAL SUPPORT SERVICE/STORAGE MEDICAL VIEW DIAGRAM Lobby Directors Office Administrative Area Janitors Closet (UL) Medtation Linen Room Toilets Shower/Lockers Sauna Examination Room Massage Therapy Janitors Closet (LL) Practitioners Office Nurses Station Medical Storage Toilets Linen Room Yoga Room Storage Minimum Visibility in/out Moderate visibility in/out Maximum visibility in/out GROUP ADMINISTRATIVE ENTRY OTHER MEDICAL SUPPORT SERVICE/STORAGE MEDICAL TEMPERATURE DIAGRAM Lobby Directors Office Administrative Area Janitors Closet (UL) Medtation Linen Room Toilets Shower/Lockers Sauna Examination Room Massage Therapy Janitors Closet (LL) Practitioners Office Nurses Station Medical Storage Toilets Linen Room Yoga Room Storage tv u v v v v v v v v v v v v v v v v v t u Higher Temps Required Lower Temps Required Adjustable Temps Required GROUP ADMINISTRATIVE ENTRY OTHER MEDICAL SUPPORT SERVICE/STORAGE MEDICAL OCCUPANCY DIAGRAM Lobby Directors Office Administrative Area Janitors Closet (UL) Medtation Linen Room Toilets Shower/Lockers Sauna Examination Room Massage Therapy Janitors Closet (LL) Practitioners Office Nurses Station Medical Storage Toilets Linen Room Yoga Room Storage 1-2 Occupants 6+ Occupants 3-5 Occupants GROUP ADMINISTRATIVE ENTRY OTHER MEDICAL SUPPORT SERVICE/STORAGE MEDICAL DRESS DIAGRAM Lobby Directors Office Administrative Area Janitors Closet (UL) Medtation Linen Room Toilets Shower/Lockers Sauna Examination Room Massage Therapy Janitors Closet (LL) Practitioners Office Nurses Station Medical Storage Toilets Linen Room Yoga Room Storage Street Clothes & Shoes Worn

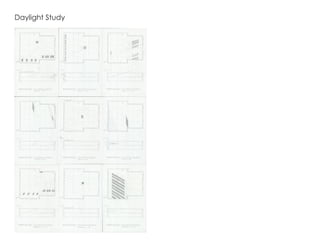

Daylight Study
PRECEDENTS FINAL JOINT MODEL Great Mosque Djenne, Mali Depression - Hope Masisa Lab Hotel Vitale by Colum McCartan of McCartan Design. Fog - Clarity Comfort/SoothEnvelope/Surround Tension - Calm

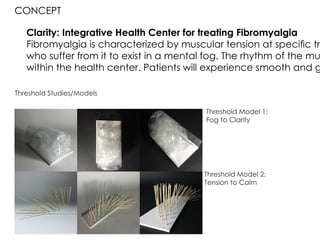

Clarity: Integrative Health Center for treating Fibromyalgia Fibromyalgia is characterized by muscular tension at specific tri who suffer from it to exist in a mental fog. The rhythm of the mu within the health center. Patients will experience smooth and g condition and the harshness of the exterior. CONCEPT Threshold Studies/Models Threshold Model 1: Fog to Clarity Threshold Model 2: Tension to Calm

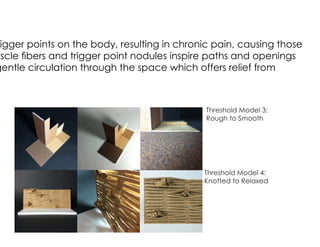

igger points on the body, resulting in chronic pain, causing those uscle fibers and trigger point nodules inspire paths and openings gentle circulation through the space which offers relief from their Threshold Model 3: Rough to Smooth Threshold Model 4: Knotted to Relaxed

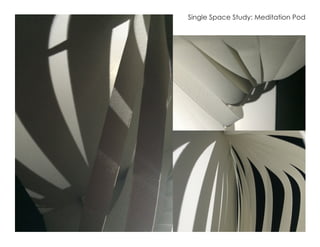

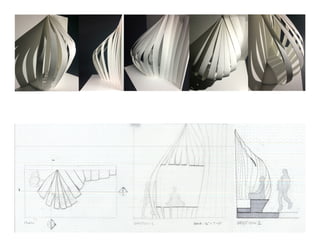

Single Space Study: Meditation Pod
Process Book SP16

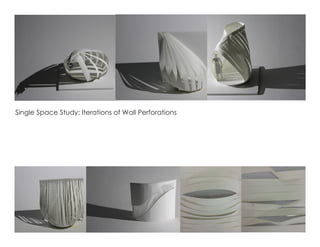

Single Space Study: Iterations of Wall Perforations

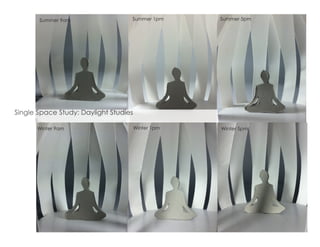

Summer 9am Summer 5pmSummer 1pm Winter 5pmWinter 1pmWinter 9am Single Space Study: Daylight Studies

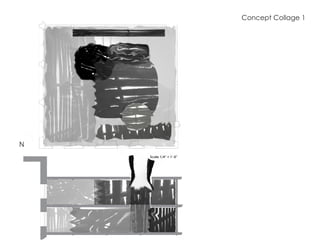

Concept Collage 1

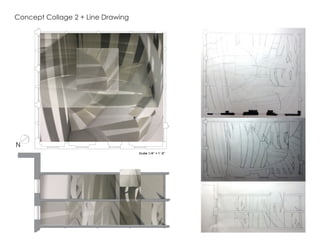

Scale 1/4 = 1-0 Scale 1/4 = 1-0 Concept Collage 2 + Line Drawing

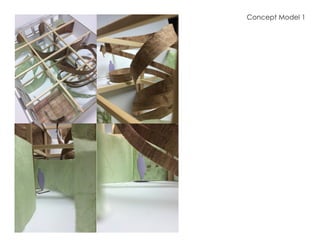

Concept Model 1

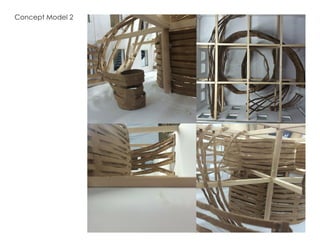

Concept Model 2

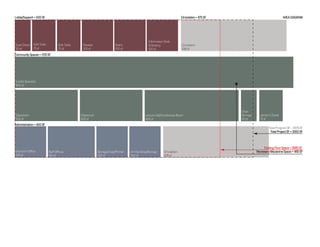

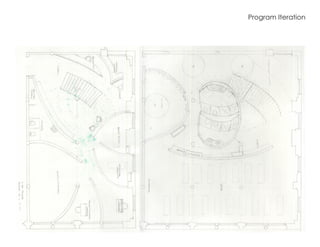

Program Iteration

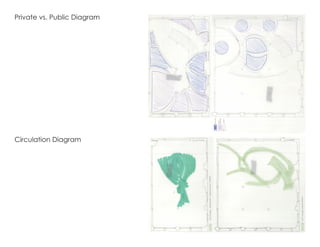

Private vs. Public Diagram Circulation Diagram

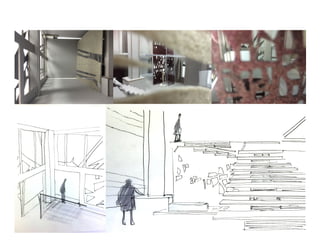

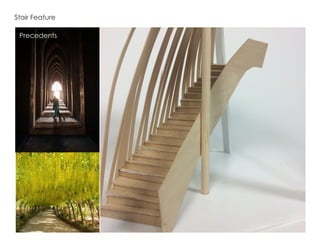

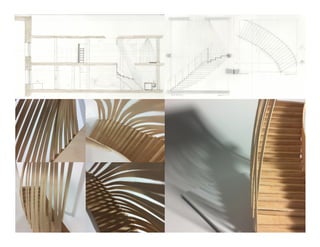

Stair Feature Precedents
Process Book SP16

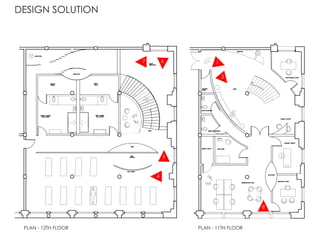

PLAN - 12TH FLOOR PLAN - 11TH FLOOR 1 8 7 6 5 4 2 DESIGN SOLUTION

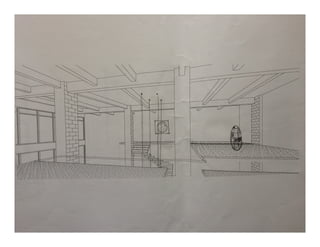

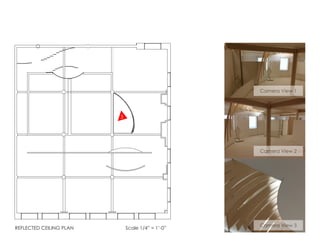

Scale 1/4 = 1-0REFLECTED CEILING PLAN Camera View 1 Camera View 2 Camera View 3 3

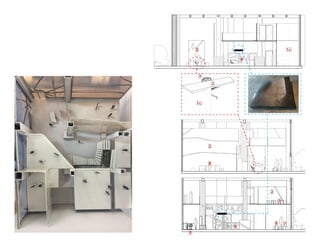

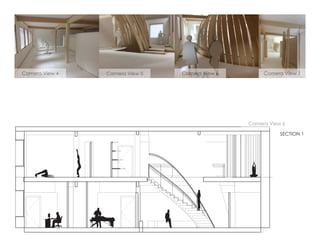

Camera View 4 Camera View 6Camera View 5 SECTION 1 Camera View 6 Camera View 7

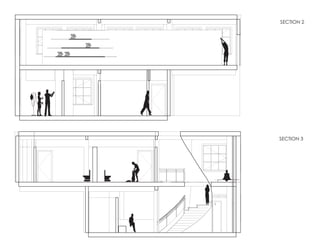

SECTION 2 SECTION 3

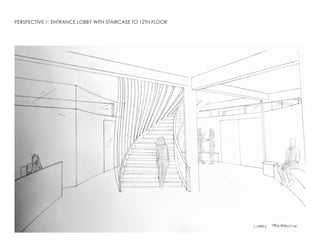

PERSPECTIVE 1: ENTRANCE LOBBY WITH STAIRCASE TO 12TH FLOOR

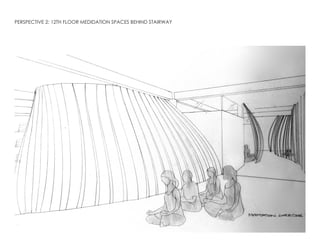

PERSPECTIVE 2: 12TH FLOOR MEDIDATION SPACES BEHIND STAIRWAY

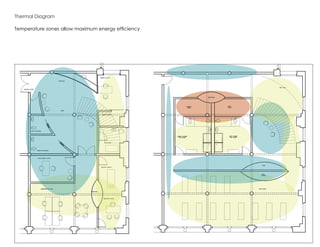

Temperature zones allow maximum energy efficiency Thermal Diagram

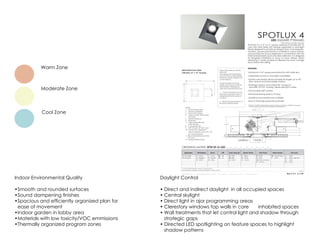

Indoor Environmental Quality Smooth and rounded surfaces Sound dampening finishes Spacious and efficiently organized plan for ease of movement Indoor garden in lobby area Materials with low toxicity/VOC emmissions Thermally organized program zones Warm Zone Cool Zone Moderate Zone Application LED Module Driver CRI Color Temp (K) Interior Finish Trim Finish Beam Spread Trim Lens A Adj. Angle X Xicato L Lutron 80 80 27 2700 B Black W White NF Narrow Flood S Solite D Downlight B Bridgelux E EldoLED 95 95 30 3000 W White B Black F Flood SL Solite / Light Etch O Other* O Other O Other* C Custom CA Clear Anodized C Clear C Custom N None * Contact NULUX directly to specify custom products Note: Retrofit kit available for existing installations. Contact factory. 8/18/2015 1717 TROUTMAN STREET RIDGEWOOD, NY 11385 P: 718.383.1112 F: 718.383.1118 www.NULUX.com NULUX SPOTLUX 4LED SQUARE PYRAMID FOR GYPSUM BAORD CEILINGS SPOTLUX 4 is a 4 by 4 square aperture incandescent Xi- cato XTM Artist Series LED Module adjustable or downlight fixture designed to provide an elegant form of recessed illu- mination. Square pyramid trim is available in various finishes, and provides low source brightness in combination with the internal lampholder snoot and clear solite lens. It is designed for flangeless installation in wood or stone ceilings. Rapid relamping is made possible by flipping the lamp carriage down below the ceiling. FEATURES: Aluminum 4x4 square pyramidal trim with Solite lens Adjustable accent or downlight capabilities Spotlux mechanism allows lockable tilt angles up to 45属 from vertical and full lockable rotation. Wattage Options: Max 50W-8x8 housing or Max 65W-10x10 housing. Please specify in matrix. Full lockable 360属 rotation Individual lensing options at lamp Additional accessories are available Non-IC thermally protected luminaire NOTES: 1. 20 GA steel housing 2. Aluminum Heatsink 3. Xicato XTM module 4. Lutron Hi-LUME 1% Dimming LED Driver 5. Thermal protector 6. Driver box 7. Clear lampholder lens Solite trim lens 8. 4 pyramidal trim 9. 5/8 GB and 1/8 skim coat 10. Advise which degree for interchangeable optics (19属, 45属, 65属, beam spreads) 11. Black interior finish and white trim finish 12. Locking rotation knobs ORDERING MATRIX: SPT4-SP-G-LED- SPOTLUX 4 is NRTL (Nationally Recognized Testing Laboratory) certified for purposes of OSHA safety standards product-approval requirements. REFLECTED PLAN VIEW: 65W Max 10 x 10 Housing Nuluxs LED products use the latest LED technology from the leading manufacturers of light engines, electronic power supplies and control devices. The technology is evolving rapidly and to ensure that the latest product offerings are used we recommend that you: 1. Contact the factory for the latest documentation when in design/specification phase of a project. 2. Review the specifications at the time of bid/purchase - - - - - - -- 1-5 3/16 10 X 10 SQ. 4 3/4 3/4 NOM. 4 1/8 2 7/16 aperture 11 12 1 2 3 4 5 6 7 8 9 11 1-5 3/16 10 Daylight Control Direct and indirect daylight in all occupied spaces Central skylight Direct light in ajor programming areas Clerestory windows top walls in core inhabited spaces Wall treatments that let control light and shadow through strategic gaps Directed LED spotlighting on feature spaces to highlight shadow patterns

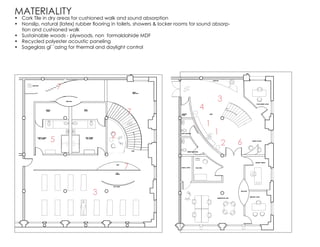

Cork Tile in dry areas for cushioned walk and sound absorption Nonslip, natural (latex) rubber flooring in toilets, showers & locker rooms for sound absorp- tion and cushioned walk Sustainable woods - plywoods, non formaldahide MDF Recycled polyester acoustic paneling Sageglass gl``azing for thermal and daylight control MATERIALITY 1 2 3 4 1 2 7 5 6 3 7 7

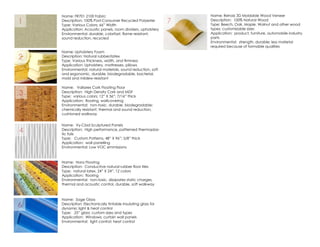

Name: FR701 2100 Fabric Description: 100% Post-Consumer Recycled Polyester Type: Various Colors; 66 Width Application: Acoustic panels, room dividers, upholstery Environmental: durable, colorfast, flame resistant, sound reduction, recycled Name: Reholz 3D Moldable Wood Veneer Description: 100% Natural Wood Type: Beech, Oak, Maple, Walnut and other wood types; customizable sizes Application: product, furniture, automobile industry parts Environmental: strength, durable; less material required because of formable qualities Name: Sage Glass Description: Electronically tintable insulating glass for dynamic light & heat control Type: .25 glass; custom sizes and types Application: Windows; curtain wall panels Environmental: light control; heat control Name: Nora Flooring Description: Conductive natural rubber floor tiles Type: natural latex, 24 X 24, 12 colors Application: flooring Environmental: non-toxic, dissipates static charges, thermal and acoustic control, durable, soft walkway Name: Vy-Clad Sculptured Panels Description: High performance, patterned thermoplas- tic foils Type: Custom Patterns, 48 X 96; 5/8 thick Application: wall panelling Environmental: Low VOC emmissions Name: Vallarex Cork Floating Floor Description: High Density Cork and MDF Type: various colors; 12 X 36; 7/16 thick Application: flooring, wallcovering Environmental: non-toxic, durable, biodegradable; chemically resistant, thermal and sound reduction, cushioned walkway Name: Upholstery Foam Description: Natural rubber/latex Type: Various thickness, width, and firmness Application: Upholstery, mattresses, pillows Environmental: natural materials, sound reduction, soft and ergonomic, durable, biodegradable, bacterial, mold and mildew resistant 1 7 6 5 4 3 2
Process Book SP16
P2: NOGUCHI MUSEUM ANNEX
Dumbo Neighborhood Bounded by Hudson Ave. on the east, Fulton St. on the West, John Street/East River on the north and Prospect St, on the south Annex set between two bridges Close Proximity to Brooklyn Bridge Park Multiple transportation options to the area: ferry, subway, car, foot Solid vs. void: Community access Observation: Immediate Area Rough vs. Smooth Lack of foot traffic and other business that encourage com- munity engagement Easy access to populated areas Charm of historic nieghborhood and cobblestone streets SITE ANALYSIS

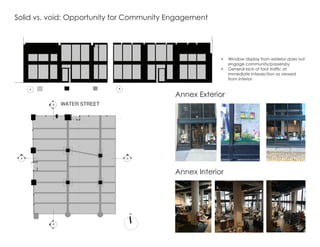

Solid vs. void: Opportunity for Community Engagement Annex Interior Window display from exterior does not engage community/passersby General lack of foot traffic at immediate intersection as viewed from interior Annex Exterior

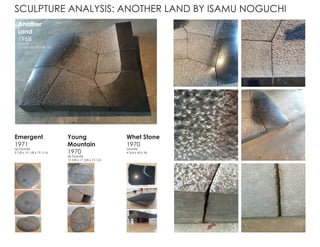

Another Land 1968 Granite 10 1/8 x 50 7/8 x 49 1/2 Emergent 1971 Aji Granite 5 7/8 x 19 1/8 x 19 1/16 Young Mountain 1970 Aji Granite 13 3/8 x 17 5/8 x 13 1/4 Whet Stone 1970 Granite 4 3/4 x 43 x 34 SCULPTURE ANALYSIS: ANOTHER LAND BY ISAMU NOGUCHI

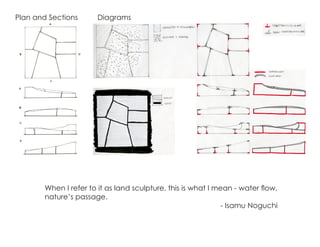

Plan and Sections Diagrams When I refer to it as land sculpture, this is what I mean - water flow, natures passage. - Isamu Noguchi

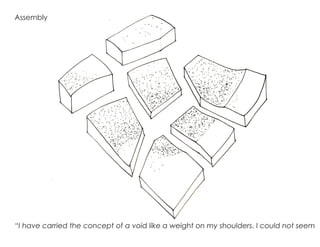

Assembly I have carried the concept of a void like a weight on my shoulders. I could not seem

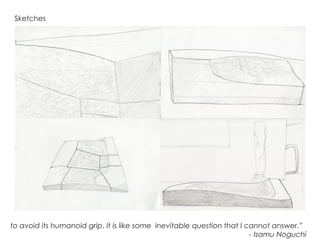

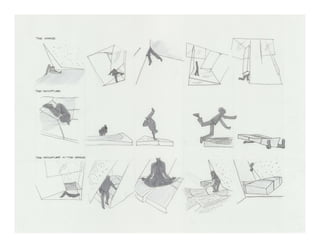

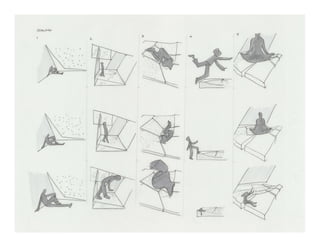

Sketches to avoid its humanoid grip. It is like some inevitable question that I cannot answer. - Isamu Noguchi
Process Book SP16
Process Book SP16

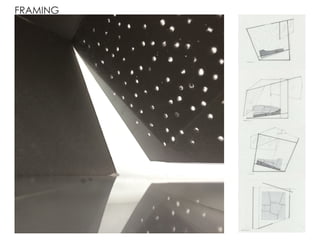

FRAMING

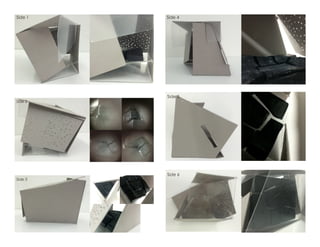

Side 1 Side 6 Side 5 Side 4 Side 3 Side 2

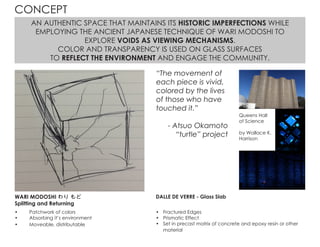

DALLE DE VERRE - Glass Slab Fractured Edges Prismatic Effect Set in precast matrix of concrete and epoxy resin or other material Queens Hall of Science by Wallace K. Harrison WARI MODOSHI Splitting and Returning CONCEPT Patchwork of colors Absorbing its environment Moveable, distributable AN AUTHENTIC SPACE THAT MAINTAINS ITS HISTORIC IMPERFECTIONS WHILE EMPLOYING THE ANCIENT JAPANESE TECHNIQUE OF WARI MODOSHI TO EXPLORE VOIDS AS VIEWING MECHANISMS. COLOR AND TRANSPARENCY IS USED ON GLASS SURFACES TO REFLECT THE ENVIRONMENT AND ENGAGE THE COMMUNITY. The movement of each piece is vivid, colored by the lives of those who have touched it. - Atsuo Okamoto turtle project

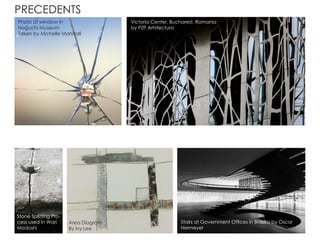

Victoria Center, Bucharest, Romania by PZP Arhitectura Photo of window in Noguchi Museum Taken by Michelle Marshall Stone Splitting Pro- cess used in Wari Modoshi Area Diagram By Ivy Lee Stairs at Government Offices in Brasilia by Oscar Neimeyer PRECEDENTS

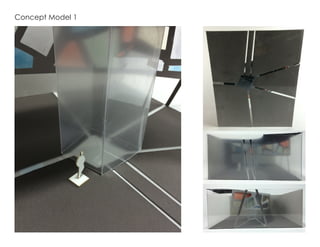

Concept Model 1

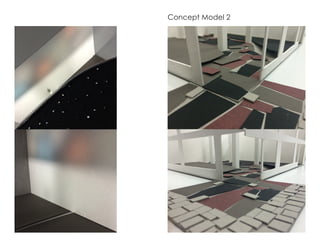

Concept Model 2

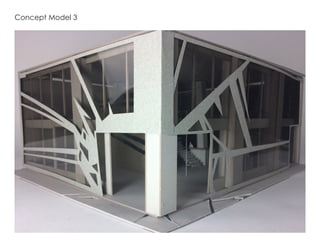

Concept Model 3
Process Book SP16

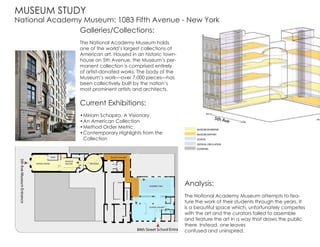

National Academy Museum: 1083 Fifth Avenue - New York Galleries/Collections: The National Academy Museum holds one of the worlds largest collections of American art. Housed in an historic town- house on 5th Avenue, the Museums per- manent collection is comprised entirely of artist-donated works. The body of the Museums workover 7,000 pieceshas been collectively built by the nations most prominent artists and architects. Current Exhibitions: Miriam Schapiro, A Visionary An American Collection Method Order Metric Contemporary Highlights from the Collection Analysis: The National Academy Museum attempts to fea- ture the work of their students through the years. It is a beautiful space which, unfortunately competes with the art and the curators failed to assemble and feature the art in a way that draws the public there. Instead, one leaves confused and uninspired. MUSEUM STUDY

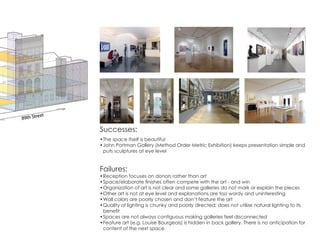

Failures: Reception focuses on donors rather than art Space/elaborate finishes often compete with the art - and win Organization of art is not clear and some galleries do not mark or explain the pieces Other art is not at eye level and explanations are too wordy and uninteresting Wall colors are poorly chosen and dont feature the art Quality of lighting is chunky and poorly directed; does not utilize natural lighting to its benefit Spaces are not always contiguous making galleries feel disconnected Feature art (e.g. Louise Bourgeois) is hidden in back gallery. There is no anticipation for content of the next space Successes: The space itself is beautiful John Portman Gallery (Method Order Metric Exhibition) keeps presentation simple and puts sculptures at eye level

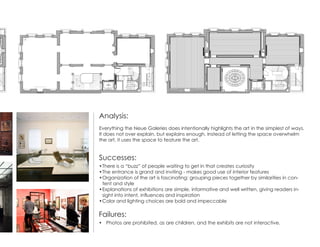

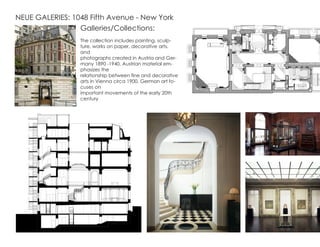

NEUE GALERIES: 1048 Fifth Avenue - New York Galleries/Collections: The collection includes painting, sculp- ture, works on paper, decorative arts, and photographs created in Austria and Ger- many 1890 -1940. Austrian material em- phasizes the relationship between fine and decorative arts in Vienna circa 1900. German art fo- cuses on important movements of the early 20th century
Failures: Photos are prohibited, as are children, and the exhibits are not interactive. Successes: There is a buzz of people waiting to get in that creates curiosity The entrance is grand and inviting - makes good use of interior features Organization of the art is fascinating; grouping pieces together by similarities in con- tent and style Explanations of exhibitions are simple, informative and well written, giving readers in- sight into intent, influences and inspiration Color and lighting choices are bold and impeccable Analysis: Everything the Neue Galeries does intentionally highlights the art in the simplest of ways. It does not over explain, but explains enough. Instead of letting the space overwhelm the art, it uses the space to feature the art.

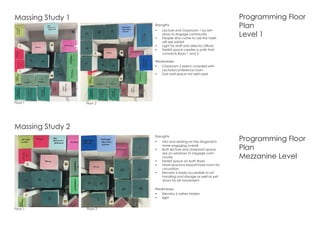

Floor 1 Floor 2 Strengths Weaknesses Lecture and Classroom 1 by win- dows to engage community People who come to use the toilet will see exhibit Light for staff and director offices Exhibit space creates a path that connects floors 1 and 2 Classroom 2 seems crowded with Lecture/conference room East wall space not well used Info and seating on the diagonal is more engaging overall Both lecture and classroom space are on windows to inegage com- munity Exhibit space on both floors More spacious layout/more room for circulation Elevator is easily accessible to art handling and storage as well as exit doors for art movement Elevator is rather hidden light Massing Study 1 Massing Study 2 Programming Floor Plan Level 1 Programming Floor Plan Mezzanine Level Floor 1 Floor 2 Strengths Weaknesses

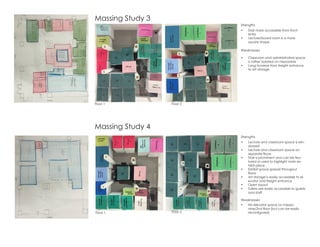

Stair more accessible from front entry Lecture/board room is a more square shape Classroom and administrative space is rather isolated on mezzanine Long traverse from freight entrance to art storage Massing Study 4 Lecture and classroom space is win- dowed Lecture and classroom space on separate floors Stair is prominent and can be fea- tured or used to highlight main ex- hibit piece Exhibit space spread througout floors Art storage is easily accessible to el- evator and freight entrance Open layout Toilets are easily accessible to guests and staff No elevator space on mezza- nine/2nd floor (but can be easily reconfigured) Massing Study 3 Strengths Weaknesses Floor 1 Floor 2 Floor 1 Floor 2 Strengths Weaknesses

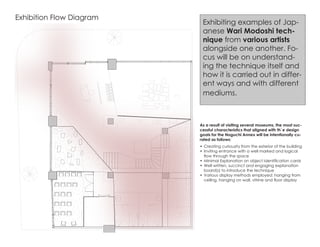

Exhibiting examples of Jap- anese Wari Modoshi tech- nique from various artists alongside one another. Fo- cus will be on understand- ing the technique itself and how it is carried out in differ- ent ways and with different mediums. As a result of visiting several museums, the most suc- cessful characteristics that aligned with th`e design goals for the Noguchi Annex will be intentionally cu- rated as follows: Creating curiousity from the exterior of the building Inviting entrance with a well marked and logical flow through the space Minimal Explanation on object identification cards Well written, succinct and engaging explanation board(s) to introduce the technique Various display methods employed: hanging from ceiling, hanging on wall, vitrine and floor display Exhibition Flow Diagram
Another Land Isamu Noguchi 1968 Granite 10 1/8 x 50 7/8 x 49 1/2 Untitled Unknown Ceramics Museum Ceramic Approx. 48 x 48 Turtle Atsuo Okamoto 2001-2003 Granite 24 x 16 x 48(h) Tea Bowl Dosai or Doraku 19th C. Raku Clay Black Glaze, Gold Lacquer 5 1/4 x 4 3/4 in Floorplan -Exhibit Area Scale 1/2 = 1 - 0

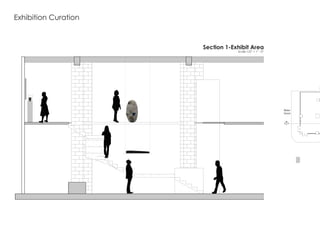

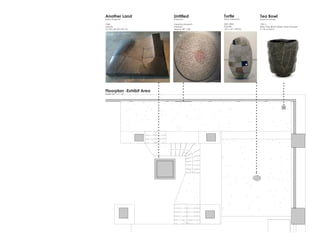

Section 1-Exhibit Area Scale 1/2 = 1 - 0 2 Water Street M S Exhibition Curation

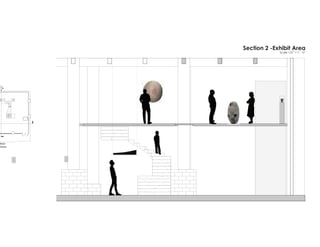

Section 2 -Exhibit Area Scale 1/2 = 1 - 0 1 Main Street

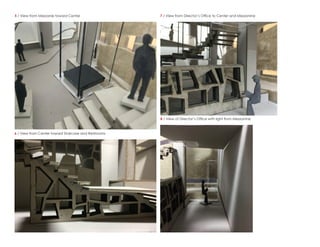

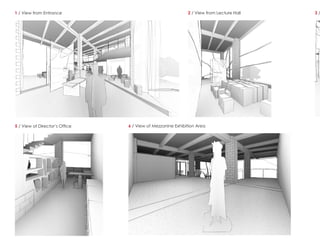

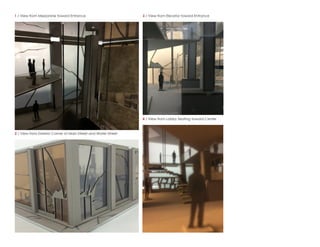

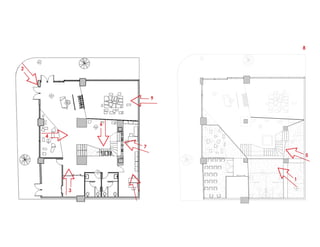

1 / View from Entrance 2 / View from Lecture Hall 3 / 5 / View of Directors Office 6 / View of Mezzanine Exhibition Area

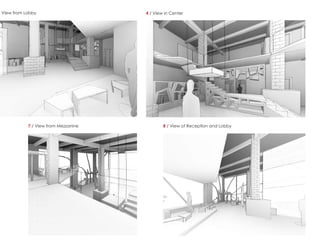

/ View from Lobby 4 / View in Center 7 / View from Mezzanine 8 / View of Reception and Lobby
Process Book SP16
Process Book SP16

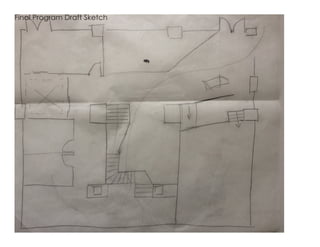

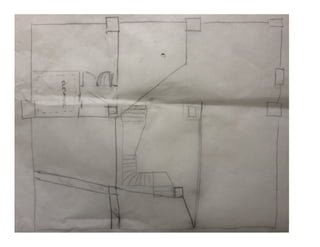

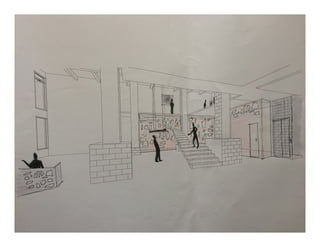

Final Program Draft Sketch
Process Book SP16

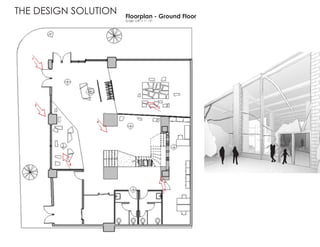

Floorplan - Ground Floor Scale 1/4 = 1 - 0 8 1 2 3 5 4 THE DESIGN SOLUTION

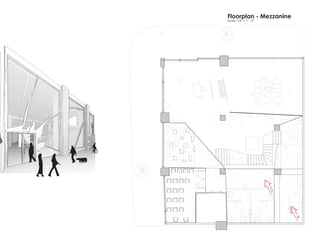

Floorplan - Mezzanine Scale 1/4 = 1 - 0 7 6

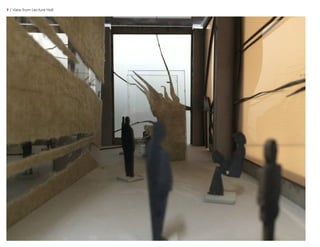

9 / View from Lecture Hall
1 2 3 4 5 6 8 7 9
1 / View from Mezzanine toward Entrance 2 / View from Exterior Corner of Main Street and Water Street 3 / View from Elevator toward Entrance 4 / View from Lobby Seating toward Center
5 / View from Mezzanie toward Center 6 / View from Center toward Staircase and Restrooms 7 / View from Directors Office to Center and Mezzanine 8 / View of Directors Office with light from Mezzanine

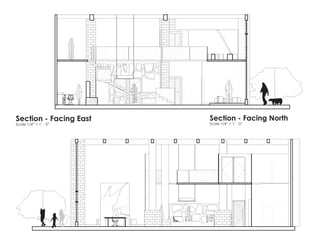

Section - Facing North Scale 1/4 = 1 - 0 Section - Facing East Scale 1/4 = 1 - 0

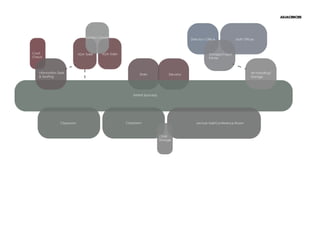

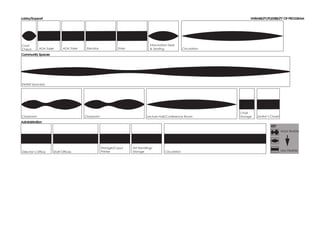

Lobby/Support Community Spaces Administration KEY More flexible Less Flexible Chair Storage Coat Check Circulation Information Desk & SeatingStairsElevator Art Handling/ Storage Storage/Copy/ PrinterStaff OfficesDirectors Office Lecture Hall/Conference RoomClassroomClassroom Exhibit Space(s) Circulation ADA Toilet ADA Toilet Janitors Closet
Circulation 338 sf Coat Check 50 sf ADA Toilet 75 sf Information Desk & Seating 100 sf Stairs 100 sf Elevator 100 sf ADA Toilet 75 sf Art Handling/Storage 100 sf Storage/Copy/Printer 100 sf Sta鍖 O鍖ces 150 sf Directors O鍖ce 100 sf Janitors Closet 75 sf Chair Storage 50 sf Lecture Hall/Conference Room 300 sf Classroom 200 sf Classroom 200 sf Exhibit Space(s) 900 sf Total Program SF = 2675 SF Total Project SF = 3350 SF Existing Floor Space = 2885 SF Necessary Mezzanine Space = 465 SF Lobby/Support = 500 SF Community Spaces = 1725 SF Administration = 400 SF Circulation 338 sf AREA DIAGRAMCirclulation = 675 SF
Coat Check ADA Toilet Information Desk & Seating Stairs Elevator ADA Toilet Art Handling/ Storage Storage/Copy/ Printer Staff OfficesDirectors Office Janitors Closet Chair Storage Lecture Hall/Conference RoomClassroomClassroom Exhibit Space(s) ADJACENCIES

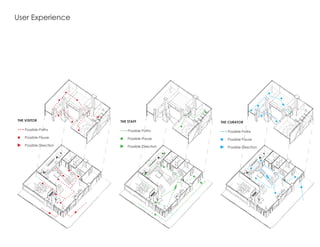

THE VISITOR Possible Paths Possible Pause THE STAFF THE CURATOR Possible Direction Possible Paths Possible Pause Possible Direction Possible Paths Possible Pause Possible Direction User Experience

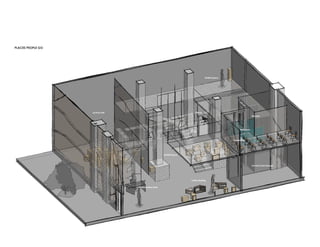

PLACES PEOPLE GO Lecture Hall Information Desk Lobby Seating Art and Chair Storage Exhibit Space Classrooms Offices Restrooms Elevator Exhibit Space

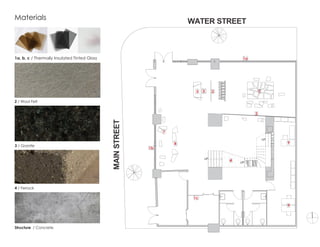

1a, b, c / Thermally Insulated Tinted Glass UP UP UP N WATER STREET MAINSTREET 2 / Wool Felt 3 / Granite 4 / Ferrock 1a 4 2 1b 2 5 7 9 98 3 1c 7 Structure / Concrete Materials

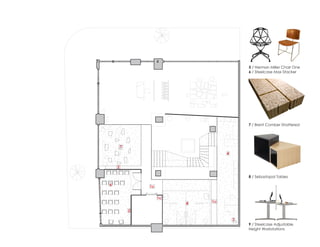

7 / Brent Comber Shattered 5 / Herman Miller Chair One 6 / Steelcase Max Stacker 8 / Sebastopol Tables 9 / Steelcase Adjustable Height Workstations 6 2 2 7 7 4 4 1c 1c 1c
3 5 1c 5 4 8 7 2 78 2 2 4 1c
fin

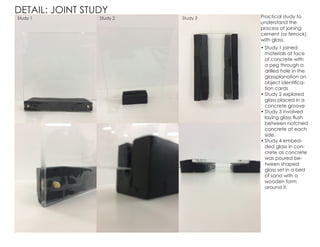

DETAIL: JOINT STUDY Practical study to understand the process of joining cement (or ferrock) with glass. Study 1 joined materials at face of concrete with a peg through a drilled hole in the glassplanation on object identifica- tion cards Study 2 explored glass placed in a concrete groove Study 3 involved laying glass flush between notched concrete at each side. Study 4 embed- ded glass in con- crete as concrete was poured be- tween shaped glass set in a bed of sand with a wooden form around it. Study 1 Study 3Study 2

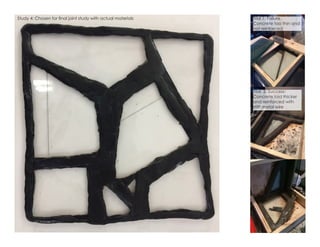

Study 4: Chosen for final joint study with actual materials Trial 1: Failure Concrete too thin and not reinforced Trial 2: Success: Concrete laid thicker and reinforced with stiiff metal wire

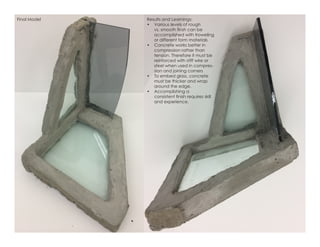

Final Model Results and Learnings: Various levels of rough vs. smooth finsh can be accomplished with troweling or different form materials Concrete works better in compression rather than tension. Therefore it must be reinforced with stiff wire or steel when used in compres- sion and joining corners To embed glass, concrete must be thicker and wrap around the edge. Accomplishing a consistent finish requires skill and experience.

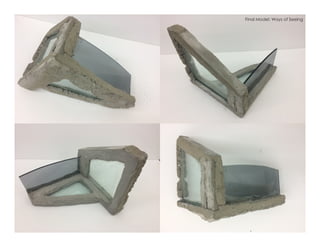

Final Model: Ways of Seeing
