Raytracing
PART I
@jorge_magic
/in/jorgecanton

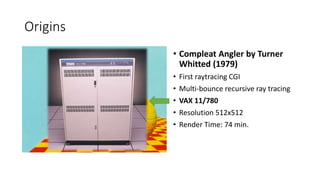

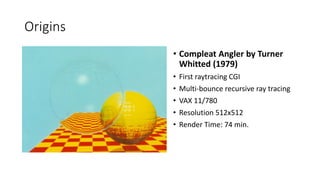

Origins
? Compleat Angler by Turner
Whitted (1979)
? First raytracing CGI
? Multi-bounce recursive ray tracing
? VAX 11/780
? Resolution 512x512
? Render Time: 74 min.

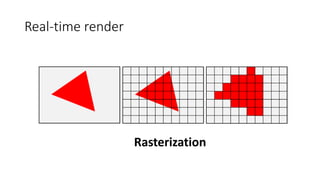

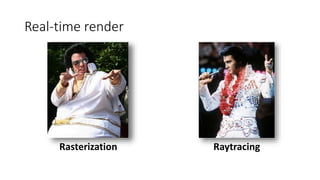

Real-time render
Rasterization Raytracing

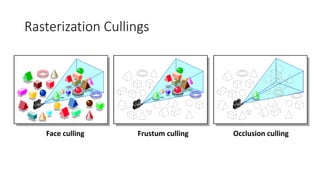

Rasterization Cullings
Frustum culling Occlusion cullingFace culling

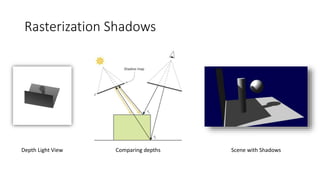

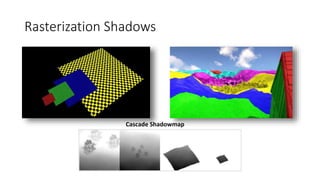

Rasterization Shadows
Depth Light View Scene with ShadowsComparing depths

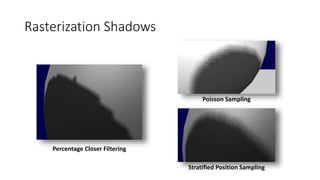

Rasterization Shadows
Percentage Closer Filtering
Poisson Sampling
Stratified Position Sampling

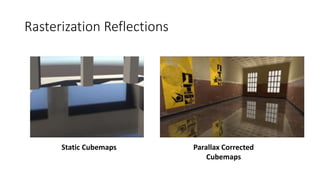

Rasterization Reflections
Static Cubemaps Parallax Corrected
Cubemaps

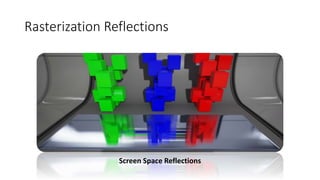

Rasterization Reflections

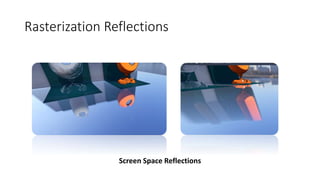

Screen Space Reflections

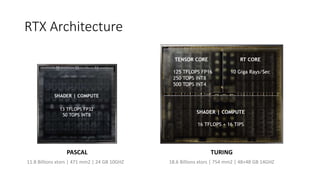

RTX Architecture
PASCAL TURING
11.8 Billions xtors | 471 mm2 | 24 GB 10GHZ 18.6 Billions xtors | 754 mm2 | 48+48 GB 14GHZ

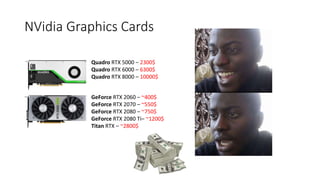

NVidia Graphics Cards
Quadro RTX 5000 – 2300$
Quadro RTX 6000 – 6300$
Quadro RTX 8000 – 10000$
GeForce RTX 2060 – ~400$
GeForce RTX 2070 – ~550$
GeForce RTX 2080 – ~750$
GeForce RTX 2080 Ti– ~1200$
Titan RTX – ~2800$

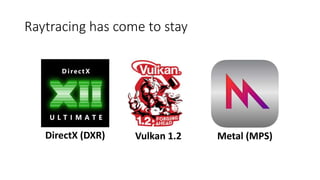

Raytracing has come to stay
DirectX (DXR) Vulkan 1.2 Metal (MPS)

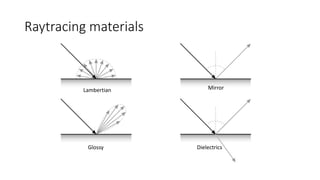

Raytracing materials
Lambertian
Glossy
Mirror
Dielectrics

Raytracing materials

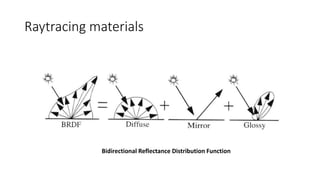

Bidirectional Reflectance Distribution Function

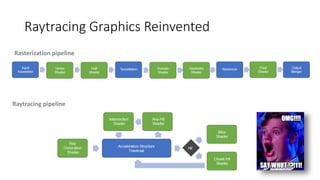

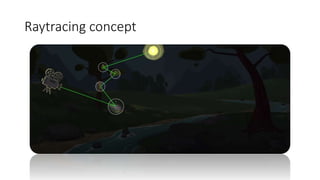

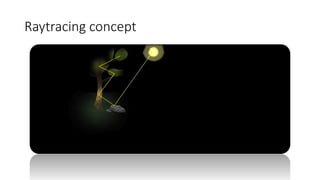

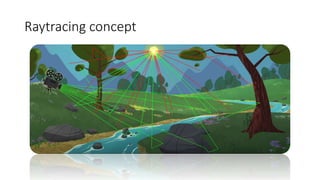

Raytracing Graphics Reinvented
Rasterization pipeline
Raytracing pipeline

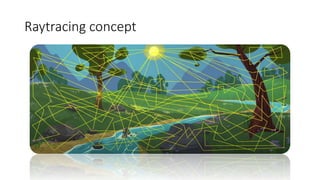

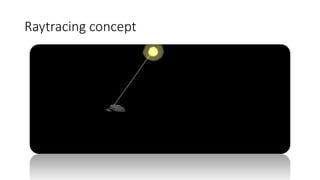

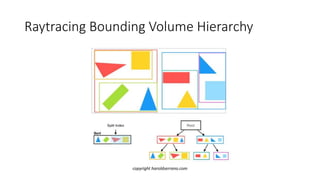

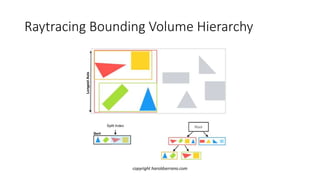

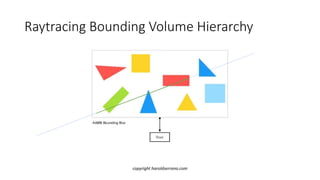

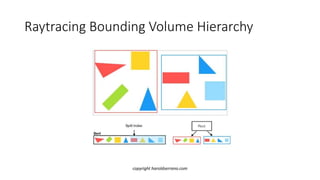

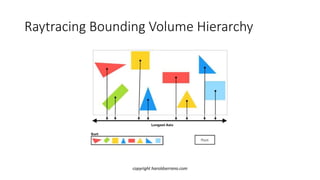

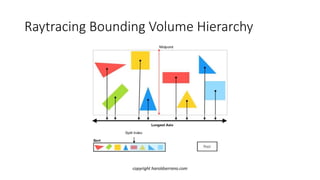

Raytracing Bounding Volume Hierarchy
copyright haroldserrano.com

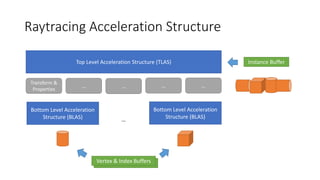

Raytracing Acceleration Structure
Top Level Acceleration Structure (TLAS)
Bottom Level Acceleration
Structure (BLAS)
Bottom Level Acceleration
Structure (BLAS)
Vertex & Index Buffers
Instance Buffer
Transform &
Properties
… … … …
…
