RESPIRATORY SYSTEM
             BY
         SARAH PAUL
   ARPITHA BABU THYKATIL
   JANVI AMARDEEP JOSEPH

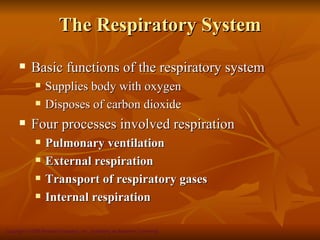

The Respiratory System
           Basic functions of the respiratory system
                 Supplies body with oxygen
                 Disposes of carbon dioxide
           Four processes involved respiration
                 Pulmonary ventilation
                 External respiration
                 Transport of respiratory gases
                 Internal respiration

Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings

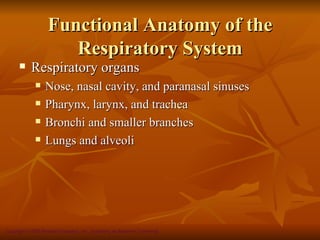

Functional Anatomy of the
                      Respiratory System
           Respiratory organs
                 Nose, nasal cavity, and paranasal sinuses
                 Pharynx, larynx, and trachea
                 Bronchi and smaller branches
                 Lungs and alveoli




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings

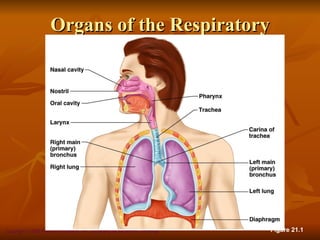

Organs of the Respiratory
                             System




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings   Figure 21.1

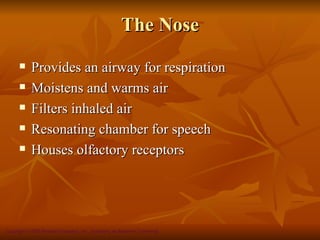

The Nose
           Provides an airway for respiration
           Moistens and warms air
           Filters inhaled air
           Resonating chamber for speech
           Houses olfactory receptors




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings

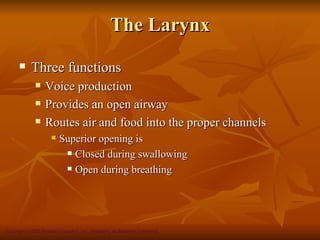

The Larynx
           Three functions
                 Voice production
                 Provides an open airway
                 Routes air and food into the proper channels
                        Superior opening is
                           Closed during swallowing

                           Open during breathing




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings

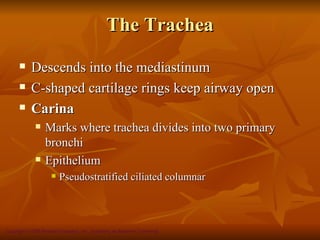

The Trachea
           Descends into the mediastinum
           C-shaped cartilage rings keep airway open
           Carina
                 Marks where trachea divides into two primary
                  bronchi
                 Epithelium
                        Pseudostratified ciliated columnar



Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings

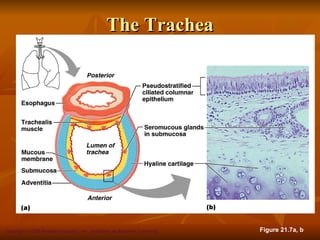

The Trachea




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings   Figure 21.7a, b

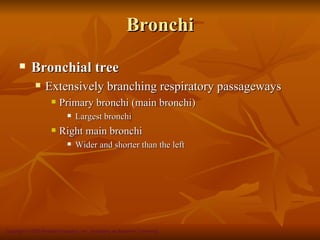

Bronchi
           Bronchial tree
                 Extensively branching respiratory passageways
                        Primary bronchi (main bronchi)
                                Largest bronchi
                        Right main bronchi
                                Wider and shorter than the left




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings

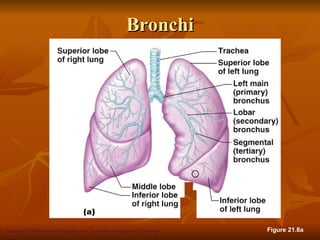

Bronchi




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings   Figure 21.8a

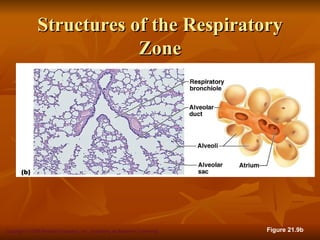

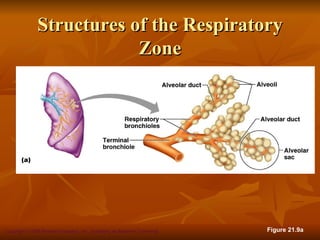

Structures of the Respiratory
                           Zone




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings   Figure 21.9a
Structures of the Respiratory
                           Zone




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings   Figure 21.9b

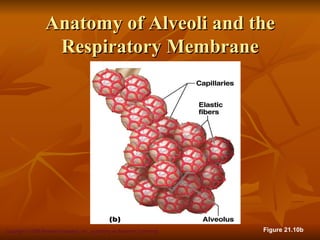

Anatomy of Alveoli and the
                   Respiratory Membrane




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings   Figure 21.10b

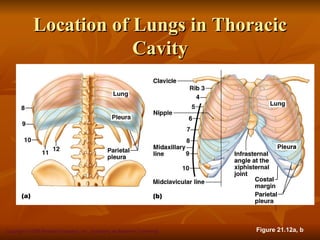

Location of Lungs in Thoracic
                         Cavity




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings   Figure 21.12a, b

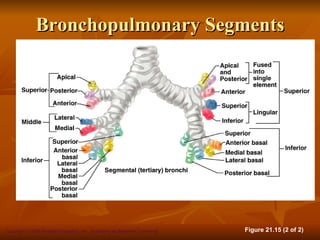

Bronchopulmonary Segments




Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings   Figure 21.15 (2 of 2)

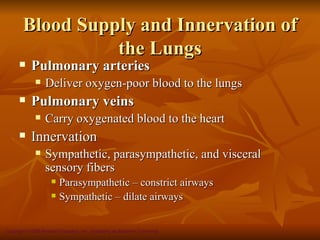

Blood Supply and Innervation of
                  the Lungs
           Pulmonary arteries
                 Deliver oxygen-poor blood to the lungs
           Pulmonary veins
                 Carry oxygenated blood to the heart
           Innervation
                 Sympathetic, parasympathetic, and visceral
                  sensory fibers
                        Parasympathetic  constrict airways
                        Sympathetic  dilate airways


Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings
Disorders of Respiratory
                               Structures
           Cystic fibrosis (CF)  inherited disease
                 Exocrine gland function is disrupted
                 Respiratory system affected by
                        Oversecretion of viscous mucus
           Epistaxis  nosebleed
           Epiglottitis  inflammation and swelling of
            the epiglottis


Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings

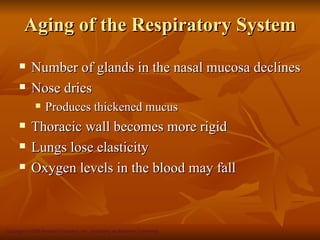

Aging of the Respiratory System
           Number of glands in the nasal mucosa declines
           Nose dries
                 Produces thickened mucus
           Thoracic wall becomes more rigid
           Lungs lose elasticity
           Oxygen levels in the blood may fall



Copyright 息 2008 Pearson Education, Inc., publishing as Benjamin Cummings
