APIs CPH
RFC- 7807 (Communicating the Problem)
About Me
Amandeep Midha
VP Engineering at ERNIT
&
Founder of APIs CPH
Communicated
news is both
good & bad
What was the exact problem ?
403 Access to Operation Denied

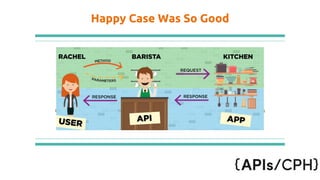

Happy Case Was So Good
RFC 7807 - Communicating the Problem

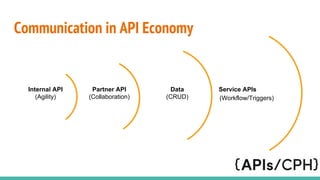

Communication in API Economy
Internal API
(Agility)
Partner API
(Collaboration)
Data
(CRUD)
Service APIs
(Workflow/Triggers)

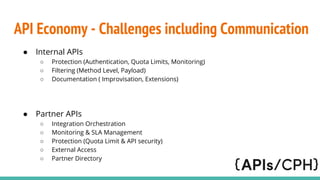

API Economy - Challenges including Communication
● Internal APIs
○ Protection (Authentication, Quota Limits, Monitoring)
○ Filtering (Method Level, Payload)
○ Documentation ( Improvisation, Extensions)
● Partner APIs
○ Integration Orchestration
○ Monitoring & SLA Management
○ Protection (Quota Limit & API security)
○ External Access
○ Partner Directory

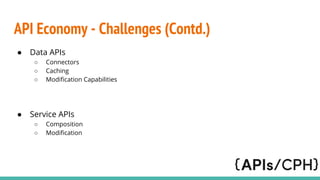

API Economy - Challenges (Contd.)
● Data APIs
○ Connectors
○ Caching
○ Modification Capabilities
● Service APIs
○ Composition
○ Modification

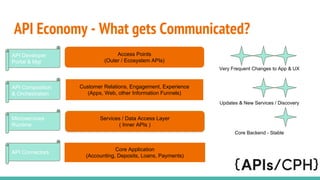

API Economy - What gets Communicated?
Core Application
(Accounting, Deposits, Loans, Payments)
Services / Data Access Layer
( Inner APIs )
Customer Relations, Engagement, Experience
(Apps, Web, other Information Funnels)
Access Points
(Outer / Ecosystem APIs)
Very Frequent Changes to App & UX
Updates & New Services / Discovery
Core Backend - Stable
API Developer
Portal & Mgt
API Composition
& Orchestration
Microservices
Runtime
API Connectors

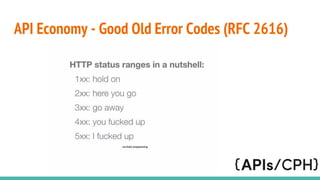

API Economy - Good Old Error Codes (RFC 2616)

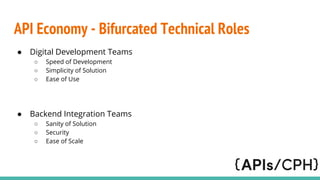

API Economy - Bifurcated Technical Roles
● Digital Development Teams
○ Speed of Development
○ Simplicity of Solution
○ Ease of Use
● Backend Integration Teams
○ Sanity of Solution
○ Security
○ Ease of Scale

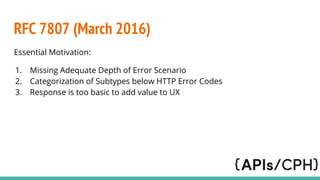

RFC 7807 (March 2016)
Essential Motivation:
1. Missing Adequate Depth of Error Scenario
2. Categorization of Subtypes below HTTP Error Codes
3. Response is too basic to add value to UX

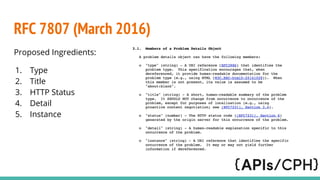

RFC 7807 (March 2016)
Proposed Ingredients:
1. Type
2. Title
3. HTTP Status
4. Detail
5. Instance

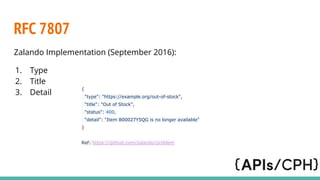

RFC 7807
Zalando Implementation (September 2016):
1. Type
2. Title
3. Detail
{
"type": "https://example.org/out-of-stock",
"title": "Out of Stock",
"status": 400,
"detail": "Item B00027Y5QG is no longer available"
}
Ref: https://github.com/zalando/problem

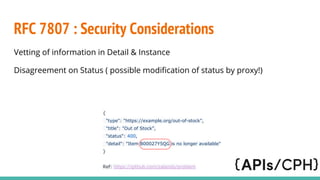

RFC 7807 : Security Considerations
Vetting of information in Detail & Instance
Disagreement on Status ( possible modification of status by proxy!)
{
"type": "https://example.org/out-of-stock",
"title": "Out of Stock",
"status": 400,
"detail": "Item B00027Y5QG is no longer available"
}
Ref: https://github.com/zalando/problem

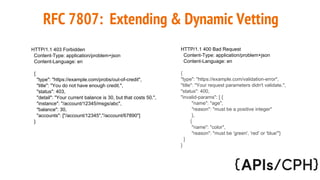

RFC 7807: Extending & Dynamic Vetting
HTTP/1.1 403 Forbidden
Content-Type: application/problem+json
Content-Language: en
{
"type": "https://example.com/probs/out-of-credit",
"title": "You do not have enough credit.",
"status": 403,
"detail": "Your current balance is 30, but that costs 50.",
"instance": "/account/12345/msgs/abc",
"balance": 30,
"accounts": ["/account/12345","/account/67890"]
}
HTTP/1.1 400 Bad Request
Content-Type: application/problem+json
Content-Language: en
{
"type": "https://example.com/validation-error",
"title": "Your request parameters didn't validate.",
"status": 400,
"invalid-params": [ {
"name": "age",
"reason": "must be a positive integer"
},
{
"name": "color",
"reason": "must be 'green', 'red' or 'blue'"}
]
}
