Sip 03 C

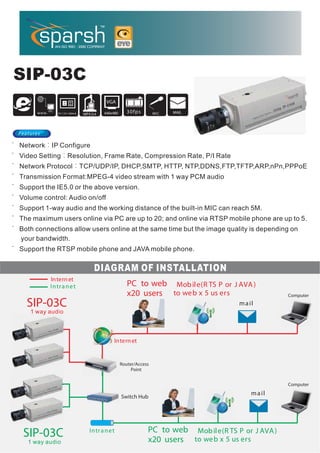

- 1. F IP CAMERA SIP-03C - VGA www. D C 1 2V / 500mA MPE G4 640x480 30fps MIC MAIL Features ˙ Network IP Configure ˙ Video Setting Resolution, Frame Rate, Compression Rate, P/I Rate ˙ Network Protocol TCP/UDP/IP, DHCP,SMTP, HTTP, NTP,DDNS,FTP,TFTP,ARP,nPn,PPPoE ˙ Transmission Format:MPEG-4 video stream with 1 way PCM audio ˙ Support the IE5.0 or the above version. ˙ Volume control: Audio on/off ˙ Support 1-way audio and the working distance of the built-in MIC can reach 5M. ˙ The maximum users online via PC are up to 20; and online via RTSP mobile phone are up to 5. ˙ Both connections allow users online at the same time but the image quality is depending on your bandwidth. ˙ Support the RTSP mobile phone and JAVA mobile phone. DIAGRAM OF INSTALLATION In tern et In tr a n e t PC to web Mob ile(R TS P or J AVA ) x20 users to we b x 5 us ers Computer SIP-03C m a il 1 way audio In tern et Router/Access Point Computer Switch Hub m a il SIP-03C In tr a n e t PC to web Mob il e(R TS P or J AVA ) 1 way audio x20 users to we b x 5 us ers

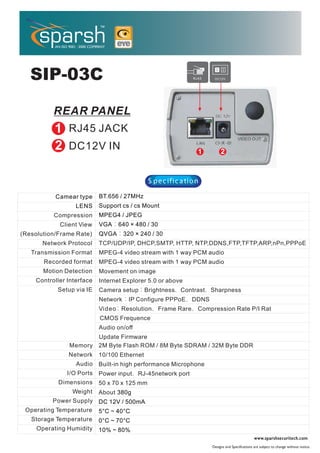

- 2. ERA SIP-03C RJ45 JACK DC12V IN S pe c ific a tio n Camear type BT.656 / 27MHz LENS Support cs / cs Mount Compression MPEG4 / JPEG Client View VGA 640 × 480 / 30 (Resolution/Frame Rate) QVGA 320 × 240 / 30 Network Protocol TCP/UDP/IP, DHCP,SMTP, HTTP, NTP,DDNS,FTP,TFTP,ARP,nPn,PPPoE Transmission Format MPEG-4 video stream with 1 way PCM audio Recorded format MPEG-4 video stream with 1 way PCM audio Motion Detection Movement on image Controller Interface Internet Explorer 5.0 or above Setup via IE Camera setup Brightness Contrast Sharpness Network IP Configure PPPoE DDNS Video Resolution Frame Rare Compression Rate P/I Rat C MOS Frequence Audio on/off Update Firmware Memory 2M Byte Flash ROM / 8M Byte SDRAM / 32M Byte DDR Network 10/100 Ethernet Audio Built-in high performance Microphone I/O Ports Power input RJ-45network port Dimensions 50 x 70 x 125 mm Weight About 380g Power Supply DC 12V / 500mA Operating Temperature 5°C ~ 40°C Storage Temperature 0°C ~ 70°C Operating Humidity 10% ~ 80% www.sparshsecuritech.com . Designs and Specifications are subject to change without notice.
