Color Ir Bullet Vari Focal

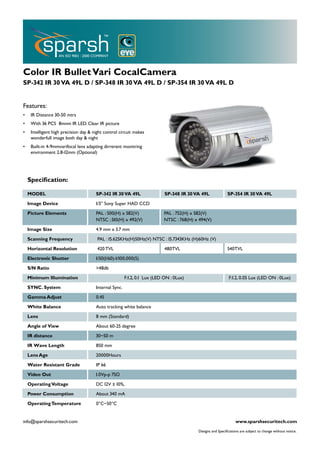

- 1. Color IR Bullet Vari CocalCamera SP-342 IR 30 VA 49L D / SP-348 IR 30 VA 49L D / SP-354 IR 30 VA 49L D Features: IR Distance 30-50 mtrs With 36 PCS 8mnm IR LED. Clear IR picture Intelligent high precision day & night control circuit makes wonderfull image both day & night Built-in 4-9mmvarifocal lens adapting dirrerent monitring environment 2.8-12mm (Optional) Speci鍖cation: MODEL SP-342 IR 30 VA 49L SP-348 IR 30 VA 49L SP-354 IR 30 VA 49L Image Device 1/3 Sony Super HAD CCD Picture Elements PAL : 500(H) x 582(V) PAL : 752(H) x 582(V) NTSC : 510(H) x 492(V) NTSC : 768(H) x 494(V) Image Size 4.9 mm x 3.7 mm Scanning Frequency PAL : 15.625KHz(H)50Hz(V) NTSC : 15.7343KHz (H)60Hz (V) Horizontal Resolution 420 TVL 480TVL 540TVL Electronic Shutter 1/50(1/60)-1/100,000(S) S/N Ratio >48db Minimum Illumination F:1.2, 0.1 Lux (LED ON : 0Lux) F:1.2, 0.05 Lux (LED ON : 0Lux) SYNC. System Internal Sync. Gamma Adjust 0.45 White Balance Auto tracking white balance Lens 8 mm (Standard) Angle of View About 60-25 degree IR distance 30~50 m IR Wave Length 850 mm Lens Age 20000Hours Water Resistant Grade IP 66 Video Out 1.0Vp-p 75 Operating Voltage DC 12V 賊 10%, Power Consumption About 340 mA Operating Temperature 0属C~50属C info@sparshsecuritech.com www.sparshsecuritech.com Designs and Speci鍖cations are subject to change without notice.
