Solve the set of linear equations
0 likes38 views
The document contains code to solve a system of linear equations using Gauss elimination and Gauss-Jordan elimination methods. It defines a matrix A and vector b representing the linear system. The Gauss elimination code performs row operations to reduce the matrix to row echelon form, then back substitution to solve for the unknowns. It outputs the reduced matrix and solution vector. The Gauss-Jordan code combines elimination and back substitution into a single process to directly compute the inverse matrix and solution. It verifies the solutions match between the two methods.
1 of 4
Download to read offline
![www.engineeringwithsandeep.com| Student Assignment

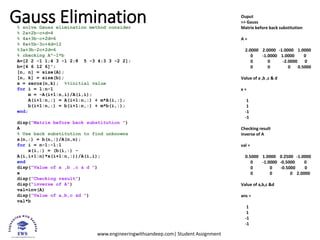

Gauss Elimination
% solve Gauss elimination method consider
% 2a+2b-c+d=4
% 4a+3b-c+2d=6
% 8a+5b-3c+4d=12
%3a+3b-2c+2d=6
% checking A^-1*b
A=[2 2 -1 1;4 3 -1 2;8 5 -3 4;3 3 -2 2];
b=[4 6 12 6]';
[n, n] = size(A);
[n, k] = size(b);
x = zeros(n,k); %%initial value
for i = 1:n-1
m = -A(i+1:n,i)/A(i,i);
A(i+1:n,:) = A(i+1:n,:) + m*A(i,:);
b(i+1:n,:) = b(i+1:n,:) + m*b(i,:);
end;
disp("Matrix before back substitution ")
A
% Use back substitution to find unknowns
x(n,:) = b(n,:)/A(n,n);
for i = n-1:-1:1
x(i,:) = (b(i,:) -
A(i,i+1:n)*x(i+1:n,:))/A(i,i);
end
disp("Value of a ,b ,c & d ")
x
disp("Checking result")
disp("inverse of A")
val=inv(A)
disp("Value of a,b,c &d ")
val*b
Ouput
>> Gauss
Matrix before back substitution
A =
2.0000 2.0000 -1.0000 1.0000
0 -1.0000 1.0000 0
0 0 -2.0000 0
0 0 0 0.5000
Value of a ,b ,c & d
x =
1
1
-1
-1
Checking result
inverse of A
val =
0.5000 1.0000 0.2500 -1.0000
0 -1.0000 -0.5000 0
0 0 -0.5000 0
0 0 0 2.0000
Value of a,b,c &d
ans =
1
1
-1
-1](https://image.slidesharecdn.com/linearsystem-shivamchoubey-210526150250/85/Solve-the-set-of-linear-equations-2-320.jpg)
![www.engineeringwithsandeep.com| Student Assignment

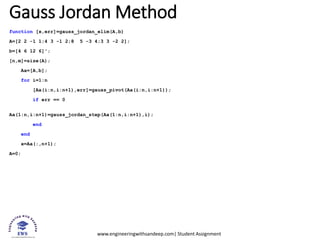

Gauss Jordan Method
function [x,err]=gauss_jordan_elim(A,b)
A=[2 2 -1 1;4 3 -1 2;8 5 -3 4;3 3 -2 2];
b=[4 6 12 6]';
[n,m]=size(A);
Aa=[A,b];
for i=1:n
[Aa(i:n,i:n+1),err]=gauss_pivot(Aa(i:n,i:n+1));
if err == 0
Aa(1:n,i:n+1)=gauss_jordan_step(Aa(1:n,i:n+1),i);
end
end
x=Aa(:,n+1);
A=0;](https://image.slidesharecdn.com/linearsystem-shivamchoubey-210526150250/85/Solve-the-set-of-linear-equations-3-320.jpg)
![www.engineeringwithsandeep.com| Student Assignment

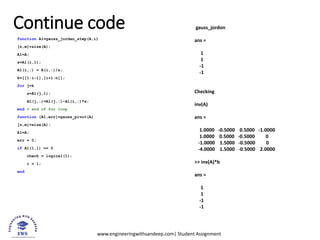

Continue code
function A1=gauss_jordan_step(A,i)
[n,m]=size(A);
A1=A;
s=A1(i,1);
A1(i,:) = A(i,:)/s;
k=[[1:i-1],[i+1:n]];
for j=k
s=A1(j,1);
A1(j,:)=A1(j,:)-A1(i,:)*s;
end % end of for loop
function [A1,err]=gauss_pivot(A)
[n,m]=size(A);
A1=A;
err = 0;
if A1(1,1) == 0
check = logical(1);
i = 1;
end
gauss_jordon
ans =
1
1
-1
-1
Checking
inv(A)
ans =
1.0000 -0.5000 0.5000 -1.0000
1.0000 0.5000 -0.5000 0
-1.0000 1.5000 -0.5000 0
-4.0000 1.5000 -0.5000 2.0000
>> inv(A)*b
ans =
1
1
-1
-1](https://image.slidesharecdn.com/linearsystem-shivamchoubey-210526150250/85/Solve-the-set-of-linear-equations-4-320.jpg)
