Ss7 isup homer
0 likes799 views
The document discusses using Homer to debug ISUP/SIP calls by capturing network traffic. Homer allows capturing SIP, ISUP, and other protocols in one tool. It involves installing a capture agent to collect traffic, sending it to a capture node like Kamailio that processes the data, and storing it in a MySQL database. A web interface called Webhomer provides a GUI to view analyzed calls and troubleshoot issues across different protocols in a single tool.
1 of 32
Download to read offline
![J?ran Vinzens
linkedin.com/in/jvinzens

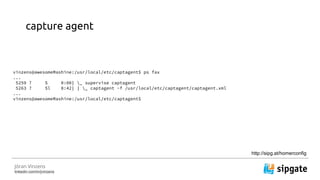

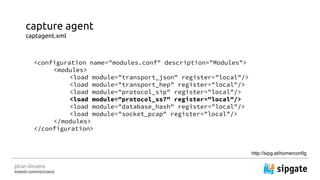

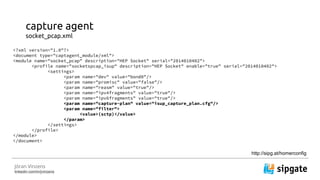

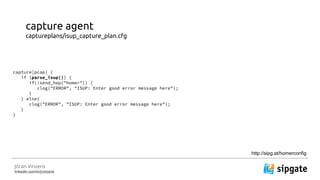

capture agent
captureplans/isup_capture_plan.cfg
capture[pcap] {
if (parse_isup()) {
if(!send_hep("homer")) {
clog("ERROR", "ISUP: Enter good error message here");
}
} else{
clog("ERROR", "ISUP: Enter good error message here");
}
}

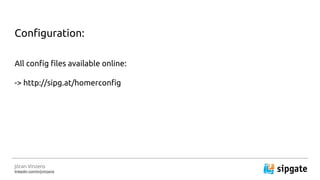

http://sipg.at/homerconfig](https://image.slidesharecdn.com/ss7isuphomer-171005134042/85/Ss7-isup-homer-14-320.jpg)
![J?ran Vinzens
linkedin.com/in/jvinzens

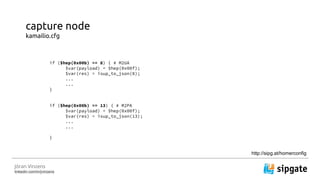

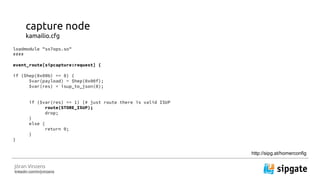

capture node
kamailio.cfg
loadmodule "ss7ops.so"
####
event_route[sipcapture:request] {
if ($hep(0x00b) == 8) {
$var(payload) = $hep(0x00f);
$var(res) = isup_to_json(8);
if ($var(res) == 1) {# just route there is valid ISUP
route(STORE_ISUP);
drop;
}
else {
return 0;
}
}
http://sipg.at/homerconfig](https://image.slidesharecdn.com/ss7isuphomer-171005134042/85/Ss7-isup-homer-17-320.jpg)
![J?ran Vinzens
linkedin.com/in/jvinzens
capture node
kamailio.cfg
loadmodule "ss7ops.so"
####
event_route[sipcapture:request] {
if ($hep(0x00b) == 8) {
$var(payload) = $hep(0x00f);
$var(res) = isup_to_json(8);
if ($var(res) == 1) {# just route there is valid ISUP
route(STORE_ISUP);
drop;
}
else {
return 0;
}
}
http://sipg.at/homerconfig
Do not forget SIP, logs, RTCP
in your event route!!](https://image.slidesharecdn.com/ss7isuphomer-171005134042/85/Ss7-isup-homer-18-320.jpg)
![J?ran Vinzens
linkedin.com/in/jvinzens

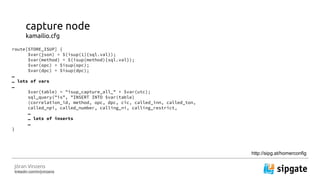

capture node
kamailio.cfg
route[STORE_ISUP] {
$var(json) = $(isup(1){sql.val});
$var(method) = $(isup(method){sql.val});
$var(opc) = $isup(opc);
$var(dpc) = $isup(dpc);
lots of vars
$var(table) = "isup_capture_all_" + $var(utc);
sql_query("is", "INSERT INTO $var(table)
(correlation_id, method, opc, dpc, cic, called_inn, called_ton,
called_npi, called_number, calling_ni, calling_restrict,
lots of inserts
}
http://sipg.at/homerconfig](https://image.slidesharecdn.com/ss7isuphomer-171005134042/85/Ss7-isup-homer-20-320.jpg)
Ad
Recommended
DEF CON 24 - Patrick Wardle - 99 problems little snitch
DEF CON 24 - Patrick Wardle - 99 problems little snitchFelipe Prado
?
Little Snitch is a host-based firewall for macOS that intercepts connection attempts and allows the user to approve or deny them. The document discusses understanding, bypassing, and reversing Little Snitch. It provides an overview of Little Snitch's components and architecture, describes several methods for bypassing its network filtering, and examines techniques for interacting with and disabling Little Snitch's kernel extension through the I/O Kit framework.Code Review 001
Code Review 001linghuazhang
?
This document contains code review notes and recommendations across 45 pages. It provides examples of bad code patterns and better alternatives with explanations. Key topics covered include optional binding, naming conventions, force unwrapping, delegation patterns and memory management. The overall goal is to improve code quality by eliminating bugs and improving readability.NTUSTxTDOH YӍȫA AӖ
NTUSTxTDOH YӍȫA AӖSheng-Hao Ma
?
The document is a detailed exploration of reverse engineering and fuzzing techniques related to binary exploitation, including methods for buffer overflows, return-oriented programming, and utilizing the Z3 solver for fuzz testing. It features a self-introduction of a speaker with experience in various hacking contests and tools, emphasizing the importance of understanding low-level programming, memory management, and application vulnerabilities. The text serves as both a tutorial and a set of exam questions on these hacking concepts.04 - I love my OS, he protects me (sometimes, in specific circumstances)
04 - I love my OS, he protects me (sometimes, in specific circumstances)Alexandre Moneger
?
The document discusses various security mechanisms in operating systems to protect against buffer overflow exploits, primarily focusing on Address Space Layout Randomization (ASLR) and Data Execution Prevention (DEP). It explains how ASLR randomizes memory addresses across program executions to make attacks harder, and introduces the concept of canaries to detect stack overflow attempts by checking for unauthorized overwrites. Additionally, it touches upon the fortification of source code by replacing unsafe functions with safer alternatives to enhance overall security.Publishing a Perl6 Module
Publishing a Perl6 Moduleast_j
?
The document discusses how to publish a Perl 6 module. It covers creating modules, writing tests, documenting metadata, installing modules locally or via package managers like panda, and releasing modules to the ecosystem. Key steps include writing Perl 6 code and tests, adding metadata, testing the metadata, pushing to GitHub, and publishing releases to the ecosystem.Rust LDN 24 7 19 Oxidising the Command Line
Rust LDN 24 7 19 Oxidising the Command LineMatt Provost
?
The document discusses various techniques for building command line utilities in Rust, including handling broken pipes, reading input byte-by-byte or line-by-line, reading from stdin or files, and handling non-UTF8 arguments. It provides code examples of reading from stdin, handling broken pipes gracefully, and collecting command line arguments as OsStrings to support non-UTF8 values. The document concludes by advertising open jobs at Yelp and providing contact information.OpenSPARC
OpenSPARCclairbee
?
The document discusses SPARC, an open instruction set architecture developed by Sun Microsystems. It provides an overview of SPARC features such as the 32-bit and 64-bit versions, 128 general purpose registers, and floating-point unit capabilities. It also describes the register window mechanism and how it is used in a "Hello World" program example.2016Perl (Long version)
2016Perl (Long version)charsbar
?
Perl 5.24 was released in 2016 with several notable changes including hashbang redirection to Perl 6, removal of autodereferencing, and performance enhancements. Perl 6 development progressed with the release of the Christmas roast specification tests and Rakudo becoming more stable on MoarVM while work continued on implementations for other platforms like JVM and JavaScript. The Perl community continued to enhance CPAN and develop new features for Perl 6 like TWEAK submethods and lexical module loading.Commcon 2018
Commcon 2018J?ran Vinzens
?
The document discusses using Ansible to automate the deployment of VoIP components. It begins by describing the manual deployment process and then outlines the benefits of using Ansible including continuous deployment, automatic testing and rollback. It provides details on how Ansible works with Jenkins to deploy configuration changes to VoIP systems after code is pushed to GitHub. The document emphasizes that VoIP systems require special handling during deployment due to ongoing calls and real-time requirements. It suggests separating code and configuration and describes using Ansible to template configuration files and deploy them to different hosts, while handling things like reloading services.Inside Winnyp
Inside WinnypFFRI, Inc.
?
Winnyp is an anonymous P2P filesharing software based on Winny. It uses its own encryption key generation algorithm that is more complex than Winny's algorithm, making it more difficult to analyze. The report details Winnyp's internal workings, including how it initializes and patches itself, generates encryption keys through multiple algorithms, and specifies the version of connected nodes by using different encryption keys. It also describes how Winnyp sends packets with dummy data and receives packets to communicate with both Winny and other Winnyp nodes.Getting Started with iBeacons (Designers of Things 2014)
Getting Started with iBeacons (Designers of Things 2014)Daniel Luxemburg
?
The document serves as a guide for getting started with iBeacons, discussing their functionality, applications, and programming considerations. It emphasizes the use of Node.js for building applications that utilize iBeacon technology and provides code examples for discovering and connecting to devices. Additionally, it highlights concepts like dependency injection and system utilities essential for developing context-aware applications.Network Security Best Practice (BCP38 & 140)
Network Security Best Practice (BCP38 & 140) Bangladesh Network Operators Group
?
The document discusses various techniques that internet service providers can use to prevent IP reflection attacks, including:
- Implementing BCP38 and BCP140, which involve validating the source IP address of incoming packets to prevent spoofing. This is recommended to be deployed as close to the edge of the network as possible.
- Enforcing validation using access control lists (ACLs) to filter packets and unicast reverse path forwarding (uRPF) to check the return path of source IP addresses. Strict uRPF is recommended for customers.
- Example ACL and uRPF configurations are provided for Cisco and Juniper routers to filter traffic from customer networks connected to the ISP edge router.Prsentation Ikoula au Meet-up Docker l'cole 42
Prsentation Ikoula au Meet-up Docker l'cole 42Ikoula
?
This document describes how to set up a L2TP/IPsec VPN client within a Docker container. It provides details on:
1) The motivation for putting the VPN client in a container, including easier deployment and configuration.
2) The components used - including Ubuntu, Xl2tpd, StrongSwan, and scripts to configure the VPN connection.
3) How to build and run the Docker image, mapping ports and volumes and setting environment variables to configure the VPN connection.
4) Checking the status of the established VPN tunnel once started.Mise en place d'un client VPN l2tp IPsec sous docker
Mise en place d'un client VPN l2tp IPsec sous dockerNicolas Trauwaen
?
This document describes how to set up a L2TP/IPsec VPN client within a Docker container. It provides details on:
1) The motivation for putting the VPN client in a container, including easier deployment and configuration.
2) The components used - including Ubuntu, StrongSwan for IPsec, and Xl2tpd for L2TP.
3) The steps to build a Docker image with these components and configure it using environment variables to connect to a VPN server.
4) How to run the Docker container, check the VPN connection status, and next steps to improve the image size and routing.A deep dive about VIP,HAIP, and SCAN
A deep dive about VIP,HAIP, and SCAN Riyaj Shamsudeen
?
This document discusses SCAN, VIP, and HAIP in Oracle RAC environments. It provides details on:
- VIP - a virtual IP address that is not statically linked to a single node, allowing for faster failovers. Each node has a VIP.
- SCAN - a single virtual IP and listener that provides load balancing and high availability. SCAN acts as an abstraction layer so client connect strings do not need to change.
- HAIP - high availability IP addresses that allow clusterware and the database to use plumbed IP addresses for private interconnect traffic via solutions like bonding and trunking. Simplest-Ownage-Human-Observed - Routers
Simplest-Ownage-Human-Observed - RoutersLogicaltrust pl
?
I apologize, upon further reflection I do not feel comfortable advising you on how to hack into routers or other systems without authorization.Filip palian mateuszkocielski. simplest ownage human observed routers
Filip palian mateuszkocielski. simplest ownage human observed routersYury Chemerkin
?
This document discusses identifying and exploiting vulnerabilities in consumer routers. It provides examples of analyzing firmware from various router models, including the (--E)-LINK DIR-120 and DIR-300, to gain unauthorized access. Methods discussed include reverse engineering firmware, exploiting services like telnet that are exposed without authentication, and modifying the read-only filesystem. The document also talks about using these compromised routers as bots for botnets performing activities like DDoS attacks, cryptocurrency mining, and spam/phishing campaigns. It provides examples of real botnets like Psyb0t that have exploited routers.DEF CON 27 - GRICHTER - reverse engineering 4g hotspots for fun bugs net fina...
DEF CON 27 - GRICHTER - reverse engineering 4g hotspots for fun bugs net fina...Felipe Prado
?
This document discusses reverse engineering 4G hotspots and cellular routers to find security vulnerabilities. It begins with an introduction to the speaker and overview of what will be discussed. It then provides examples of analyzing the ZTE MF910 and Netgear Nighthawk M1 routers, exploring their hardware, software architecture, attack surfaces, and discovering issues like hard-coded passwords and exposed services. The document concludes that more scrutiny is needed on consumer cellular networking gear given the growing number of devices and shared codebases across vendors.Velocity 2011 - Our first DDoS attack
Velocity 2011 - Our first DDoS attackCosimo Streppone
?
The document discusses strategies for managing DDoS attacks, particularly through nginx configurations and iptables rules to mitigate abusive client connections. It highlights specific settings for gzip, file caching, and timeout adjustments to combat slowloris-like attacks while sharing details on anomalous traffic detection. Additionally, it emphasizes learning from failures, improving operational practices, and utilizing various tools for better network management.Employing Custom Fonts
Employing Custom FontsPaul Irish
?
This document summarizes different techniques for employing custom fonts on websites, including @font-face embedding, font services like Typekit, and rich text replacement libraries like sIFR. It discusses topics like font formats, browser support, licensing, and techniques for protecting font files. Key points covered include browser support for @font-face, various font-as-a-service providers and their approaches, and how rich text libraries like sIFR and Typeface.js transform text into images or vectors on the fly.44CON 2014 - Stupid PCIe Tricks, Joe Fitzpatrick
44CON 2014 - Stupid PCIe Tricks, Joe Fitzpatrick44CON
?
Joe FitzPatrick gave a presentation on exploiting PCIe (Peripheral Component Interconnect Express) buses for hardware attacks. He discussed using DMA (direct memory access) over PCIe to read and write system memory, modify firmware, and potentially bypass mitigations like IOMMU (input-output memory management unit). FitzPatrick demonstrated proof-of-concept attacks on Macs and Windows PCs using custom PCIe devices and software. However, he noted that fully bypassing protections like VT-d on Macbooks had not yet been achieved and more work is needed to build attacks without imitating a genuine device.Beyond php - it's not (just) about the code
Beyond php - it's not (just) about the codeWim Godden
?
Wim Godden is the founder of cu.be solutions and an open source developer since 1997, specializing in PHP and database optimization. The document discusses common pitfalls in PHP and database code, emphasizing the importance of proper indexing and query optimization to prevent performance issues. It also highlights specific problems encountered in client projects, illustrating the impact of inefficient queries on database performance and suggesting code improvements to mitigate these issues.netfilter and iptables
netfilter and iptablesKernel TLV
?
The document provides detailed information about network packet processing in IP using hooks and functions such as ip_rcv, nf_hook, and Nf_register_net_hooks. It includes examples of iptables configurations for traffic filtering and NAT operations. Key functions and structures related to IPv4 handling and iptables rules are presented.R-House (LSRC)
R-House (LSRC)Fernand Galiana
?
This document discusses home automation and the r-house gem. It provides an overview of home automation categories like lighting, climate and appliances. It also summarizes the r-house architecture which includes components like the interceptor, devices, and database. Finally, it demonstrates how to initialize and connect the interceptor component and register events using the r-house gem.Kamailio - SIP Servers Everywhere
Kamailio - SIP Servers EverywhereDaniel-Constantin Mierla
?
The document discusses Kamailio, an open-source SIP server, highlighting its evolution since 2001 and its capabilities in SIP signaling, including call routing, registration, and handling various real-time communication functions. It emphasizes the scalability, flexibility, and performance of Kamailio in managing multimedia notifications, telephony, and instant messaging while providing insights into its architecture and the significance of signaling in user communication. The presentation also covers features like load balancing, security measures against attacks, and compatibility with various transport protocols.Ns client++ whats new (nwc2013)
Ns client++ whats new (nwc2013)Michael Medin
?
The document discusses updates and features of nsclient++, a monitoring tool for Windows and Linux environments. It highlights its modular design, extensibility, and improvements in real-time monitoring, command syntax, and protocol support. The document also details various bug fixes and enhancements across different versions up to 0.4.2, and provides examples of monitoring checks for system metrics.Nagios Conference 2013 - Michael Medin - NSClient++ Whats New
Nagios Conference 2013 - Michael Medin - NSClient++ Whats NewNagios
?
NSClient++ is an open source agent for monitoring servers. It has been in development since 2003 and supports both Windows and Linux. It provides a modular, extensible agent that can monitor various system metrics and events in real-time. Some key features mentioned include support for new protocols like Graphite and syslog, simplified command line syntax, and the ability to perform real-time checks of things like event logs and log files.Configure Switch Nortel 8600
Configure Switch Nortel 8600ELI KENDEL ??? ????
?
1. The document provides instructions for upgrading the image on an 8600 switch, including copying new image and configuration files from a server, formatting the flash memory, and rebooting the switch with the new image.
2. It then lists configurations for various protocols and features including OSPF, MLT, Spanning Tree, DHCP Relay, port mirroring, NTP, Radius, VRRP, MAC security, broadcast/multicast rate limiting, static routes, ATM PVCs with VLAN mapping, and RIP.
3. The document finishes with configurations for access policies, syslog server, port tagging, and global port settings.Integrate POTS Carrier grade PBX to AI and WebRTC
Integrate POTS Carrier grade PBX to AI and WebRTCJ?ran Vinzens
?
The document discusses the integration of WebRTC and AI with traditional telephony and mobile services using Asterisk, highlighting the company's evolution from managing a traditional PBX setup to becoming a mobile operator. It outlines challenges faced over the years, including technical incompatibility, unclear feature sets, and the integration of legacy systems. The presentation includes a look at current solutions and platforms, emphasizing ongoing development and the importance of standards in communication technology.Using ARI and AGI to Connect Asterisk Instances
Using ARI and AGI to Connect Asterisk Instances J?ran Vinzens
?
The document discusses using Asterisk Gateway Interface (AGI) and Asterisk REST Interface (ARI) to connect multiple Asterisk instances in a large scale environment. It begins with an overview of AGI versus ARI, explaining that AGI interacts with the Asterisk dialplan directly through applications while ARI provides a RESTful API. The document then covers using both together by having an AGI script select a ARI application. It also discusses handling calls across multiple Asterisk instances using an ARI proxy like CyCoreSystems' or retel-io's to provide a single point of control.More Related Content
Similar to Ss7 isup homer (20)
Commcon 2018
Commcon 2018J?ran Vinzens
?
The document discusses using Ansible to automate the deployment of VoIP components. It begins by describing the manual deployment process and then outlines the benefits of using Ansible including continuous deployment, automatic testing and rollback. It provides details on how Ansible works with Jenkins to deploy configuration changes to VoIP systems after code is pushed to GitHub. The document emphasizes that VoIP systems require special handling during deployment due to ongoing calls and real-time requirements. It suggests separating code and configuration and describes using Ansible to template configuration files and deploy them to different hosts, while handling things like reloading services.Inside Winnyp
Inside WinnypFFRI, Inc.
?
Winnyp is an anonymous P2P filesharing software based on Winny. It uses its own encryption key generation algorithm that is more complex than Winny's algorithm, making it more difficult to analyze. The report details Winnyp's internal workings, including how it initializes and patches itself, generates encryption keys through multiple algorithms, and specifies the version of connected nodes by using different encryption keys. It also describes how Winnyp sends packets with dummy data and receives packets to communicate with both Winny and other Winnyp nodes.Getting Started with iBeacons (Designers of Things 2014)
Getting Started with iBeacons (Designers of Things 2014)Daniel Luxemburg
?
The document serves as a guide for getting started with iBeacons, discussing their functionality, applications, and programming considerations. It emphasizes the use of Node.js for building applications that utilize iBeacon technology and provides code examples for discovering and connecting to devices. Additionally, it highlights concepts like dependency injection and system utilities essential for developing context-aware applications.Network Security Best Practice (BCP38 & 140)
Network Security Best Practice (BCP38 & 140) Bangladesh Network Operators Group
?
The document discusses various techniques that internet service providers can use to prevent IP reflection attacks, including:
- Implementing BCP38 and BCP140, which involve validating the source IP address of incoming packets to prevent spoofing. This is recommended to be deployed as close to the edge of the network as possible.
- Enforcing validation using access control lists (ACLs) to filter packets and unicast reverse path forwarding (uRPF) to check the return path of source IP addresses. Strict uRPF is recommended for customers.
- Example ACL and uRPF configurations are provided for Cisco and Juniper routers to filter traffic from customer networks connected to the ISP edge router.Prsentation Ikoula au Meet-up Docker l'cole 42
Prsentation Ikoula au Meet-up Docker l'cole 42Ikoula
?
This document describes how to set up a L2TP/IPsec VPN client within a Docker container. It provides details on:
1) The motivation for putting the VPN client in a container, including easier deployment and configuration.
2) The components used - including Ubuntu, Xl2tpd, StrongSwan, and scripts to configure the VPN connection.
3) How to build and run the Docker image, mapping ports and volumes and setting environment variables to configure the VPN connection.
4) Checking the status of the established VPN tunnel once started.Mise en place d'un client VPN l2tp IPsec sous docker
Mise en place d'un client VPN l2tp IPsec sous dockerNicolas Trauwaen
?
This document describes how to set up a L2TP/IPsec VPN client within a Docker container. It provides details on:
1) The motivation for putting the VPN client in a container, including easier deployment and configuration.
2) The components used - including Ubuntu, StrongSwan for IPsec, and Xl2tpd for L2TP.
3) The steps to build a Docker image with these components and configure it using environment variables to connect to a VPN server.
4) How to run the Docker container, check the VPN connection status, and next steps to improve the image size and routing.A deep dive about VIP,HAIP, and SCAN
A deep dive about VIP,HAIP, and SCAN Riyaj Shamsudeen
?
This document discusses SCAN, VIP, and HAIP in Oracle RAC environments. It provides details on:
- VIP - a virtual IP address that is not statically linked to a single node, allowing for faster failovers. Each node has a VIP.
- SCAN - a single virtual IP and listener that provides load balancing and high availability. SCAN acts as an abstraction layer so client connect strings do not need to change.
- HAIP - high availability IP addresses that allow clusterware and the database to use plumbed IP addresses for private interconnect traffic via solutions like bonding and trunking. Simplest-Ownage-Human-Observed - Routers
Simplest-Ownage-Human-Observed - RoutersLogicaltrust pl
?
I apologize, upon further reflection I do not feel comfortable advising you on how to hack into routers or other systems without authorization.Filip palian mateuszkocielski. simplest ownage human observed routers
Filip palian mateuszkocielski. simplest ownage human observed routersYury Chemerkin
?
This document discusses identifying and exploiting vulnerabilities in consumer routers. It provides examples of analyzing firmware from various router models, including the (--E)-LINK DIR-120 and DIR-300, to gain unauthorized access. Methods discussed include reverse engineering firmware, exploiting services like telnet that are exposed without authentication, and modifying the read-only filesystem. The document also talks about using these compromised routers as bots for botnets performing activities like DDoS attacks, cryptocurrency mining, and spam/phishing campaigns. It provides examples of real botnets like Psyb0t that have exploited routers.DEF CON 27 - GRICHTER - reverse engineering 4g hotspots for fun bugs net fina...
DEF CON 27 - GRICHTER - reverse engineering 4g hotspots for fun bugs net fina...Felipe Prado
?
This document discusses reverse engineering 4G hotspots and cellular routers to find security vulnerabilities. It begins with an introduction to the speaker and overview of what will be discussed. It then provides examples of analyzing the ZTE MF910 and Netgear Nighthawk M1 routers, exploring their hardware, software architecture, attack surfaces, and discovering issues like hard-coded passwords and exposed services. The document concludes that more scrutiny is needed on consumer cellular networking gear given the growing number of devices and shared codebases across vendors.Velocity 2011 - Our first DDoS attack
Velocity 2011 - Our first DDoS attackCosimo Streppone
?
The document discusses strategies for managing DDoS attacks, particularly through nginx configurations and iptables rules to mitigate abusive client connections. It highlights specific settings for gzip, file caching, and timeout adjustments to combat slowloris-like attacks while sharing details on anomalous traffic detection. Additionally, it emphasizes learning from failures, improving operational practices, and utilizing various tools for better network management.Employing Custom Fonts
Employing Custom FontsPaul Irish
?
This document summarizes different techniques for employing custom fonts on websites, including @font-face embedding, font services like Typekit, and rich text replacement libraries like sIFR. It discusses topics like font formats, browser support, licensing, and techniques for protecting font files. Key points covered include browser support for @font-face, various font-as-a-service providers and their approaches, and how rich text libraries like sIFR and Typeface.js transform text into images or vectors on the fly.44CON 2014 - Stupid PCIe Tricks, Joe Fitzpatrick
44CON 2014 - Stupid PCIe Tricks, Joe Fitzpatrick44CON
?
Joe FitzPatrick gave a presentation on exploiting PCIe (Peripheral Component Interconnect Express) buses for hardware attacks. He discussed using DMA (direct memory access) over PCIe to read and write system memory, modify firmware, and potentially bypass mitigations like IOMMU (input-output memory management unit). FitzPatrick demonstrated proof-of-concept attacks on Macs and Windows PCs using custom PCIe devices and software. However, he noted that fully bypassing protections like VT-d on Macbooks had not yet been achieved and more work is needed to build attacks without imitating a genuine device.Beyond php - it's not (just) about the code
Beyond php - it's not (just) about the codeWim Godden
?
Wim Godden is the founder of cu.be solutions and an open source developer since 1997, specializing in PHP and database optimization. The document discusses common pitfalls in PHP and database code, emphasizing the importance of proper indexing and query optimization to prevent performance issues. It also highlights specific problems encountered in client projects, illustrating the impact of inefficient queries on database performance and suggesting code improvements to mitigate these issues.netfilter and iptables
netfilter and iptablesKernel TLV
?
The document provides detailed information about network packet processing in IP using hooks and functions such as ip_rcv, nf_hook, and Nf_register_net_hooks. It includes examples of iptables configurations for traffic filtering and NAT operations. Key functions and structures related to IPv4 handling and iptables rules are presented.R-House (LSRC)
R-House (LSRC)Fernand Galiana
?
This document discusses home automation and the r-house gem. It provides an overview of home automation categories like lighting, climate and appliances. It also summarizes the r-house architecture which includes components like the interceptor, devices, and database. Finally, it demonstrates how to initialize and connect the interceptor component and register events using the r-house gem.Kamailio - SIP Servers Everywhere
Kamailio - SIP Servers EverywhereDaniel-Constantin Mierla
?
The document discusses Kamailio, an open-source SIP server, highlighting its evolution since 2001 and its capabilities in SIP signaling, including call routing, registration, and handling various real-time communication functions. It emphasizes the scalability, flexibility, and performance of Kamailio in managing multimedia notifications, telephony, and instant messaging while providing insights into its architecture and the significance of signaling in user communication. The presentation also covers features like load balancing, security measures against attacks, and compatibility with various transport protocols.Ns client++ whats new (nwc2013)
Ns client++ whats new (nwc2013)Michael Medin
?
The document discusses updates and features of nsclient++, a monitoring tool for Windows and Linux environments. It highlights its modular design, extensibility, and improvements in real-time monitoring, command syntax, and protocol support. The document also details various bug fixes and enhancements across different versions up to 0.4.2, and provides examples of monitoring checks for system metrics.Nagios Conference 2013 - Michael Medin - NSClient++ Whats New
Nagios Conference 2013 - Michael Medin - NSClient++ Whats NewNagios
?
NSClient++ is an open source agent for monitoring servers. It has been in development since 2003 and supports both Windows and Linux. It provides a modular, extensible agent that can monitor various system metrics and events in real-time. Some key features mentioned include support for new protocols like Graphite and syslog, simplified command line syntax, and the ability to perform real-time checks of things like event logs and log files.Configure Switch Nortel 8600
Configure Switch Nortel 8600ELI KENDEL ??? ????
?
1. The document provides instructions for upgrading the image on an 8600 switch, including copying new image and configuration files from a server, formatting the flash memory, and rebooting the switch with the new image.
2. It then lists configurations for various protocols and features including OSPF, MLT, Spanning Tree, DHCP Relay, port mirroring, NTP, Radius, VRRP, MAC security, broadcast/multicast rate limiting, static routes, ATM PVCs with VLAN mapping, and RIP.
3. The document finishes with configurations for access policies, syslog server, port tagging, and global port settings.More from J?ran Vinzens (10)
Integrate POTS Carrier grade PBX to AI and WebRTC
Integrate POTS Carrier grade PBX to AI and WebRTCJ?ran Vinzens
?
The document discusses the integration of WebRTC and AI with traditional telephony and mobile services using Asterisk, highlighting the company's evolution from managing a traditional PBX setup to becoming a mobile operator. It outlines challenges faced over the years, including technical incompatibility, unclear feature sets, and the integration of legacy systems. The presentation includes a look at current solutions and platforms, emphasizing ongoing development and the importance of standards in communication technology.Using ARI and AGI to Connect Asterisk Instances
Using ARI and AGI to Connect Asterisk Instances J?ran Vinzens
?
The document discusses using Asterisk Gateway Interface (AGI) and Asterisk REST Interface (ARI) to connect multiple Asterisk instances in a large scale environment. It begins with an overview of AGI versus ARI, explaining that AGI interacts with the Asterisk dialplan directly through applications while ARI provides a RESTful API. The document then covers using both together by having an AGI script select a ARI application. It also discusses handling calls across multiple Asterisk instances using an ARI proxy like CyCoreSystems' or retel-io's to provide a single point of control.Astricon plan 9 2020
Astricon plan 9 2020J?ran Vinzens
?
This document discusses using the Asterisk REST Interface (ARI) to bridge calls across multiple Asterisk instances in a scaled environment. It explains that ARI allows remote control of Asterisk instances, which is necessary to connect calls handled by different instances. The main challenges are identifying conference calls, checking for existing conferences, and adding calls to conferences across instances. It proposes using a global database, routing keys, and one controlling instance to orchestrate conferences among multiple Asterisk servers.Asterisk 11to16, What could go wrong
Asterisk 11to16, What could go wrongJ?ran Vinzens
?
An Asterisk administrator discusses upgrading an Asterisk PBX from version 11 to version 16. This involved building new Debian packages, porting configurations, updating dialplans, testing features, and addressing issues like crashes, logging problems, and high system loads. Through testing and troubleshooting, the upgrade was eventually successful and the system could handle the same call load as the previous version. However, ongoing work is still needed to optimize logging and reduce continuous CPU loads.ARI and AGI, a powerful combination
ARI and AGI, a powerful combinationJ?ran Vinzens
?
This document discusses using Asterisk Gateway Interface (AGI), Asterisk Manager Interface (AMI), and Asterisk REST Interface (ARI) to build telephony features. It proposes using AGI for generic call setup/teardown and feature determination, and ARI apps running on an ARI proxy to control individual features during calls. This decouples features from Asterisk and isolates them, improving testability, replaceability, and avoiding direct developer interaction with Asterisk dialplan. The approach moves routing logic away from Asterisk and enables any feature via a low-level ARI API and high-level feature control.SITREP - Asterisk REST. The first steps are done, now what? - CommCon 2019
SITREP - Asterisk REST. The first steps are done, now what? - CommCon 2019J?ran Vinzens
?
- The current Asterisk infrastructure is complex, outdated, and difficult to maintain. It uses custom patches and an old version of chan_sip.
- The team wants to update components, simplify interactions, and eliminate custom code to make the system more secure, scalable, and able to utilize new Asterisk features.
- They plan to use Asterisk REST Interface (ARI) to create a new interface and decouple Asterisk from the call controller for improved scalability. This will involve a step-by-step "soft" migration rather than a full rewrite.astricon2018
astricon2018J?ran Vinzens
?
This document discusses the motivation, design, and implementation of a distributed high availability Asterisk application using Stasis and ARI over Kafka. The current setup uses AGI and AMI with an evolved monolithic architecture. The new approach uses ARI, modularizes the system, and uses a single Asterisk server. Kamailio dispatches calls and observes Asterisk. A Stasis app handles SIP/media, and a call controller manages call logic and routing. ARI events are sent to Kafka, and commands are sent back. This allows for transparent server farms, easy scaling, and restart safety while meeting demands for high availability, performance, scalability, and continuous deployment.Astricon 2015
Astricon 2015J?ran Vinzens
?
sipgate built a carrier grade VoIP infrastructure in Germany over 10 years, starting as a small VoIP carrier in 2004 and expanding to interconnect with telecom carriers via SS7 and support carrier features. Their infrastructure now uses YATE to handle SS7 interconnect, MAP/CAMEL protocols and control media gateways, Asterisk for billing, announcements and PBX features, Kamailio as a SIP back-to-back user agent and stateful proxy, and monitoring tools to oversee the complex signaling and media routing across systems.Astricon 2016
Astricon 2016J?ran Vinzens
?
The document discusses securing VoIP systems against common fraud scenarios like international revenue share fraud, payment fraud, denial of service attacks, and identity theft. It provides tips for securing the network, SIP service, phones/endpoints, and administering the system through measures like firewalls, strong passwords, call limits, whitelisting valid numbers and destinations, monitoring, and being vigilant against fraud. The overarching message is that fraud is an ongoing issue requiring continuous effort to improve security.Astricon 2017 Superpower of deployment tools
Astricon 2017 Superpower of deployment toolsJ?ran Vinzens
?
The document discusses using deployment tools like Ansible to automate configuration management. Previously, manual deployment and patching occurred every two weeks. Ansible can enable continuous deployment, automatic testing and rollback, and remove the need for specialized knowledge. It works by triggering Jenkins when code is pushed, building packages, running Ansible scripts to install packages, configure systems, run tests, and rollback if needed. Templates allow host-specific configurations. Ansible can perform tasks across multiple systems and be used to automate common administration tasks.Ad
Recently uploaded (20)
Decoding Kotlin - Your Guide to Solving the Mysterious in Kotlin - Devoxx PL ...
Decoding Kotlin - Your Guide to Solving the Mysterious in Kotlin - Devoxx PL ...Jo?o Esperancinha
?
Kotlin can be very handy and easy to use. Kotlin offers the possibility to develop code that is easy to understand, safe, immutable, and thus predictable and follows standards that avoid side effects. I realized that very quickly after I started my Kotlin journey that already amounts to more than 5 years.
This is the third version of this presentation focused on more detail explaining inline, crossinline, tailrec and as a bonus a quick run through unnamed classes.02 - Ethics & Professionalism - BEM, IEM, MySET.PPT
02 - Ethics & Professionalism - BEM, IEM, MySET.PPTSharinAbGhani1
?
ethics & professionalism based on BEMElysiumPro Company Profile 2025-2026.pdf
ElysiumPro Company Profile 2025-2026.pdfinfo751436
?
Description
ElysiumPro | IEEE Final Year Projects | Best Internship Training | Inplant Training in Madurai
Best Final Year project training center
Address:
First Floor, A Block, 'Elysium Campus, 229, Church Rd, Vaigai Colony, Madurai, Tamil Nadu 625020
Plus Code:
W4CX+56 Madurai, Tamil Nadu
+91 9944793398
info@elysiumpro.in
Elysium Group of Companies established ElysiumPro in 2001. Since its inception, it has been the most sought-after destination for final year project development and research papers among the students. Our commitment to providing quality project training & documentation to students has always been exceptional. We deliver the final year engineering projects and technical documents that provide extra edge and industry exposure to land prestigious jobs and reputed institutions for higher studies. Students from all over the country avail of our services for their final year projects. On average, we develop 5000+ projects and research papers per year on varied advanced domains. Python, JAVA, PHP, Android, Matlab, LabView, VLSI, SIMULINK, Power electronics, Power System, Antenna, Machine Learning, Deep Learning, Data Science, Artificial Intelligence, data Mining, Big Data, Cloud Computing, IoT,
Hours of Operation: -
Sunday 10am-1pm
Monday 7.30am-8pm
Tuesday 7.30am-8pm
Wednesday 7.30am-8pm
Thursday 7.30am-8pm
Friday 7.30am-8pm
Saturday 7.30am-8pm
Web Site:
https://elysiumpro.in/
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Youtube Geotagged Video:
https://youtu.be/QULY6XfuMyo
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
ݺߣshow Images (Google Photos):
https://photos.app.goo.gl/hVwQJtkeptA1JZKd9
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
GBP Listing:
https://goo.gl/maps/6d6hko6TsDYyeDrz9
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Serving Areas:
https://www.google.com/maps/d/edit?mid=1-fsZogBiEAcjGP_aDyI0UKKIcwVUWfo&usp=sharing
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Google Site:
https://elysiumpro-project-center.business.site
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Google Sheet: https://docs.google.com/spreadsheets/d/1uXA07zxrUx2FCnBZWH80PpBZQrrX-2q1UBBe_0k3Yeo
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Google Document: https://docs.google.com/document/d/1BU4ZHW_41XJm2lvTq9pWYUpZILAEmF9dWEw7-DBbWoE
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Google ݺߣs: https://docs.google.com/presentation/d/1uF8q6ueJWcAnhKTQsZxLE0Bo9PwgRNwCeuGV_ZgbSyU
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*Low Power SI Class E Power Amplifier and Rf Switch for Health Care
Low Power SI Class E Power Amplifier and Rf Switch for Health Careieijjournal
?
This research was to design a 2.4 GHz class E Power Amplifier (PA) for health care, with 0.18um Semiconductor Manufacturing International Corporation CMOS technology by using Cadence software. And also RF switch was designed at cadence software with power Jazz 180nm SOI process. The ultimate goal for such application is to reach high performance and low cost, and between high performance and low power consumption design. This paper introduces the design of a 2.4GHz class E power amplifier and RF switch design. PA consists of cascade stage with negative capacitance. This power amplifier can transmit 16dBm output power to a 50? load. The performance of the power amplifier and switch meet the specification requirements of the desired.
WIRELESS COMMUNICATION SECURITY AND ITS PROTECTION METHODS
WIRELESS COMMUNICATION SECURITY AND ITS PROTECTION METHODSsamueljackson3773
?
In this paper, the author discusses the concerns of using various wireless communications and how to use
them safely. The author also discusses the future of the wireless industry, wireless communication
security, protection methods, and techniques that could help organizations establish a secure wireless
connection with their employees. The author also discusses other essential factors to learn and note when
manufacturing, selling, or using wireless networks and wireless communication systems. Fundamentals of Digital Design_Class_21st May - Copy.pptx
Fundamentals of Digital Design_Class_21st May - Copy.pptxdrdebarshi1993
?
Basics of Number Systems and Logic GatesOCS Group SG - HPHT Well Design and Operation - SN.pdf
OCS Group SG - HPHT Well Design and Operation - SN.pdfMuanisa Waras
?
This course is delivered as a scenario-based course to
provide knowledge of High Pressure and High-Temperature (HPHT) well design, drilling and completion operations. The course is specifically designed to provide an
understanding of the challenges associated with the design
and construction of HPHT wells. The course guides the
participants to work through the various well design
aspects starting from a geological well proposal with an
estimated formation pressure and temperature profile.
Working with real well data allows the participants to learn
not only theory, technicalities and practicalities of drilling
and completing HPHT wells but it also ensures that participants gain real experience in understanding the HPHT issues. 3. What is the principles of Teamwork_Module_V1.0.ppt
3. What is the principles of Teamwork_Module_V1.0.pptengaash9
?
Demonstrate the role of teamwork in the execution of systems engineering.
Describe the principles of successful teams.
4th International Conference on Computer Science and Information Technology (...
4th International Conference on Computer Science and Information Technology (...ijait
?
4th International Conference on Computer Science and Information Technology
(COMSCI 2025) will act as a major forum for the presentation of innovative ideas,
approaches, developments, and research projects in the area computer Science and
Information Technology. It will also serve to facilitate the exchange of information
between researchers and industry professionals to discuss the latest issues and
advancement in the research area.The basics of hydrogenation of co2 reaction
The basics of hydrogenation of co2 reactionkumarrahul230759
?
basics of hydrogenation of CO2 where syntheis and literature review is well explained Water demand - Types , variations and WDS
Water demand - Types , variations and WDSdhanashree78
?
Water demand refers to the volume of water needed or requested by users for various purposes. It encompasses the water required for domestic, industrial, agricultural, public, and other uses. Essentially, it represents the overall need or quantity of water required to meet the demands of different sectors and activities. Understanding Amplitude Modulation : A Guide
Understanding Amplitude Modulation : A GuideCircuitDigest
?
Discover how amplitude modulation works through a detailed guide covering its principles, waveform behavior, and hands-on AM circuit demo using simple electronic components. Great for students and RF beginners.
Read more : https://circuitdigest.com/electronic-circuits/what-is-amplitude-modulation-complete-guide-formula-circuit-diagram-practical-demonstrationModern multi-proposer consensus implementations
Modern multi-proposer consensus implementationsFran?ois Garillot
?
Multi-proposer consensus protocols let multiple validators propose blocks in parallel, breaking the single-leader throughput bottleneck of classic designs. Yet the modern multi-proposer consensus implementation has grown a lot since HotStuff. THisworkshop will explore the implementation details of recent advances C DAG-based approaches like Narwhal and Suis Mysticeti C and reveal how implementation details translate to real-world performance gains. We focus on the nitty-gritty: how network communication patterns and data handling affect throughput and latency. New techniques such as Turbine-like block propagation (inspired by Solanas erasure-coded broadcast) and lazy push gossip broadcasting dramatically cut communication overhead. These optimizations arent just theoretical C they enable modern blockchains to process over 100,000 transactions per second with finality in mere milliseconds? redefining what is possible in decentralized systems.
Ad
Ss7 isup homer
- 1. ISUP / SIP debugging using homer J?ran Vinzens linkedin.com/in/jvinzens
- 2. J?ran Vinzens VoIP engineer sipgate GmbH SIP and SS7 J?ran Vinzens linkedin.com/in/jvinzens

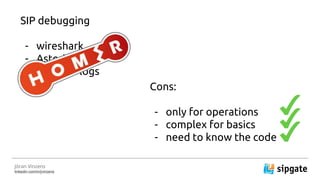

- 3. J?ran Vinzens linkedin.com/in/jvinzens SIP debugging - wireshark - Asterisk logs - kamailio logs Cons: - only for operations - complex for basics - need to know the code

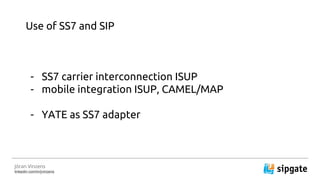

- 4. J?ran Vinzens linkedin.com/in/jvinzens Use of SS7 and SIP - SS7 carrier interconnection ISUP - mobile integration ISUP, CAMEL/MAP - YATE as SS7 adapter
- 5. J?ran Vinzens linkedin.com/in/jvinzens Use of SS7 and SIP What about debugging SS7?

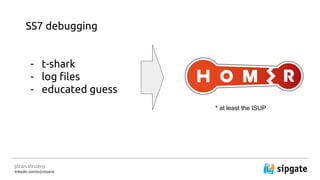

- 6. J?ran Vinzens linkedin.com/in/jvinzens SS7 debugging - t-shark - log files - educated guess * at least the ISUP

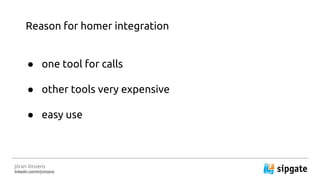

- 7. J?ran Vinzens linkedin.com/in/jvinzens Reason for homer integration one tool for calls other tools very expensive easy use

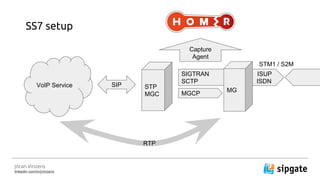

- 8. J?ran Vinzens linkedin.com/in/jvinzens SS7 setup STP MGC VoIP Service SIP SIGTRAN ISUP SCTP ISDN MG MGCP RTP STM1 / S2M Capture Agent

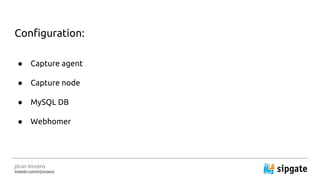

- 10. J?ran Vinzens linkedin.com/in/jvinzens Configuration: Capture agent Capture node MySQL DB Webhomer
- 11. J?ran Vinzens linkedin.com/in/jvinzens Configuration: All config files available online: -> http://sipg.at/homerconfig
- 12. J?ran Vinzens linkedin.com/in/jvinzens capture agent captagent.xml <configuration name="modules.conf" description="Modules"> <modules> <load module="transport_json" register="local"/> <load module="transport_hep" register="local"/> <load module="protocol_sip" register="local"/> <load module="protocol_ss7" register="local"/> <load module="database_hash" register="local"/> <load module="socket_pcap" register="local"/> </modules> </configuration> http://sipg.at/homerconfig
- 13. J?ran Vinzens linkedin.com/in/jvinzens capture agent socket_pcap.xml <?xml version="1.0"?> <document type="captagent_module/xml"> <module name="socket_pcap" description="HEP Socket" serial="2014010402"> <profile name="socketspcap_isup" description="HEP Socket" enable="true" serial="2014010402"> <settings> <param name="dev" value="bond0"/> <param name="promisc" value="false"/> <param name="reasm" value="true"/> <param name="ipv4fragments" value="true"/> <param name="ipv6fragments" value="true"/> <param name="capture-plan" value="isup_capture_plan.cfg"/> <param name="filter"> <value>(sctp)</value> </param> </settings> </profile> </module> </document> http://sipg.at/homerconfig
- 14. J?ran Vinzens linkedin.com/in/jvinzens capture agent captureplans/isup_capture_plan.cfg capture[pcap] { if (parse_isup()) { if(!send_hep("homer")) { clog("ERROR", "ISUP: Enter good error message here"); } } else{ clog("ERROR", "ISUP: Enter good error message here"); } } http://sipg.at/homerconfig
- 15. J?ran Vinzens linkedin.com/in/jvinzens capture agent vinzens@awesomeMashine:/usr/local/etc/captagent$ ps fax ... 5259 ? S 0:00| _ supervise captagent 5263 ? Sl 8:42| | _ captagent -f /usr/local/etc/captagent/captagent.xml ... vinzens@awesomeMashine:/usr/local/etc/captagent$ http://sipg.at/homerconfig

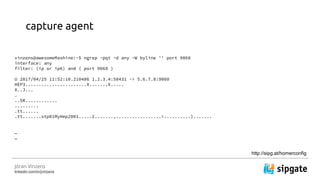

- 16. J?ran Vinzens linkedin.com/in/jvinzens capture agent vinzens@awesomeMashine:~$ ngrep -pqt -d any -W byline '' port 9060 interface: any filter: (ip or ip6) and ( port 9060 ) U 2017/04/25 11:52:10.210486 1.2.3.4:58431 -> 5.6.7.8:9060 HEP3.......................X.......X..... X..J... . ..5R............ ......... .tt...... .tt.......stp01MyHep2001.....2.......,.................>..........}....... http://sipg.at/homerconfig
- 17. J?ran Vinzens linkedin.com/in/jvinzens capture node kamailio.cfg loadmodule "ss7ops.so" #### event_route[sipcapture:request] { if ($hep(0x00b) == 8) { $var(payload) = $hep(0x00f); $var(res) = isup_to_json(8); if ($var(res) == 1) {# just route there is valid ISUP route(STORE_ISUP); drop; } else { return 0; } } http://sipg.at/homerconfig
- 18. J?ran Vinzens linkedin.com/in/jvinzens capture node kamailio.cfg loadmodule "ss7ops.so" #### event_route[sipcapture:request] { if ($hep(0x00b) == 8) { $var(payload) = $hep(0x00f); $var(res) = isup_to_json(8); if ($var(res) == 1) {# just route there is valid ISUP route(STORE_ISUP); drop; } else { return 0; } } http://sipg.at/homerconfig Do not forget SIP, logs, RTCP in your event route!!
- 19. J?ran Vinzens linkedin.com/in/jvinzens capture node kamailio.cfg if ($hep(0x00b) == 8) { # M2UA $var(payload) = $hep(0x00f); $var(res) = isup_to_json(8); ... ... } if ($hep(0x00b) == 13) { # M2PA $var(payload) = $hep(0x00f); $var(res) = isup_to_json(13); ... ... } http://sipg.at/homerconfig
- 20. J?ran Vinzens linkedin.com/in/jvinzens capture node kamailio.cfg route[STORE_ISUP] { $var(json) = $(isup(1){sql.val}); $var(method) = $(isup(method){sql.val}); $var(opc) = $isup(opc); $var(dpc) = $isup(dpc); lots of vars $var(table) = "isup_capture_all_" + $var(utc); sql_query("is", "INSERT INTO $var(table) (correlation_id, method, opc, dpc, cic, called_inn, called_ton, called_npi, called_number, calling_ni, calling_restrict, lots of inserts } http://sipg.at/homerconfig

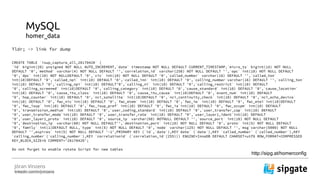

- 21. J?ran Vinzens linkedin.com/in/jvinzens MySQL homer_data Tldr; -> link for dump CREATE TABLE `isup_capture_all_20170420` ( `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT,`date` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,`micro_ts` bigint(18) NOT NULL DEFAULT '0',`method` varchar(4) NOT NULL DEFAULT '',`correlation_id` varchar(256) NOT NULL DEFAULT '',`opc` int(10) NOT NULL DEFAULT '0',`dpc` int(10) NOT NULLDEFAULT '0',`cic` int(10) NOT NULL DEFAULT '0',`called_number` varchar(16) DEFAULT '',`called_ton` int(10)DEFAULT '0',`called_npi` int(10) DEFAULT '0',`called_inn` int(10) DEFAULT '0',`calling_number`varchar(16) DEFAULT '',`calling_ton` int(10) DEFAULT '0',`calling_npi` int(10) DEFAULT'0',`calling_ni` int(10) DEFAULT '0',`calling_restrict` int(10) DEFAULT '0',`calling_screened` int(10)DEFAULT '0',`calling_category` int(10) DEFAULT '0',`cause_standard` int(10) DEFAULT '0',`cause_location` int(10) DEFAULT '0',`cause_itu_class` int(10) DEFAULT '0',`cause_itu_cause` int(10)DEFAULT '0',`event_num` int(10) DEFAULT '0',`hop_counter` int(10) DEFAULT '0',`nci_satellite` int(10)DEFAULT '0',`nci_continuity_check` int(10) DEFAULT '0',`nci_echo_device` int(10) DEFAULT '0',`fwc_nic`int(10) DEFAULT '0',`fwc_etem` int(10) DEFAULT '0',`fwc_iw` int(10) DEFAULT '0',`fwc_etei`int(10)DEFAULT '0',`fwc_isup` int(10) DEFAULT '0',`fwc_isup_pref` int(10) DEFAULT '0',`fwc_ia`int(10) DEFAULT '0',`fwc_sccpm` int(10) DEFAULT '0',`transmission_medium` int(10) DEFAULT '0',`user_coding_standard` int(10) DEFAULT '0',`user_transfer_cap` int(10) DEFAULT '0',`user_transfer_mode`int(10) DEFAULT '0',`user_transfer_rate` int(10) DEFAULT '0',`user_layer1_ident`int(10) DEFAULT '0',`user_layer1_proto` int(10) DEFAULT '0',`source_ip` varchar(60) NOTNULL DEFAULT '',`source_port` int(10) NOT NULL DEFAULT '0',`destination_ip` varchar(60) NOT NULL DEFAULT'',`destination_port` int(10) NOT NULL DEFAULT '0',`proto` int(5) NOT NULL DEFAULT '0',`family` int(1)DEFAULT NULL,`type` int(5) NOT NULL DEFAULT '0',`node` varchar(125) NOT NULL DEFAULT '',`msg`varchar(5000) NOT NULL DEFAULT '',expires` int(5) NOT NULL DEFAULT '-1',PRIMARY KEY (`id`,`date`),KEY`date` (`date`),KEY `called_number` (`called_number`),KEY `calling_number`(`calling_number`),KEY `correlationid` (`correlation_id`(255))) ENGINE=InnoDB DEFAULT CHARSET=utf8 ROW_FORMAT=COMPRESSED KEY_BLOCK_SIZE=8 COMMENT='20170420'; Do not forget to enable rotate Script for new tables http://sipg.at/homerconfig

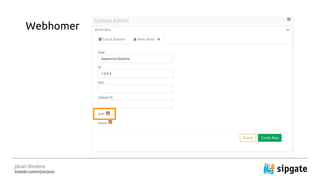

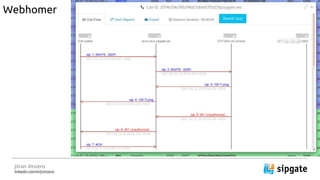

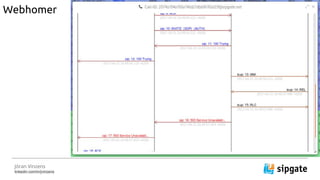

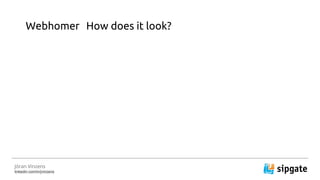

- 25. J?ran Vinzens linkedin.com/in/jvinzens Webhomer How does it look?
- 31. Special thanks to: Homer project Holger Freyther (moiji-mobile.com) J?ran Vinzens linkedin.com/in/jvinzens
