Topologi tree
- 1. Topologi Tree Hasna Saniyyah Leny Randi Barkah Tasya Nurshafa Pratama 3 - 4 7 - 8 5 - 6

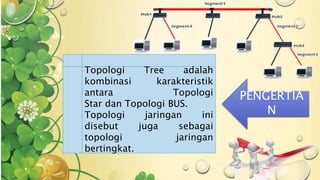

- 3. Topologi Tree adalah kombinasi karakteristik antara Topologi Star dan Topologi BUS. Topologi jaringan ini disebut juga sebagai topologi jaringan bertingkat. PENGERTIA N

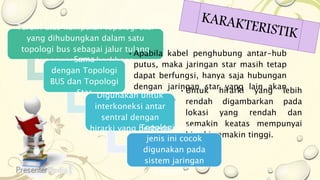

- 4. Terdiri atas kumpulan topologi star yang dihubungkan dalam satu topologi bus sebagai jalur tulang punggungSaatmaua backbone. dengan Topologi BUS dan Topologi Star Apabila kabel penghubung antar-hub putus, maka jaringan star masih tetap dapat berfungsi, hanya saja hubungan dengan jaringan star yang lain akan Digunakanteurgnatnugkgu. interkoneksi antar sentral dengan hirarki yang berbeda Untuk hirarki yang lebih rendah digambarkan pada lokasi yang rendah dan semakin keatas mempunyai hirarki semakin tinggi. Topologi jaringan jenis ini cocok digunakan pada sistem jaringan komputer.

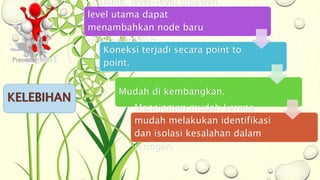

- 5. KELEBIHAN Scalable, level-level dibawah level utama dapat menambahkan node baru dengan mudah. Koneksi terjadi secara point to point. Mudah di kembangkan. Manajemen mudah karena mudah melakukan identifikasi dan isolasi kesalahan dalam jaringan.

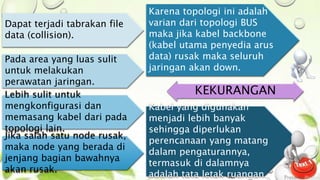

- 6. Pada area yang luas sulit untuk melakukan perawatan jaringan. Karena topologi ini adalah varian dari topologi BUS maka jika kabel backbone (kabel utama penyedia arus data) rusak maka seluruh jaringan akan down. Dapat terjadi tabrakan file data (collision). Lebih sulit untuk mengkonfigurasi dan memasang kabel dari pada topologi lain. Jika salah satu node rusak, maka node yang berada di jenjang bagian bawahnya akan rusak. KEKURANGAN Kabel yang digunakan menjadi lebih banyak sehingga diperlukan perencanaan yang matang dalam pengaturannya, termasuk di dalamnya adalah tata letak ruangan.

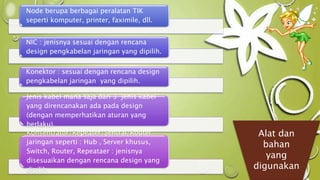

- 7. Node berupa berbagai peralatan TIK seperti komputer, printer, faximile, dll. NIC : jenisnya sesuai dengan rencana design pengkabelan jaringan yang dipilih. Konektor : sesuai dengan rencana design pengkabelan jaringan yang dipilih. Jenis kabel mana saja dari 3 jenis kabel yang direncanakan ada pada design (dengan memperhatikan aturan yang berlaku). Konsentrator/Repeater/Sentral/Router jaringan seperti : Hub , Server khusus, Switch, Router, Repeataer : jenisnya disesuaikan dengan rencana design yang dipilih. Alat dan bahan yang digunakan
- 8. Manfaat Baik digunakan pada jaringan yang membutuhkan ukuran besar (kantor kantor, Universitas, dsb)
