Unite2019 HLOD를 활용한 대규모 씬 제작 방법

May 27, 20196 likes2,037 views

This document discusses hierarchical level of detail (HLOD) techniques for improving graphics performance and optimization in large 3D scenes. HLOD allows grouping different 3D objects based on distance from the camera and rendering them as a single batch to reduce draw calls. The document explains how HLOD works, provides examples of baking HLOD trees, and compares the performance and memory usage of HLOD to traditional static batching and level of detail techniques.

Unity Technologies
Spotlight Team
Senior Engine Programmer

5
— ReCore
— Praey for the Gods
— Tacoma
— Final Fantasy XV
Pocket Edition
— Shadow Tactics
— Battletech
— ETC...

17

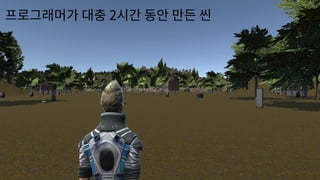

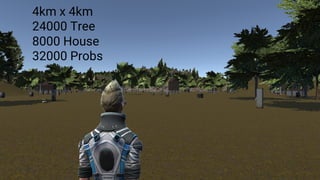

4km x 4km
24000 Tree
8000 House
32000 Probs

19

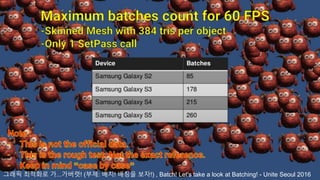

— 여기서 모바일 버짓과 현실 비교
— 배치를 줄여야 수행 가능
— 배치를 줄여야 한다.
그래픽 최적화로 가...가버렷! (부제: 배치! 배칭을 보자!) , Batch! Let's take a look at Batching! - Unite Seoul 2016

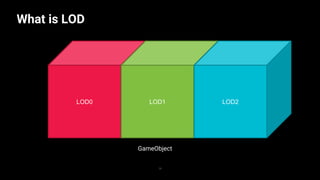

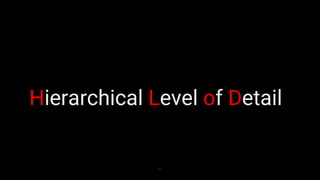

What is LOD
28
LOD0 LOD1 LOD2
GameObject

Most read

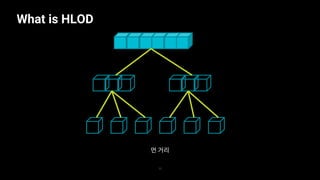

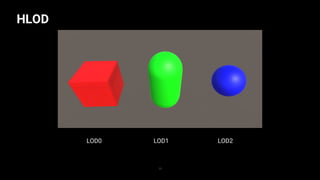

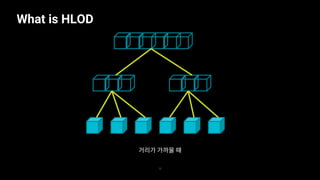

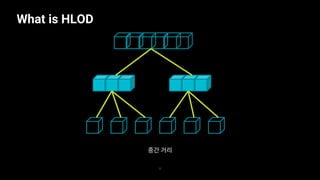

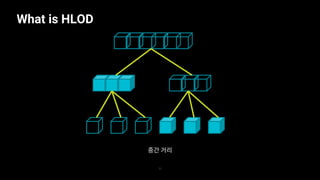

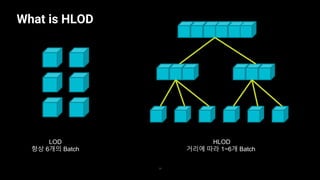

What is HLOD
34
LOD

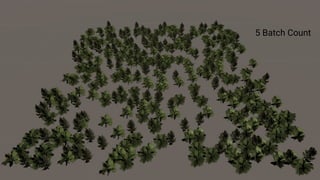

항상 6개의 Batch
HLOD
거리에 따라 1~6개 Batch

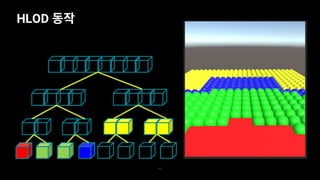

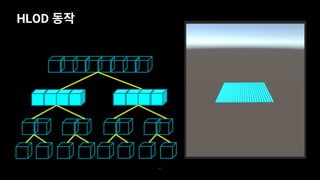

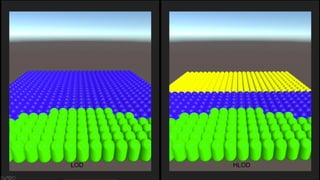

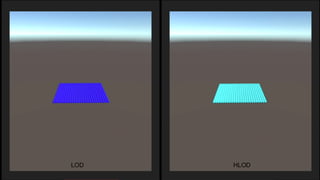

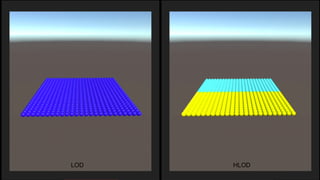

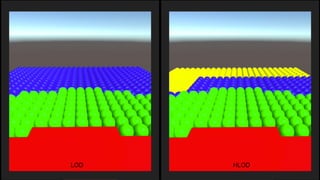

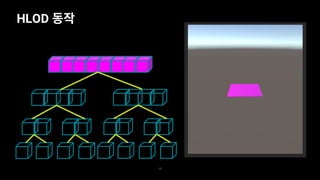

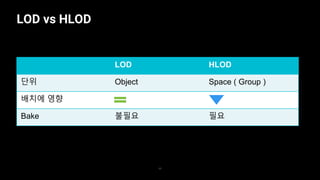

LOD vs HLOD
49
LOD HLOD
단위 Object Space ( Group )
배치에 영향
Bake 불필요 필요

52

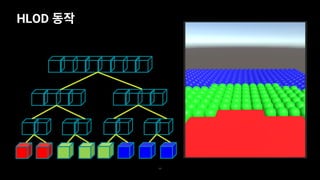

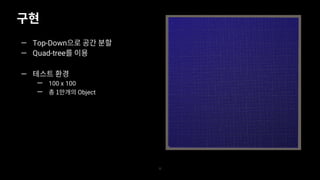

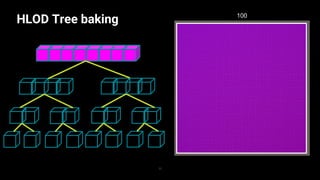

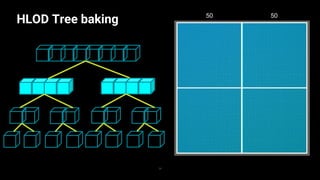

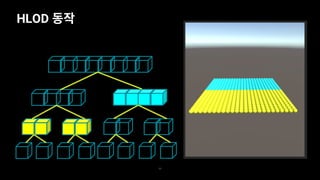

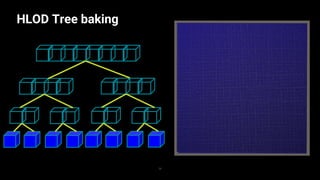

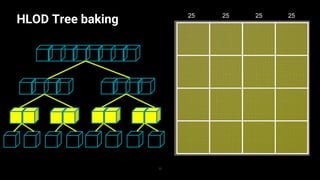

— Top-Down
— Quad-tree
—

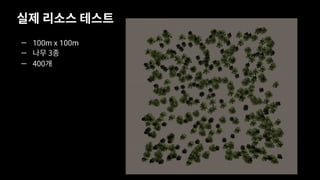

— 100 x 100
— Object

62

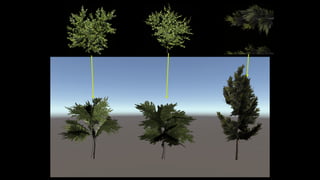

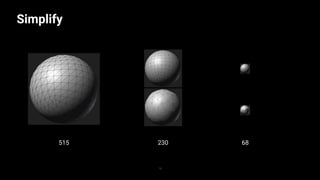

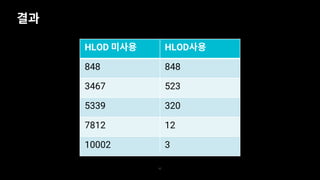

HLOD HLOD

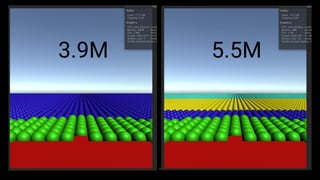

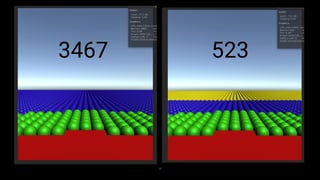

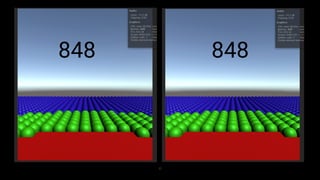

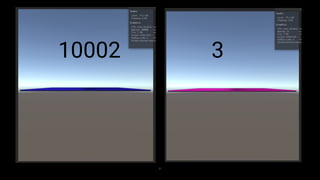

848 848
3467 523

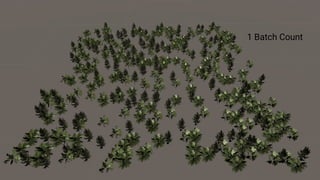

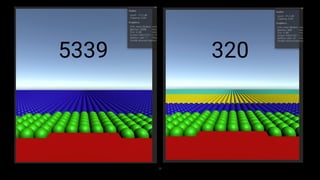

5339 320

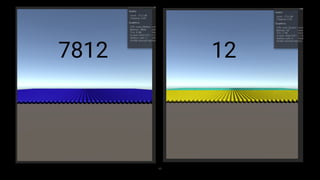

7812 12
10002 3

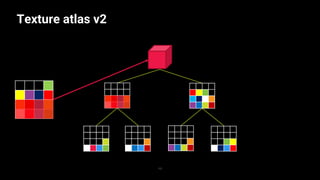

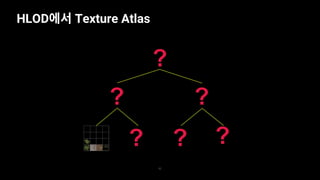

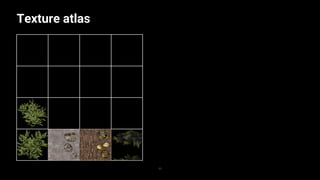

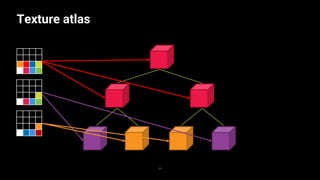

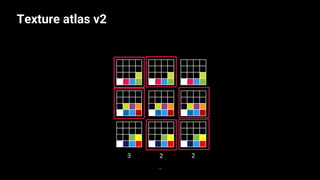

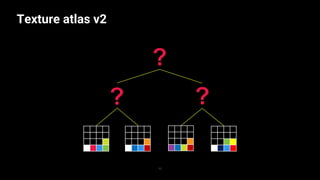

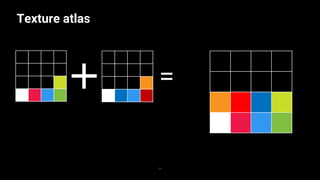

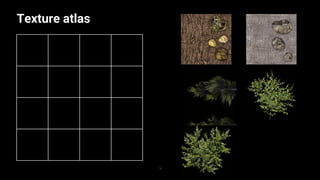

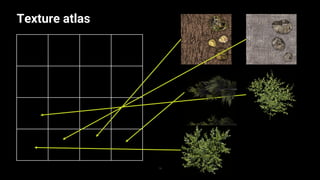

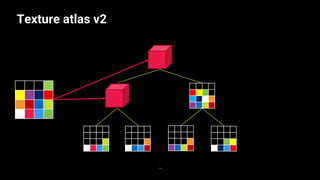

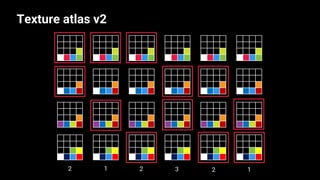

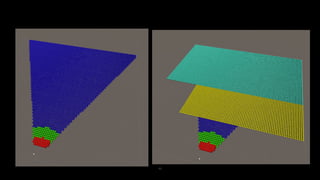

HLOD
109

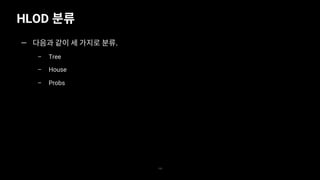

— Tree
— House
— Probs
Tree
House
Probs
Tree
House

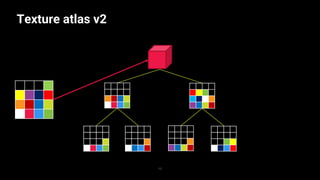

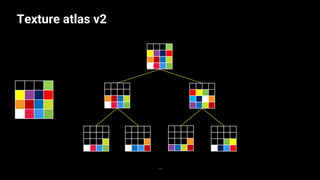

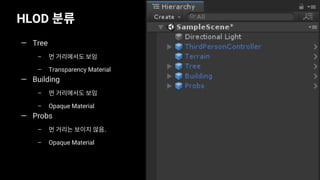

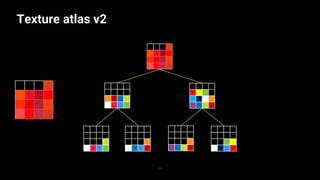

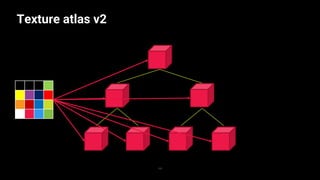

HLOD
111
— Tree
–
– Transparency Material
— Building
–
– Opaque Material
— Probs
–
– Opaque Material

1,019,251 tris
113.8MB

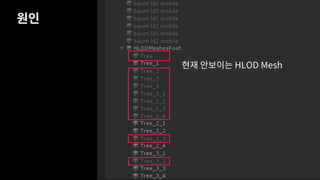

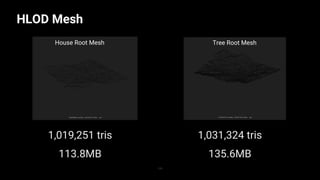

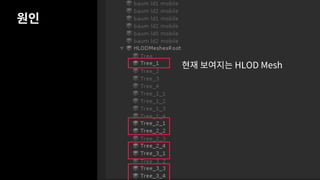

HLOD Mesh
115
1,031,324 tris
135.6MB
House Root Mesh Tree Root Mesh

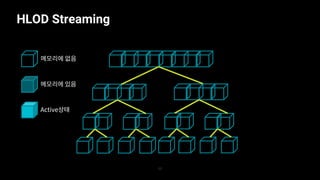

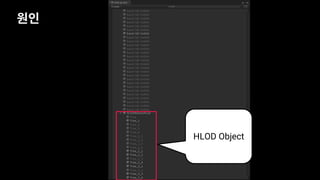

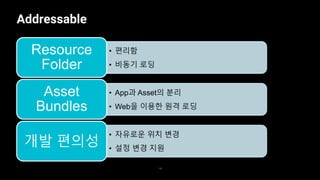

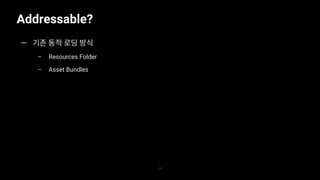

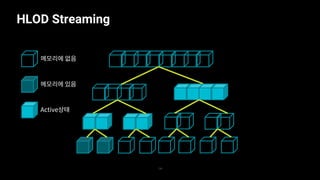

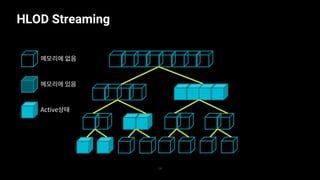

Addressable?
137
—
– Resources Folder
– Asset Bundles

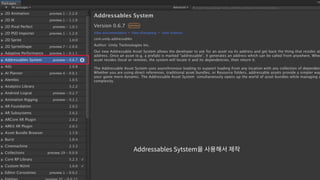

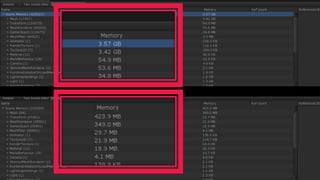

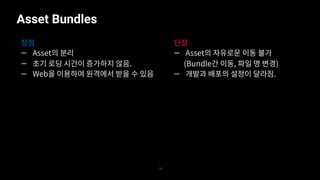

Addressable
140
• 편리함
• 비동기 로딩
Resource
Folder
• App과 Asset의 분리
• Web을 이용한 원격 로딩
Asset
Bundles
• 자유로운 위치 변경
• 설정 변경 지원

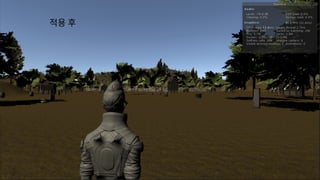

개발 편의성

146

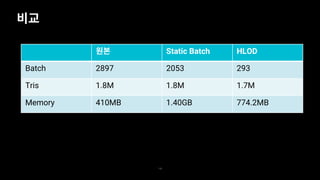

Static Batch HLOD

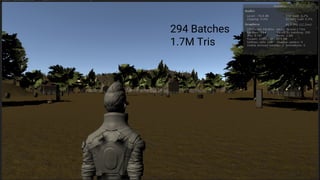

Batch 2897 2053 293
Tris 1.8M 1.8M 1.7M

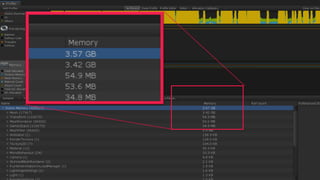

Memory 410MB 1.40GB 774.2MB

The document discusses screen space reflections implemented in the game The Surge. It describes using screen space ray marching against the depth buffer to find reflection points, convolving the scene to accumulate multiple bounces, and using asynchronous compute to overlap rendering passes and improve performance. Key techniques included interleaved rendering, temporal reprojection, and using local data storage. Performance gains were achieved through optimizations like lower resolution rendering and computing mip chains in-place.

NDC2016 프로젝트 A1의 AAA급 캐릭터 렌더링 기술Ki Hyunwoo

��

Ndc2010 전형규 마비노기2 캐릭터 렌더링 기술henjeon

��

Graphics Gems from CryENGINE 3 (Siggraph 2013)Tiago Sousa

��

This lecture covers rendering topics related to Crytek’s latest engine iteration, the technology which powers titles such as Ryse, Warface, and Crysis 3. Among covered topics, Sousa presented SMAA 1TX: an update featuring a robust and simple temporal antialising component; performant and physically-plausible camera related post-processing techniques such as motion blur and depth of field were also covered.

Low-level Shader Optimization for Next-Gen and DX11 by Emil PerssonAMD Developer Central

��

The document discusses low-level shader optimization techniques for next-generation consoles and DirectX 11 hardware. It provides lessons from last year on writing efficient shader code, and examines how modern GPU hardware has evolved over the past 7-8 years. Key points include separating scalar and vector work, using hardware-mapped functions like reciprocals and trigonometric functions, and being aware of instruction throughput and costs on modern GCN-based architectures.

Rendering Technologies from Crysis 3 (GDC 2013)Tiago Sousa

��

Hierachical z Map Occlusion CullingYEONG-CHEON YOU

��

Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14AMD Developer Central

��

Bill explains some of the ways that the Vertex Shader can be used to improve performance by taking a fast path through the Vertex Shader rather than generating vertices with other parts of the pipeline in this AMD technology presentation from the 2014 Game Developers Conference in San Francisco March 17-21. Check out more technical presentations at http://developer.amd.com/resources/documentation-articles/conference-presentations/

Umg ,이벤트 바인딩, Invaidation Box대영 노

��

Brdf기반 사전정의 스킨 셰이더동석 김

��

[Ndc12] 누구나 알기쉬운 hdr과 톤맵핑 박민근MinGeun Park

��

Compute shaderQooJuice

��

Optimizing the Graphics Pipeline with Compute, GDC 2016Graham Wihlidal

��

With further advancement in the current console cycle, new tricks are being learned to squeeze the maximum performance out of the hardware. This talk will present how the compute power of the console and PC GPUs can be used to improve the triangle throughput beyond the limits of the fixed function hardware. The discussed method shows a way to perform efficient "just-in-time" optimization of geometry, and opens the way for per-primitive filtering kernels and procedural geometry processing. Takeaway: Attendees will learn how to preprocess geometry on-the-fly per frame to improve rendering performance and efficiency. Intended Audience: This presentation is targeting seasoned graphics developers. Experience with DirectX 12 and GCN is recommended, but not required.

[데브루키/141206 박민근] 유니티 최적화 테크닉 총정리MinGeun Park

��

GameInstance에 대해서 알아보자TonyCms

��

데브루키 언리얼 스터디 발표자료 참고자료 도서 : 이득우의 언리얼 C++ 게임 개발의 정석 http://www.unrealsummit.co.kr/Replays/2015_13.pdf https://docs.unrealengine.com/en-US/API/Runtime/Engine/Engine/UGameInstance/index.html https://api.unrealengine.com/KOR/Gameplay/Framework/GameFlow/index.html https://docs.unrealengine.com/ko/Programming/UnrealArchitecture/Reference/Properties/Specifiers/index.html

Stochastic Screen-Space ReflectionsElectronic Arts / DICE

��

[NDC08] 최적화와 프로파일링 - 송창규ChangKyu Song

��

Dx11 performancereloadedmistercteam

��

This document provides recommendations for optimizing DirectX 11 performance. It separates the graphics pipeline process into offline and runtime stages. For the offline stage, it recommends creating resources like buffers, textures and shaders on multiple threads. For the runtime stage, it suggests culling unused objects, minimizing state changes, and pushing commands to the driver quickly. It also provides tips for updating dynamic resources efficiently and grouping related constants together. The goal is to keep the CPU and GPU pipelines fully utilized for maximum performance.

Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)repii

��

1. The document discusses parallel graphics techniques used in the Frostbite game engine, both currently and potentially in the future. It describes using job-based parallelism to utilize multiple CPU cores and the PS3 SPUs. 2. One technique is parallel command buffer recording to dispatch draw calls to multiple command buffers and scale linearly with core count. Another is software occlusion culling using the SPUs/CPU to rasterize a coarse z-buffer. 3. Potential future techniques discussed include deferred shading using compute shaders, with the compute shader culling lights and accumulating lighting per screen-space tile.

Triangle Visibility bufferWolfgang Engel

��

Azure vs AWS Which Cloud Platform Is Best for Your Business in 2025Infrassist Technologies Pvt. Ltd.

��

Domino IQ – What to Expect, First Steps and Use Casespanagenda

��

Webinar Recording: https://www.panagenda.com/webinars/domino-iq-what-to-expect-first-steps-and-use-cases/ HCL Domino iQ Server – From Ideas Portal to implemented Feature. Discover what it is, what it isn’t, and explore the opportunities and challenges it presents. Key Takeaways - What are Large Language Models (LLMs) and how do they relate to Domino iQ - Essential prerequisites for deploying Domino iQ Server - Step-by-step instructions on setting up your Domino iQ Server - Share and discuss thoughts and ideas to maximize the potential of Domino iQ

More Related Content

What's hot (20)

Screen Space Reflections in The SurgeMichele Giacalone

��

NDC2016 프로젝트 A1의 AAA급 캐릭터 렌더링 기술Ki Hyunwoo

��

Ndc2010 전형규 마비노기2 캐릭터 렌더링 기술henjeon

��

Graphics Gems from CryENGINE 3 (Siggraph 2013)Tiago Sousa

��

Low-level Shader Optimization for Next-Gen and DX11 by Emil PerssonAMD Developer Central

��

Rendering Technologies from Crysis 3 (GDC 2013)Tiago Sousa

��

Hierachical z Map Occlusion CullingYEONG-CHEON YOU

��

Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14AMD Developer Central

��

Umg ,이벤트 바인딩, Invaidation Box대영 노

��

Brdf기반 사전정의 스킨 셰이더동석 김

��

[Ndc12] 누구나 알기쉬운 hdr과 톤맵핑 박민근MinGeun Park

��

Compute shaderQooJuice

��

Optimizing the Graphics Pipeline with Compute, GDC 2016Graham Wihlidal

��

[데브루키/141206 박민근] 유니티 최적화 테크닉 총정리MinGeun Park

��

GameInstance에 대해서 알아보자TonyCms

��

Stochastic Screen-Space ReflectionsElectronic Arts / DICE

��

[NDC08] 최적화와 프로파일링 - 송창규ChangKyu Song

��

Dx11 performancereloadedmistercteam

��

Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)repii

��

Triangle Visibility bufferWolfgang Engel

��

Screen Space Reflections in The SurgeMichele Giacalone

��

NDC2016 프로젝트 A1의 AAA급 캐릭터 렌더링 기술Ki Hyunwoo

��

Ndc2010 전형규 마비노기2 캐릭터 렌더링 기술henjeon

��

Graphics Gems from CryENGINE 3 (Siggraph 2013)Tiago Sousa

��

Low-level Shader Optimization for Next-Gen and DX11 by Emil PerssonAMD Developer Central

��

Rendering Technologies from Crysis 3 (GDC 2013)Tiago Sousa

��

Hierachical z Map Occlusion CullingYEONG-CHEON YOU

��

Vertex Shader Tricks by Bill Bilodeau - AMD at GDC14AMD Developer Central

��

Umg ,이벤트 바인딩, Invaidation Box대영 노

��

Brdf기반 사전정의 스킨 셰이더동석 김

��

[Ndc12] 누구나 알기쉬운 hdr과 톤맵핑 박민근MinGeun Park

��

Compute shaderQooJuice

��

Optimizing the Graphics Pipeline with Compute, GDC 2016Graham Wihlidal

��

[데브루키/141206 박민근] 유니티 최적화 테크닉 총정리MinGeun Park

��

GameInstance에 대해서 알아보자TonyCms

��

Stochastic Screen-Space ReflectionsElectronic Arts / DICE

��

[NDC08] 최적화와 프로파일링 - 송창규ChangKyu Song

��

Dx11 performancereloadedmistercteam

��

Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)repii

��

Triangle Visibility bufferWolfgang Engel

��

Recently uploaded (20)

Azure vs AWS Which Cloud Platform Is Best for Your Business in 2025Infrassist Technologies Pvt. Ltd.

��

Domino IQ – What to Expect, First Steps and Use Casespanagenda

��

“How Qualcomm Is Powering AI-driven Multimedia at the Edge,” a Presentation f...Edge AI and Vision Alliance

��

For the full video of this presentation, please visit: https://www.edge-ai-vision.com/2025/06/how-qualcomm-is-powering-ai-driven-multimedia-at-the-edge-a-presentation-from-qualcomm/ Ning Bi, Vice President of Engineering at Qualcomm Technologies, presents the “How Qualcomm Is Powering AI-driven Multimedia at the Edge” tutorial at the May 2025 Embedded Vision Summit. In this talk, Bi explores the evolution of multimedia processing at the edge, from simple early use cases such as audio and video processing powered by algorithm-centric approaches to modern sophisticated capabilities such as digital human avatars that are transmitted over the communication channel, powered by data-driven AI. He explains how Qualcomm is applying AI and generative AI technologies on the edge to enrich computer vision for new and high-quality visual solutions. He also shows how Qualcomm enables a broad range of OEMs, ODMs and third-party developers to harness innovative technologies via initiatives such as the Qualcomm AI Hub, which provides a library of optimized machine learning models to enable developers to quickly incorporate AI into their applications.

Oracle Cloud Infrastructure AI FoundationsVICTOR MAESTRE RAMIREZ

��

ELNL2025 - Unlocking the Power of Sensitivity Labels - A Comprehensive Guide....Jasper Oosterveld

��

Sensitivity labels, powered by Microsoft Purview Information Protection, serve as the foundation for classifying and protecting your sensitive data within Microsoft 365. Their importance extends beyond classification and play a crucial role in enforcing governance policies across your Microsoft 365 environment. Join me, a Data Security Consultant and Microsoft MVP, as I share practical tips and tricks to get the full potential of sensitivity labels. I discuss sensitive information types, automatic labeling, and seamless integration with Data Loss Prevention, Teams Premium, and Microsoft 365 Copilot.

Trends Artificial Intelligence - Mary MeekerClive Dickens

��

Mary Meeker’s 2024 AI report highlights a seismic shift in productivity, creativity, and business value driven by generative AI. She charts the rapid adoption of tools like ChatGPT and Midjourney, likening today’s moment to the dawn of the internet. The report emphasizes AI’s impact on knowledge work, software development, and personalized services—while also cautioning about data quality, ethical use, and the human-AI partnership. In short, Meeker sees AI as a transformative force accelerating innovation and redefining how we live and work.

Agentic AI: Beyond the Buzz- LangGraph Studio V2Shashikant Jagtap

��

Developing Schemas with FME and Excel - Peak of Data & AI 2025Safe Software

��

When working with other team members who may not know the Esri GIS platform or may not be database professionals; discussing schema development or changes can be difficult. I have been using Excel to help illustrate and discuss schema design/changes during meetings and it has proven a useful tool to help illustrate how a schema will be built. With just a few extra columns, that Excel file can be sent to FME to create new feature classes/tables. This presentation will go thru the steps needed to accomplish this task and provide some lessons learned and tips/tricks that I use to speed the process.

Down the Rabbit Hole – Solving 5 Training RoadblocksRustici Software

��

Feeling stuck in the Matrix of your training technologies? You’re not alone. Managing your training catalog, wrangling LMSs and delivering content across different tools and audiences can feel like dodging digital bullets. At some point, you hit a fork in the road: Keep patching things up as issues pop up… or follow the rabbit hole to the root of the problems. Good news, we’ve already been down that rabbit hole. Peter Overton and Cameron Gray of Rustici Software are here to share what we found. In this webinar, we’ll break down 5 training roadblocks in delivery and management and show you how they’re easier to fix than you might think.

FCF- Getting Started in Cybersecurity 3.0RodrigoMori7

��

Murdledescargadarkweb.pdfvolumen1 100 elementaryJorgeSemperteguiMont

��

cnc-drilling-dowel-inserting-machine-drillteq-d-510-english.pdfAmirStern2

��

LSNIF: Locally-Subdivided Neural Intersection FunctionTakahiro Harada

��

Neural representations have shown the potential to accelerate ray casting in a conventional ray-tracing-based rendering pipeline. We introduce a novel approach called Locally-Subdivided Neural Intersection Function (LSNIF) that replaces bottom-level BVHs used as traditional geometric representations with a neural network. Our method introduces a sparse hash grid encoding scheme incorporating geometry voxelization, a scene-agnostic training data collection, and a tailored loss function. It enables the network to output not only visibility but also hit-point information and material indices. LSNIF can be trained offline for a single object, allowing us to use LSNIF as a replacement for its corresponding BVH. With these designs, the network can handle hit-point queries from any arbitrary viewpoint, supporting all types of rays in the rendering pipeline. We demonstrate that LSNIF can render a variety of scenes, including real-world scenes designed for other path tracers, while achieving a memory footprint reduction of up to 106.2x compared to a compressed BVH. https://arxiv.org/abs/2504.21627

If You Use Databricks, You Definitely Need FMESafe Software

��

National Fuels Treatments Initiative: Building a Seamless Map of Hazardous Fu...Safe Software

��

The National Fuels Treatments Initiative (NFT) is transforming wildfire mitigation by creating a standardized map of nationwide fuels treatment locations across all land ownerships in the United States. While existing state and federal systems capture this data in diverse formats, NFT bridges these gaps, delivering the first truly integrated national view. This dataset will be used to measure the implementation of the National Cohesive Wildland Strategy and demonstrate the positive impact of collective investments in hazardous fuels reduction nationwide. In Phase 1, we developed an ETL pipeline template in FME Form, leveraging a schema-agnostic workflow with dynamic feature handling intended for fast roll-out and light maintenance. This was key as the initiative scaled from a few to over fifty contributors nationwide. By directly pulling from agency data stores, oftentimes ArcGIS Feature Services, NFT preserves existing structures, minimizing preparation needs. External mapping tables ensure consistent attribute and domain alignment, while robust change detection processes keep data current and actionable. Now in Phase 2, we’re migrating pipelines to FME Flow to take advantage of advanced scheduling, monitoring dashboards, and automated notifications to streamline operations. Join us to explore how this initiative exemplifies the power of technology, blending FME, ArcGIS Online, and AWS to solve a national business problem with a scalable, automated solution.

7 Salesforce Data Cloud Best Practices.pdfMinuscule Technologies

��

End-to-end Assurance for SD-WAN & SASE with ThousandEyesThousandEyes

��

MCP vs A2A vs ACP: Choosing the Right Protocol | BluebashBluebash

��

Your startup on AWS - How to architect and maintain a Lean and Mean accountangelo60207

��

Prevent infrastructure costs from becoming a significant line item on your startup’s budget! Serial entrepreneur and software architect Angelo Mandato will share his experience with AWS Activate (startup credits from AWS) and knowledge on how to architect a lean and mean AWS account ideal for budget minded and bootstrapped startups. In this session you will learn how to manage a production ready AWS account capable of scaling as your startup grows for less than $100/month before credits. We will discuss AWS Budgets, Cost Explorer, architect priorities, and the importance of having flexible, optimized Infrastructure as Code. We will wrap everything up discussing opportunities where to save with AWS services such as S3, EC2, Load Balancers, Lambda Functions, RDS, and many others.

Data Virtualization: Bringing the Power of FME to Any ApplicationSafe Software

��

Imagine building web applications or dashboards on top of all your systems. With FME’s new Data Virtualization feature, you can deliver the full CRUD (create, read, update, and delete) capabilities on top of all your data that exploit the full power of FME’s all data, any AI capabilities. Data Virtualization enables you to build OpenAPI compliant API endpoints using FME Form’s no-code development platform. In this webinar, you’ll see how easy it is to turn complex data into real-time, usable REST API based services. We’ll walk through a real example of building a map-based app using FME’s Data Virtualization, and show you how to get started in your own environment – no dev team required. What you’ll take away: -How to build live applications and dashboards with federated data -Ways to control what’s exposed: filter, transform, and secure responses -How to scale access with caching, asynchronous web call support, with API endpoint level security. -Where this fits in your stack: from web apps, to AI, to automation Whether you’re building internal tools, public portals, or powering automation – this webinar is your starting point to real-time data delivery.

Azure vs AWS Which Cloud Platform Is Best for Your Business in 2025Infrassist Technologies Pvt. Ltd.

��

Domino IQ – What to Expect, First Steps and Use Casespanagenda

��

“How Qualcomm Is Powering AI-driven Multimedia at the Edge,” a Presentation f...Edge AI and Vision Alliance

��

Oracle Cloud Infrastructure AI FoundationsVICTOR MAESTRE RAMIREZ

��

ELNL2025 - Unlocking the Power of Sensitivity Labels - A Comprehensive Guide....Jasper Oosterveld

��

Trends Artificial Intelligence - Mary MeekerClive Dickens

��

Agentic AI: Beyond the Buzz- LangGraph Studio V2Shashikant Jagtap

��

Developing Schemas with FME and Excel - Peak of Data & AI 2025Safe Software

��

Down the Rabbit Hole – Solving 5 Training RoadblocksRustici Software

��

FCF- Getting Started in Cybersecurity 3.0RodrigoMori7

��

Murdledescargadarkweb.pdfvolumen1 100 elementaryJorgeSemperteguiMont

��

cnc-drilling-dowel-inserting-machine-drillteq-d-510-english.pdfAmirStern2

��

LSNIF: Locally-Subdivided Neural Intersection FunctionTakahiro Harada

��

If You Use Databricks, You Definitely Need FMESafe Software

��

National Fuels Treatments Initiative: Building a Seamless Map of Hazardous Fu...Safe Software

��

7 Salesforce Data Cloud Best Practices.pdfMinuscule Technologies

��

End-to-end Assurance for SD-WAN & SASE with ThousandEyesThousandEyes

��

MCP vs A2A vs ACP: Choosing the Right Protocol | BluebashBluebash

��

Your startup on AWS - How to architect and maintain a Lean and Mean accountangelo60207

��

Data Virtualization: Bringing the Power of FME to Any ApplicationSafe Software

��

Unite2019 HLOD를 활용한 대규모 씬 제작 방법

2. Unity Technologies Spotlight Team Senior Engine Programmer

3. 3

4. Spotlight Team 4 — —

5. 5 — ReCore — Praey for the Gods — Tacoma — Final Fantasy XV Pocket Edition — Shadow Tactics — Battletech — ETC...

6. 6

7. 7

8. 8

9. 9

10. 10 — HLOD — HLOD — HLOD

11. 11 — HLOD — HLOD

12. 12

13. 13

14. 14

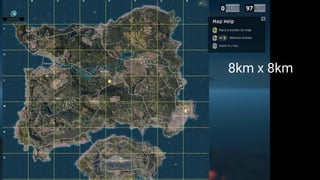

15. 15 8km x 8km

16. 16

17. 17 4km x 4km 24000 Tree 8000 House 32000 Probs

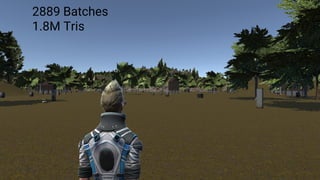

18. 18 2889 Batches 1.8M Tris

19. 19 — 여기서 모바일 버짓과 현실 비교 — 배치를 줄여야 수행 가능 — 배치를 줄여야 한다. 그래픽 최적화로 가...가버렷! (부제: 배치! 배칭을 보자!) , Batch! Let's take a look at Batching! - Unite Seoul 2016

20. 20

21. 21

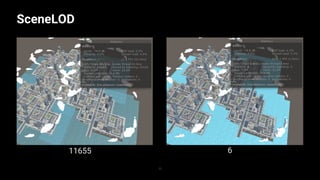

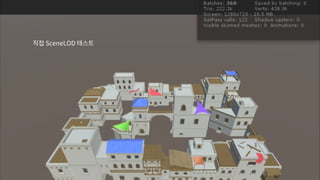

22. 11655 SceneLOD 22 6

23. 23

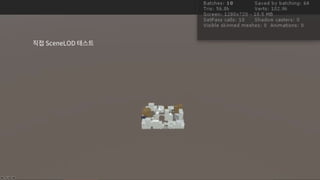

24. 24

25. SceneLOD 25 — Runtime

26. 26 HLOD

27. 27 Hierarchical Level of Detail

28. What is LOD 28 LOD0 LOD1 LOD2 GameObject

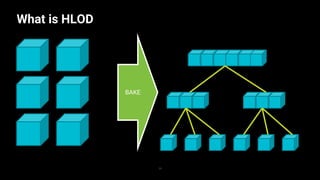

29. What is HLOD 29 BAKE
