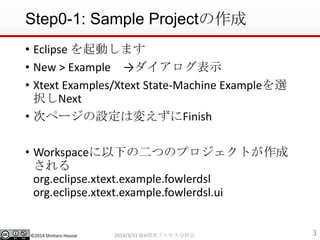

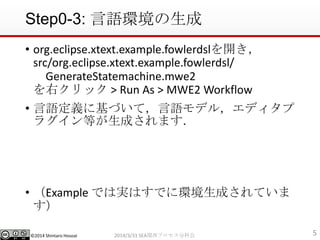

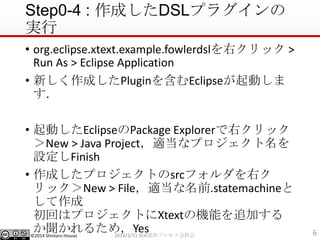

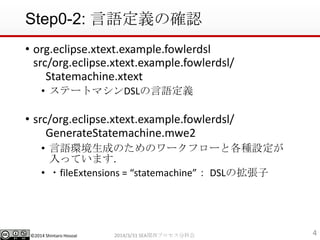

7. ?2014 Shintaro Hosoai

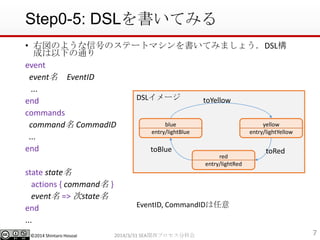

Step0-5: DSLを書いてみる
? 右図のような信号のステートマシンを書いてみましょう．DSL構
成は以下の通り
event
event名 EventID
...
end
commands
command名 CommadID
...
end
state state名
actions { command名 }
event名 => 次state名
end
...
72014/3/31 SEA関西プロセス分科会
DSLイメージ
blue
entry/lightBlue
yellow
entry/lightYellow
red
entry/lightRed
toBlue
toYellow
toRed
EventID, CommandIDは任意
8. ?2014 Shintaro Hosoai

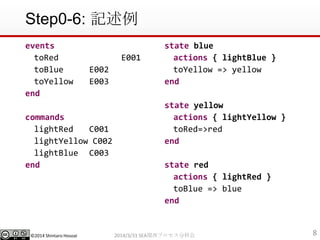

Step0-6: 記述例
events
toRed E001
toBlue E002
toYellow E003
end
commands
lightRed C001
lightYellow C002
lightBlue C003
end
state blue
actions { lightBlue }
toYellow => yellow
end
state yellow
actions { lightYellow }
toRed=>red
end
state red
actions { lightRed }
toBlue => blue
end
82014/3/31 SEA関西プロセス分科会
9. ?2014 Shintaro Hosoai

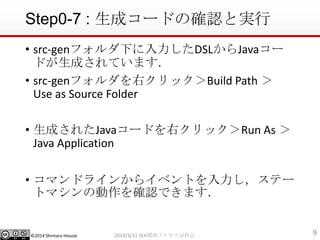

Step0-7 : 生成コードの確認と実行
? src-genフォルダ下に入力したDSLからJavaコー
ドが生成されています．
? src-genフォルダを右クリック＞Build Path ＞
Use as Source Folder
? 生成されたJavaコードを右クリック＞Run As ＞
Java Application
? コマンドラインからイベントを入力し，ステー
トマシンの動作を確認できます．
92014/3/31 SEA関西プロセス分科会
11. ?2014 Shintaro Hosoai

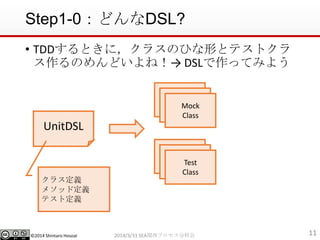

Step1-0：どんなDSL?
? TDDするときに，クラスのひな形とテストクラ
ス作るのめんどいよね！→ DSLで作ってみよう
112014/3/31 SEA関西プロセス分科会
UnitDSL
Mock
Class
Mock
Class
Mock
Class
Test
Class
Test
Class
Test
Class
クラス定義
メソッド定義
テスト定義
12. ?2014 Shintaro Hosoai

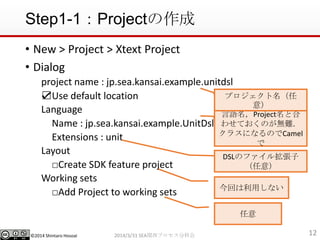

Step1-1：Projectの作成
? New > Project > Xtext Project
? Dialog
project name : jp.sea.kansai.example.unitdsl
?Use default location
Language
Name : jp.sea.kansai.example.UnitDsl
Extensions : unit
Layout
□Create SDK feature project
Working sets
□Add Project to working sets
122014/3/31 SEA関西プロセス分科会
今回は利用しない
任意
DSLのファイル拡張子
（任意）
言語名，Project名と合
わせておくのが無難．
クラスになるのでCamel
で
プロジェクト名（任
意）

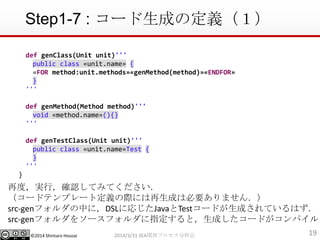

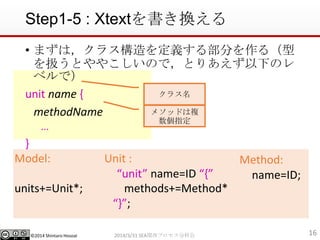

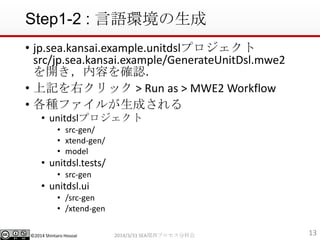

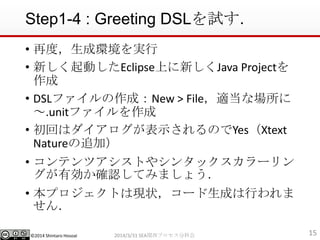

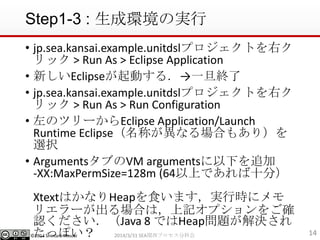

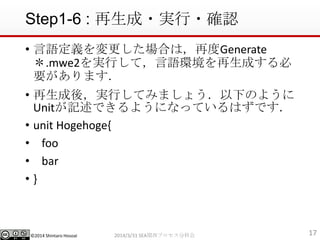

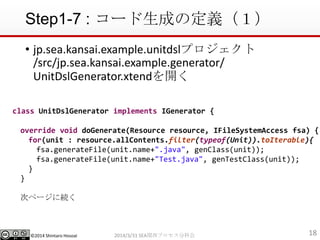

![?2014 Shintaro Hosoai

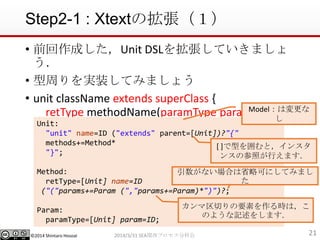

Step2-1 : Xtextの拡張（１）
? 前回作成した，Unit DSLを拡張していきましょ
う．
? 型周りを実装してみましょう
? unit className extends superClass {
retType methodName(paramType param)
}
212014/3/31 SEA関西プロセス分科会
Unit:
"unit" name=ID ("extends" parent=[Unit])?"{"
methods+=Method*
"}";
Method:
retType=[Unit] name=ID
("("params+=Param (","params+=Param)*")")?;
Param:
paramType=[Unit] param=ID;
[ ]で型を囲むと，インスタ
ンスの参照が行えます．
カンマ区切りの要素を作る時は，こ
のような記述をします．
Model：は変更な
し
引数がない場合は省略可にしてみまし
た](https://image.slidesharecdn.com/xtextpractice-140331060707-phpapp01/85/Xtext-practice-21-320.jpg)
![?2014 Shintaro Hosoai

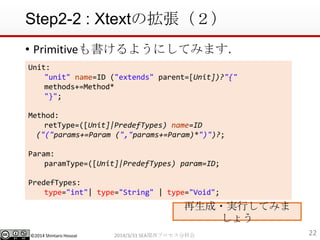

Step2-2 : Xtextの拡張（２）
? Primitiveも書けるようにしてみます．
222014/3/31 SEA関西プロセス分科会
Unit:
"unit" name=ID ("extends" parent=[Unit])?"{"
methods+=Method*
"}";
Method:
retType=([Unit]|PredefTypes) name=ID
("("params+=Param (","params+=Param)*")")?;
Param:
paramType=([Unit]|PredefTypes) param=ID;
PredefTypes:
type="int"| type="String" | type="Void";
再生成?実行してみま
しょう](https://image.slidesharecdn.com/xtextpractice-140331060707-phpapp01/85/Xtext-practice-22-320.jpg)

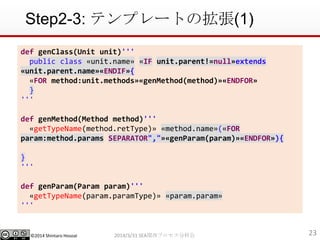

![?2014 Shintaro Hosoai

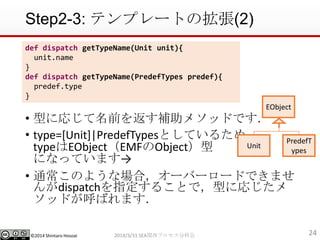

Step2-3: テンプレートの拡張(2)
? 型に応じて名前を返す補助メソッドです．
? type=[Unit]|PredefTypesとしているため
typeはEObject（EMFのObject）型
になっています→
? 通常このような場合，オーバーロードできませ
んがdispatchを指定することで，型に応じたメ
ソッドが呼ばれます．
242014/3/31 SEA関西プロセス分科会
def dispatch getTypeName(Unit unit){
unit.name
}
def dispatch getTypeName(PredefTypes predef){
predef.type
}
EObject
Unit
PredefT
ypes](https://image.slidesharecdn.com/xtextpractice-140331060707-phpapp01/85/Xtext-practice-24-320.jpg)

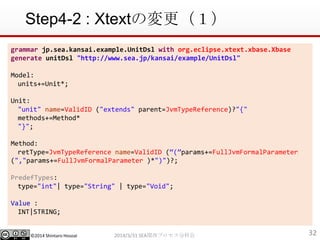

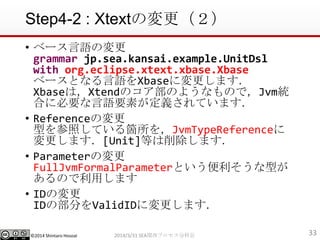

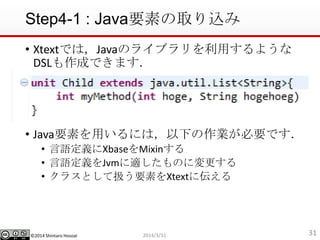

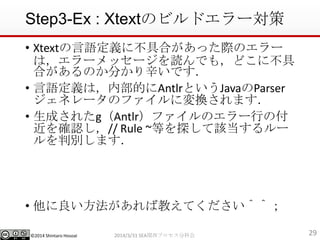

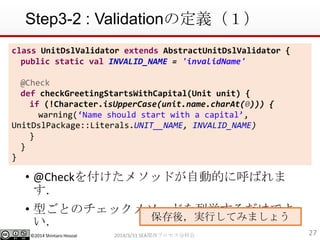

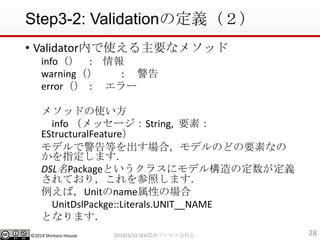

![?2014 Shintaro Hosoai
Step4-2 : Xtextの変更（２）
? ベース言語の変更
grammar jp.sea.kansai.example.UnitDsl
with org.eclipse.xtext.xbase.Xbase
ベースとなる言語をXbaseに変更します．
Xbaseは，Xtendのコア部のようなもので，Jvm統
合に必要な言語要素が定義されています．
? Referenceの変更
型を参照している箇所を，JvmTypeReferenceに
変更します．[Unit]等は削除します．
? Parameterの変更
FullJvmFormalParameterという便利そうな型が
あるので利用します
? IDの変更
IDの部分をValidIDに変更します．

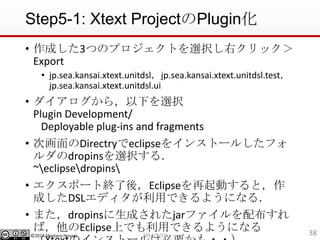

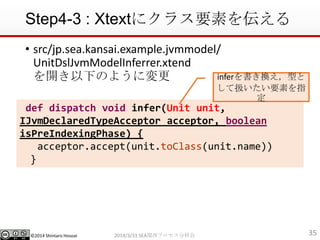

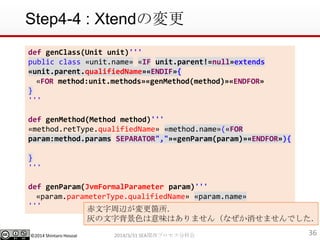

332014/3/31 SEA関西プロセス分科会](https://image.slidesharecdn.com/xtextpractice-140331060707-phpapp01/85/Xtext-practice-33-320.jpg)
